John Deere
Z740M
Z700 Series Zero-Turn Mowers

John Deere Z740M

Starting at

Heavy-duty hydrostatic transmission and tires

The ZT-3200 unitized hydrostatic transmission provides forward mowing speeds up to 9.5 mph (15.3 km/h). The transmission features heavy-duty wheel motors, charge pumps, exceptional cooling, and convenient access to check and fill hydraulic oil. The 23-inch-tall (58 cm) rear tires feature a bold tread design that helps improve traction while minimizing turf damage.

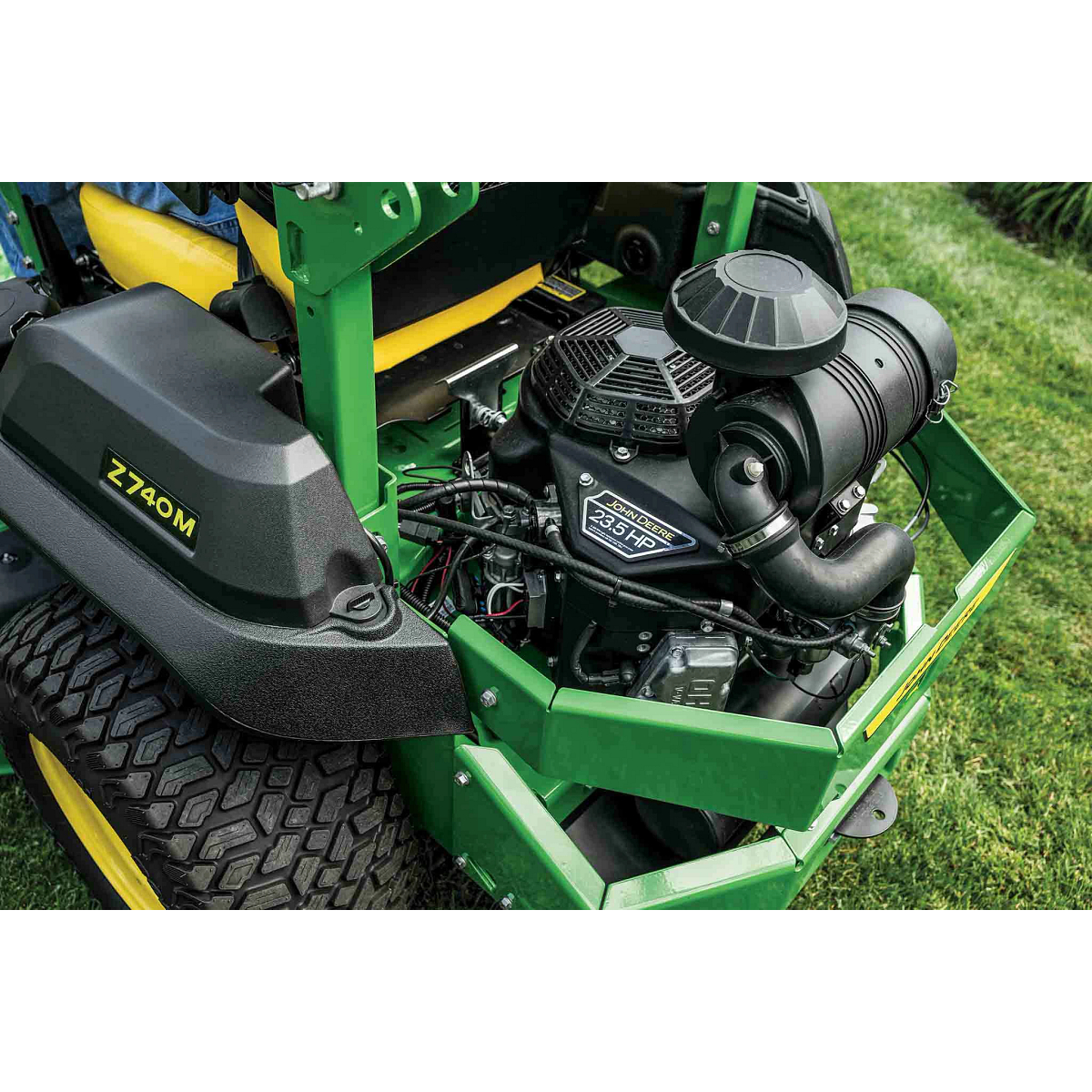

A close-up shot of a Z740M 23.5 HP engine.
7Iron™ PRO Mower Deck

Each 7Iron™ PRO deck is forged from a single sheet of 7-gauge steel for commercial-grade durability. A smooth underside and 5.5-inch (140 mm) depth helps prevent material buildup while providing excellent airflow for efficient grass processing. Thoughtfully placed anti-scalp wheels help maintain consistent cutting over uneven terrain while making it easier to climb curbs. Includes aircraft-grade cast aluminum spindle housings with reinforced ribbing for durability that stands up to daily use.

A zoomed-in shot of a green 7Iron PRO 48 inch deck on grass.

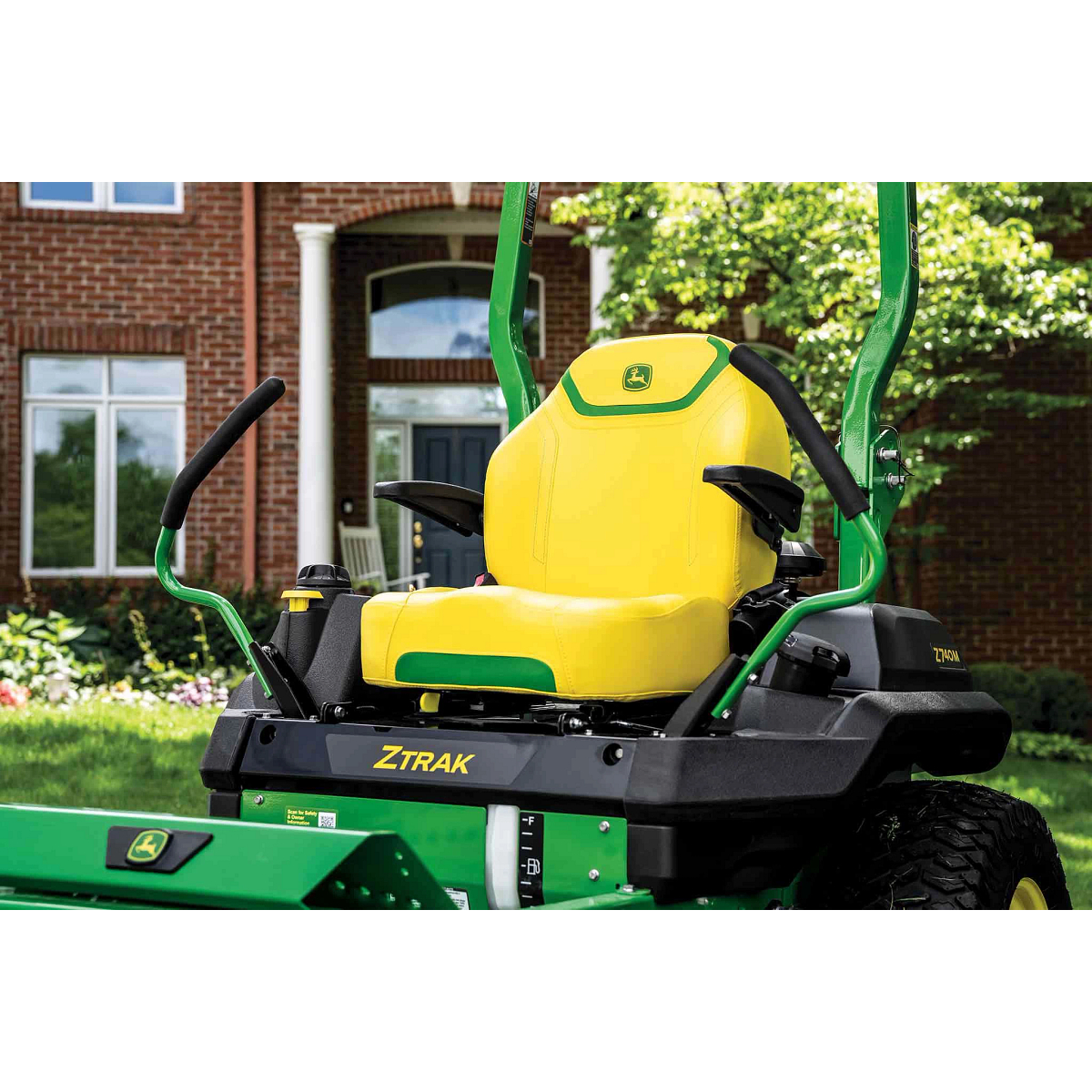

Exceptional operator comfort and control

Find your ideal operating position with an adjustable seat, steering levers, and foot platform. The seat features our ComfortGlide™ fore-and-aft suspension for exceptional ride comfort on uneven ground. Easy-to-use controls are conveniently located next to the seat, and a digital display helps you keep track of machine hours and system alerts. For convenient sit-and-go operation, the parking brake is built into the steering levers, so you can simply pull the levers in to start mowing and push them out to park.

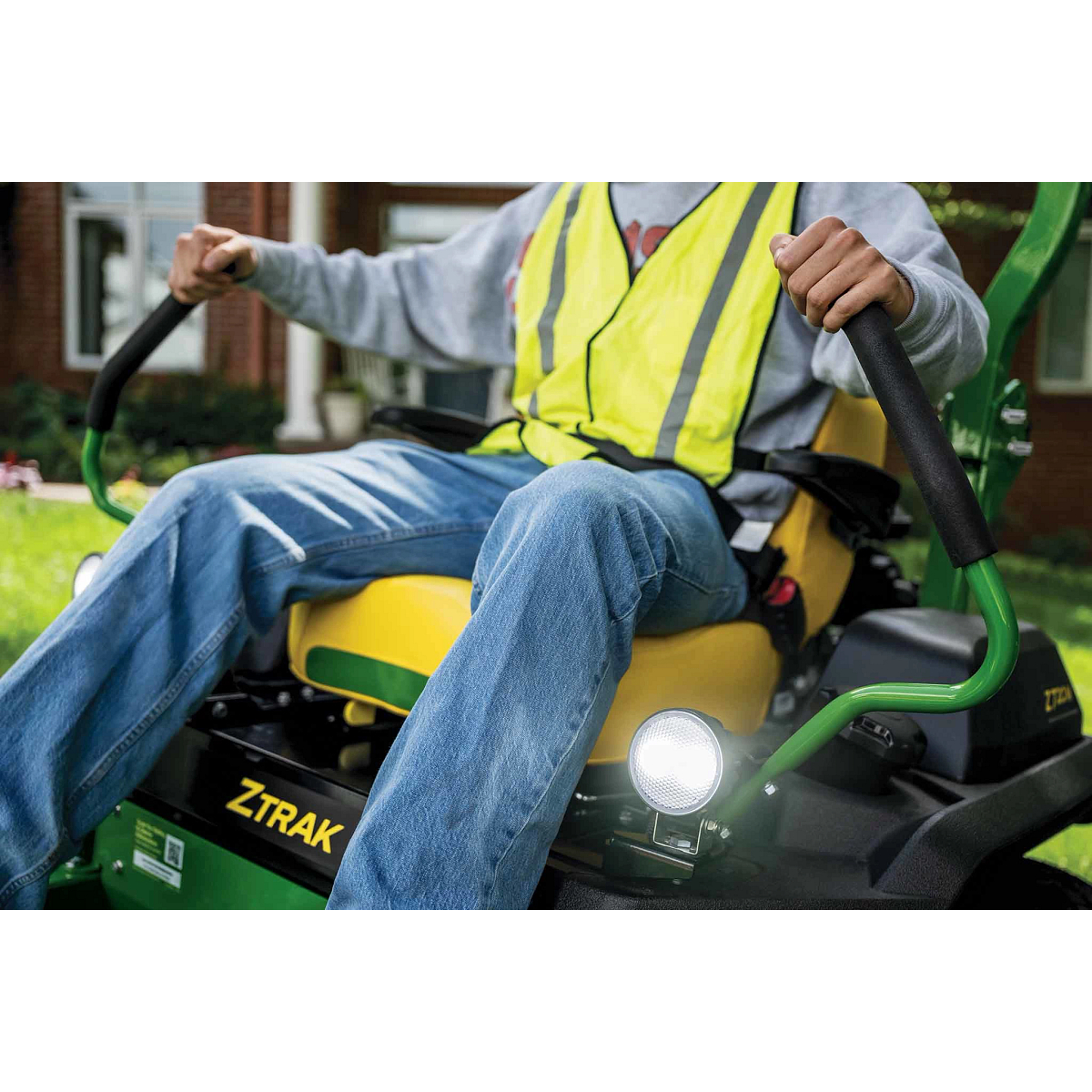

A zoomed-in shot of a landscaper operating a green Z720M zero-turn mower.
Question text goes here

Answer text goes here

Engine
Engine Power

17.5 kW

Engine Power

23.5 hp

Engine Model Number

FX730V

Displacement

726 cc

Displacement

44.2 cu in.

Cylinders

V-twin

Lubrication

Full pressure with replaceable filter

Lubrication

2.1 L

Lubrication

2.2 U.S. qt

Type

Overhead valve

Battery Voltage

12 V

Battery Cold Crank Amps

300 CCA

Choke/Speed Control

Separate control levers

Cooling Method

Air

Fuel Tank Capacity

30.2 L

Fuel Tank Capacity

8 U.S. gal.

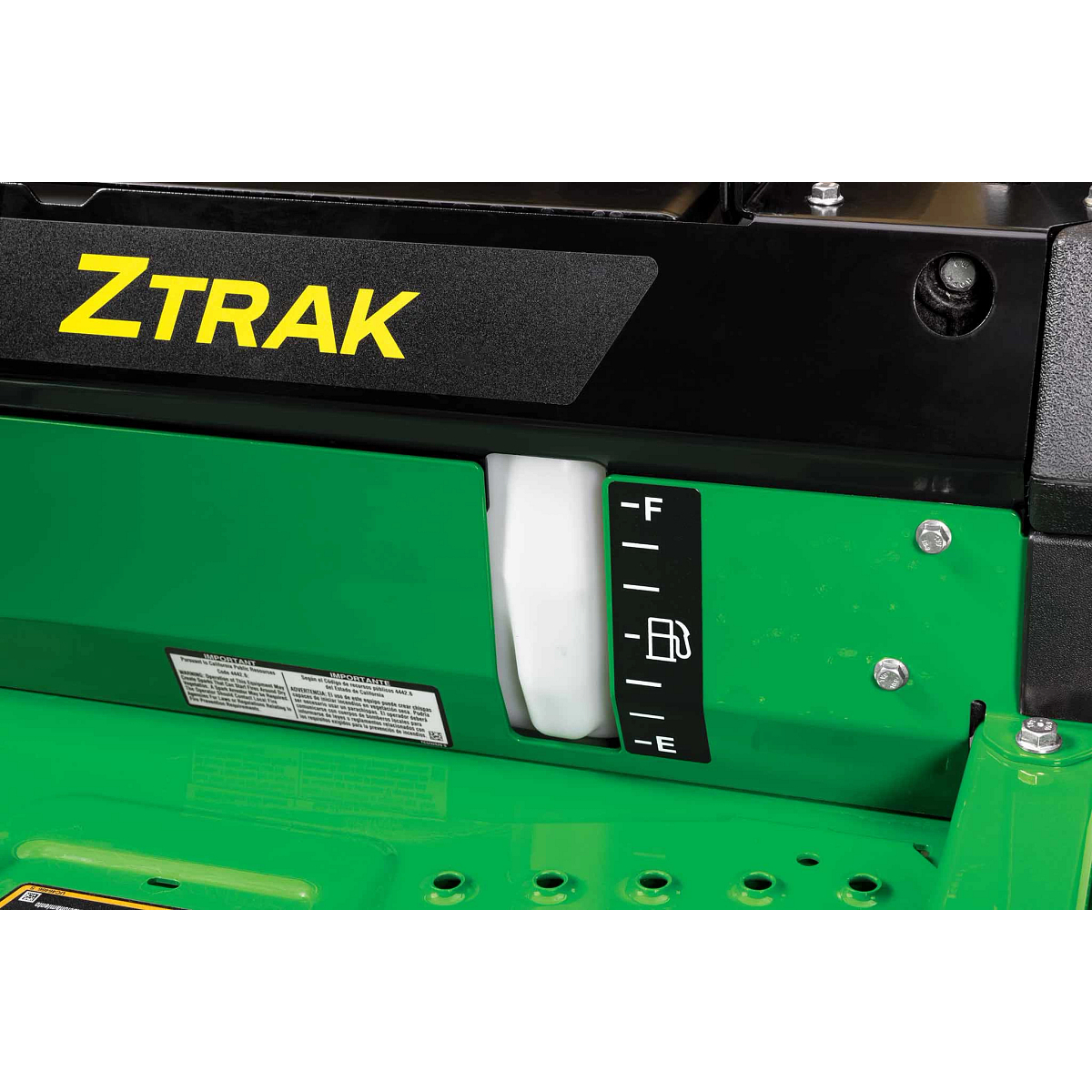

Fuel Gauge

Fuel level sight line

Drivetrain
Dual Hydros

Hydro-Gear ZT3200™ with 1.125-in. (28.6-mm) axles

Travel Speed
Forward Speed

15.3 km/h

Forward Speed

9.5 mph

Reverse Speed

6.4 km/h

Reverse Speed

4 mph

Speed And Direction Control

Twin premium levers

Control Adjustment

2-height/18 positions

Chassis
Frame

Heavy-duty frame tubing

Primer/Paint

E-coat/powder

Front Caster Tires

13x6.5-6

Front Caster Bearings

Sealed ball bearings

Drive Tires

23X10.5-12

Hour Meter

Yes, with low oil pressure, warning, service maintenance, and operator presence indicators

Service Interval Decal

Yes

Storage Compartment

Yes

Cup Holder

Yes

Seat
Seat Back Height

57 cm

Seat Back Height

22.5 in.

Fore-Aft Adjustment

10.2 cm

Fore-Aft Adjustment

4 in.

Seat Suspension

Two four-position springs with ComfortGlide™ fore-and-aft suspension

Lift System
Type

Spring assisted foot lift

Mower Cut Height - Minimum

3.8 cm

Mower Cut Height - Minimum

1.5 in.

Mower Cut Height - Maximum

12.7 cm

Mower Cut Height - Maximum

5 in.

Cut Height Increments

0.64 cm

Cut Height Increments

0.25 in.

Preset Cut Height

Yes

Mower Deck
Cutting Width

152 cm

Cutting Width

60 in.

Type

7Iron™ PRO side discharge

Mower Deck Material

7 gauge

Mower Deck Material

4.6 mm

Mower Deck Material

0.179 in.

Mower Drive System

V-belt

Power Take-Off (PTO)
Type

Electric

Type

169 Nm

Type

125 lb-ft

Drive

V-belt

Dimensions
Wheelbase

126.7 cm

Wheelbase

49.9 in.

Overall Length

204.6 cm

Overall Length

80.6 in.

Width Without Mower

120 cm

Width Without Mower

47.4 in.

Width With Mower

186.1 cm

Width With Mower

73.3 in.

Width With Mower (Deflector Raised For Storage)

155.8 cm

Width With Mower (Deflector Raised For Storage)

61.3 in.

Height

182.2 cm

Height

71.7 in.

Weight

451 kg

Weight

995 lb.

Operation
Rollover Protective Structure (ROPS)

Yes

Slope 0perating Limit

15 degrees (material collection systems, weather enclosures, or other attachments increase the risk of a rollover) degree (angle)

Operator Presence System

Yes

Park Brake Interlock

Yes

Buyer's Notes
Note 1

Flip-up and adjustable foot platform for easy service access

Warranty

4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional Attachments
Mulching System

Optional mulch kit

Rubber Floor Mat

Optional

Light Kit

Optional LED work and beacon lights

Material Collection System

Power Flow™ rear bagger

Material Collection System

229 L

Material Collection System

6.5 bu
