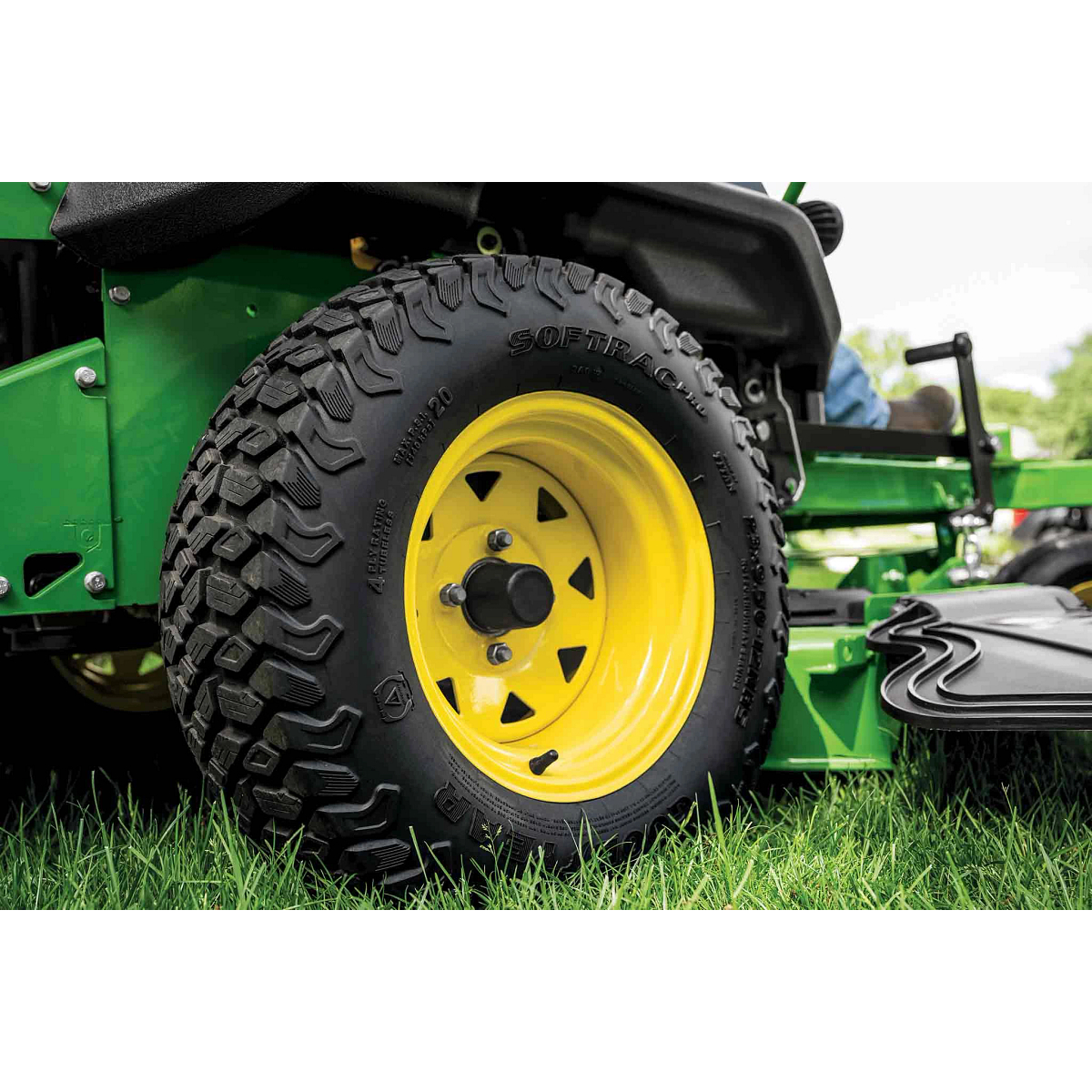

The ZT-3200 unitized hydrostatic transmission provides forward mowing speeds up to 9.5 mph (15.3 km/h). The transmission features heavy-duty wheel motors, charge pumps, exceptional cooling, and convenient access to check and fill hydraulic oil. The 23-inch-tall (58 cm) rear tires feature a bold tread design that helps improve traction while minimizing turf damage.

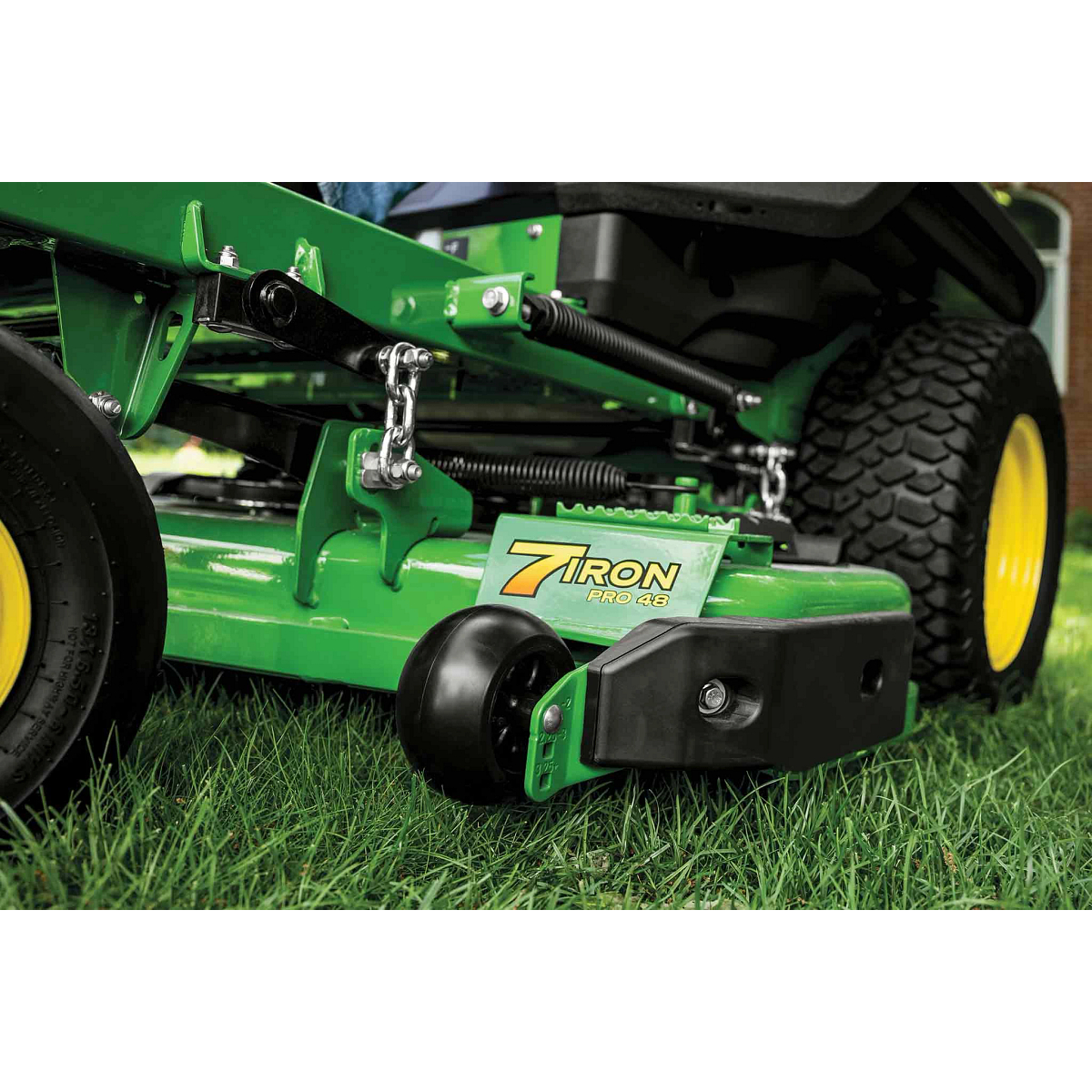

Each 7Iron™ PRO deck is forged from a single sheet of 7-gauge steel for commercial-grade durability. A smooth underside and 5.5-inch (140 mm) depth helps prevent material buildup while providing excellent airflow for efficient grass processing. Thoughtfully placed anti-scalp wheels help maintain consistent cutting over uneven terrain while making it easier to climb curbs. Includes aircraft-grade cast aluminum spindle housings with reinforced ribbing for durability that stands up to daily use.

Find your ideal operating position with an adjustable seat, steering levers, and foot platform. The seat features our ComfortGlide fore-and-aft suspension for exceptional ride comfort on uneven ground. Easy-to-use controls are conveniently located next to the seat, and a digital display helps you keep track of machine hours and system alerts. For convenient stand-go operation, the parking brake is built into the steering levers, so you can simply pull the levers in to start mowing and push them out to park.

Answer text goes here

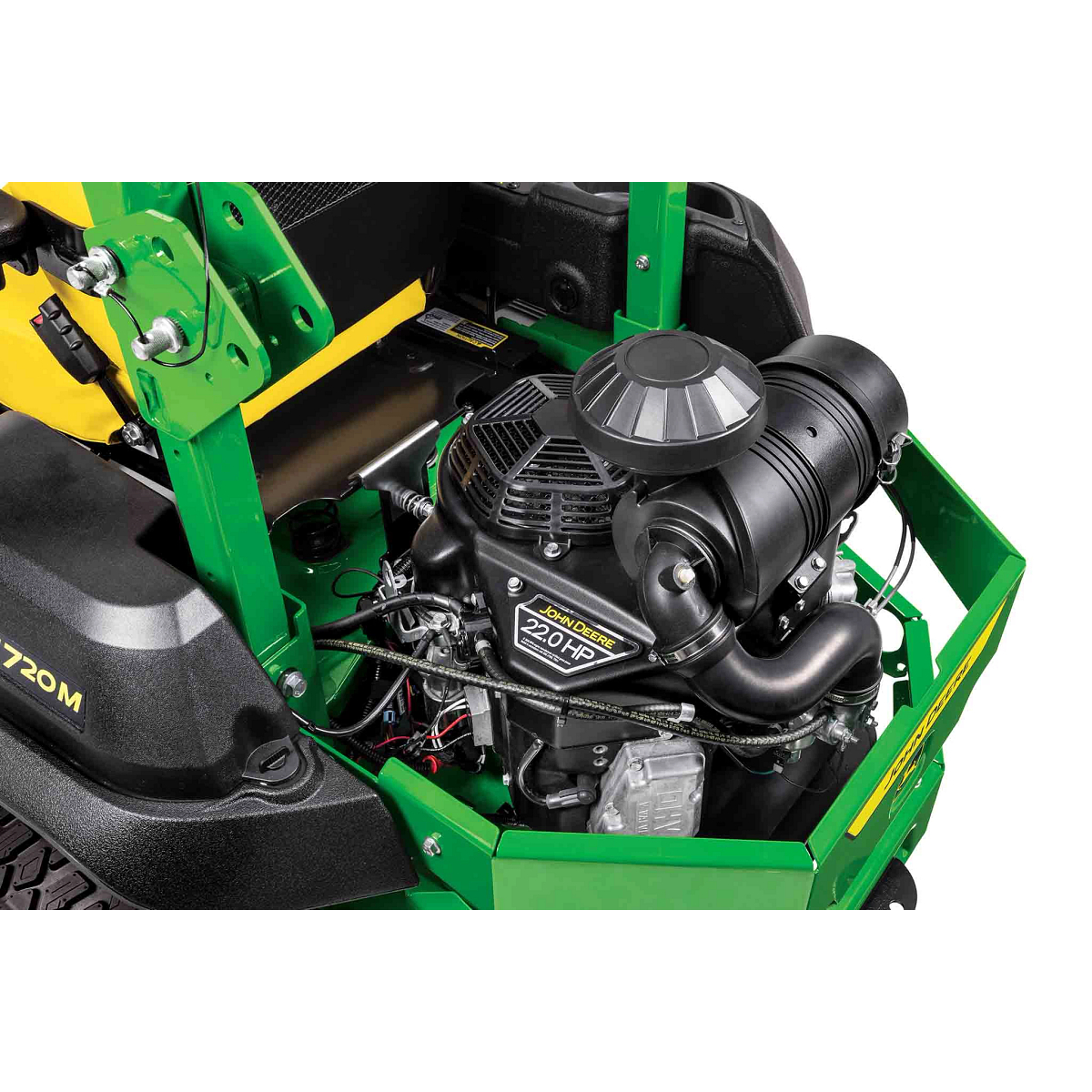

Engine Power | 16.4 kW |
Engine Power | 22 hp |
Engine Model Number | FX691V |
Displacement | 726 cc |
Displacement | 44.2 cu in. |
Cylinders | V-twin |
Lubrication | Full pressure with replaceable filter |
Lubrication | 2.1 L |
Lubrication | 2.2 U.S. qt |
Type | Overhead valve |
Battery Voltage | 12 V |
Battery Cold Crank Amps | 300 CCA |
Choke/Speed Control | Separate control levers |
Cooling Method | Air |
Fuel Tank Capacity | 30.2 L |
Fuel Tank Capacity | 8 U.S. gal. |
Fuel Gauge | Fuel level sight line |
Dual Hydros | Hydro-Gear ZT3200™ with 1.125-in. (28.6-mm) axles |
Forward Speed | 15.3 km/h |
Forward Speed | 9.5 mph |
Reverse Speed | 6.4 km/h |
Reverse Speed | 4.5 mph |
Speed And Direction Control | Twin premium levers |
Control Adjustment | 2-height/18 positions |
Frame | Heavy-duty frame tubing |
Primer/Paint | E-coat/powder |
Front Caster Tires | 13x6.5-6 |
Front Caster Bearings | Sealed ball bearings |
Drive Tires | 23X9.5-12 (48-in. deck); 23X10.5-12 (54-in. deck) |
Hour Meter | Yes, with low oil pressure, warning, service maintenance, and operator presence indicators |
Service Interval Decal | Yes |
Storage Compartment | Yes |
Cup Holder | Yes |
Seat Back Height | 57 cm |
Seat Back Height | 22.5 in. |
Fore-Aft Adjustment | 10.2 cm |
Fore-Aft Adjustment | 4 in. |
Seat Suspension | Two four-position springs with ComfortGlide™ fore-and-aft suspension |
Type | Spring assisted foot lift |
Mower Cut Height - Minimum | 3.8 cm |
Mower Cut Height - Minimum | 1.5 in. |
Mower Cut Height - Maximum | 12.7 cm |
Mower Cut Height - Maximum | 5 in. |
Cut Height Increments | 0.64 cm |
Cut Height Increments | 0.25 in. |
Preset Cut Height | Yes |
Cutting Width | 137 cm |
Cutting Width | 54 in. |
Type | 7Iron™ PRO side discharge |
Mower Deck Material | 7 gauge |
Mower Deck Material | 4.6 mm |
Mower Deck Material | 0.179 in. |
Mower Drive System | V-belt |
Type | Electric |
Type | 169 Nm |
Type | 125 lb-ft |
Drive | V-belt |
Wheelbase | 126.7 cm |
Wheelbase | 49.9 in. |
Overall Length | 204.6 cm |
Overall Length | 80.6 in. |
Width Without Mower | 120 cm |
Width Without Mower | 47.4 in. |
Width With Mower | 173.2 cm |
Width With Mower | 68.2 in. |
Width With Mower (Deflector Raised For Storage) | 142.7 cm |
Width With Mower (Deflector Raised For Storage) | 56.1 in. |
Height | 182.2 cm |
Height | 71.7 in. |
Weight | 438 kg |
Weight | 965 lb. |
Rollover Protective Structure (ROPS) | Yes |
Slope 0perating Limit | 15 degrees (material collection systems, weather enclosures, or other attachments increase the risk of a rollover) degree (angle) |
Operator Presence System | Yes |
Park Brake Interlock | Yes |
Note 1 | Flip-up and adjustable foot platform for easy service access |
Warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Mulching System | Optional mulch kit |
Rubber Floor Mat | Optional |
Light Kit | Optional LED work and beacon lights |
Material Collection System | Power Flow™ rear bagger |
Material Collection System | 229 L |
Material Collection System | 6.5 bu |
Date Collected | 2026-09-01T00:00:00 |
