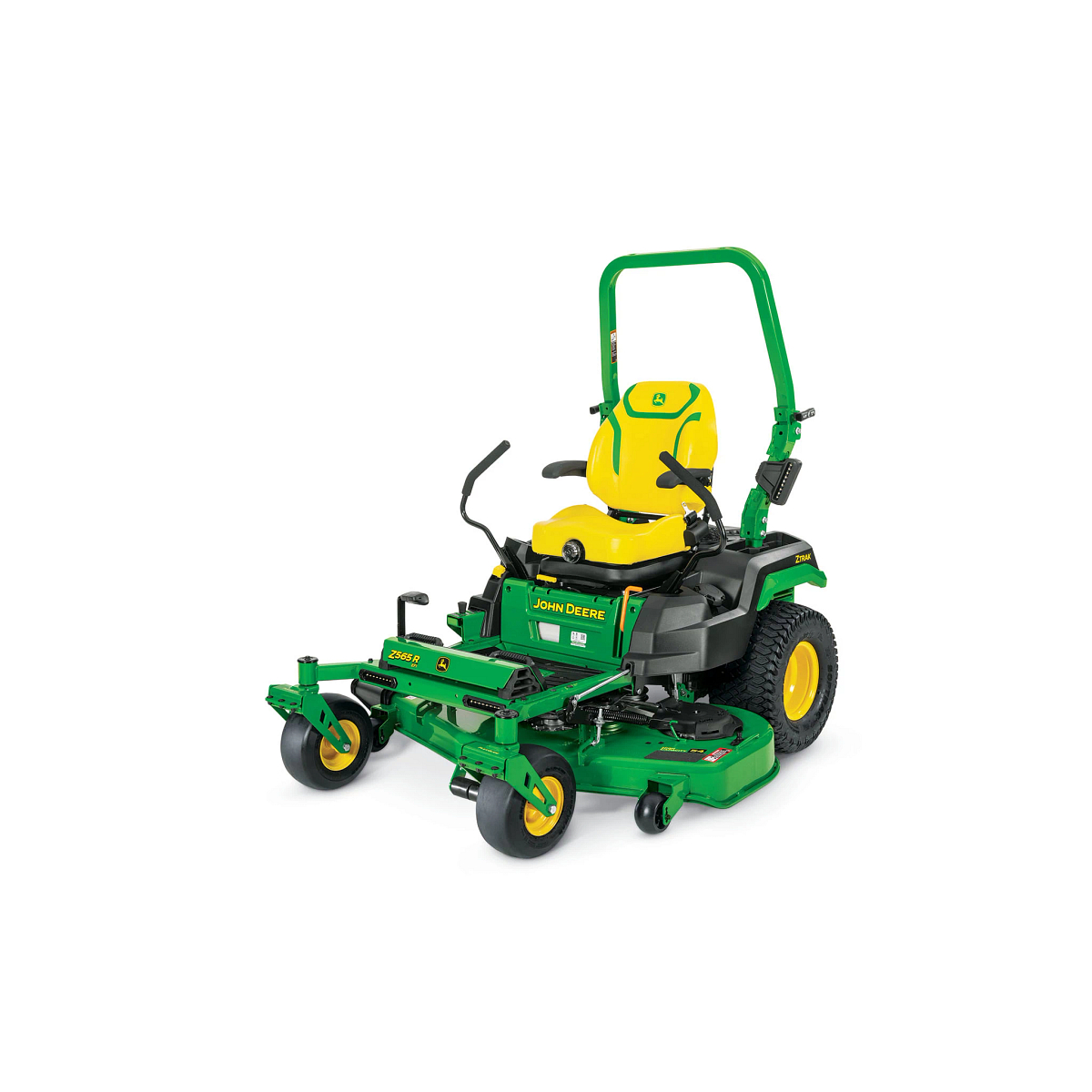

A front-left-facing studio shot of a green zero-turn mower on a white background.
A rear-right-facing studio shot of a green zero-turn mower on a white background.
A front-facing studio shot of a green zero-turn mower on a white background.
A top-down-facing studio shot of a green zero-turn mower on a white background.

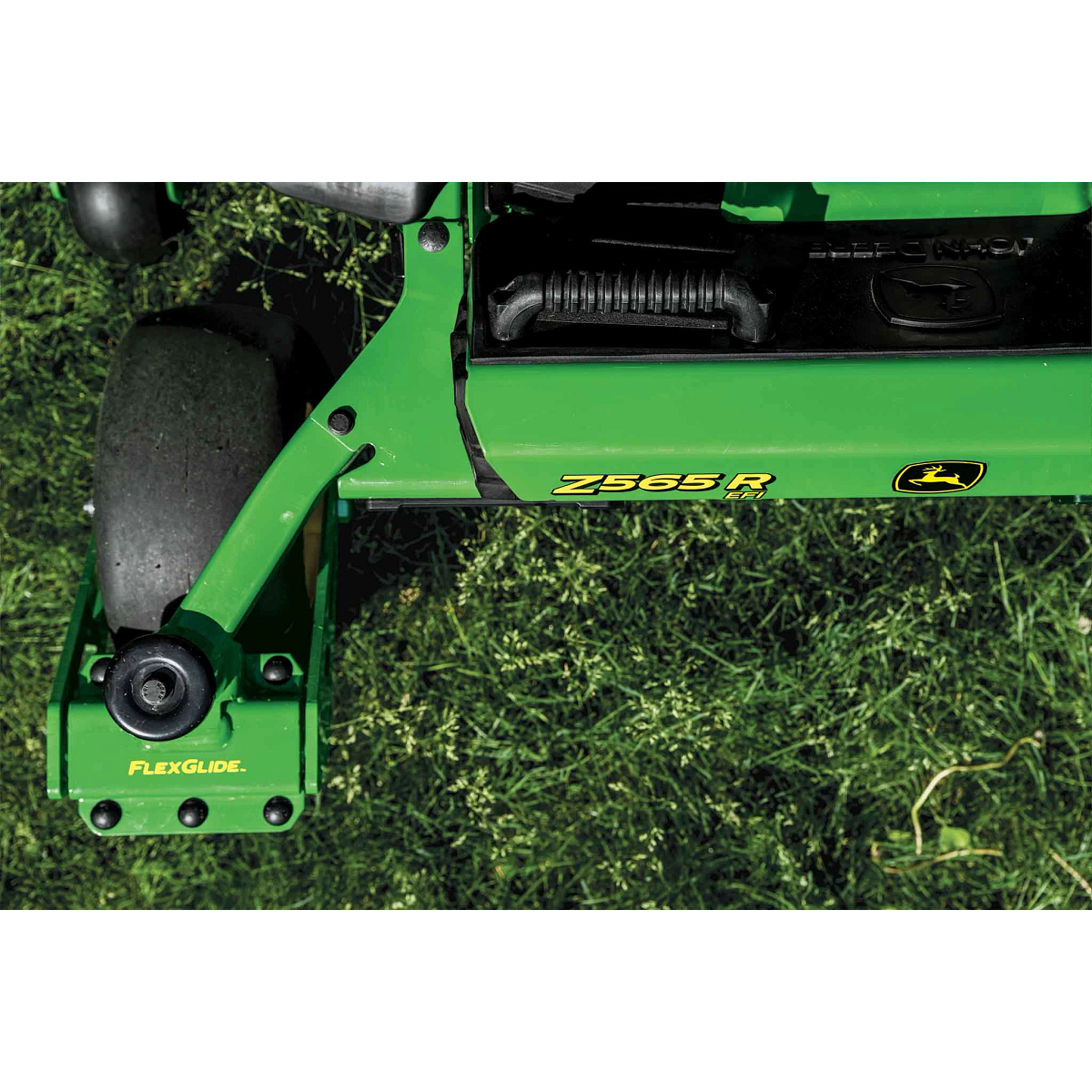

Close-up shot of the Z565R and FlexGlide logos on a zero-turn mower over grass.

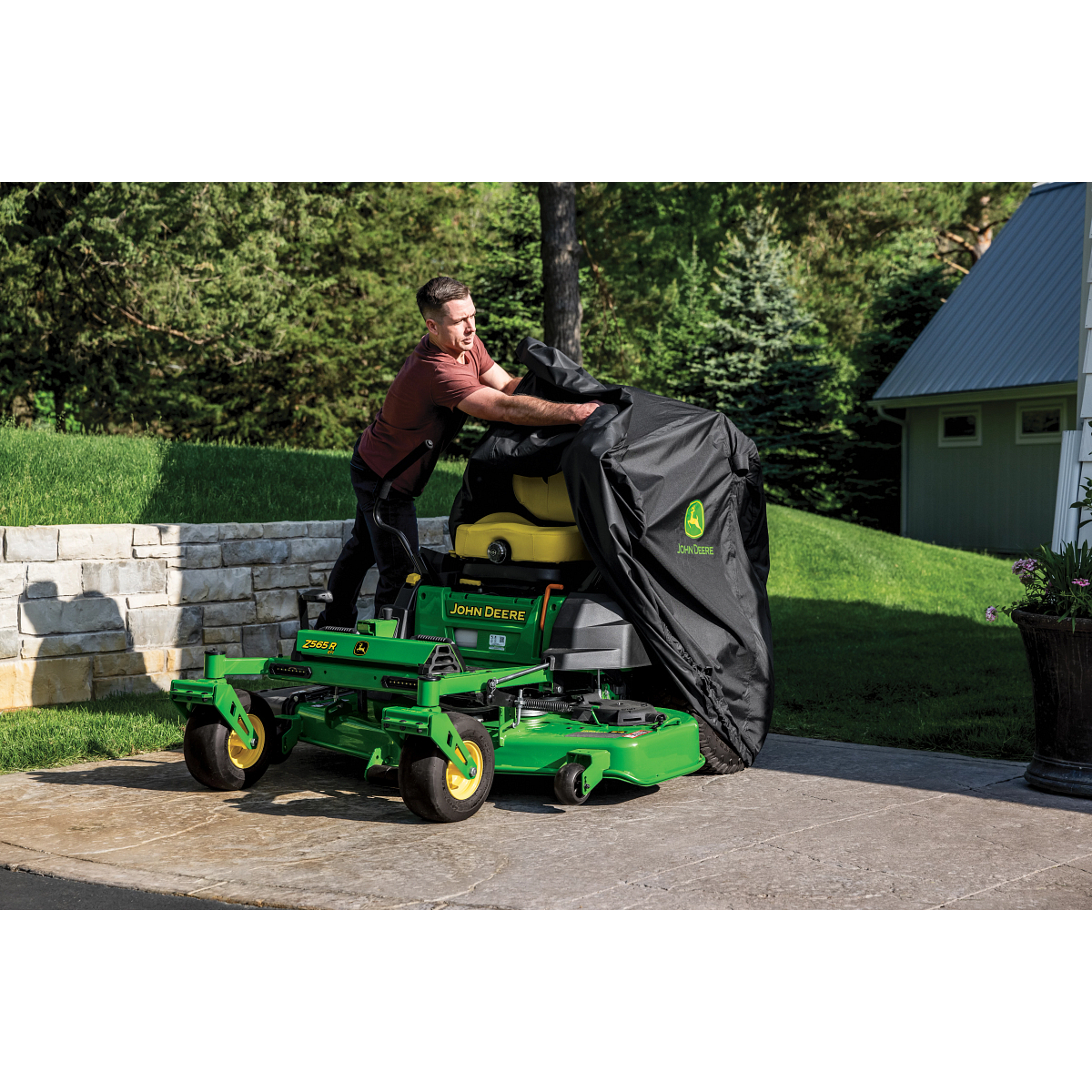

A cover with the Deere logo being removed from a green zero-turn mower in a driveway.
No items found.
new
John Deere
Z565R
Z500 Series Zero-Turn Mowers

John Deere Z565R

Starting at

High-Capacity Mower Deck

The High-Capacity mower deck features heavy-duty 9-gauge steel construction, a 5.5-in. (14-cm) deep deck design, and upgraded commercial-grade spindles for exceptional strength and durability. Engineered to withstand seasons of hard use, it also features an optimized discharge system that helps power through tall, dense, and fast-growing grass for a professional finish across large properties and challenging mower conditions.

Close-up of the logo on a High-Capacity 54-inch green zero-turn mower deck on a white background.
FlexGlide™ Caster Fork Suspension System

With flexing arms in the caster assemblies, FlexGlide™ helps the front wheels absorb impacts over uneven terrain, providing a much smoother, more enjoyable ride. This also helps stabilize the mower deck, reduce bouncing, and prevent scalping for a more consistent cut height on varying ground.

Close-up shot of the Z565R and FlexGlide logos on a zero-turn mower on a white background.
Head-to-Toe Operator Comfort

The adjustable 24-in. (61-cm) mechanical suspension seat can be fine-tuned to match your weight and preferred seating position for a more personalized ride and perfectly cushioned support. The suspension seat has 3 in. (7.6 cm) of vertical travel to absorb bumps and impacts, and allows you to enjoy your mow, not endure it. A large foot platform with a rubber floor and toe mat adds extra traction while helping further reduce vibration underfoot.

A close-up of a zero-turn mower driver turning the seat adjustment dial.
Question text goes here

Answer text goes here

Engine
Engine Power

18.6 kW

Engine Power

25 hp

Engine Model Number

HTR EFI/ETC

Displacement

724 cc

Displacement

44.2 cu in.

Cylinders

V-twin

Lubrication

Full pressure with replaceable filter

Lubrication

1.9 L

Lubrication

2 U.S. qt

Type

Overhead valve

Battery Voltage

12 V

Battery Cold Crank Amps

300 CCA

Choke/Speed Control

Separate control levers

Cooling Method

Air

Fuel Tank Capacity

17 L

Fuel Tank Capacity

4.5 U.S. gal.

Fuel Gauge

Instrument display with fuel gauge and fuel level sight line

Drivetrain
Dual Hydros

Tuff Torq® TZT7-AC with 1-in. (2.5-cm) axles

Travel Speed
Forward Speed

14.5 km/h

Forward Speed

9 mph

Reverse Speed

7.2 km/h

Reverse Speed

4.5 mph

Speed And Direction Control

Twin levers

Control Adjustment

2-height/9-fore-aft, 18 positions

Chassis
Frame

Heavy-duty frame tubing

Primer/Paint

E-coat/powder

Front Caster Tires

13x6.5-6 with FlexGlide™ caster suspension

Front Caster Bearings

Sealed ball bearings

Drive Tires

23x10.5-12

Hour Meter

Yes

Service Interval Decal

Yes

Storage Compartment

Yes and covered

Cup Holder

Yes

Maximum Towing Capacity

113 kg

Maximum Towing Capacity

250 lb.

Seat
Seat Back Height

61 cm

Seat Back Height

24 in.

Fore-Aft Adjustment

7.6 cm

Fore-Aft Adjustment

3 in.

Seat Suspension

Adjustable mechanical

Lift System
Type

Foot lift

Mower Cut Height - Minimum

3.8 cm

Mower Cut Height - Minimum

1.5 in.

Mower Cut Height - Maximum

11.4 cm

Mower Cut Height - Maximum

4.5 in.

Cut Height Increments

0.64 cm

Cut Height Increments

0.25 in.

Preset Cut Height

Yes

Mower Deck
Cutting Width

137/152 cm

Cutting Width

54/60 in.

Type

High-capacity side discharge

Mower Deck Material

9 gauge

Mower Deck Material

3.8 mm

Mower Deck Material

0.15 in.

Mower Drive System

V-belt

Power Take-Off (PTO)
Type

Electric

Type

169.5 Nm

Type

125 lb-ft

Drive

V-belt

Dimensions
Wheelbase

127.5 cm

Wheelbase

50.2 in.

Overall Length

215 cm

Overall Length

84.6 in.

Width Without Mower

122.6 cm

Width Without Mower

48.2 in.

Width With Mower

187 cm

Width With Mower

73.6 in.

Width With Mower (Deflector Raised For Storage)

162 cm

Width With Mower (Deflector Raised For Storage)

63.8 in.

Height

180.7 cm

Height

71.1 in.

Weight

394 kg

Weight

869 lb.

Operation
Rollover Protective Structure (ROPS)

Yes

Slope 0perating Limit

Standard: 15 degrees; With a Material Collection System: 10 degrees degree (angle)

Operator Presence System

Yes

Park Brake Interlock

Yes

Operator Video

Yes

Buyer's Notes
Warranty

4 year or 500 hour bumper-to-bumper

Optional Attachments
Mulching System

Optional MulchControl™ attachment, Optional MulchControl™ kit

Rubber Floor Mat

Foot platform and toe board

Sun Shade

Optional

Mounted Sprayer

No L

Mounted Sprayer

No U.S. gal.

Protective Cover

Yes

Light Kit

Front and ROPS-mounted side LED lights are standard

Material Collection System

Power Flow™ rear bagger / Not available on 60HC

Material Collection System

230 L

Material Collection System

6.5 bu

Additional Information
Manufacturing Location

Greeneville, Tennessee, USA

Date Collected

2026-10-01T00:00:00
