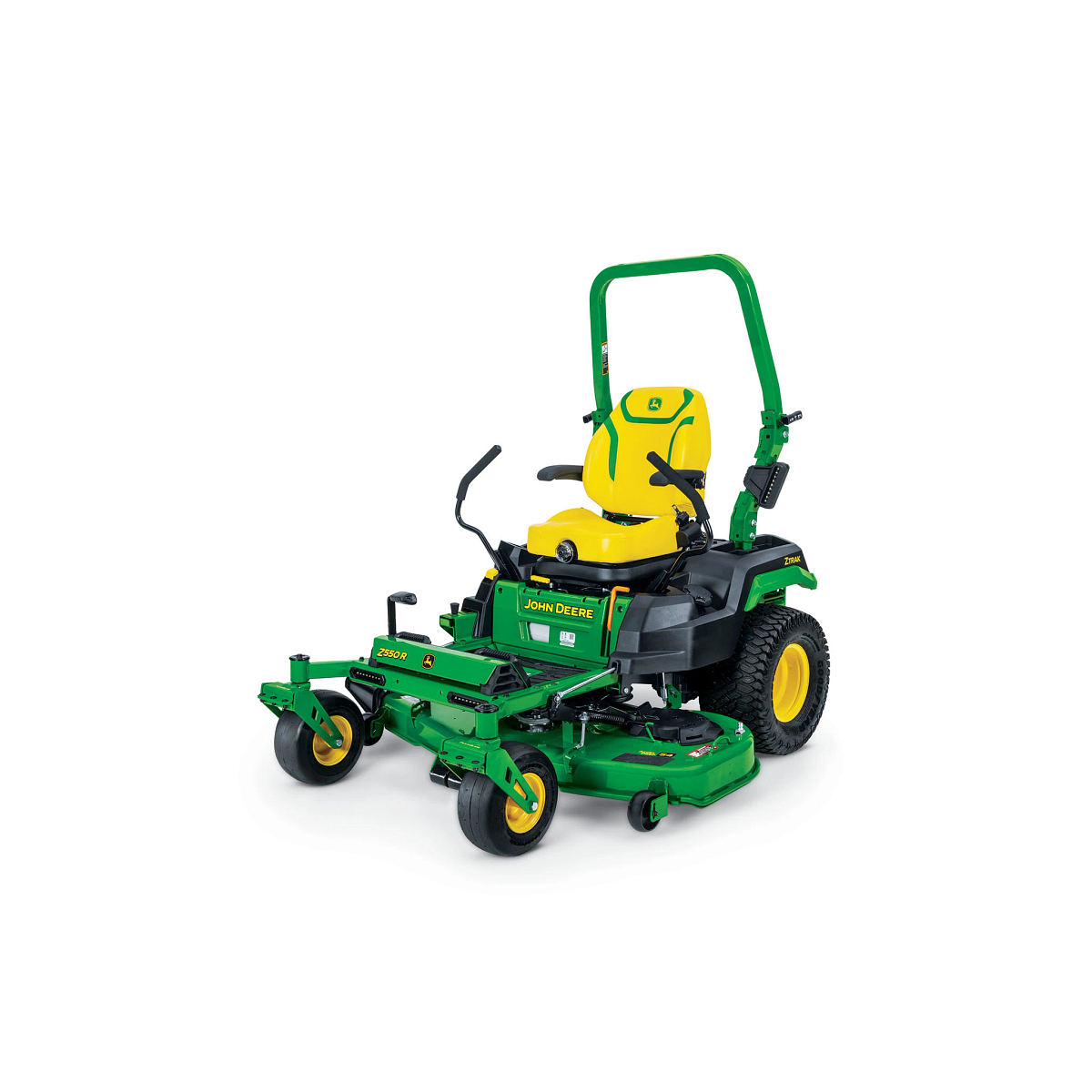

A front-left-facing studio shot of a green zero-turn mower on a white background.
A rear-right-facing studio shot of a green zero-turn mower on a white background.
A front-facing studio shot of a green zero-turn mower on a white background.
A top-down-facing studio shot of a green zero-turn mower on a white background.

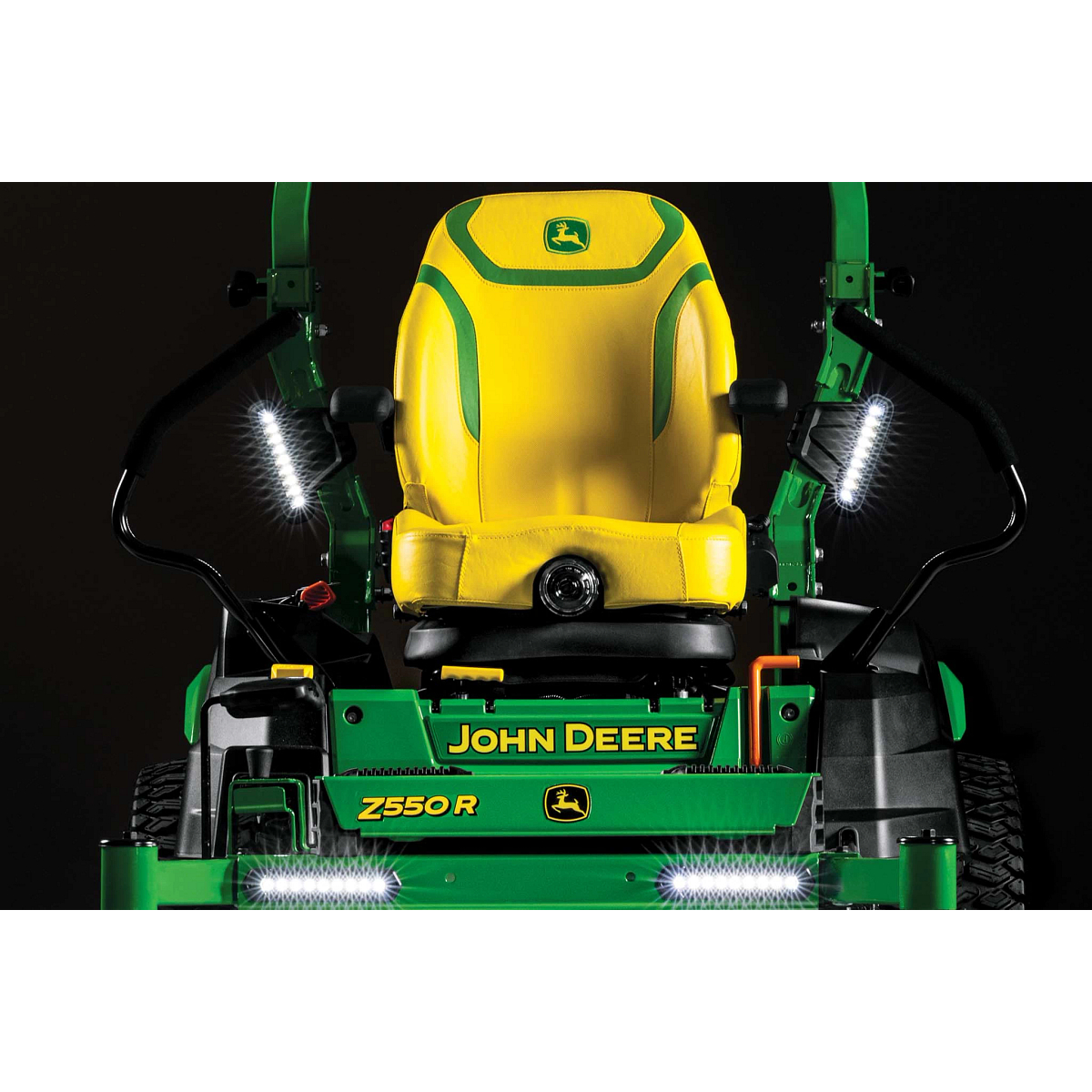

A dramatic close-up front shot of the yellow seat and LED lights on a Z550R zero-turn mower with a black background.

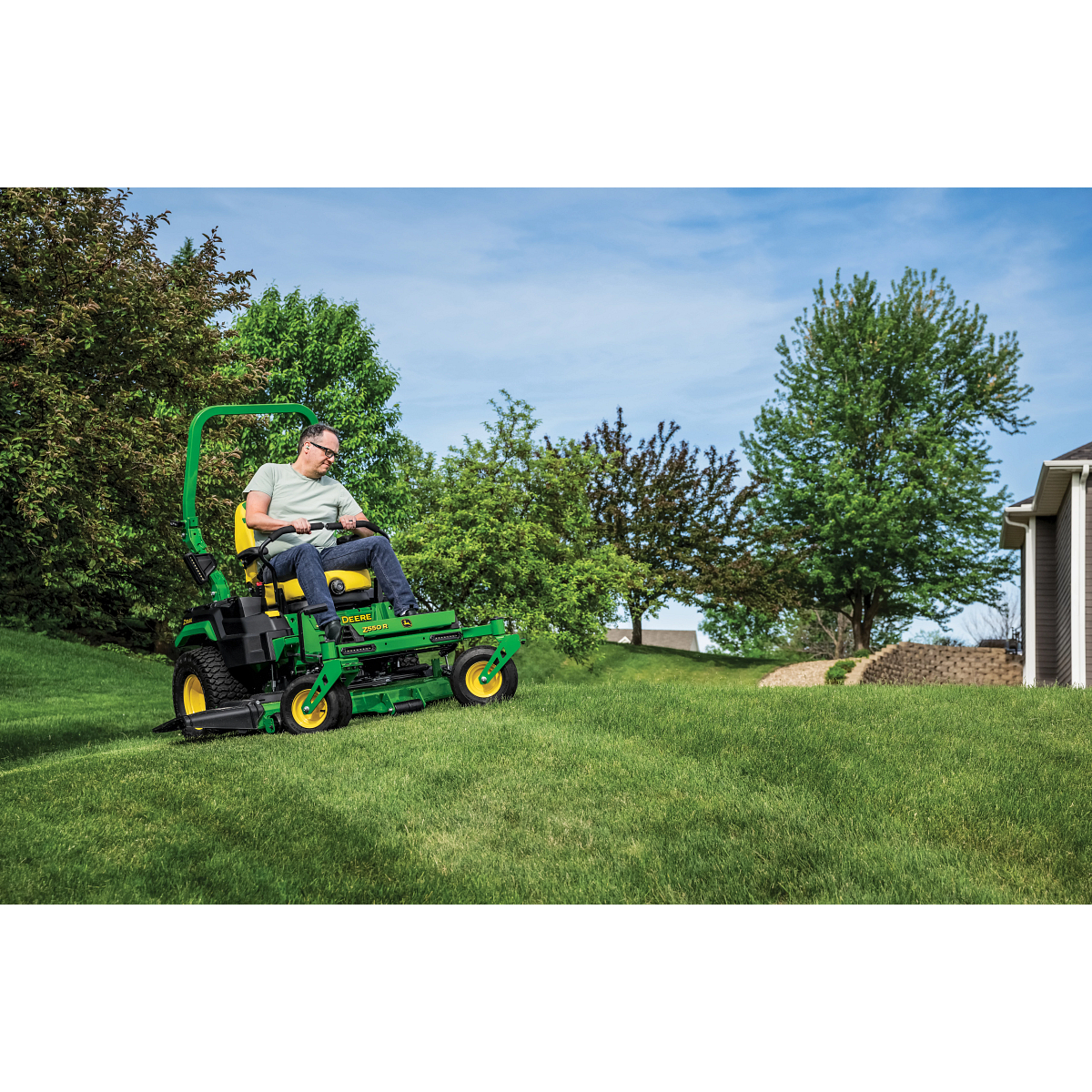

A Z550R zero-turn mower is used to mow the gentle sloped lawn of a residence.
No items found.
new
John Deere
Z550R
Z500 Series Zero-Turn Mowers

John Deere Z550R

Starting at

Accel Deep™ Mower Deck

The Accel Deep™ mower deck features durable 10-gauge-thick steel construction, a 4.8-in. (12.2-cm) deck depth, and a 5/8-in. (1.6-cm) welded steel reinforcement bar for long-lasting durability. its deep-draw, flat-top design and smooth underside help create optimal airflow around the mower blades to lift grass more effectively and distribute clippings evenly for a pristine finish and enhanced mulching and bagging performance, even at high mowing speeds.

Close-up studio shot of a green 54-inch Accel-Deep mowing deck on a white background.
FlexGlide™ Caster Fork Suspension System

With flexing arms in the caster assemblies, FlexGlide™ helps the front wheels absorb impacts over uneven terrain, providing a much smoother, more enjoyable ride. This also helps stabilize the mower deck, reduce bouncing, and prevent scalping for a more consistent cut height on varying ground.

Close-up front-left-facing shot of a Z550R zero-turn mower deck and foot rest over grass.
Head-to-Toe Operator Comfort

The adjustable 24-in. (61-cm) mechanical suspension seat can be fine-tuned to match your weight and preferred seating position for a more personalized ride and perfectly cushioned support. The suspension seat has 3 in. (7.3 cm) of vertical travel to absorb bumps and impacts, and allows you to enjoy your mow, not endure it. A large foot platform with a rubber floor and toe mat adds extra traction while helping further reduce vibration underfoot.

A dramatic close-up front shot of the yellow seat and LED lights on a Z550R zero-turn mower with a black background.
Question text goes here

Answer text goes here

Engine
Engine Power

17.9 kW

Engine Power

24 hp

Engine Model Number

FR730V

Displacement

726 cc

Displacement

44.3 cu in.

Cylinders

V-twin

Lubrication

Full pressure with replaceable filter

Lubrication

1.9 L

Lubrication

2 U.S. qt

Type

Overhead valve

Battery Voltage

12 V

Battery Cold Crank Amps

300 CCA

Choke/Speed Control

Separate control levers

Cooling Method

Air

Fuel Tank Capacity

17 L

Fuel Tank Capacity

4.5 U.S. gal.

Fuel Gauge

Instrument display with fuel gauge and fuel level sight line

Drivetrain
Dual Hydros

Tuff Torq® TZT7-AD with 1-in. (2.5-cm) axles

Travel Speed
Forward Speed

12.9 km/h

Forward Speed

8 mph

Reverse Speed

6.4 km/h

Reverse Speed

4 mph

Speed And Direction Control

Twin levers

Control Adjustment

2-height/9-fore-aft, 18 positions

Chassis
Frame

Heavy-duty frame tubing

Primer/Paint

E-coat/powder

Front Caster Tires

13x6.5-6 with FlexGlide™ caster suspension

Front Caster Bearings

Sealed ball bearings

Drive Tires

22x9.5-10

Hour Meter

Yes

Service Interval Decal

Yes

Storage Compartment

Yes and covered

Cup Holder

Yes

Maximum Towing Capacity

113 kg

Maximum Towing Capacity

250 lb.

Seat
Seat Back Height

61 cm

Seat Back Height

24 in.

Fore-Aft Adjustment

7.6 cm

Fore-Aft Adjustment

3 in.

Seat Suspension

Adjustable mechanical

Lift System
Type

Foot lift

Mower Cut Height - Minimum

3.8 cm

Mower Cut Height - Minimum

1.5 in.

Mower Cut Height - Maximum

11.4 cm

Mower Cut Height - Maximum

4.5 in.

Cut Height Increments

0.64 cm

Cut Height Increments

0.25 in.

Preset Cut Height

Yes

Mower Deck
Cutting Width

122/137/152 cm

Cutting Width

48/54/60 in.

Type

Accel Deep™ side discharge

Mower Deck Material

10 gauge

Mower Deck Material

3.4 mm

Mower Deck Material

0.135 in.

Mower Drive System

V-belt

Power Take-Off (PTO)
Type

Electric

Type

142.4 Nm

Type

105 lb-ft

Drive

V-belt

Dimensions
Wheelbase

127.5 cm

Wheelbase

50.2 in.

Overall Length

215 cm

Overall Length

84.6 in.

Width Without Mower

123.5 cm

Width Without Mower

48.6 in.

Width With Mower

187.1 cm

Width With Mower

73.6 in.

Width With Mower (Deflector Raised For Storage)

160.1 cm

Width With Mower (Deflector Raised For Storage)

63.1 in.

Height

179 cm

Height

70.5 in.

Weight

377 kg

Weight

832 lb.

Operation
Rollover Protective Structure (ROPS)

Yes

Slope 0perating Limit

Standard: 15 degrees; With a Material Collection System: 10 degrees degree (angle)

Operator Presence System

Yes

Park Brake Interlock

Yes

Operator Video

Yes

Buyer's Notes
Warranty

4 year or 500 hour bumper-to-bumper

Optional Attachments
Mulching System

Optional MulchControl™

Rubber Floor Mat

Foot platform and toe board

Sun Shade

Optional

Mounted Sprayer

No L

Mounted Sprayer

No U.S. gal.

Protective Cover

Yes

Light Kit

Front and ROPS-mounted side LED lights are standard

Material Collection System

Power Flow™ rear bagger / Not available on 60HC

Material Collection System

230 L

Material Collection System

6.5 bu

Additional Information
Manufacturing Location

Greeneville, Tennessee, USA

Date Collected

2026-10-01T00:00:00
