Z500 Series Zero-Turn Mowers

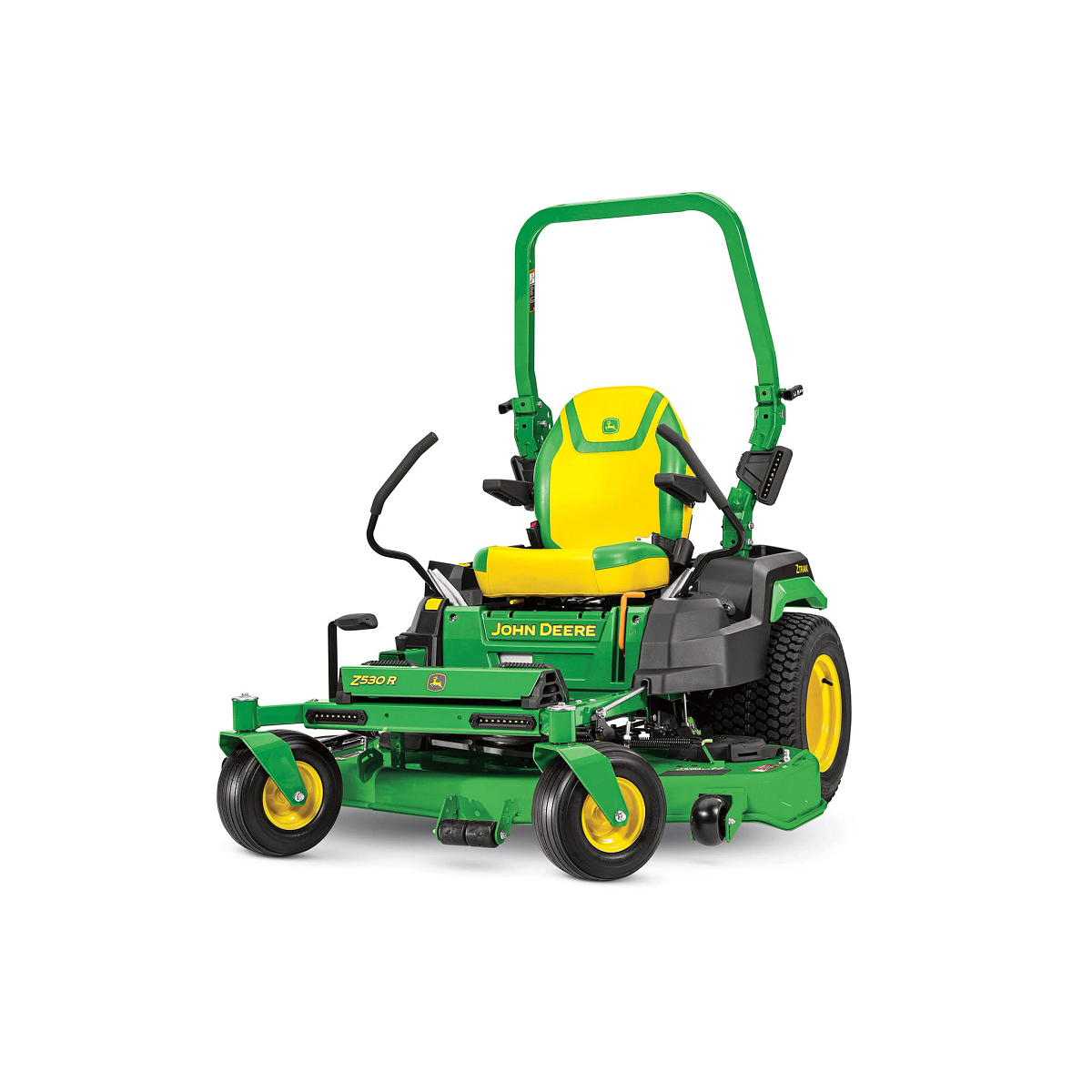

John Deere Z530R

Name: John Deere Z530R Zero-Turn Mowers
Brand: John Deere

Starting at

6,599.00

Key Features

9-mph Top Speed
High Capacity Mower Decks from 9-Gauge Steel with Commercial-Grade Spindles
22.5-in. High-Back Seat with Armrests and ComfortGlide™ Suspension
4-Year/500-Hour Bumper-to-Bumper Warranty

Mow Comfortably

The Z530R offers a high back 22.5-inch seat with armrests. ComfortGlide™ seat slides allow up to 1 inch of fore-aft travel to absorb bumps and jarring. The foot platform has added rubber isolation for cushion. A larger, enhanced dash display provides easy access to machine information.

Durable, High-Capacity Mower Decks

Forged from thick, 9-gauge steel with welded reinforcement on the front and trim edges and upgraded, commercial-grade spindles. Available in both 54-in. and 60-in. widths.

Close-up of a green John Deere riding mower deck underside, showing the metal cutting deck housing, spindle assembly, and belt area beneath the chassis.

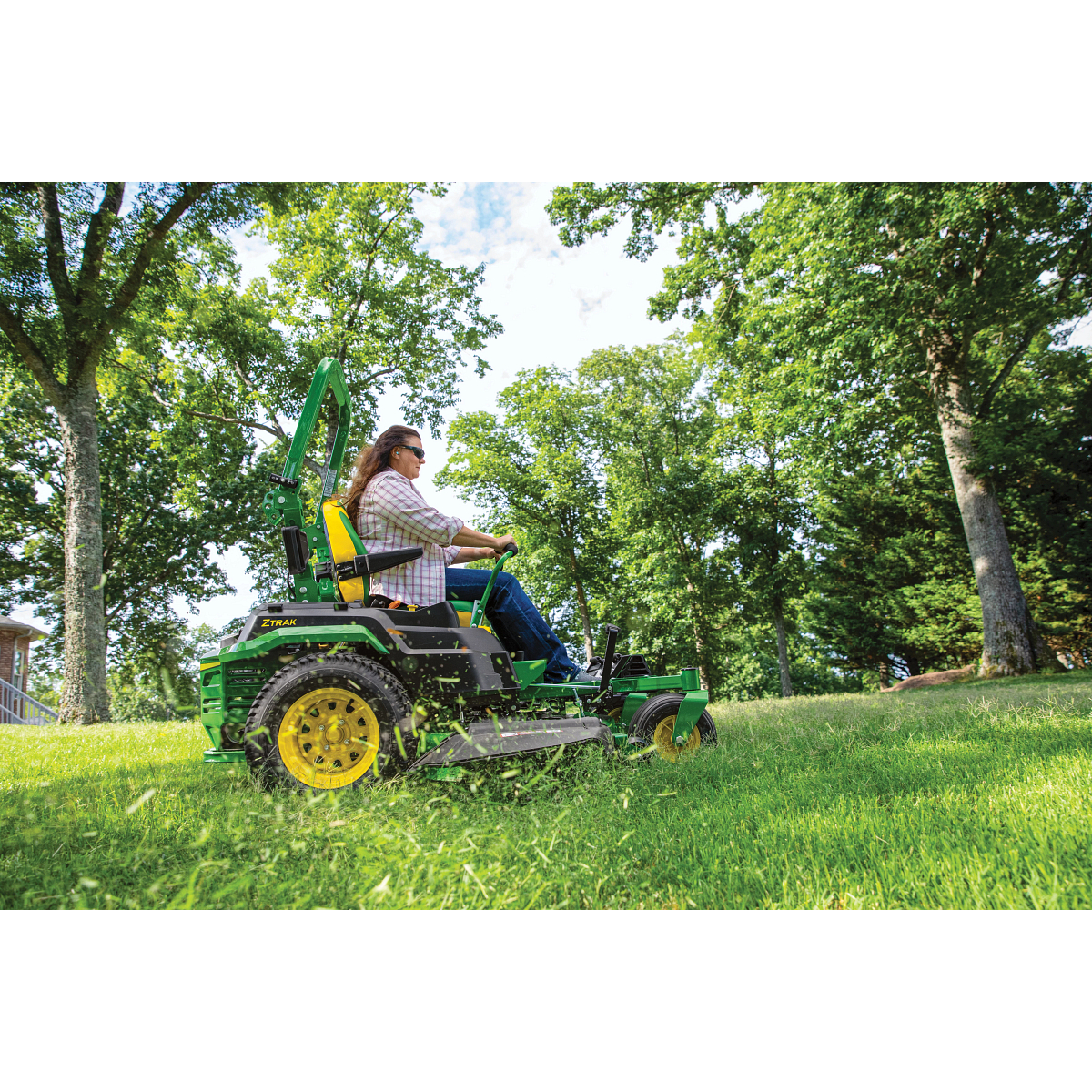

Mow Even More

This mower comes equipped with large 23-in. rear tires and transmissions capable of mowing at 9 mph. These upgrades help you to tackle large properties.

Z545R Riding Lawn Equipment Action Shot - Rear Right View

Engine

Engine Power	17.9 kW
Engine Power	24 hp
Engine Model Number	FR730V
Displacement	726 cc
Displacement	44.3 cu in.
Cylinders	V-twin
Lubrication	Full pressure with replaceable filter
Lubrication	1.9 L
Lubrication	2 U.S. qt
Type	Overhead valve
Battery Voltage	12 V
Battery Cold Crank Amps	300 CCA
Choke/Speed Control	Separate control levers
Cooling Method	Air
Fuel Tank Capacity	17 L
Fuel Tank Capacity	4.5 U.S. gal.
Fuel Gauge	Electric gauge and fuel level sight line

Drivetrain

Dual Hydros

Tuff Torq TZT7-M with 1-in. (2.5-cm) axles

Travel Speed

Forward Speed	14.5 km/h
Forward Speed	9 mph
Reverse Speed	7.2 km/h
Reverse Speed	4.5 mph
Speed And Direction Control	Twin levers
Control Adjustment	2-height/9-fore-aft, 18 positions

Chassis

Frame	Heavy-duty frame tubing
Primer/Paint	E-coat/powder
Front Caster Tires	13x6.5-6
Front Caster Bearings	Sealed ball bearings
Drive Tires	23x10.5-12
Hour Meter	Yes
Service Interval Decal	Yes
Storage Compartment	Yes and covered
Cup Holder	Yes
Maximum Towing Capacity	113 kg
Maximum Towing Capacity	250 lb.

Seat

Seat Back Height	57.1 cm
Seat Back Height	22.5 in.
Fore-Aft Adjustment	7.6 cm
Fore-Aft Adjustment	3 in.
Seat Suspension	Two springs and ComfortGlide

Lift System

Type	Foot lift
Mower Cut Height - Minimum	2.5 cm
Mower Cut Height - Minimum	1 in.
Mower Cut Height - Maximum	10.2 cm
Mower Cut Height - Maximum	4 in.
Cut Height Increments	0.64 cm
Cut Height Increments	0.25 in.
Preset Cut Height	Yes

Mower Deck

Cutting Width	122/137/152 cm
Cutting Width	48/54/60 in.
Type	High-capacity side discharge
Mower Deck Material	9 gauge
Mower Deck Material	3.8 mm
Mower Deck Material	0.15 in.
Mower Drive System	V-belt

Power Take-Off (PTO)

Type	Electric
Type	169.5 Nm
Type	125 lb-ft
Drive	V-belt

Dimensions

Wheelbase	125 cm
Wheelbase	49.2 in.
Overall Length	208 cm
Overall Length	81.9 in.
Width Without Mower	123.7 cm
Width Without Mower	48.7 in.

Operation

Rollover Protective Structure (ROPS)	Yes
Slope 0perating Limit	Standard: 15 degrees; With Material Collection System: 10 degree (angle)
Operator Presence System	Yes
Park Brake Interlock	Yes
Operator Video	Yes

Buyer's Notes

Note 1	Mower wash port makes cleaning the deck easier
Note 2	Flip-up foot platform for easy service access
Note 3	18-position adjustable motion-control levers
Warranty	4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional Attachments

Mulching System	Optional MulchControl attachment, 54 in. / 137 cm / Optional MulchControl kit, 60 in. / 152 cm
Rubber Floor Mat	Foot platform and toe board
Sun Shade	Optional
Mounted Sprayer	No L
Mounted Sprayer	No U.S. gal.
Protective Cover	Yes
Light Kit	4-point LED Light kit
Material Collection System	Power Flow rear bagger / Not available on 60HC
Material Collection System	230 L
Material Collection System	6.5 bu

Additional Information

Manufacturing Location	Greeneville, Tennessee, USA
Date Collected	2021-12-01T00:00:00
