new
John Deere
Z530M
Z500 Series Zero-Turn Mowers

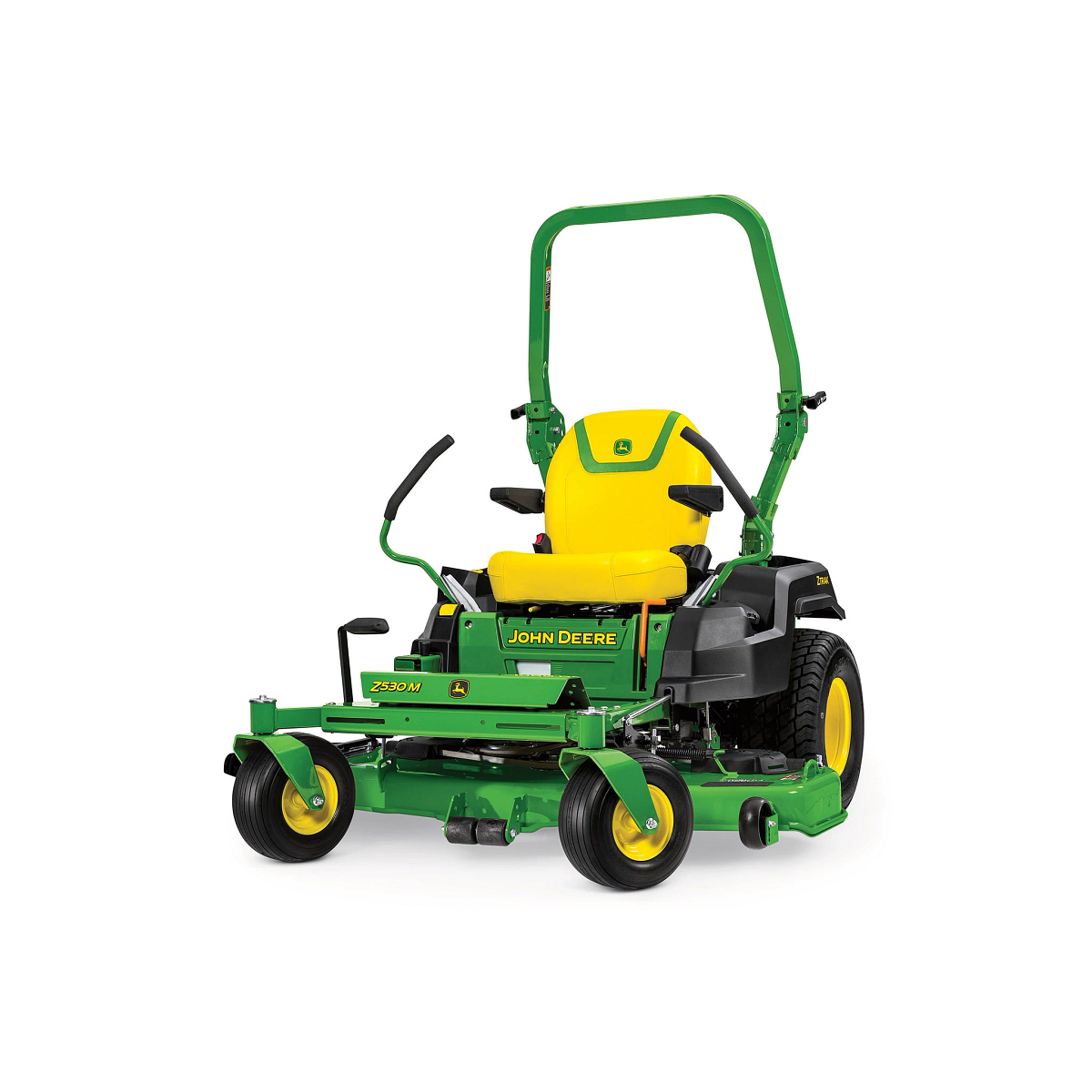

John Deere Z530M

Starting at

Power and Speed to Mow More Acres

The 24-hp (17.9-kW) V-twin engine combines smooth operation with the power needed to maintain a beautifully cut lawn. Large 22-in. (56-cm) rear tires, 13-in. (33-cm) front tires, and up to 8-mph (12.9-km/h) mowing speed help you tackle larger properties and tough terrain for true big mower performance.

A rear-right-facing view of a green zero-turn mower and its engine as it mows the lawn of a residence.
Accel Deep™ Mower Deck

The Accel Deep™ mower deck features durable 10-gauge-thick steel construction, a 4.8-in. (12.2-cm) deck depth, and a 5/8-in. (1.6-cm) welded steel reinforcement bar for long-lasting durability. its deep-draw, flat-top design and smooth underside help create optimal airflow around the mower blades to lift grass more effectively and distribute clippings evenly for a pristine finish and enhanced mulching and bagging performance, even at high mowing speeds.

Close-up studio shot of a green 54-inch Accel-Deep mowing deck on a white background.
Operator Comfort Comes Standard

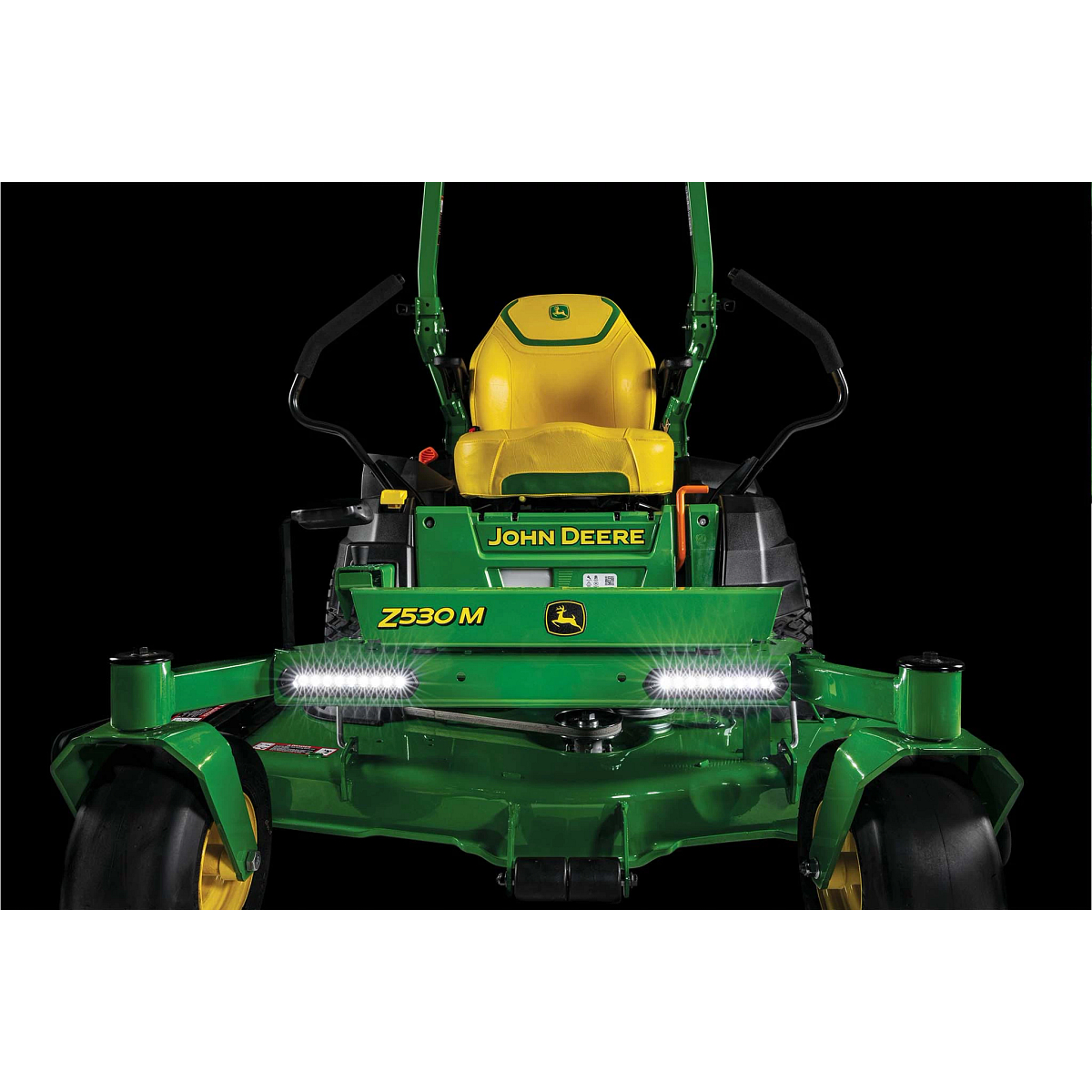

With the 21-in. (53-cm) high-back seat with armrests and ComfortGlide™ suspension, you can expect a ride so smooth, you'll practically feel like you're floating. The ComfortGlide seat slides back and forth up to 1 in. (2.54 cm) on spring shock absorbers combined with two springs under the seat to reduce bumps and jarring impacts. A standard rubber floor mat, front LED lights, and rear hitch provide additional operator comfort and utility.

A person with a potted plant walks towards a poly cart attached to the back of a Z530M zero-turn mower.
Question text goes here

Answer text goes here

Engine
Engine Power

17.9 kW

Engine Power

24 hp

Engine Model Number

FR730V

Displacement

726 cc

Displacement

44.3 cu in.

Cylinders

V-twin

Lubrication

Full pressure with replaceable filter

Lubrication

1.9 L

Lubrication

2 U.S. qt

Type

Overhead valve

Battery Voltage

12 V

Battery Cold Crank Amps

300 CCA

Choke/Speed Control

Separate control levers

Cooling Method

Air

Fuel Tank Capacity

17 L

Fuel Tank Capacity

4.5 U.S. gal.

Fuel Gauge

Electric gauge and fuel level sight line

Drivetrain
Dual Hydros

Tuff Torq® TZT7-AD with 1-in. (2.5-cm) axles

Travel Speed
Forward Speed

12.9 km/h

Forward Speed

8 mph

Reverse Speed

6.4 km/h

Reverse Speed

4 mph

Speed And Direction Control

Twin levers

Control Adjustment

2-height/9-fore-aft, 18 positions

Chassis
Frame

Heavy-duty frame tubing

Primer/Paint

E-coat/powder

Front Caster Tires

13x6.5-6

Front Caster Bearings

Sealed ball bearings

Drive Tires

22x9.5-10

Hour Meter

Yes

Service Interval Decal

Yes

Storage Compartment

Yes and covered

Cup Holder

Yes

Maximum Towing Capacity

113 kg

Maximum Towing Capacity

250 lb.

Seat
Seat Back Height

53 cm

Seat Back Height

21 in.

Fore-Aft Adjustment

7.6 cm

Fore-Aft Adjustment

3 in.

Seat Suspension

Two springs and ComfortGlide™

Lift System
Type

Foot lift

Mower Cut Height - Minimum

3.8 cm

Mower Cut Height - Minimum

1.5 in.

Mower Cut Height - Maximum

11.4 cm

Mower Cut Height - Maximum

4.5 in.

Cut Height Increments

0.64 cm

Cut Height Increments

0.25 in.

Preset Cut Height

Yes

Mower Deck
Cutting Width

122/137/152 cm

Cutting Width

48/54/60 in.

Type

Accel Deep™ side discharge

Mower Deck Material

10 gauge

Mower Deck Material

3.4 mm

Mower Deck Material

0.135 in.

Mower Drive System

V-belt

Power Take-Off (PTO)
Type

Electric

Type

142.4 Nm

Type

105 lb-ft

Drive

V-belt

Dimensions
Wheelbase

127.5 cm

Wheelbase

50.2 in.

Overall Length

207.5 cm

Overall Length

81.7 in.

Width Without Mower

123.5 cm

Width Without Mower

48.6 in.

Width With Mower

187 cm

Width With Mower

73.6 in.

Width With Mower (Deflector Raised For Storage)

160 cm

Width With Mower (Deflector Raised For Storage)

63 in.

Height

179 cm

Height

70.5 in.

Weight

363 kg

Weight

801 lb.

Operation
Rollover Protective Structure (ROPS)

Yes

Slope 0perating Limit

Standard: 15 degrees; With a Material Collection System: 10 degrees degree (angle)

Operator Presence System

Yes

Park Brake Interlock

Yes

Operator Video

Yes

Buyer's Notes
Warranty

4 year or 300 hour bumper-to-bumper

Optional Attachments
Mulching System

Optional MulchControl™

Rubber Floor Mat

Foot platform only

Sun Shade

Optional

Mounted Sprayer

No L

Mounted Sprayer

No U.S. gal.

Protective Cover

Yes

Light Kit

Optional ROPS-mounted side LED light kit, front LED lights are standard

Material Collection System

Power Flow™ rear bagger / Not available on 60A

Material Collection System

230 L

Material Collection System

6.5 bu

Additional Information
Manufacturing Location

Greeneville, Tennessee, USA
