John Deere
Z515E
Z500 Series Zero-Turn Mowers

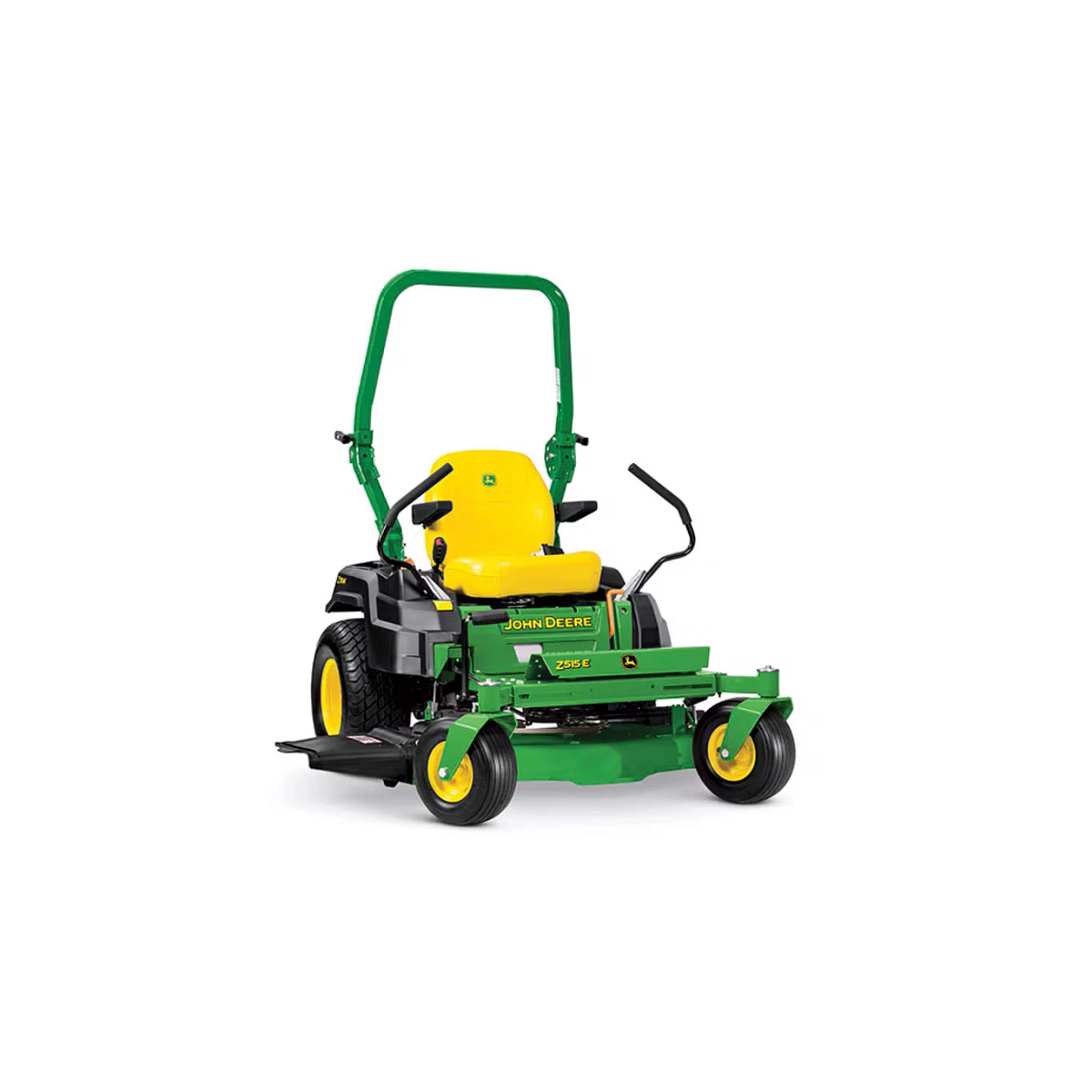

John Deere Z515E

Starting at

Power and Speed to Mow More Acres

The 24-hp (17.9-kW) V-twin engine combines smooth operation with the power needed to maintain a beautifully cut lawn. Large 22-in. (56-cm) rear tires, 13-in. (33-cm) front tires, and up to 8-mph (12.9-km/h) mowing speed help you tackle larger properties and tough terrain for true big mower performance.

A green zero-turn mower is heading towards some tall grass growing between spread-out trees.
Accel Deep™ Mower Deck

The Accel Deep™ mower deck features durable 10-gauge-thick steel construction, a 4.8-in. (12.2-cm) deck depth, and a 5/8-in. (1.6-cm) welded steel reinforcement bar for long-lasting durability. its deep-draw, flat-top design and smooth underside help create optimal airflow around the mower blades to lift grass more effectively and distribute clippings evenly for a pristine finish and enhanced mulching and bagging performance, even at high mowing speeds.

Close-up studio shot of a green 54-inch Accel-Deep mowing deck on a white background.
Operator Comfort Comes Standard

A 21-in. (53-cm) seat with armrests and extra cushioning and bolstering add the support you need to mow comfortably from start to finish. Two steel springs under the seat help absorb shocks when mowing over rougher areas to smooth out your ride. The large foot platform provides ample leg room, and the steering levers can be adjusted to find the ideal placement for every operator.

Close-up shot of a yellow seat with green details and the John Deere logo on a zero-turn mower.
Question text goes here

Answer text goes here

Engine
Engine Power

17.9 kW

Engine Power

24 hp

Engine Model Number

M44 PXi

Displacement

724 cc

Displacement

44.2 cu in.

Cylinders

V-twin

Lubrication

Full pressure with replaceable filter

Lubrication

1.9 L

Lubrication

2 U.S. qt

Type

Overhead valve

Battery Voltage

12 V

Battery Cold Crank Amps

300 CCA

Choke/Speed Control

Separate levers

Cooling Method

Air

Fuel Tank Capacity

17 L

Fuel Tank Capacity

4.5 U.S. gal.

Fuel Gauge

Electric gauge and fuel level sight line

Drivetrain
Dual Hydros

Tuff Torq® TZT7-AD with 1-in. (2.5-cm) axles

Travel Speed
Forward Speed

12.9 km/h

Forward Speed

8 mph

Reverse Speed

6.4 km/h

Reverse Speed

4 mph

Speed And Direction Control

Twin levers

Control Adjustment

2-height/9-fore-aft, 18 positions

Chassis
Frame

Heavy-duty frame tubing

Primer/Paint

E-coat/powder

Front Caster Tires

13x6.5-6

Front Caster Bearings

Sealed ball bearings

Drive Tires

22x9.5-10

Hour Meter

Yes

Service Interval Decal

Yes

Storage Compartment

Yes

Cup Holder

Yes

Maximum Towing Capacity

113 kg

Maximum Towing Capacity

250 lb.

Seat
Seat Back Height

53 cm

Seat Back Height

21 in.

Fore-Aft Adjustment

7.6 cm

Fore-Aft Adjustment

3 in.

Seat Suspension

Two springs

Lift System
Type

Foot lift

Mower Cut Height - Minimum

3.8 cm

Mower Cut Height - Minimum

1.5 in.

Mower Cut Height - Maximum

11.4 cm

Mower Cut Height - Maximum

4.5 in.

Cut Height Increments

0.64 cm

Cut Height Increments

0.25 in.

Preset Cut Height

Yes

Mower Deck
Cutting Width

137/152 cm

Cutting Width

54/60 in.

Type

Accel Deep™ Side discharge

Mower Deck Material

10 gauge

Mower Deck Material

3.4 mm

Mower Deck Material

0.135 in.

Mower Drive System

V-belt

Power Take-Off (PTO)
Type

Electric

Type

142.4 Nm

Type

105 lb-ft

Drive

V-belt

Dimensions
Wheelbase

127.5 cm

Wheelbase

50.2 in.

Overall Length

195.4 cm

Overall Length

76.9 in.

Width Without Mower

123.5 cm

Width Without Mower

48.6 in.

Width With Mower

187 cm

Width With Mower

73.6 in.

Width With Mower (Deflector Raised For Storage)

160 cm

Width With Mower (Deflector Raised For Storage)

63 in.

Height

179 cm

Height

70.5 in.

Weight

352 kg

Weight

775 lb.

Operation
Rollover Protective Structure (ROPS)

Yes

Slope 0perating Limit

Standard: 15 degrees; With a Material Collection System: 10 degrees degree (angle)

Operator Presence System

Yes

Park Brake Interlock

Yes

Operator Video

Yes

Buyer's Notes
Warranty

4 year or 300 hour bumper-to-bumper

Optional Attachments
Mulching System

Optional MulchControl™

Rubber Floor Mat

Optional

Sun Shade

Optional

Mounted Sprayer

No L

Mounted Sprayer

No U.S. gal.

Protective Cover

Yes

Light Kit

Optional front and ROPS-mounted side LED light kits

Material Collection System

Power Flow™ rear bagger / Not available on 60A

Material Collection System

230 L

Material Collection System

6.5 bu

Additional Information
Manufacturing Location

Greeneville, Tennessee, USA

Date Collected

2026-10-01T00:00:00
