John Deere
Z330R
Z300 Series Zero-Turn Mowers

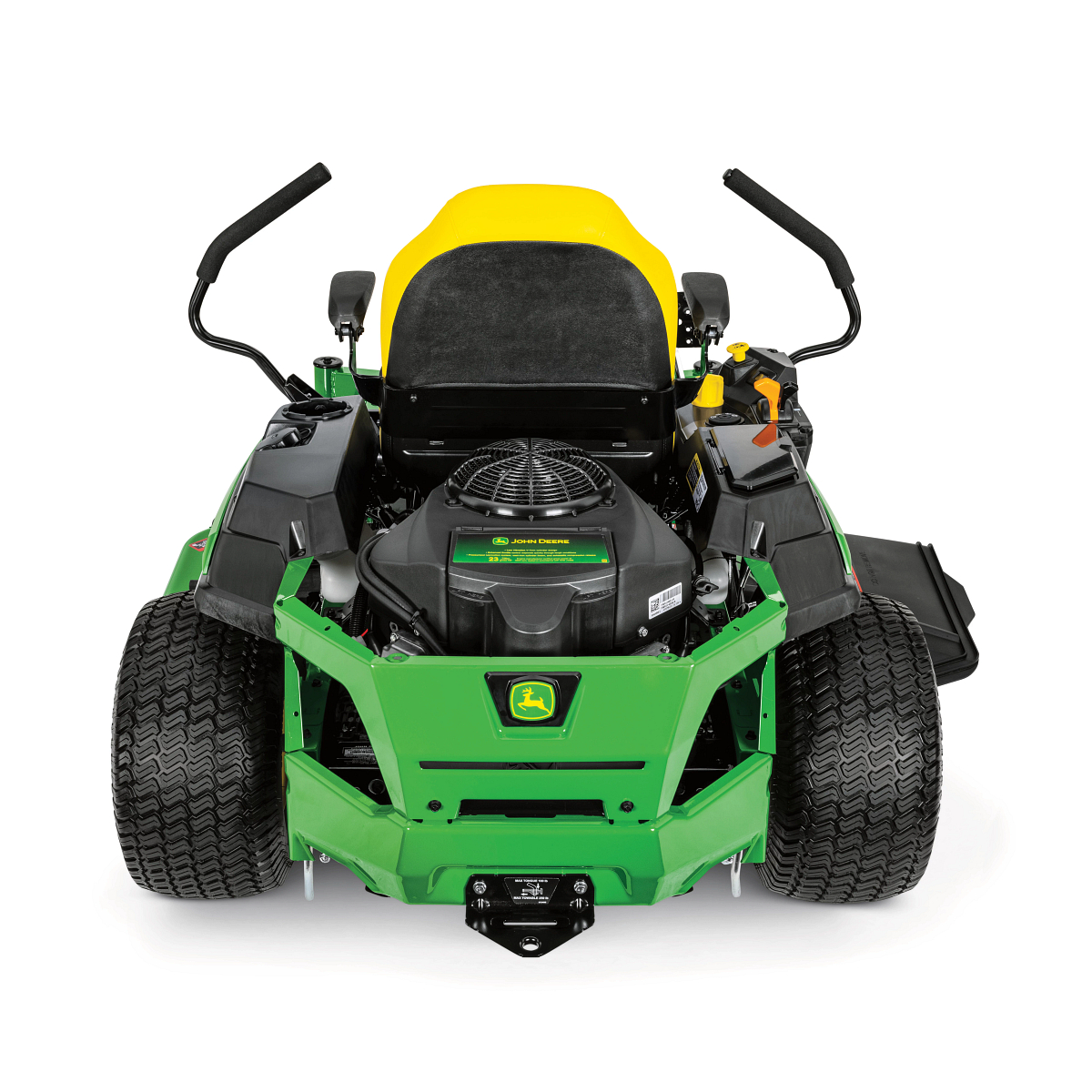

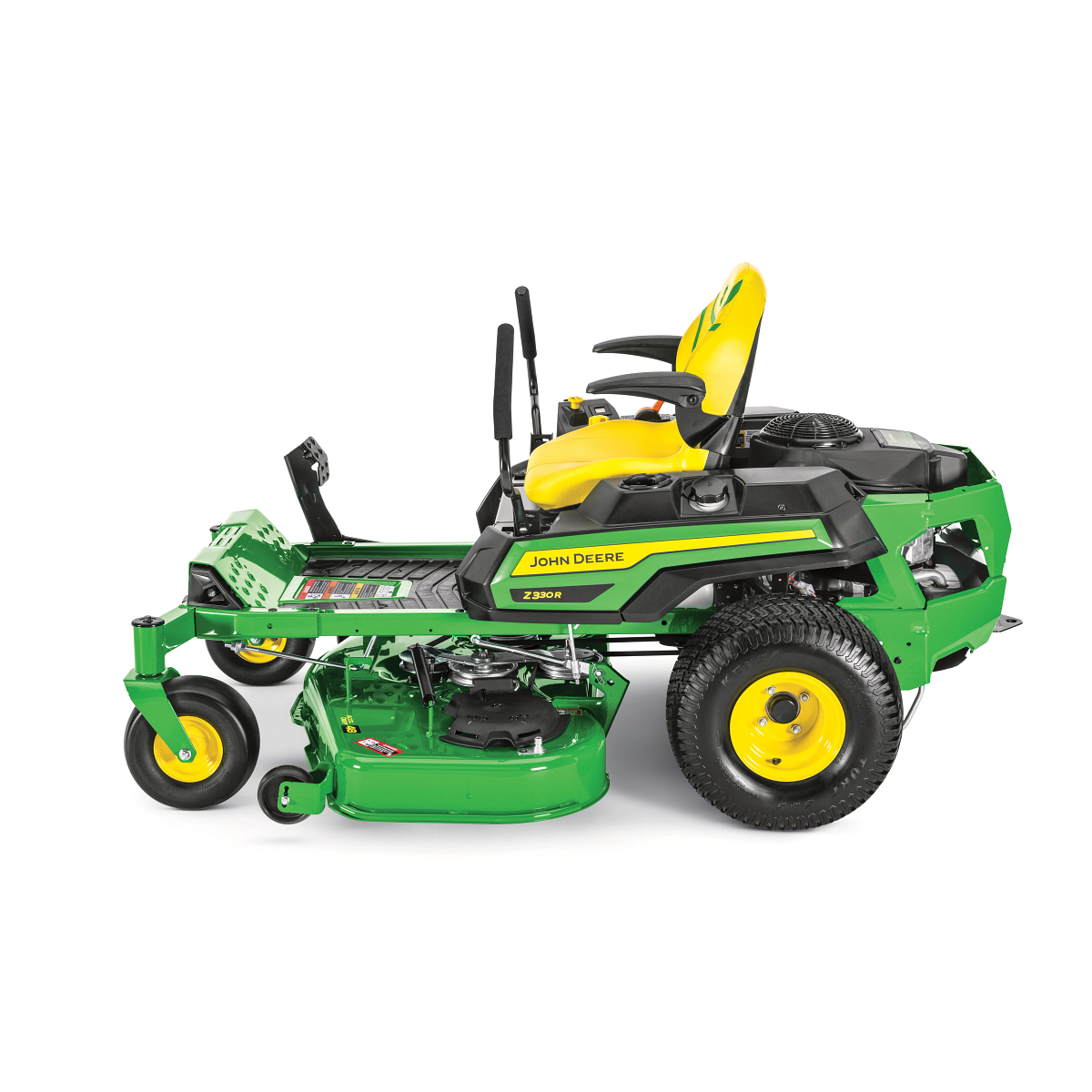

John Deere Z330R

Starting at

4,099.00

Get a Clean Cut with the Accel Deep™ Mower Deck

The Accel Deep™ Mower Deck gives an exceptional cut quality. Its flat-top and 4.5-in. deep design optimizes performance, cleanliness, and versatility, allowing excellent cut quality and even distribution of clippings. The deck is constructed from thick, 10-gauge steel and features a 5/8-in. thick steel round reinforcement bar for enhanced durability.

Get an Clean Cut with the 54-in. Accel Deep™ Mower Deck
Comfort and Versatility

Standard LED lights assist in low light conditions. The 20-in. (50.8-cm) high back seat with side bolstering and a shock absorber ensures a smooth ride over uneven terrain. This mower also comes with standard armrests and a rubber floor mat for added comfort.

Close-up of a zero-turn mower operator area showing a yellow seat and black side control panel with a yellow height adjustment knob, ignition switch, safety icons, an orange control lever, and integrated storage compartment.
Versatile Mulching and Bagging Options

With the optional MulchControl™ system, the mower effortlessly shifts between side discharge and mulching with the flip of a lever. Also available is two-bag, 6.5 bushel, material collection system to efficiently bag grass clippings and leaves.

Close-up of a John Deere mower deck showing the black height‑adjustment lever with return spring, adjustment icon, and warning label mounted on the green deck surface.
Question text goes here

Answer text goes here

Engine
Engine Power

17.2 kW

Engine Power

23 hp

Engine Model Number

FR691V

Displacement

726 cc

Displacement

44.3 cu in.

Cylinders

V-twin

Lubrication

Full pressure with replaceable filter

Lubrication

2.1 L

Lubrication

2.2 U.S. qt

Type

Overhead valve

Battery Voltage

12 V

Battery Cold Crank Amps

300 CCA

Choke/Speed Control

Separate levers

Cooling Method

Air

Fuel Tank Capacity

11.4 L

Fuel Tank Capacity

3 U.S. gal.

Fuel Gauge

Translucent tank

Drivetrain
Dual Hydros

Hydro-Gear EZT-D with 1-in. (2.5-cm) axles

Travel Speed
Forward Speed

11.3 km/h

Forward Speed

7 mph

Reverse Speed

5.6 km/h

Reverse Speed

3.5 mph

Speed And Direction Control

Twin levers

Control Adjustment

3 height, 11 positions

Chassis
Frame

Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing

Primer/Paint

E-coat/powder

Front Caster Tires

11x6-5

Front Caster Bearings

Sealed ball bearings

Drive Tires

20x10-8

Hour Meter

Yes

Service Interval Decal

Yes

Storage Compartment

Standard covered

Cup Holder

Yes

Maximum Towing Capacity

113 kg

Maximum Towing Capacity

250 lb.

Seat
Seat Back Height

51 cm

Seat Back Height

20 in.

Fore-Aft Adjustment

7 cm

Fore-Aft Adjustment

2.9 in.

Seat Suspension

Two springs

Lift System
Type

Foot lift

Mower Cut Height - Minimum

3 cm

Mower Cut Height - Minimum

1.25 in.

Mower Cut Height - Maximum

11 cm

Mower Cut Height - Maximum

4.5 in.

Cut Height Increments

0.64 cm

Cut Height Increments

0.25 in.

Preset Cut Height

Yes

Mower Deck
Cutting Width

122/137 cm

Cutting Width

48/54 in.

Type

Side discharge

Mower Deck Material

10 gauge

Mower Deck Material

3.4 mm

Mower Deck Material

0.135 in.

Mower Drive System

V-belt

Power Take-Off (PTO)
Type

Electric

Type

142 Nm

Type

105 lb-ft

Drive

V-belt

Dimensions
Wheelbase

125.5 cm

Wheelbase

49.4 in.

Overall Length

191.5 cm

Overall Length

75.4 in.

Width Without Mower

110 cm

Width Without Mower

43.3 in.

Height

112.3 cm

Height

44.2 in.

Operation
Rollover Protective Structure (ROPS)

No

Slope 0perating Limit

Standard: 13 degrees; With Material Collection System: 10 degree (angle)

Operator Presence System

Yes

Park Brake Interlock

Yes

Operator Video

Yes, online

Buyer's Notes
Note 1

Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels

Note 2

Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial

Note 3

Integrated park brake is automatically applied when steering levers are stowed outward

Warranty

3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional Attachments
Mulching System

Optional MulchControl™ attachment

Rubber Floor Mat

Standard

Sun Shade

Optional

Mounted Sprayer

Not available L

Mounted Sprayer

Not available U.S. gal.

Protective Cover

Optional

Light Kit

Standard

Material Collection System

Two-bag Power Flow MCS

Material Collection System

229 L

Material Collection System

6.5 bu

Additional Information
Manufacturing Location

Greeneville, Tennessee, USA

Date Collected

2022-10-03T00:00:00
