Front left studio view of a green and black XUV825M S4 Crossover Utility Vehicle, with open top, yellow seats, six wheels, and an open cargo box.
No items found.
new
John Deere
TH 6X4 D
The Work Series Gators

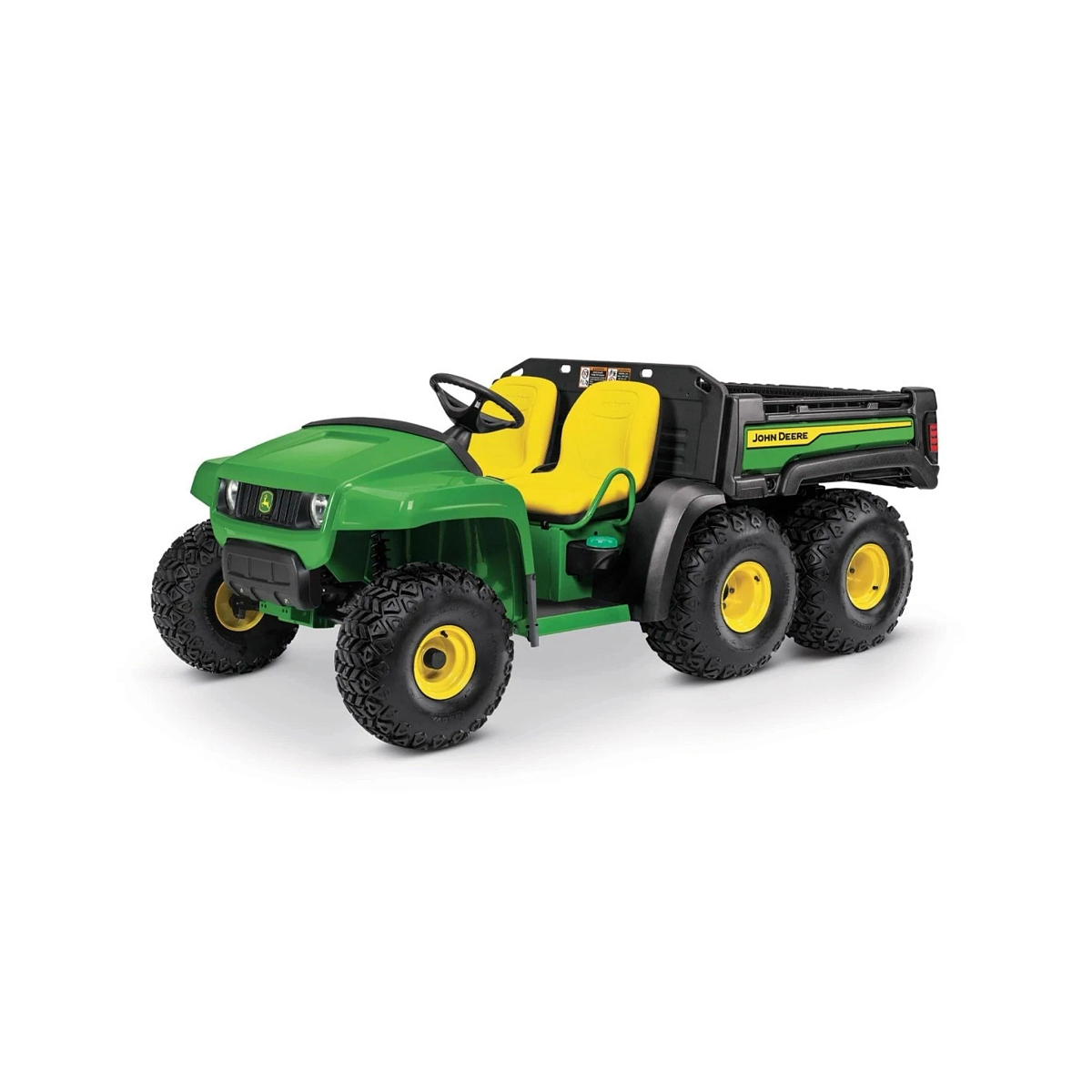

John Deere TH 6x4 Diesel

Starting at

Haul More in Fewer Trips

Haul up to 1200 lb. (550 kg) in the 16.4-cu ft (460-L) cargo box, which can be converted to a flatbed to haul irregular cargo. An optional power lift raises the cargo box with the press of a button. Tow up to 1400 lb. (635 kg) with an optional receiver hitch.

Rear view of a TH 6x4 Gas Gator dumping boulders from its cargo box while two construction workers look on
Walk-Through Platform Provides Easy Entry and Exit

A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.

Side left studio view of the front half of a TX 4x2 Gator Utility Vehicle, featuring tire, yellow seat, steering wheel, and walk-through platform
Optional JDLink™ Modem Connects to John Deere Operations Center™

Install JDLink™ modems and use John Deere Operations Center™ to stay connected to your fleet. The modems report each vehicle's location, speed, and engine hours, enabling Operations Center to send an alert when a vehicle leaves a selected area, is operated outside prescribed times, or when maintenance is needed. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.

man working with a smart phone and tablet
Question text goes here

Answer text goes here

Engine
Engine Type

3-cylinder, four-cycle diesel

Displacement

52.1 cu in.

Displacement

854 cc

Engine Power

13.6 kW

Engine Power

18.2 hp

Cooling System

Liquid

Drivetrain
Transmission

Continuously Variable Transmission (CVT)

Final Drive

Fully enclosed; oil bath

Four Wheel Drive

All four rear wheels are driven, two front wheels are not driven

Traction Assist

Mechanically activated differential lock

Descent Control

No

Suspension
Front Suspension

Independent spring-over-shock, single A-arm

Rear Suspension

Two high-floatation, low pressure tires (solid axles)

Brakes
Type

Wet disk in transaxle

Park Brake

Wet disk, hand operated

Tires/Wheels
Front

Two 22.5x10-8 4PR all-terrain on steel wheels Two 22.5x10-8 4PR turf on steel wheels

Rear

Four 25x13-9 4PR all-terrain on steel wheels Four 25x12-9 4PR turf on steel wheels

Dimensions/Capacities
Wheelbase

2006 mm

Wheelbase

79 in.

Weight

630 kg

Weight

1389 lb.

Length

2769 mm

Length

109 in.

Width

1525 mm

Width

60 in.

Height

1108 mm

Height

43.6 in.

Tread Centers - Front

1270 mm

Tread Centers - Front

50 in.

Tread Centers - Rear

1220 mm

Tread Centers - Rear

48 in.

Ground Clearance

163 mm

Ground Clearance

6.4 in.

Fuel Capacity

18.9 L

Fuel Capacity

5 U.S. gal.

Cargo Box Dimensions

1143 x 305 x 1320 mm

Cargo Box Dimensions

45 x 12 x 52 in.

Cargo Box Capacity (Weight)

544 kg

Cargo Box Capacity (Weight)

1200 lb.

Payload Capacity

726 kg

Payload Capacity

1600 lb.

Towing Capacity

635 kg

Towing Capacity

1400 lb.

Hitch

Optional: 3.175 cm 1.25 in.

Features
Color

Green/yellow

Power Steering

No

Battery

340 CCA

Battery

12 V

Alternator

40 amp

Power Port - DC Outlet

12 V

Instrumentation

Fuel gauge, hour meter

Storage

Cup holders, glove box

Seating

Bucket seats

Additional Information
Country Of Manufacture

U.S.

Date Collected

2025-06-08T11:13:00
