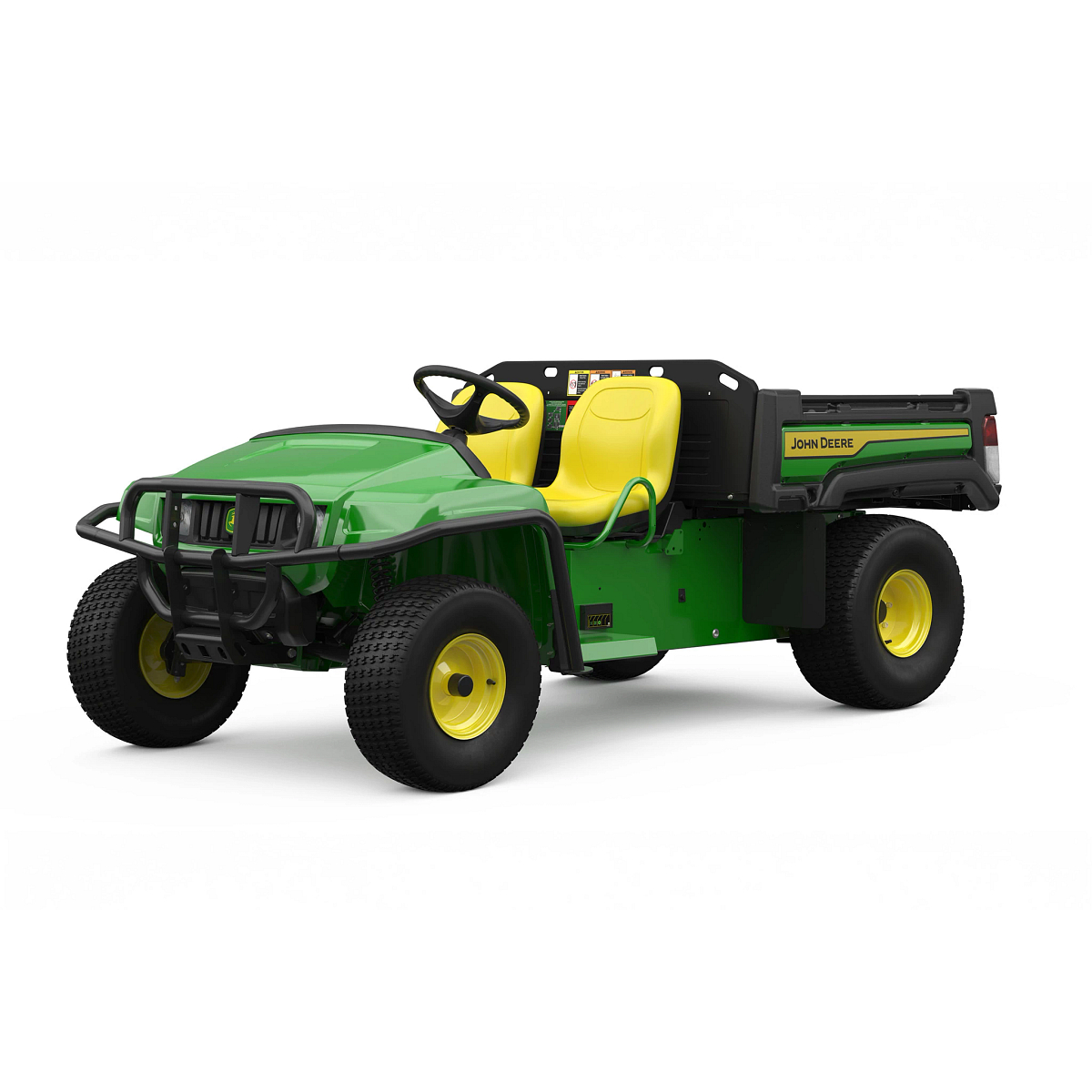

A compact utility vehicle with a yellow seat, open cab, front bumper guard, and rear cargo bed, displayed at an angle on a white background.

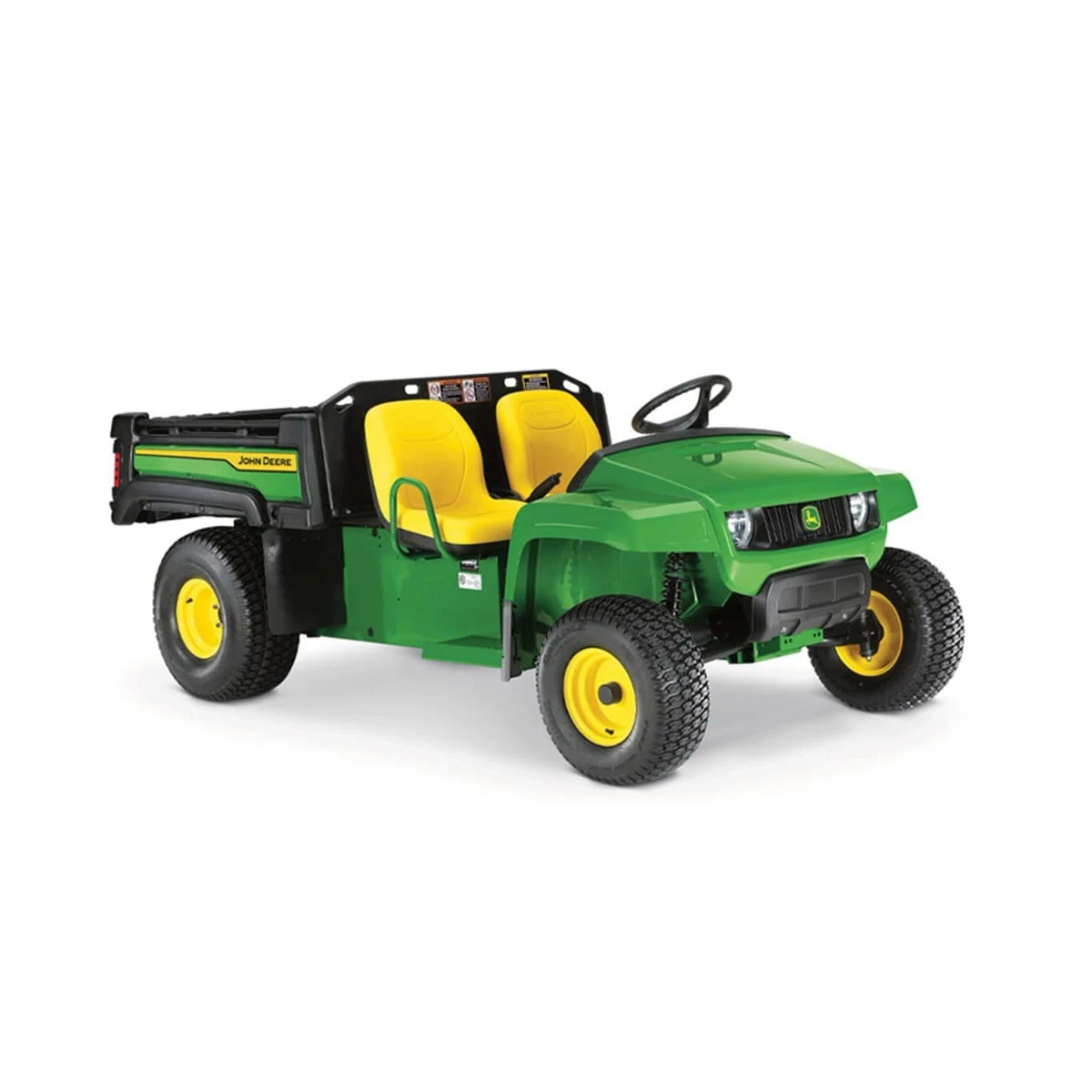

Studio image with a front right view of a TE 4X2 Electric Utility Vehicle
No items found.
new
John Deere
TE 4X2
The Work Series Gators

John Deere TE 4x2 Electric

Starting at

Haul More in Fewer Trips

Haul up to 500 lb. (227 kg) in the 16.4-cu ft (460-L) cargo box, which can be converted to a flatbed to haul irregular cargo. Tow up to 600 lb. (272 kg) with an optional receiver hitch.

Rear left view of a TX 4x2 Gator with cargo box full of boxes being backed up to a truck in a warehouse
Walk-Through Platform Provides Easy Entry and Exit

A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.

Side left studio view of the front half of a TX 4x2 Gator Utility Vehicle, featuring tire, yellow seat, steering wheel, and walk-through platform
Charge Anywhere There is a Power Outlet

An onboard charger enables the vehicle to be charged anywhere with a standard 120-V outlet grounded outlet. The charger port is conveniently located below the driver's seat and is equipped with charge level indicator.

Close-up of a finger lifting the LED charge indicator on a TE Electric Gator to access IEC connector for charging.
Question text goes here

Answer text goes here

Drive System
Motor

Wound direct drive, 48 VDC separately excited

Controller

Separately excited, maximum 400 amp Anti-roll away braking and alarm, anti-stall motor protection, regenerative braking, diagnostic indicator, full torque, reduced speed reverse

Transaxle

16.99:1 ratio with helical gearing

Electrical System

Eight Trojan T-105 batteries

Electrical System Power

12 kWh

Electrical System Voltage

48 V

Speed

20.92 km/h

Speed

13 mph

Gear Selection

Forward, neutral, reverse

Battery

Trojan T-105

Extended Run Time Battery

Not available

Brakes
Brake Type

Dual rear wheel mechanical drum

Park Brake

Hand operated, multi-latch

Tires
Front

Two 22x9.5-10, 4-ply high-flotation turf

Rear

Two 24x12-10, 4-ply high-flotation turf

Suspension and Steering
Front Suspension

Independent, spring over shock, single A-arm

Front Suspension - Total Travel

127 mm

Front Suspension - Total Travel

5 in.

Rear Suspension

Tow high-flotation, low pressure tires

Steering

Rack and pinion

Dimensions
Height

1130 mm

Height

44.5 in.

Width

1524 mm

Width

60 in.

Length - Without Bumper

2664 mm

Length - Without Bumper

104.9 in.

Length - With Bumper

2728 mm

Length - With Bumper

107.4 in.

Ground Clearance - Under Transaxle

196 mm

Ground Clearance - Under Transaxle

7.7 in.

Ground Clearance - Under Foot Platform

185 mm

Ground Clearance - Under Foot Platform

7.3 in.

Front Tread Centers

1270 mm

Front Tread Centers

50 in.

Rear Tread Centers

1219 mm

Rear Tread Centers

48 in.

Wheelbase

194 cm

Wheelbase

76.4 in.

Vehicle Weight

630 kg

Vehicle Weight

1389 lb.

Turning Clearance Circle

6.7 m

Turning Clearance Circle

22 ft

Payload Capacity

408 kg

Payload Capacity

900 lb.

Towing Capacity

272 kg

Towing Capacity

600 lb.

Seats
Type

Professional high back bucket, tilt forward

Seating Capacity

Two

Seat Adjustment

Optional

Cargo Box
Length

1143 mm

Length

45 in.

Width

1321 mm

Width

52 in.

Depth

304.8 mm

Depth

12 in.

Cargo Box Capacity

272 kg

Cargo Box Capacity

600 lb.

Cargo Box Volume

464 L

Cargo Box Volume

16.4 cu ft

Height Above Ground

762 mm

Height Above Ground

30 in.

Material

Polypropylene side panels and tailgate; steel floor and load guard

Tailgate

Hinged at bottom, removable; side panels are removable

Dump

Manual, power lift (optional)

Ground Pressure
With 200 lb Operator Only

0.6 bar

With 200 lb Operator Only

8.6 psi

Frame
Type

Mig welded uni-body, high strength steel

Charger
Charger Type

High frequency switched-mode kW

Input Voltage

60 Hz

Input Voltage

120 V

Input Amperage (Nominal)

12 amp

Output Voltage

48 VDC nominal

Output Amperage

21 ADC

AC Input Connector

IEC320/C14

AC Power Cord

2.4 m

AC Power Cord

7.8 ft

Breaker Maximum

15 amp

Machine
Other Standard Features

Battery discharge indicator, reverse warning indicator, operator presence switch, hour meter, headlight switch, two cup holders, glove box

Fenders and Hood
Type

TPO - Rubber and Polypropylene
