new
John Deere
XUV 845M
Full-Size Crossover Gas Gators

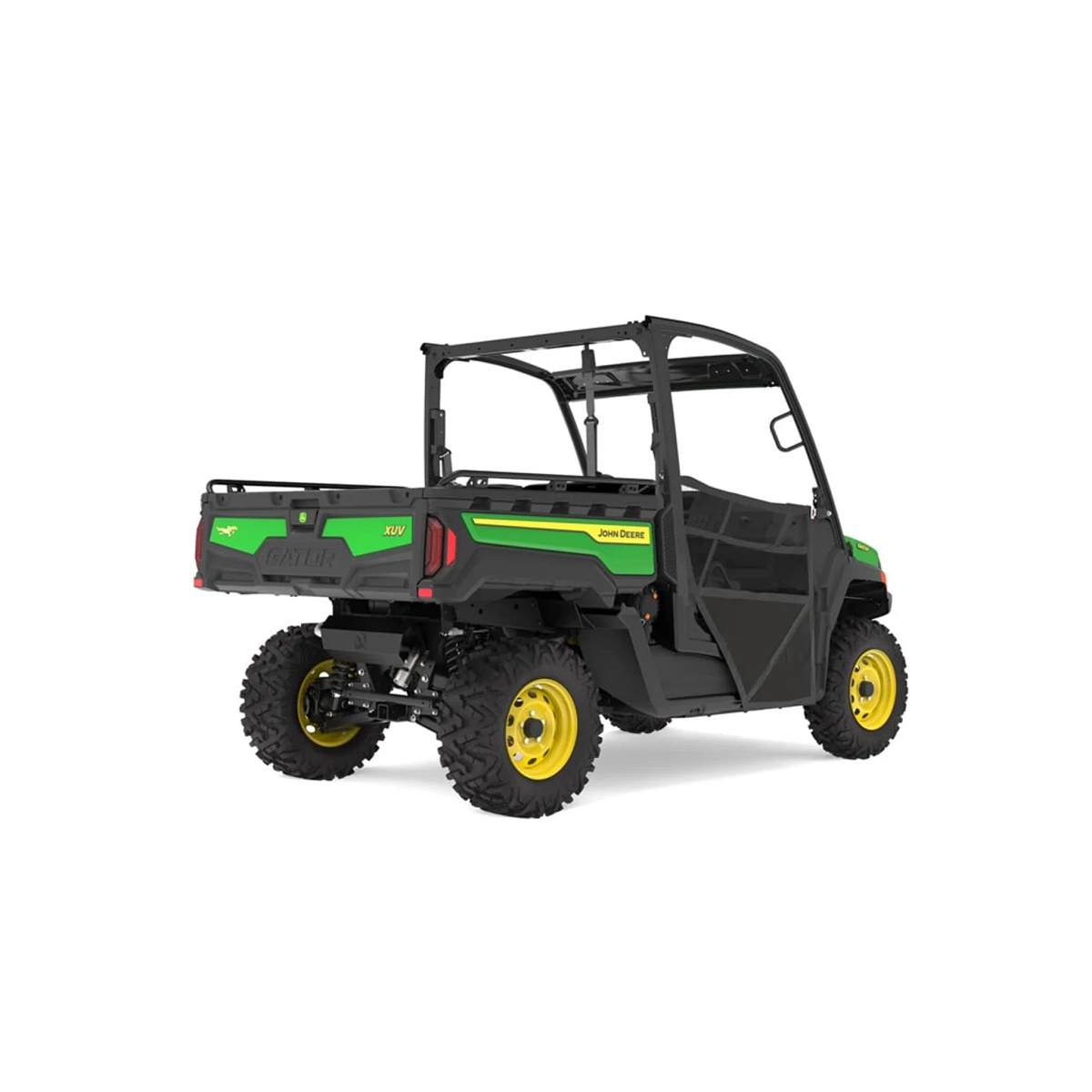

John Deere XUV 845M

Starting at

Class-Leading Cargo Box Volume Configures to the Needs of the Job

Haul up to 1000 lb. (454 kg) in the class-leading 18.5-cu ft (524-L) cargo box. Use built-in slots and stake pockets to quickly reconfigure the cargo box to the job. A 12-V power port is located in the cargo box to power attachments. Tow up to 4000 lb. (1840 kg) with the included receiver hitch.

Class is defined as a full-size heavy-duty crossover UTV with less than 100-in. wheelbase which is powered by a 750 to 900cc gasoline engine. Comparisons were made by calculating volume using published cargo box dimensions.

View from a dirt road of a 1025R loader attachment with 120R pallet forks unloading bags from an XUV 845 Gator while an operator looks on from beside it
Room for You, Plus Two

The split-bench seat accommodates three with an under seat storage bin. Optional roof, windshield, rear panel, door, and heater attachments keep passengers out of the elements.

Front studio view of an XUV845R Gator's dash controls
Automotive-Like Controls

An automotive-inspired design features a digital instrument panel, one to two 12-V outlets, and power steering on select models. Shift from park and into gear with a throw of the dash-mounted lever. For tough conditions, engage four-wheel drive and rear differential lock switches.

man working with a smart phone and tablet
Question text goes here

Answer text goes here

Engine
Engine Type

4-cycle gas, electronic fuel injection (EFI)

Displacement

49.6 cu in.

Displacement

812 cc

Engine Power

39.5 kW

Engine Power

53 hp

Cooling System

Liquid

Drivetrain
Transmission

Continuously Variable Transmission (CVT) with clutch enclosure

Final Drive

Park, high, low, neutral, reverse transaxle

Four Wheel Drive

Dash switch actuated four-wheel drive system

Traction Assist

Limited slip front differential, Positive locking, switch actuated rear differential lock

Descent Control

Yes

Suspension
Front Suspension

Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

Rear Suspension

Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel

Brakes
Type

Front/rear hydraulic disc with twin piston front calipers

Park Brake

Park in-transmission; Optional factory-installed secondary foot operated with hand release

Tires/Wheels
Front

27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels

Rear

27x11-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels

Dimensions/Capacities
Wheelbase

2211 mm

Wheelbase

87 in.

Weight

931 kg

Weight

2052 lb.

Length

3250 mm

Length

128 in.

Width

1625 mm

Width

64 in.

Height

1980 mm

Height

78 in.

Tread Centers - Front

1376 mm

Tread Centers - Front

54.2 in.

Tread Centers - Rear

1300 mm

Tread Centers - Rear

51.2 in.

Ground Clearance

305 mm

Ground Clearance

12 in.

Fuel Capacity

42.4 L

Fuel Capacity

11.2 U.S. gal.

Cargo Box Dimensions

1099 x 343 x 1392 mm

Cargo Box Dimensions

43.3 x 13.5 x 54.8 in.

Cargo Box Volume

524 L

Cargo Box Volume

18.5 cu ft

Cargo Box Capacity (Weight)

454 kg

Cargo Box Capacity (Weight)

1000 lb.

Payload Capacity

611 kg

Payload Capacity

1347 lb.

Towing Capacity

1814 kg

Towing Capacity

4000 lb.

Hitch

Standard receiver: 2 in. (5.1 cm)

Features
Color

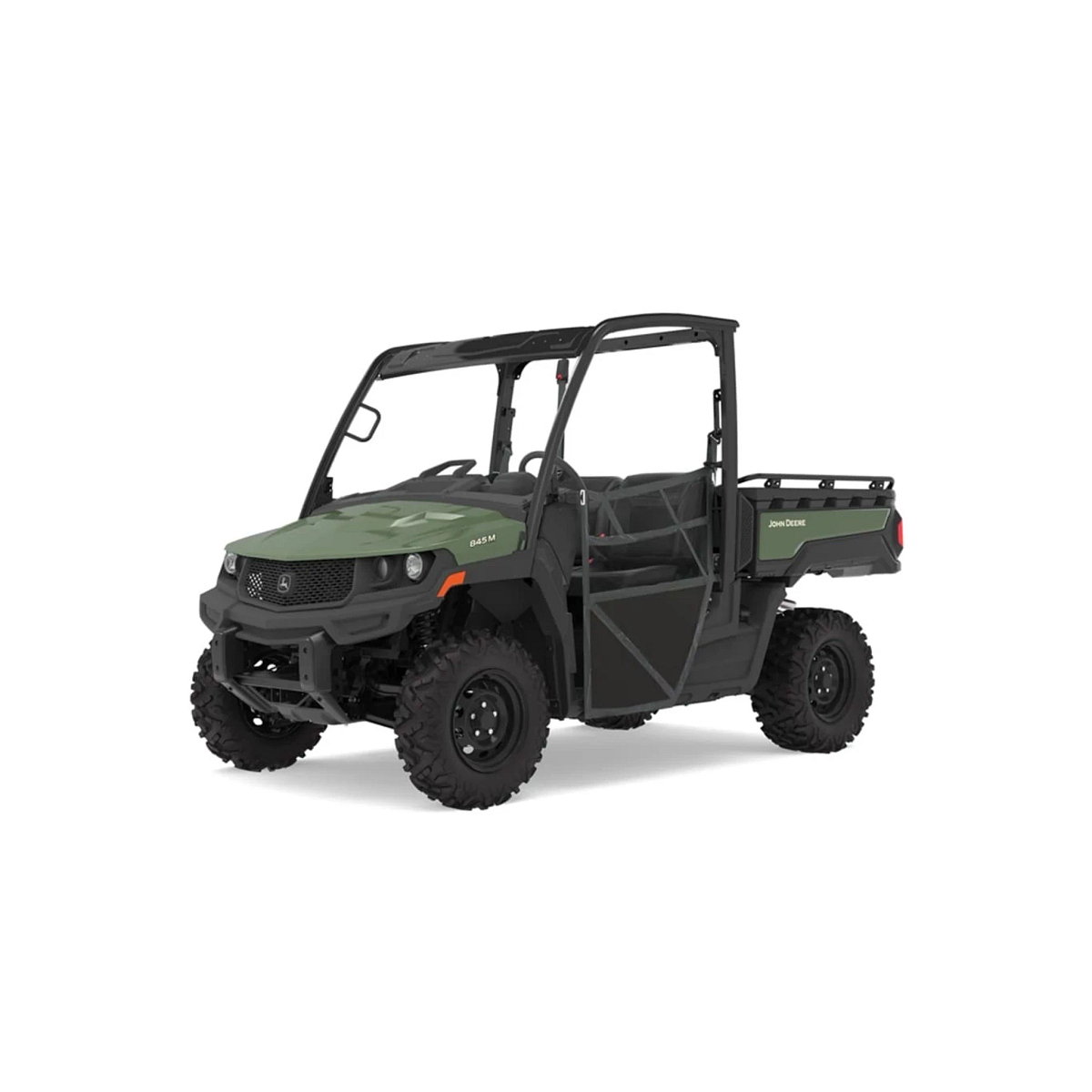

Green and yellow, TrueTimber® KANATI® camo, olive and black

Power Steering

Yes

Battery

480 CCA

Battery

12 V

Alternator

85 amp

Power Port - DC Outlet

12 V

Power Port - Cargo Box

12 V

Instrumentation

Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)

Storage

Total: 25.8 gal. (97.8 L); Four cup holders: 0.3 gal. (1.3 L); Center tray: 0.3 gal. (1.2 L); Three dash bins: 1.3 gal. (5 L); Storage pocket: 0.4 gal. (1.4 L); Glove box: 1 gal. (3.8 L); Under seat: 14.6 gal. (55.3 L); Optional under hood: 7.9 gal. (30 L)

Seating

Black vinyl 40/60 split three-passenger bench

Additional Information
Country Of Manufacture

U.S.
