John Deere
XUV 875R
Full-Size Crossover Diesel Gators

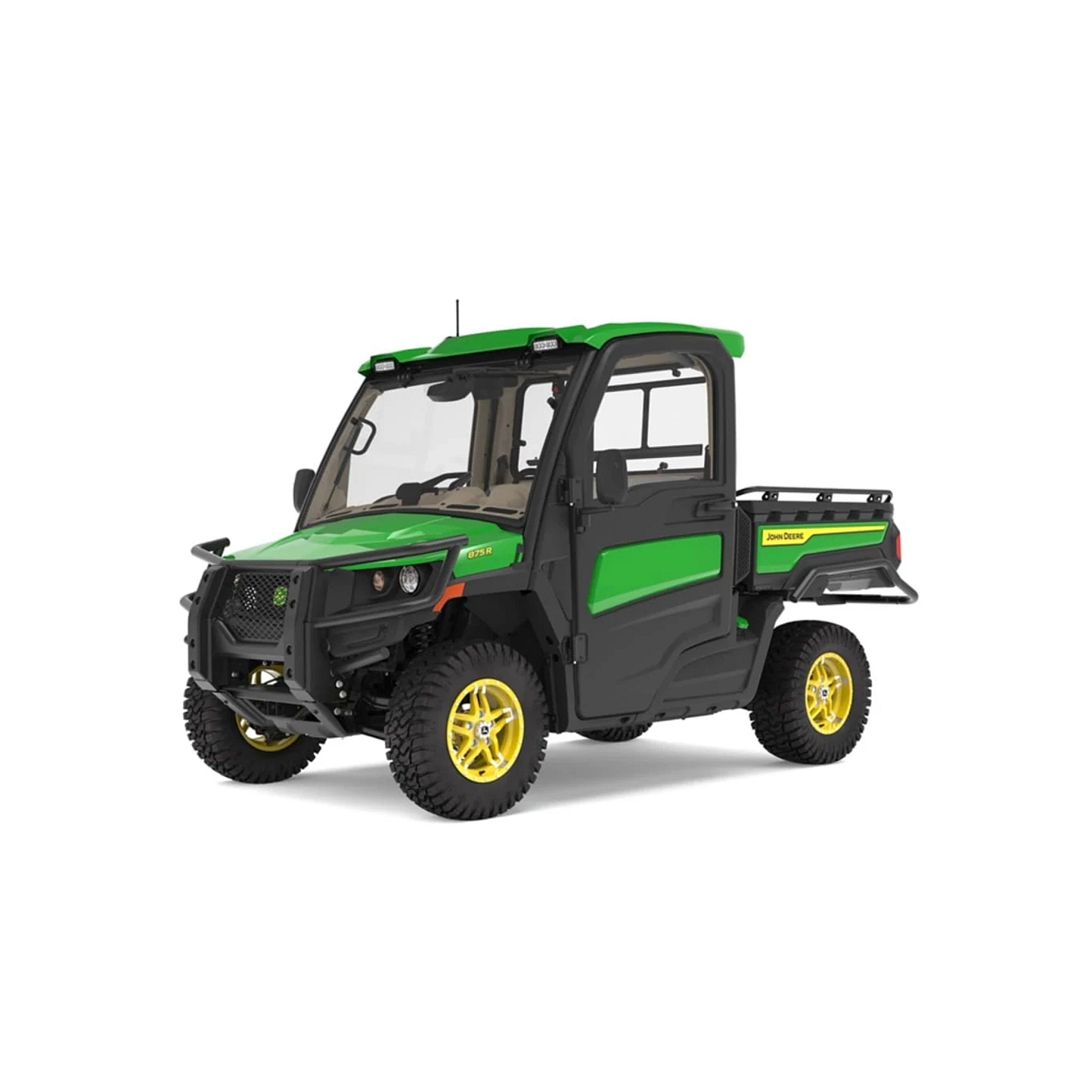

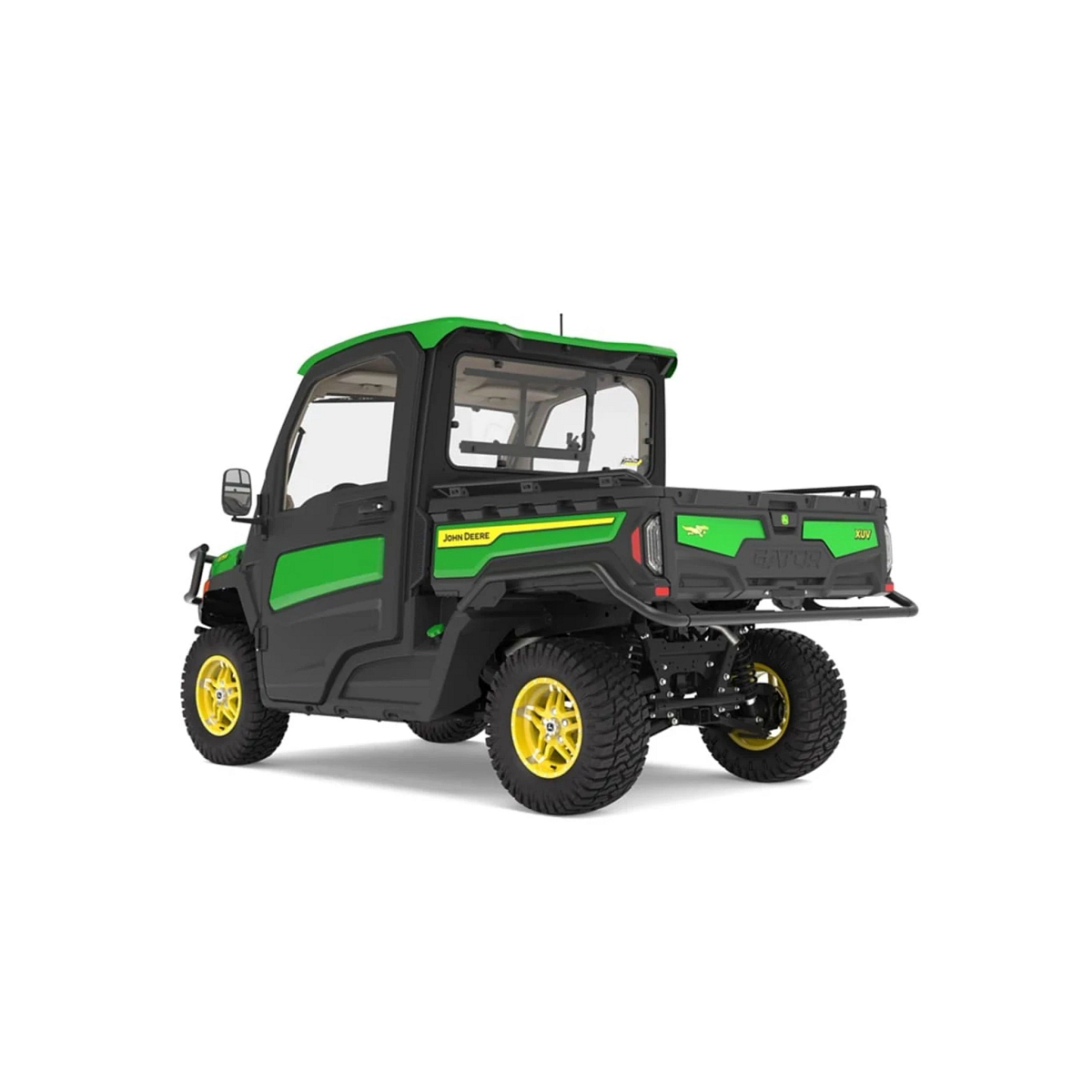

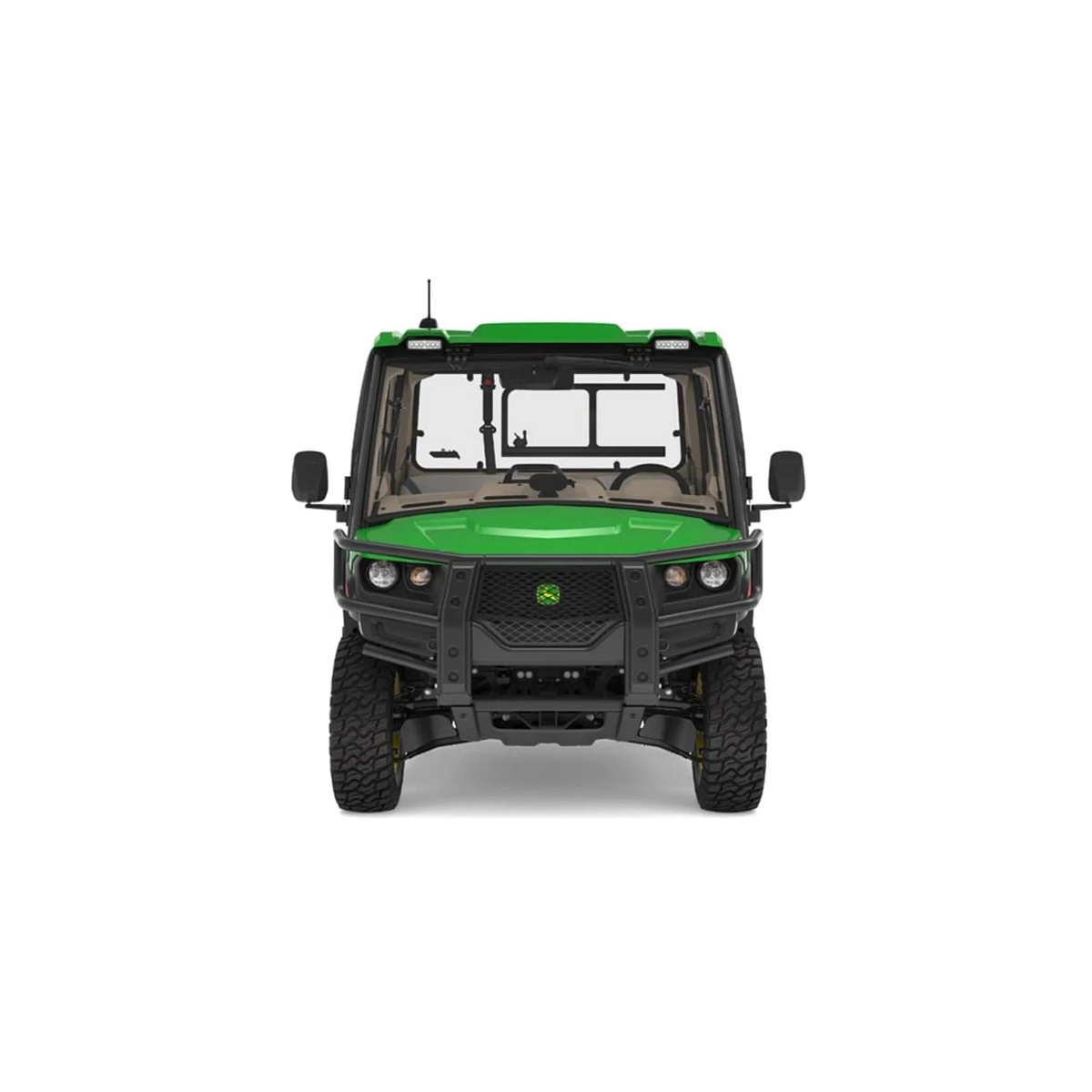

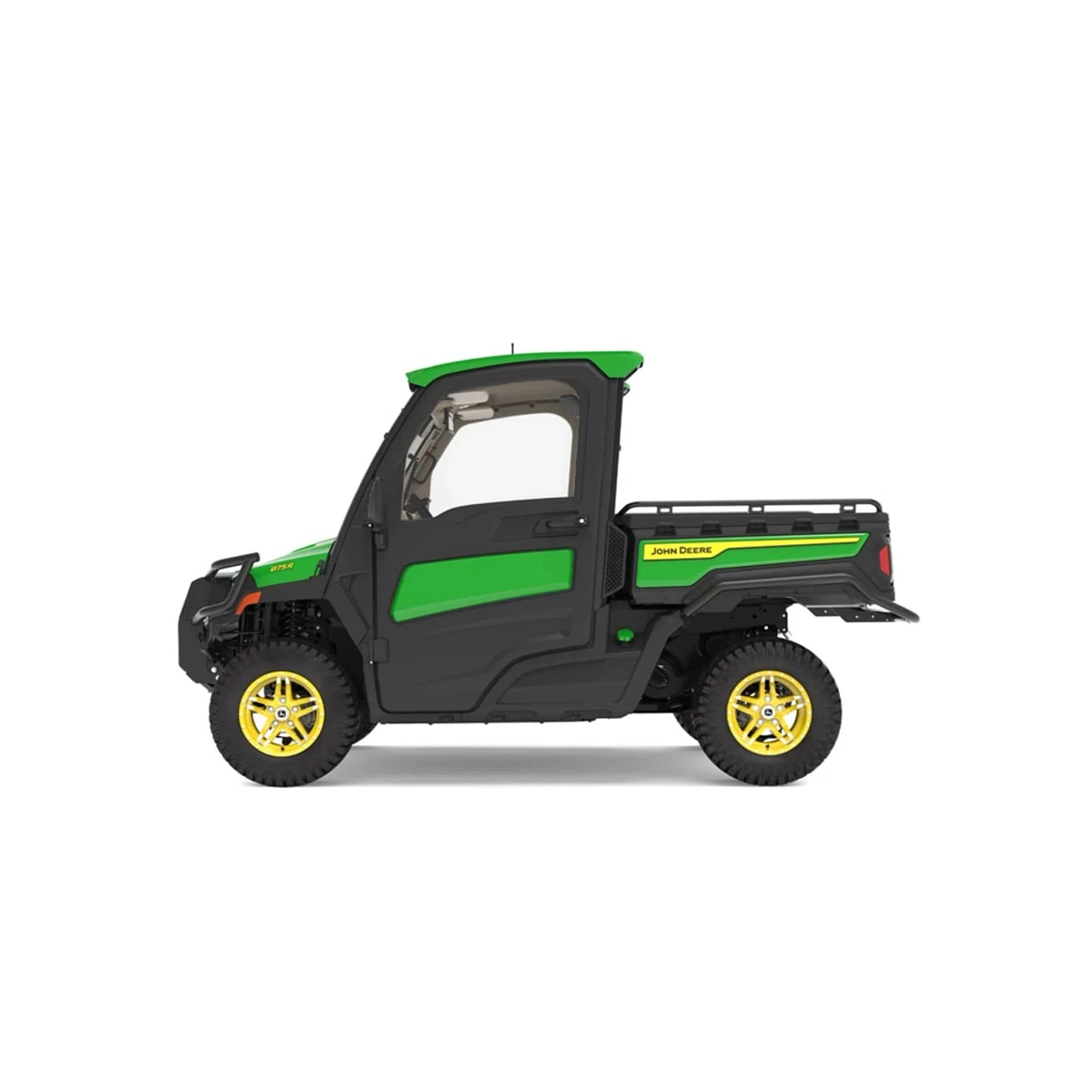

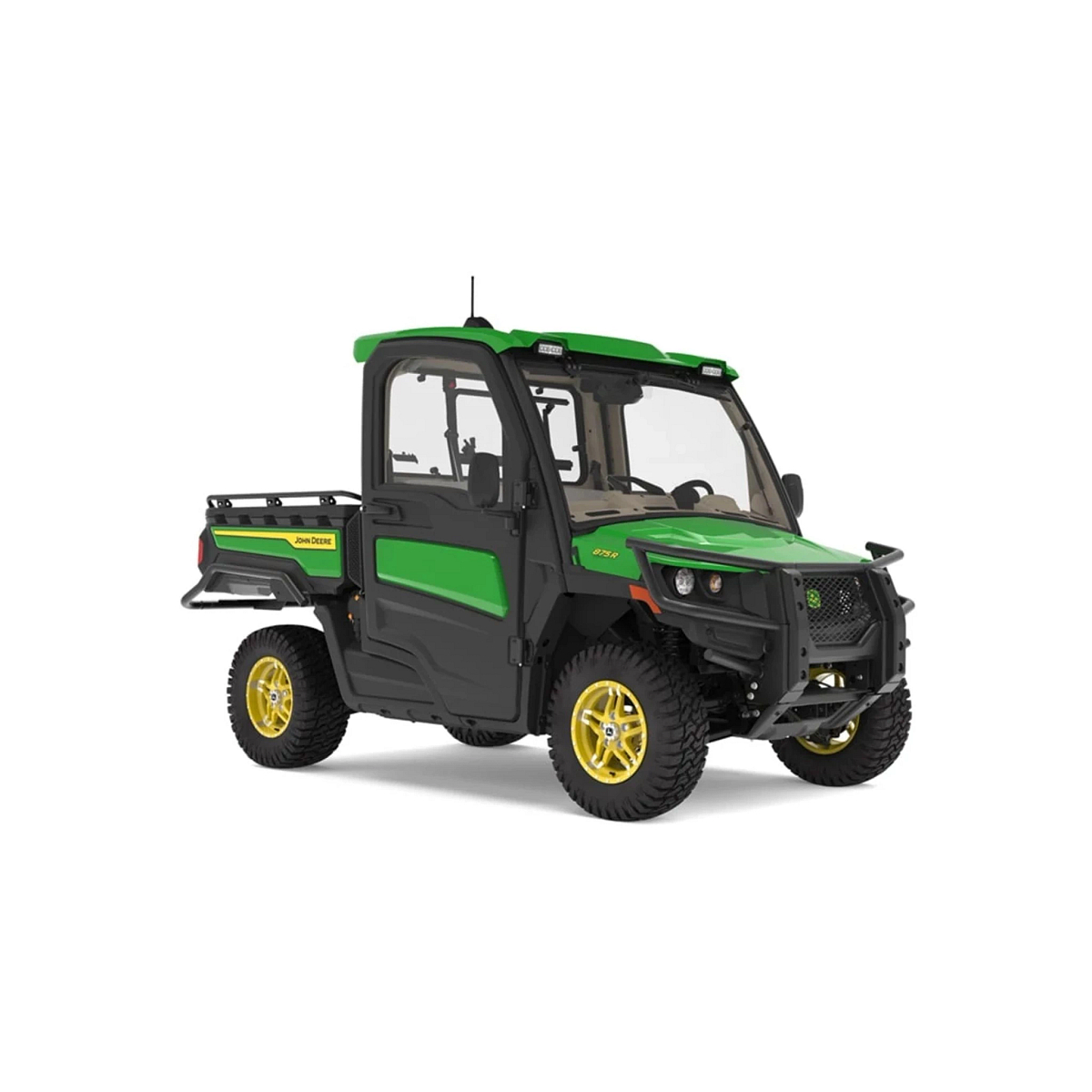

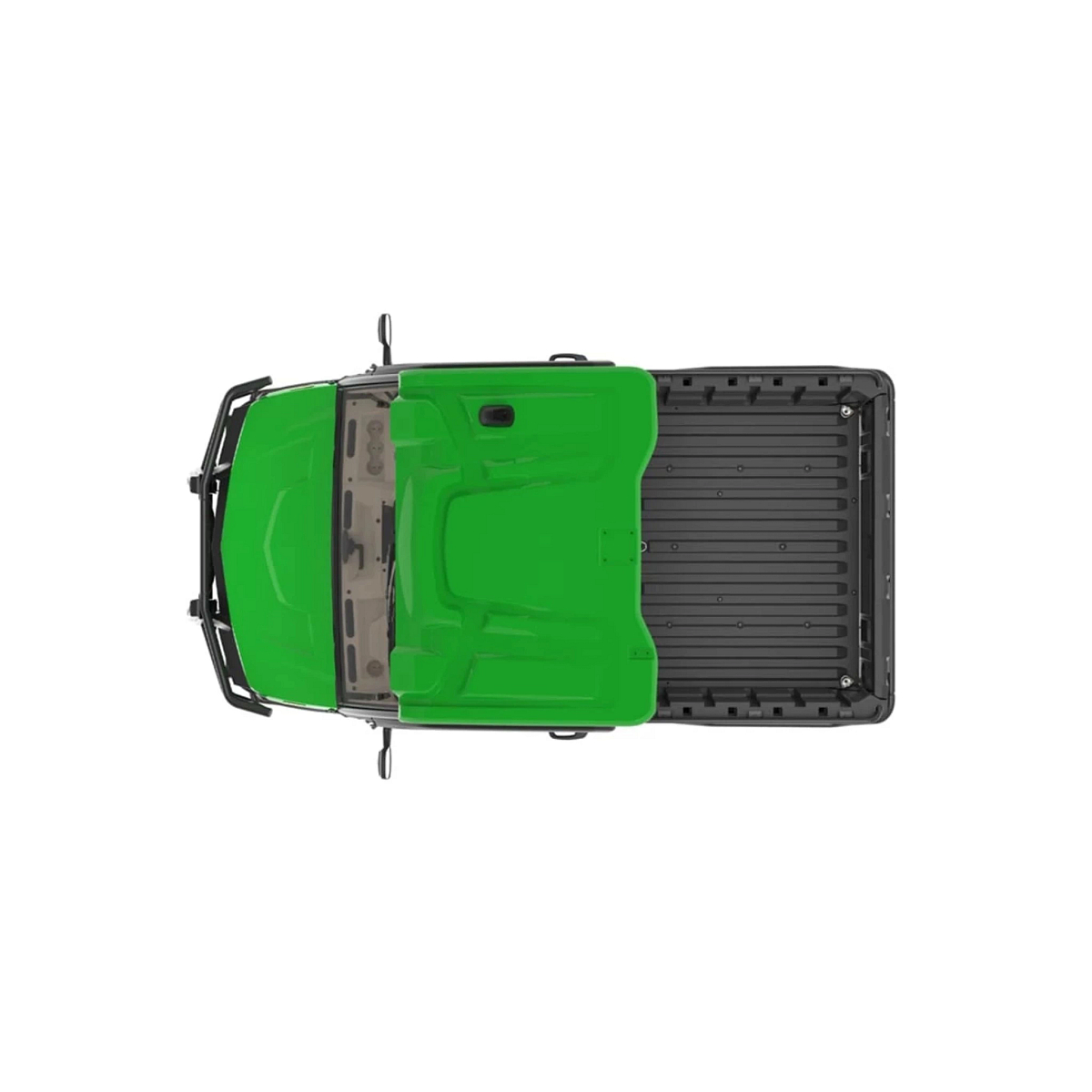

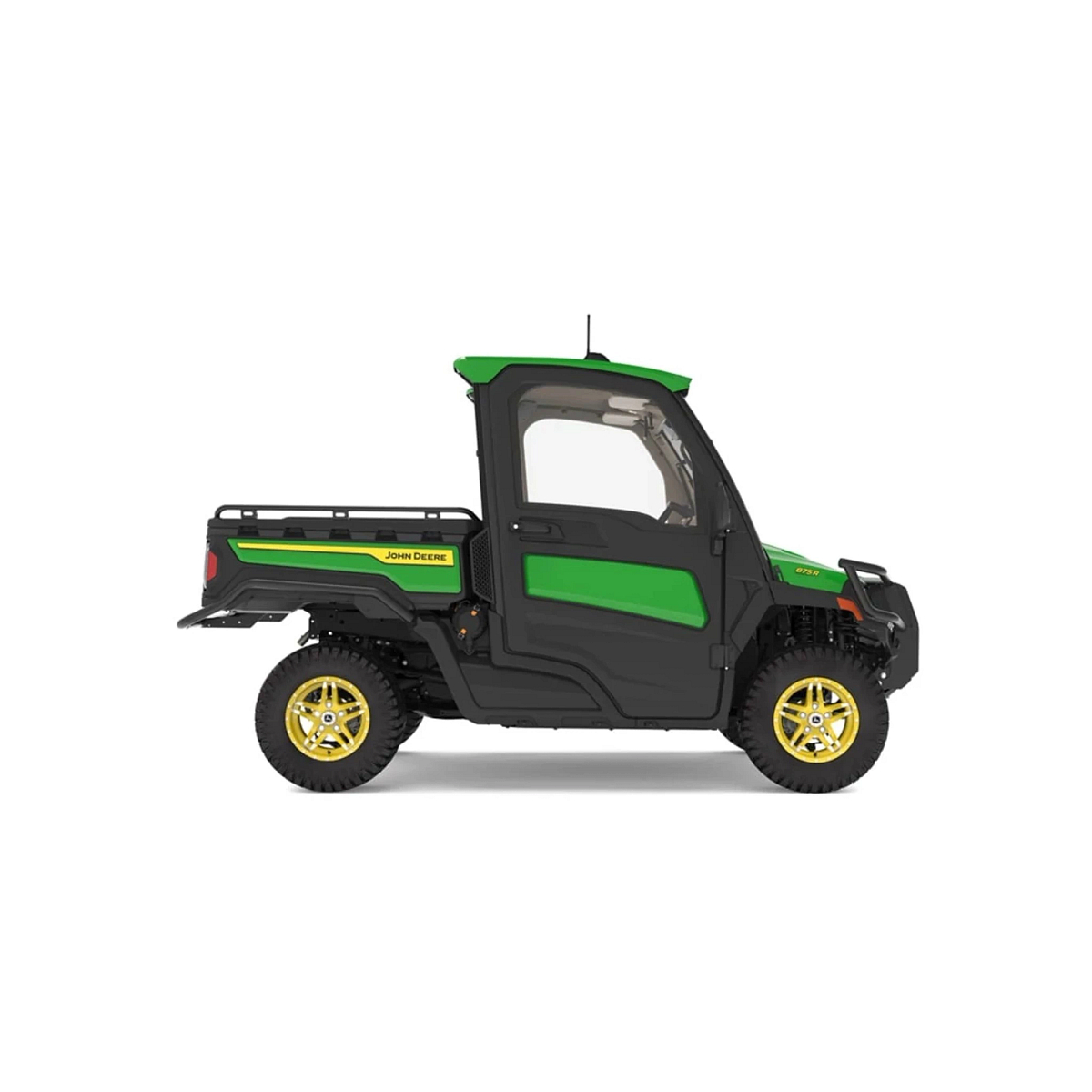

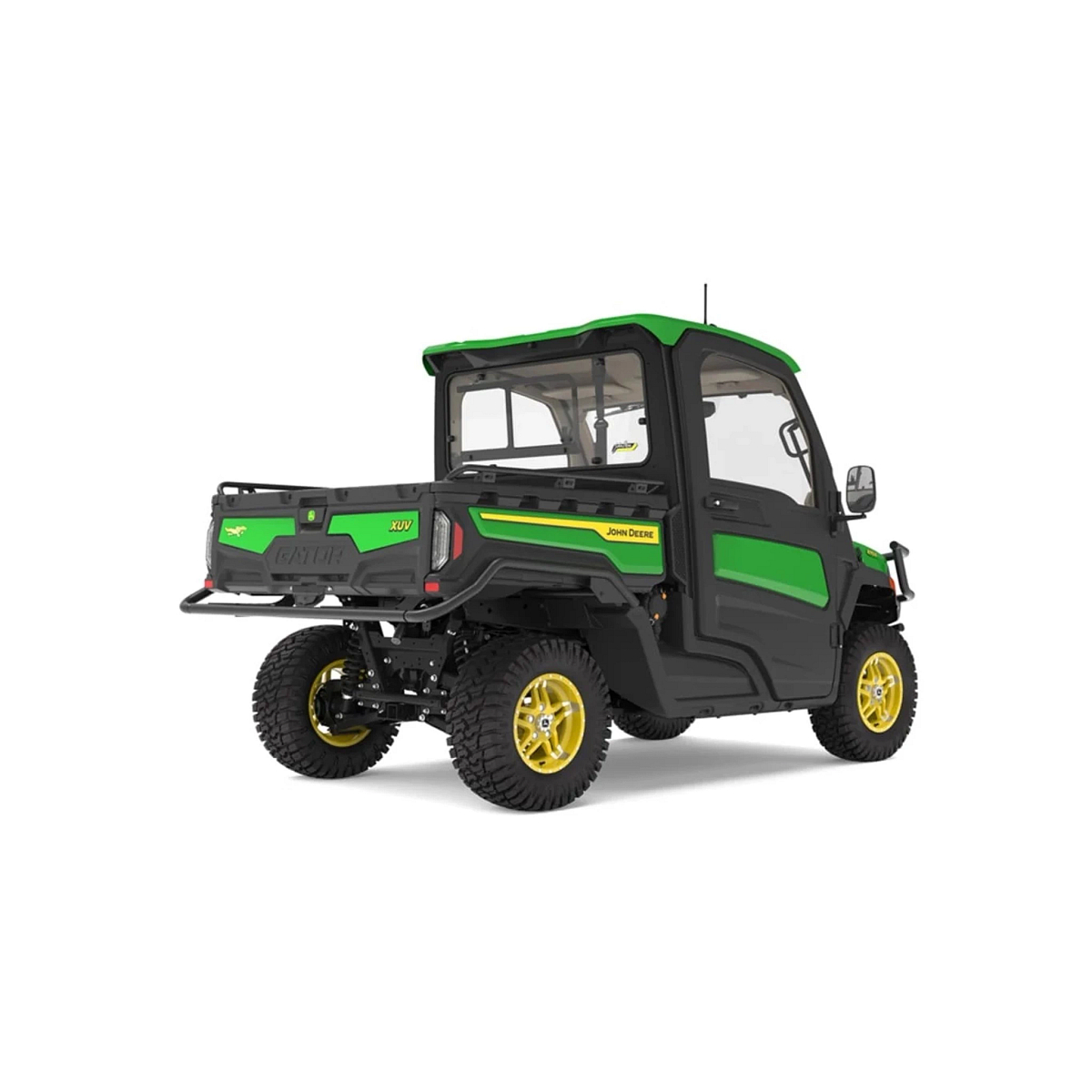

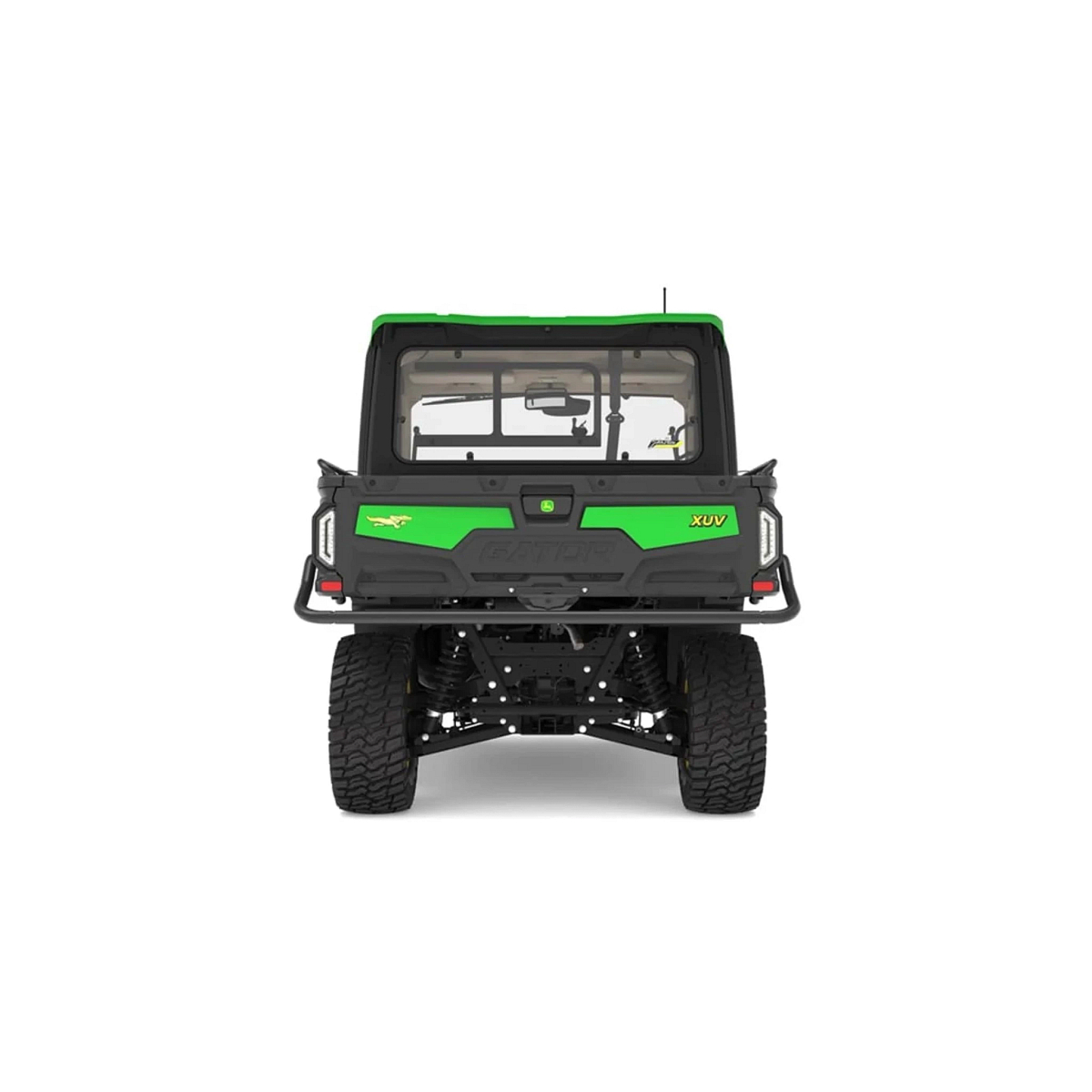

John Deere XUV 875R Signature Edition

Starting at

Class-Leading Cargo Box Volume Configures to the Needs of the Job

Haul up to 1000 lb. (454 kg) in the class-leading 18.5-cu ft (524-L) cargo box. Use built-in slots and stake pockets to quickly reconfigure the cargo box to the job. A 12-V power port is located in the cargo box to power attachments. Tow up to 4000 lb. (1840 kg) with the included receiver hitch.

Class is defined as a full-size heavy-duty crossover UTV with less than 100-in. wheelbase which is powered by a 750 to 900cc gasoline engine. Comparisons were made by calculating volume using published cargo box dimensions.

View from a dirt road of a 1025R loader attachment with 120R pallet forks unloading bags from an XUV 845 Gator while an operator looks on from beside it
Top-of-the-Line Signature Edition

Stay cool in the air conditioned cab with Signature Edition upgrades and genuine leather split bench seat for three. An automotive-inspired design features power steering, a seven-speaker touchscreen infotainment system, rear camera, cargo box power lift, dual-beam LED headlights, turn signals, and two 12-V outlets. Shift from park and into gear with a throw of the dash-mounted lever. For tough conditions, engage four-wheel drive and rear differential lock switches.

Over-the-shoulder view of an operator touching a button on a Universal Display screen within the cab of an XUV845R Gator. A golden, harvested field can be seen through the windows
Factory-Installed Precision Ag Technology

Installing a G5 Display, StarFire™ 7500 Receiver, and a GreenStar™ ready or an AutoTrac™ ready option enables you to utilize the vehicle’s speed, light weight, and nimbleness to establish boundary lines, even when the soil is too wet for larger equipment. Use the AutoTrac™ assisted steering system to ensure field boundaries are planter ready, or spray in predefined paths around buildings and fence rows while minimizing overlap, input costs, and operator fatigue.

New John Deere Gator XUV 845R Signature Series Utility Vehicle with StarFire receiver moving through a field with dust swirling with a golden sunset look to the photo
Question text goes here

Answer text goes here

Engine
Engine Type

4-cycle diesel

Displacement

52.1 cu in.

Displacement

854 cc

Engine Power

17 kW

Engine Power

22.8 hp

Cooling System

Liquid

Drivetrain
Transmission

Continuously Variable Transmission (CVT) with clutch enclosure

Final Drive

Park, high, low, neutral, reverse transaxle

Four Wheel Drive

Dash switch actuated four-wheel drive system

Traction Assist

Limited slip front differential; Positive locking, switch actuated rear differential lock

Descent Control

Yes

Suspension
Front Suspension

Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

Rear Suspension

Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel

Brakes
Type

Front/rear hydraulic disc with twin piston front calipers

Park Brake

Park in-transmission; Optional factory-installed secondary foot operated with hand release

Tires/Wheels
Front

27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on alloy wheels

Rear

27x11-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on alloy wheels

Dimensions/Capacities
Wheelbase

2211 mm

Wheelbase

87 in.

Weight

1148 kg

Weight

2532 lb.

Length

3490 mm

Length

137.4 in.

Width

1790 mm

Width

70.5 in.

Height

2135 mm

Height

84.1 in.

Tread Centers - Front

1376 mm

Tread Centers - Front

54.2 in.

Tread Centers - Rear

1300 mm

Tread Centers - Rear

51.2 in.

Ground Clearance

305 mm

Ground Clearance

12 in.

Fuel Capacity

42.4 L

Fuel Capacity

11.2 U.S. gal.

Cargo Box Dimensions

1099 x 343 x 1392 mm

Cargo Box Dimensions

43.3 x 13.5 x 54.8 in.

Cargo Box Volume

524 L

Cargo Box Volume

18.5 cu ft

Cargo Box Capacity (Weight)

454 kg

Cargo Box Capacity (Weight)

1000 lb.

Payload Capacity

394 kg

Payload Capacity

868 lb.

Towing Capacity

1814 kg

Towing Capacity

4000 lb.

Hitch

Standard receiver: 2 in. (5.1 cm)

Features
Color

Green and yellow

Power Steering

Yes

Battery

480 CCA

Battery

12 V

Alternator

85 amp

Power Port - DC Outlet

12 V

Power Port - Cargo Box

12 V

Instrumentation

Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) 16.3 cm (6.4-in.) touchscreen infotainment system with seven speakers, rear-facing camera, Android™ Auto, Bluetooth® connectivity, AM/FM/SiriusXM® Satellite bands

Storage

Total: 12.5 gal. (47.3 L); Six cup holders: 1.2 gal. (4.6 L); Center tray: 0.3 gal. (1.2 L); Storage pocket: 0.4 gal. (1.4 L); Glove box: 1 gal. (3.8 L); Under seat: 9.6 gal. (36.4 L)

Seating

Genuine leather 40/60 split three-passenger bench

Additional Information
Country Of Manufacture

U.S.
