Utility Tractors

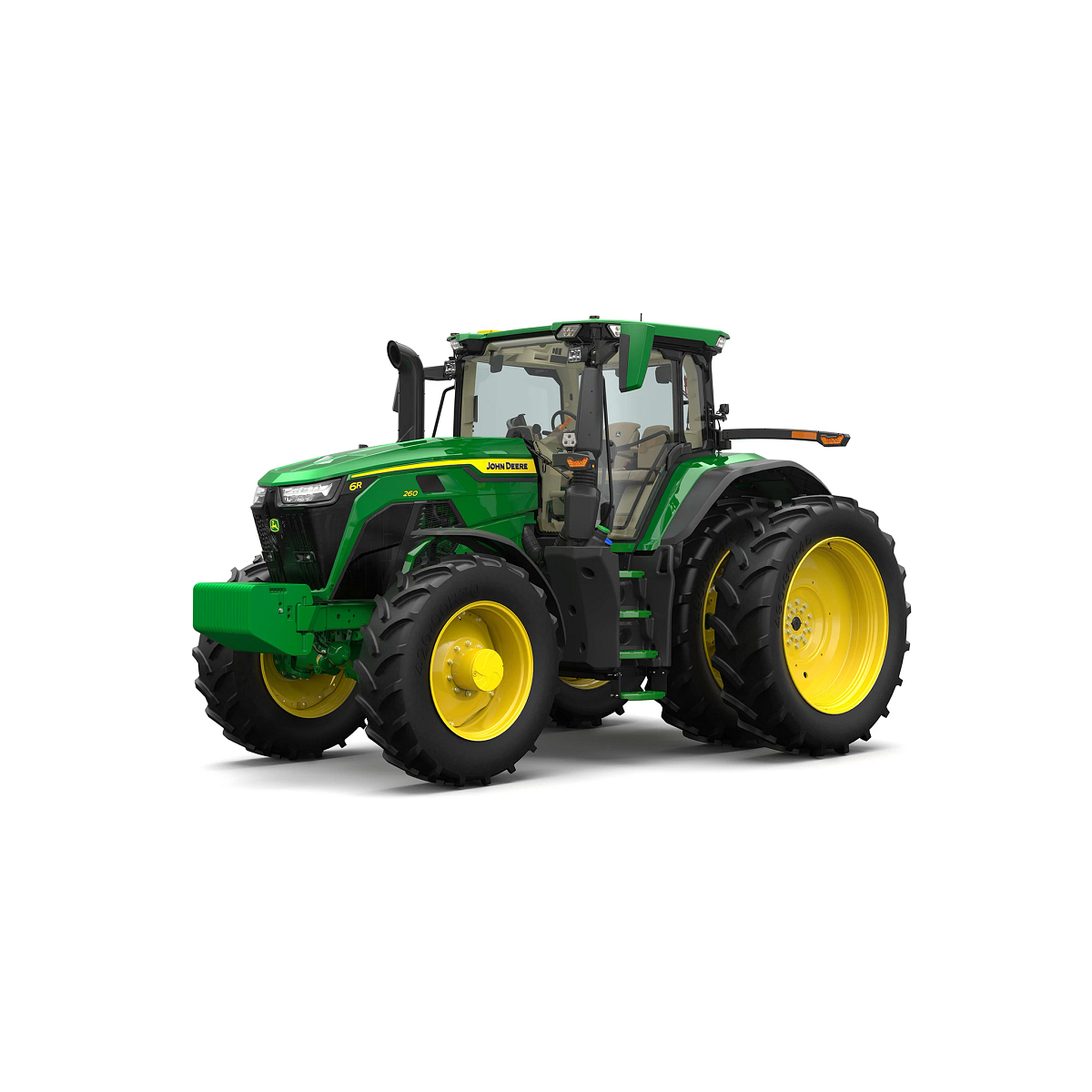

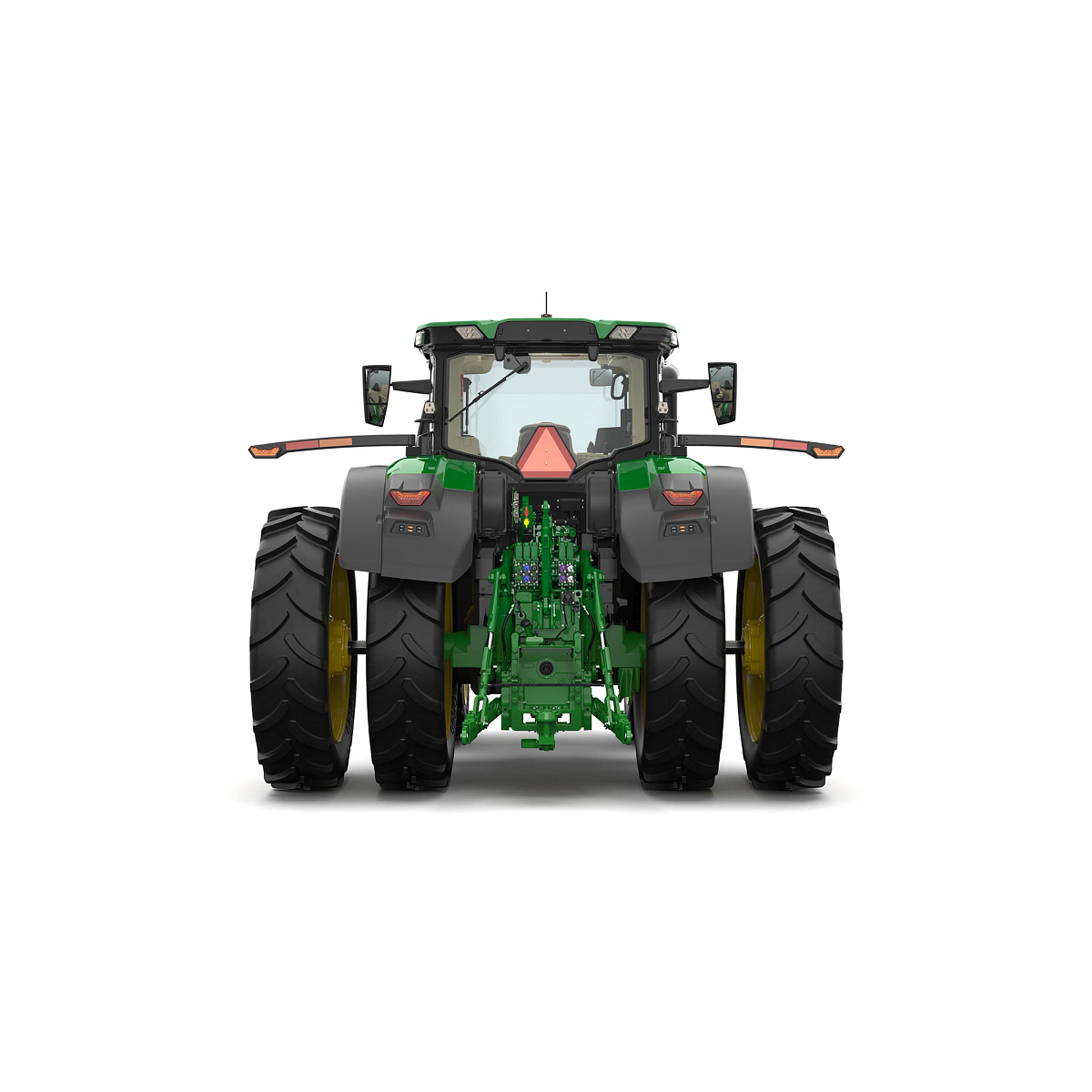

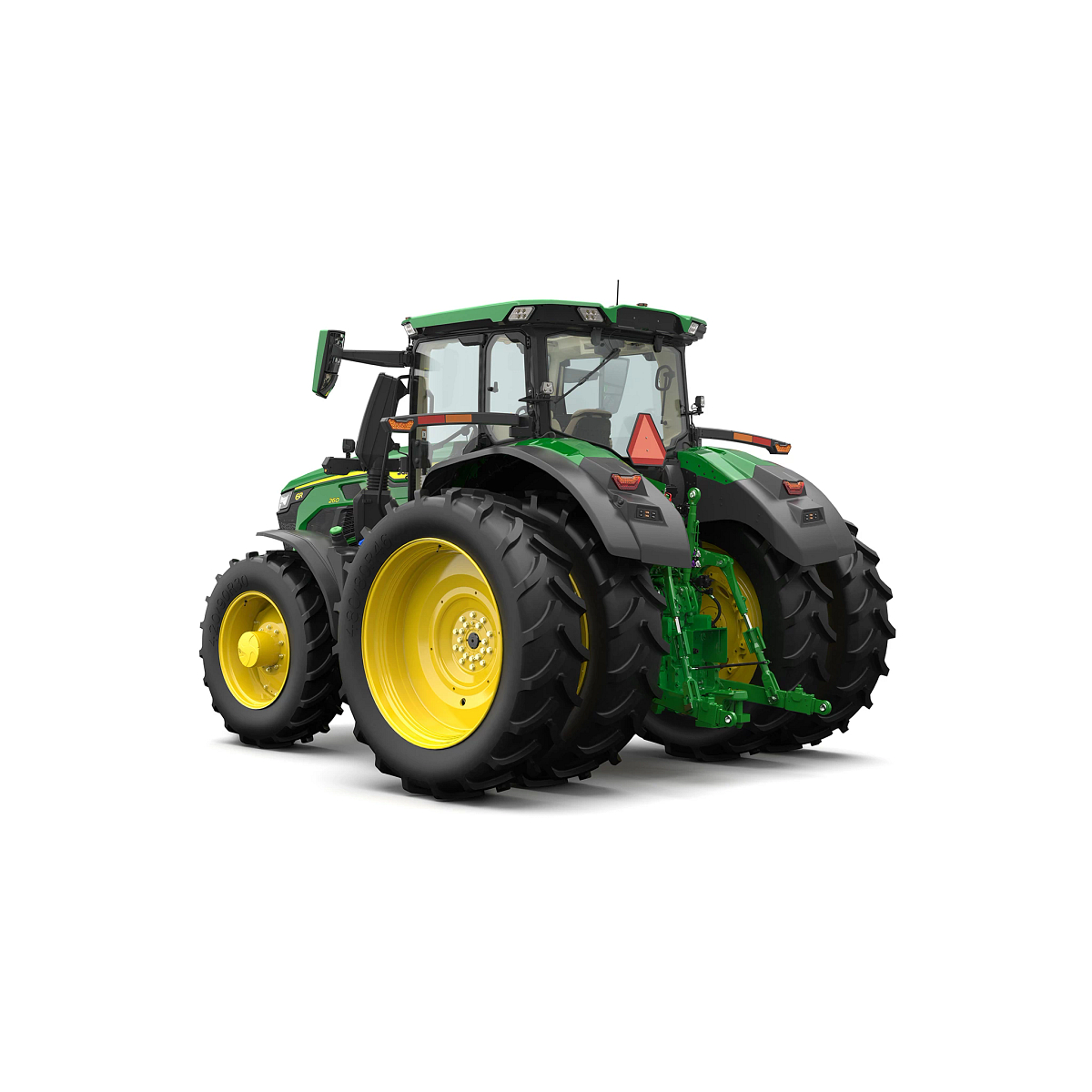

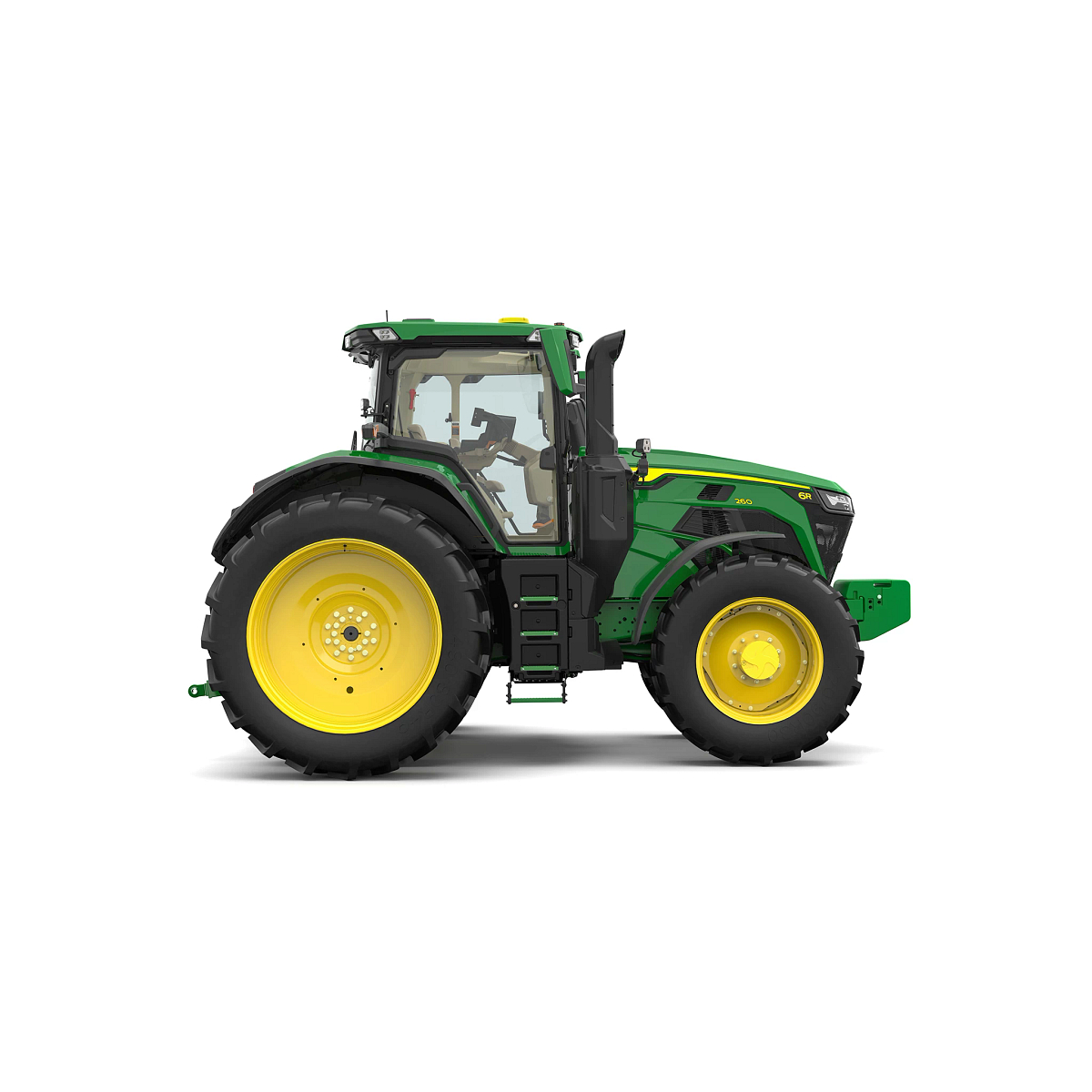

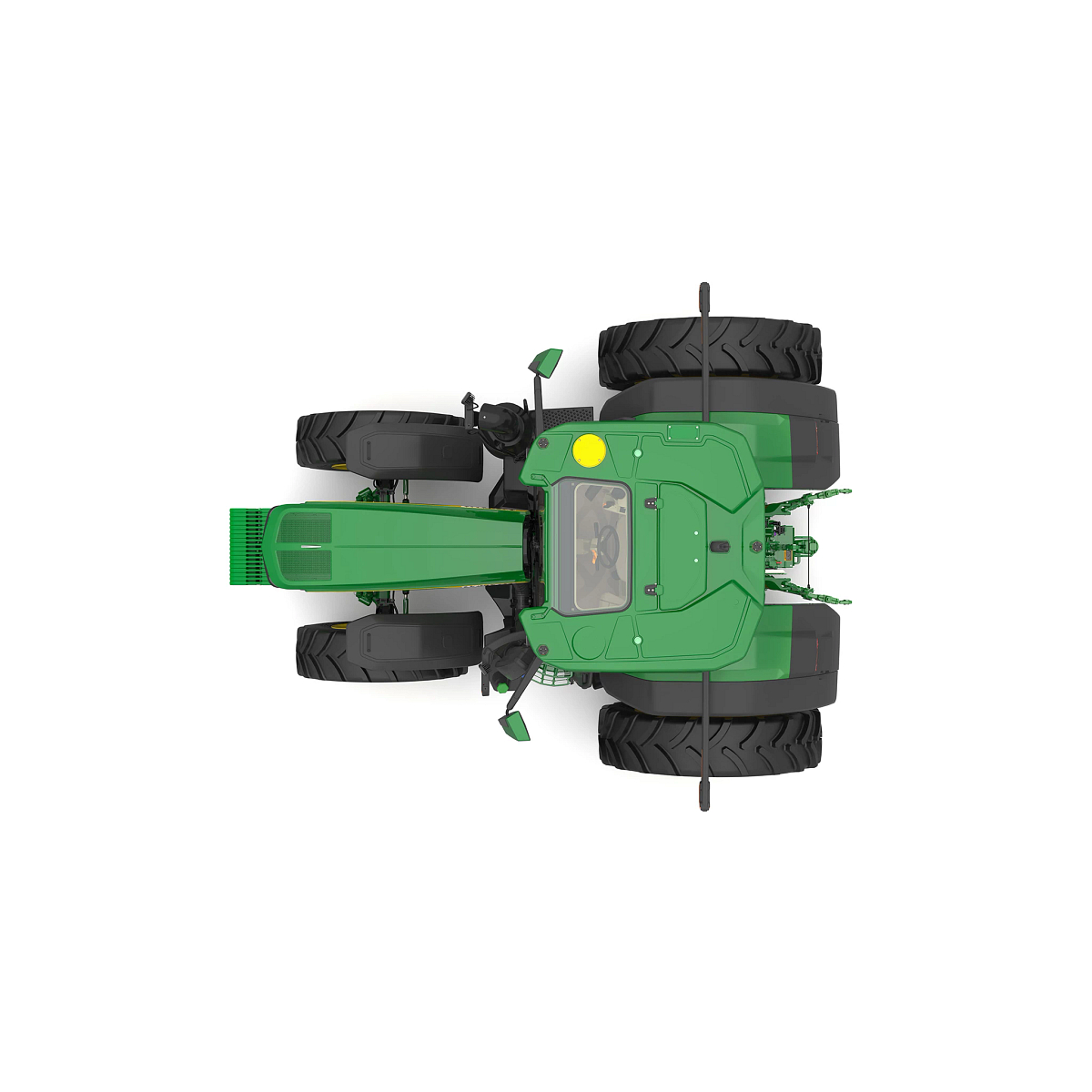

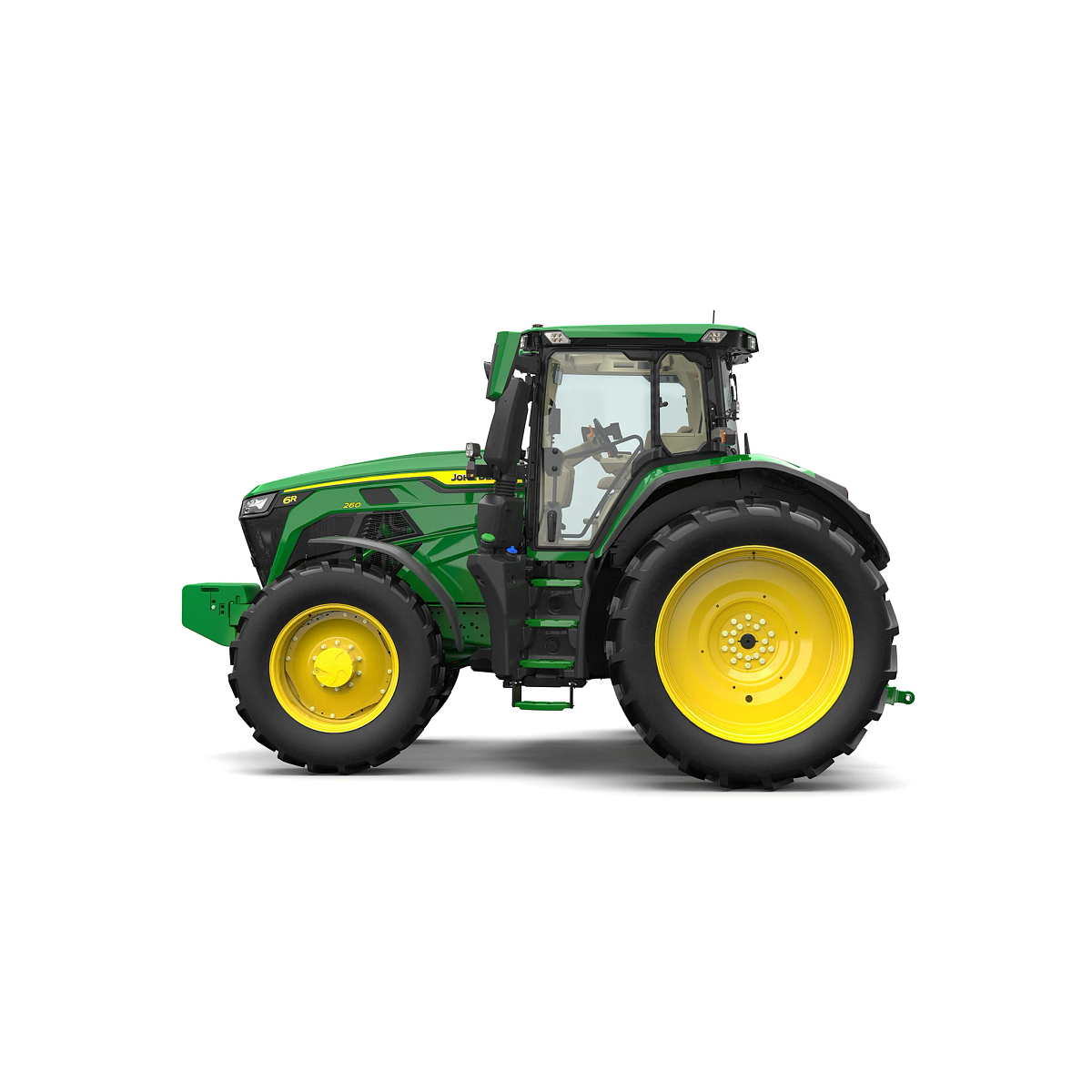

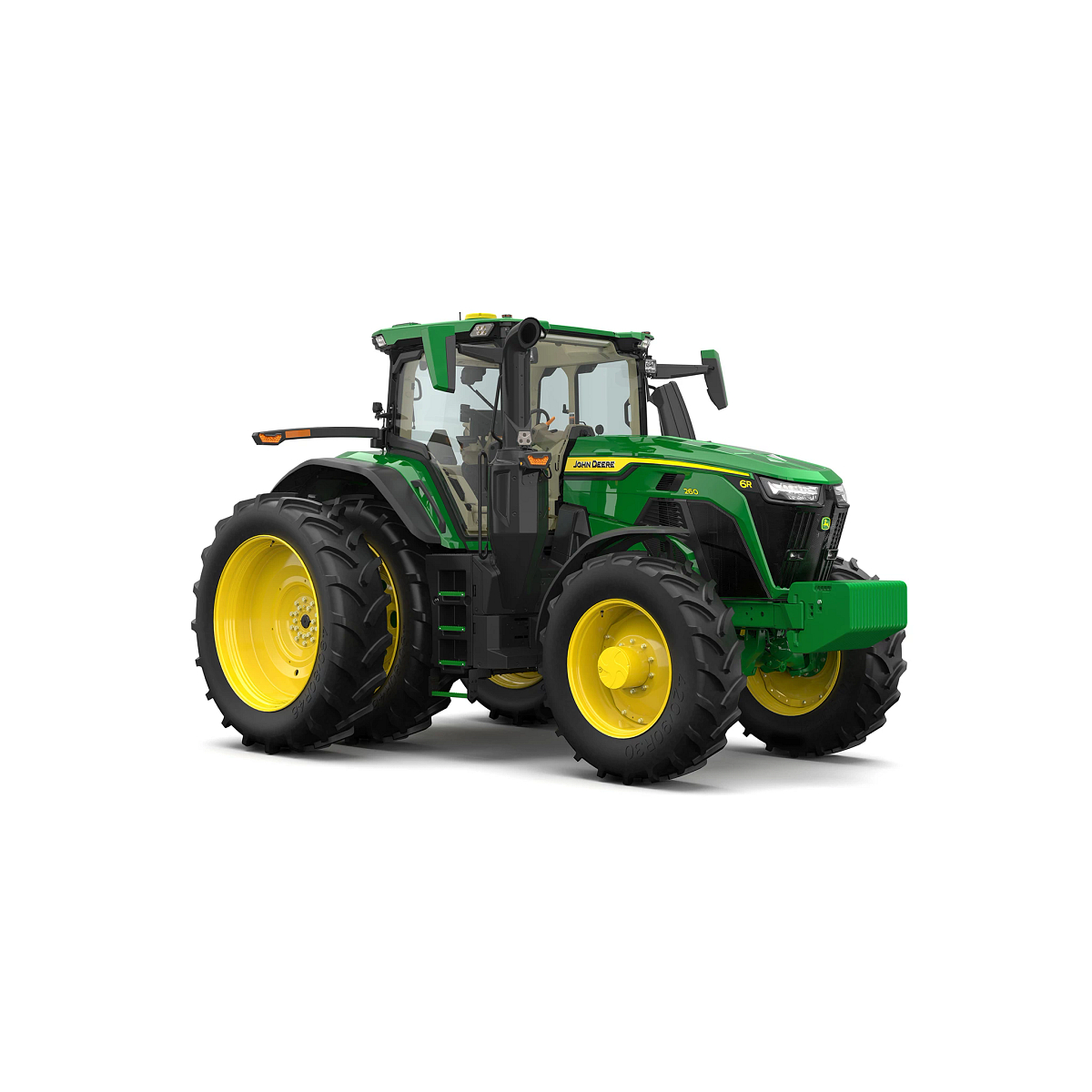

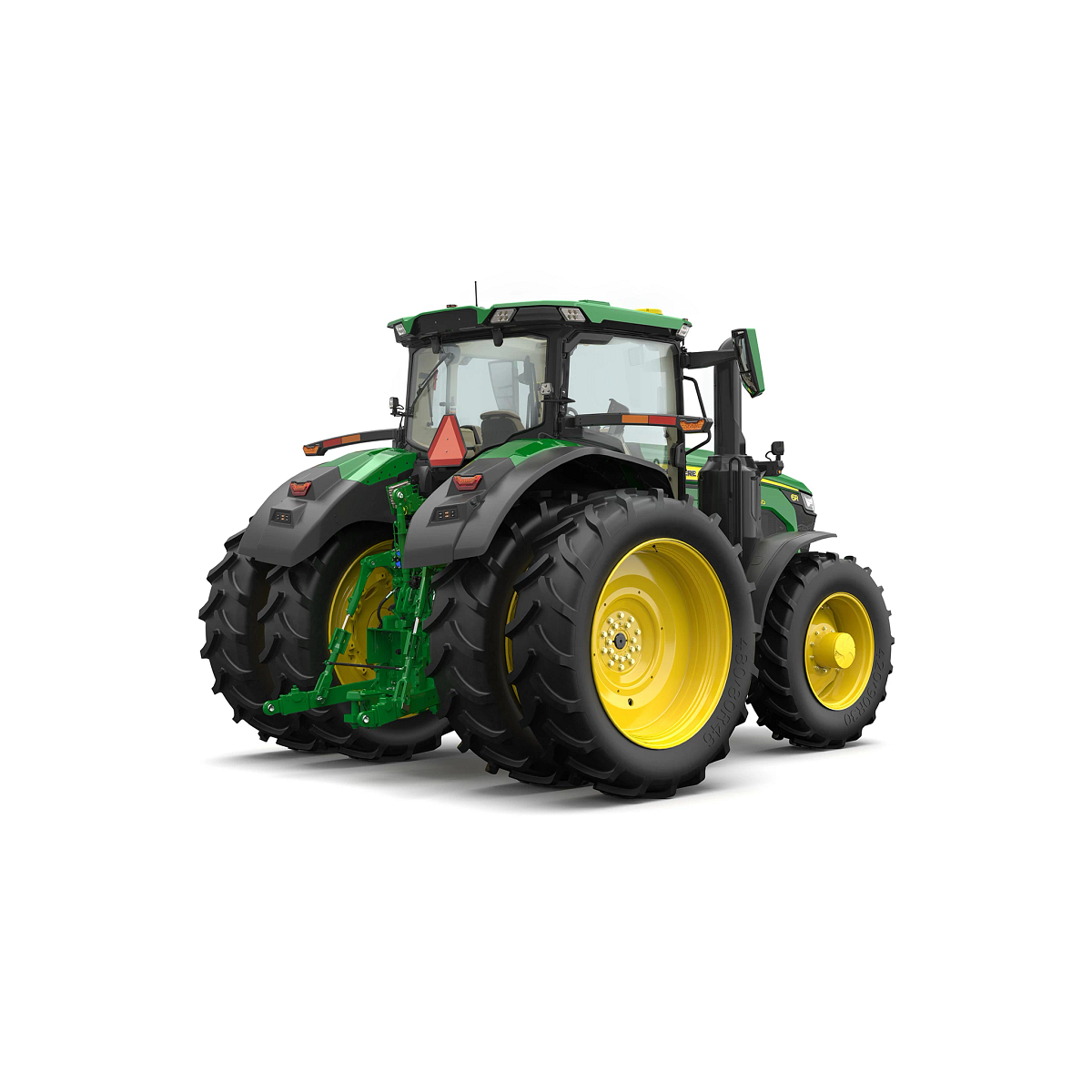

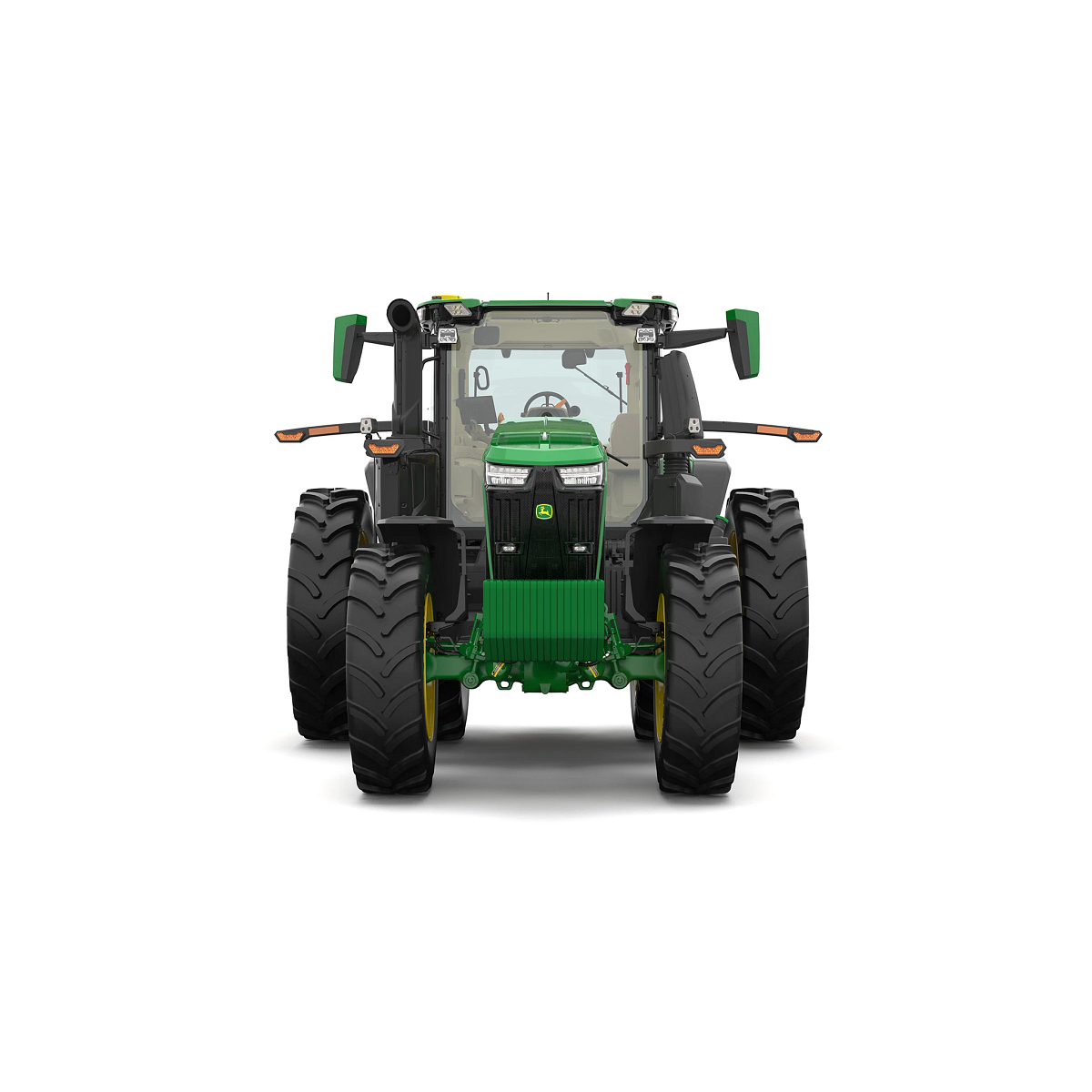

John Deere 6R 260

Starting at

Key Features

Engine hp: 286 Max (213 kW) / 260 hp (194 kW) With up to 40 Additional hp (30 kW) (IPM)
e19™ PowerShift™ or IVT™ Transmission for Delivering Efficient Power to the Ground
Ergonomic Design and Optimized Visibility
Enhanced Front Axle and Cab Suspension for Responsive Road Handling and Comfort During Transport

Technology, Connectivity, and Automation

Engineered for performance, technology features include an integrated precision ag platform with AutoTrac™ guidance readiness, JDLink™ connectivity, and access to John Deere Operations Center™. Advanced automation and data tools can help improve efficiency, uptime, and in-field productivity.

JDLink™ hardware comes standard with the machine. You can turn on JDLink connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to Operations Center. Consult your John Deere Dealer for coverage availability.

Close-up of John Deere in‑cab touchscreen display showing precision guidance lines and field view, with an operator’s hand pointing at the screen; mounted inside a tractor cab during field operation.

All Day Comfort and Control

Enjoy a spacious cab that provides all-day comfort with ergonomic controls, excellent visibility, and a sealed environment. The CommandARM™ console provides a thoroughly intuitive operating interface. All the controls you need for daily work are available at your fingertips.

Interior view of John Deere tractor cab showing steering wheel, operator seat, armrest controls, touchscreen displays, joystick, mirrors, and overhead vents, photographed from behind the seat against a light background.

Transmissions Engineered for Performance

The transmissions are built to meet the demands of your day, whether you choose the Infinitely Variable Transmission (IVT) or e19™ PowerShift™ that has 19 fully powered shiftable gears for high horsepower operations with zero torque interruptions.

Side left view of a 6R 260 tractor traveling down a tree-lined country road.

Machine Configuration

Wheel or Track Configuration	Wheel
Drive Type	MFWD

Engine

Engine Make	John Deere
Engine Model	PowerTech™ PSS
Engine Family	VJDXL06.8309
Emissions Certifications	Final Tier 4
Displacement	418 cu in.
Displacement	6.8 L
Aspiration	Turbocharged, variable geometry turbo with fixed geometry turbo in series, air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders	6
Cylinder Liners	Wet-sleeve
Aftertreatment Type	Cooled exhaust gas recirculation (EGR), Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Intelligent Power Management (IPM)	40
Rated Engine Speed	2100 rpm
Rated Engine Power	256 hp
Rated Engine Power	191 kW
Rated Engine Power	250 PS
Rated Engine Power with IPM	296 hp
Rated Engine Power with IPM	221 kW
Rated Engine Power with IPM	300 PS
Maximum Engine Speed	1900 rpm
Maximum Engine Power	282 hp
Maximum Engine Power	210 kW
Maximum Engine Power	286 PS
Maximum Engine Power with IPM	301 hp
Maximum Engine Power with IPM	224 kW
Maximum Engine Power with IPM	305 PS
Maximum Engine Torque	1,217 Nm 897 ft-lb
Constant Power Range	1500 - 2100 rpm
Power Bulge	10 %
Bore and Stroke	4,19 x 5 in.
Bore and Stroke	106,5 x 127 mm
Compression Ratio	16:07:01
Lubrication	Pressure lubrication
Cooling System Type	Liquid
Fuel Type	Ultra-low sulfur diesel
Air Cleaner Type	External dry-filter type air filter with pre-cleaning
Torque Rise	40 %

Transmission

Transmission Type	Standard: John Deere AutoPowr™/IVT™ 40 km/h Optional: John Deere AutoPowr™/IVT™ 50 km/h John Deere e19™ PowerShift™ 40 km/h & 50 km/h
Maximum Speed Forward	50 km/h 31 mph
Minimum Speed Forward	0.03 km/h 0.02 mph
Reverser	Left-hand electrical reverser
Cruise Control	Yes

Rear Power Take-Off (PTO)

PTO Category	Category 3
Rated PTO Power	210 hp
Rated PTO Power	157 kW
Rated PTO Power	213 PS
Rated PTO Power with IPM	246 hp
Rated PTO Power with IPM	250 PS
Economy PTO Speeds	540 rpm / 1,000 rpm
Engine rpm at Rated PTO Speeds (540/540E/1.000)	1950/1721/1950
Engine rpm at Rated PTO Speeds (540E/1000/1.000E)	1618/2012/1659
Engagement Method	Electrohydraulic switch
PTO Clutch	Multi-disk
Number of Splines	6 and 21

Front PTO

PTO Speed	1000
Front PTO Rotation	Clockwise rotation (viewed in direction of travel)
Engine rpm (at Rated PTO Speeds)	1966 rpm
Maximum PTO Power	154 hp
Maximum PTO Power	115 kW
Maximum PTO Power	156 PS
Engine rpm (at Maximum PTO Speeds)	1966 rpm
Front Number of Splines	21

Front Hitch

Front Hitch Category	Category 3N
Lift Capacity Through Full Lift Range at Coupling Points	9700 lb.
Lift Capacity Through Full Lift Range at Coupling Points	4400 kg
Maximum Lift Capacity at Coupling Points	13007 lb.
Number of Front Selective Control Valves (SCVs)	Two
Electric Power	ISOBUS Connector

Rear Hitch

Rear Hitch Category (SAE Designation)	Category 3/3N
Maximum Lift Capacity Directly at Coupling Points	21,820 lb
Lift Capacity Through Full Lift Range Directly at Coupling Points	15,430 lb
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point	6700 kg / 14770 lb
Sensing Type	Electrohydraulic sensing
Draft Control Sensing	Yes

Drawbar

Drawbar Category	Cat 3
Maximum Vertical Load	6,612 lb

Hydraulics

Hydraulic System Type	Closed-center, pressure/flow compensated system
Pump Rated Output	55.5 gpm
Maximum Operating Pressure	2973 psi
Maximum Operating Pressure	205 bar
Number of Rear Selective Control Valves (SCVs)	Six
SCV Control	Electrohydraulic
Auxiliary Hydraulic Features	Yes

Front Axle

Front Axle Type	Triple Link Suspension (TLS Pro™) MFWD axle, Hydro-pneumatic, permanently active, triple link, self levelling suspension
Front Axle Differential Lock	Yes

Rear Axle

Rear Axle Type	Inboard planetary three pinion
Rear Differential Lock	Yes
Differential Controls	Yes
Final Drive	Three planetary gear reduction

Steering & Brakes

Steering Type	Dynamic Load Sensing Reactive Command Steering (RCS)
Primary Brakes	Hydraulic actuation of rear axle brake and front axle brake (optional)
Secondary Brake	Electo hydraulic actuated, integrated into service brake
Trailer Brakes	Optional: Air and/or hydraulic
Parking Brake	Intergrated parking brake

Tires

Front Tread Spacing	7 in.
Front Tread Spacing	180 mm
Rear Tread Spacing	7 in.
Rear Tread Spacing	180 mm

Electrical System

Battery Voltage	12 V
Electrical System Voltage	12 V
Battery Cold Cranking Amps	1800 CCA
Battery Capacity	174 Ah
Alternator Capacity	250
Working Lights	Yes
Driving Lights	Yes

Operator Station

Gearshift Location	CommandArm™
Db(A) Rating	71 dBA
Seat Suspension	Mechanic / Pneumatic
Degree of Seat Swivel, Left Hand	16 degree (angle)
Degree of Seat Swivel, Right Hand	32 degree (angle)
Cab Suspension	Yes
Instructional Seat	Yes
Primary Display	Cornerpost Display
Radio	Standard
Inner Cab Volume	102.4 cu ft
Inner Cab Volume	2.9 m³
Cab Glass Area	63.5 sq ft
Cab Glass Area	5.9 m²

Technology Integration

Guidance	SF-RTK
Secondary Display	10,1 / 12.8 inch Command Center Display
Receiver	Intergrated StarFire™ 7500
Connectivity	JDLink™ Modem
Remote Diagnostics	Yes
ISOBUS Ready	Yes

Capacities

Fuel Tank Capacity	107 gal.
Fuel Tank Capacity	405 L
Diesel Exhaust Fluid (DEF) Tank Capacity	5.5 gal.
Diesel Exhaust Fluid (DEF) Tank Capacity	21 L
Cooling System Capacity	9 gal.
Cooling System Capacity	34 L
Transmission - Hydraulic System	21.9 gal.
Transmission - Hydraulic System	83 L
Crankcase Oil Volume	6.2 gal.
Crankcase Oil Volume	23.5 L

Dimensions & Weights

Wheelbase	114 in.
Wheelbase	2900 mm
Base Machine Weight	21716 lb.
Base Machine Weight	9850 kg
Overall Height	129.3 in.
Overall Height	3285 mm
Transport Height	145.4 in.
Transport Height	3692 mm
Overall Width	100.4 in.
Overall Width	2550 mm
Overall Length	204.3 in.
Overall Length	5190 mm
Front Axle Ground Clearance	545 mm
Maximum Ballast Level	15000 kg
Maximum Permissible Weight	33069 lb.
Maximum Permissible Weight	15000 kg

Additional Information

Country of Manufacture	Germany
Date Collected	8-Jun-26
