Utility Tractors

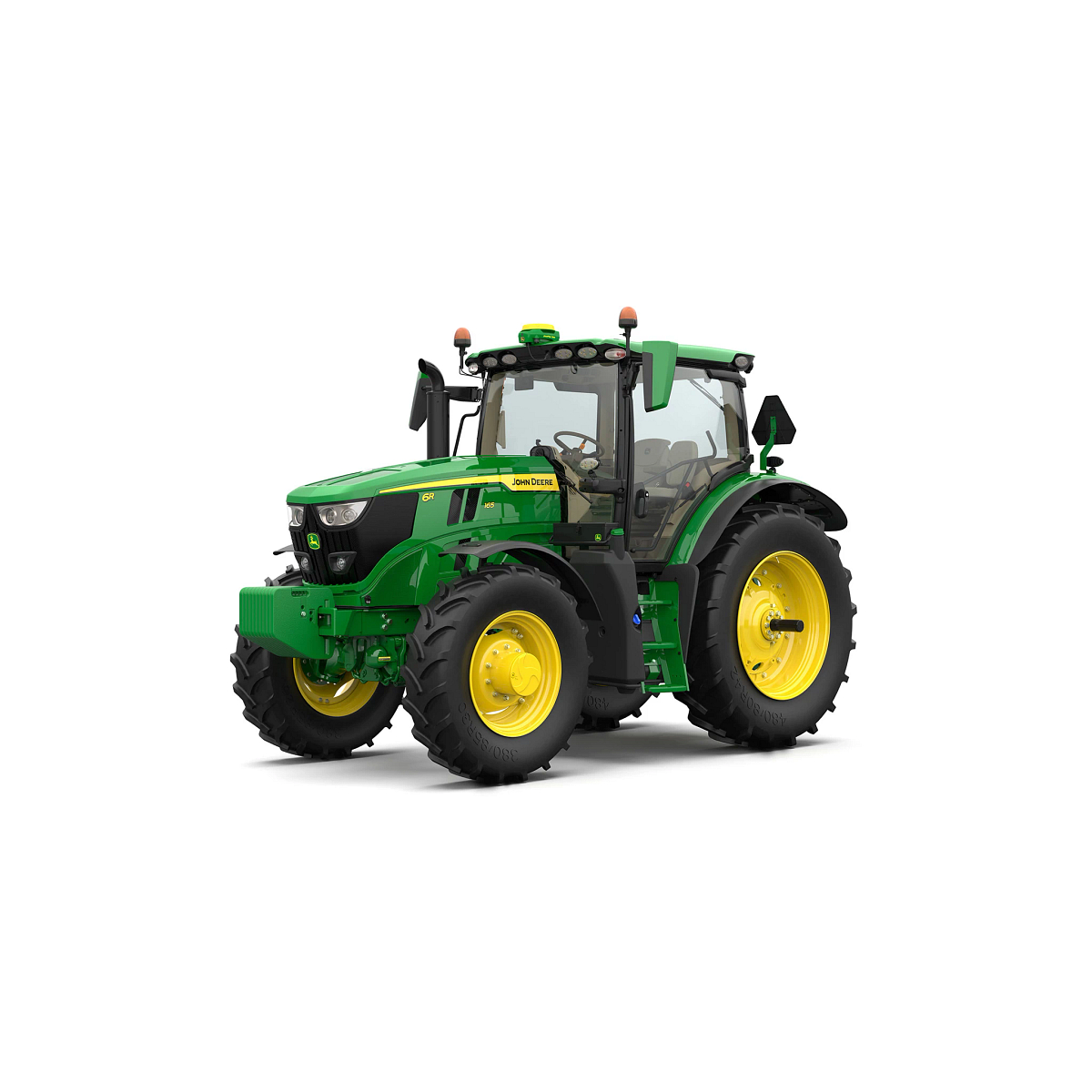

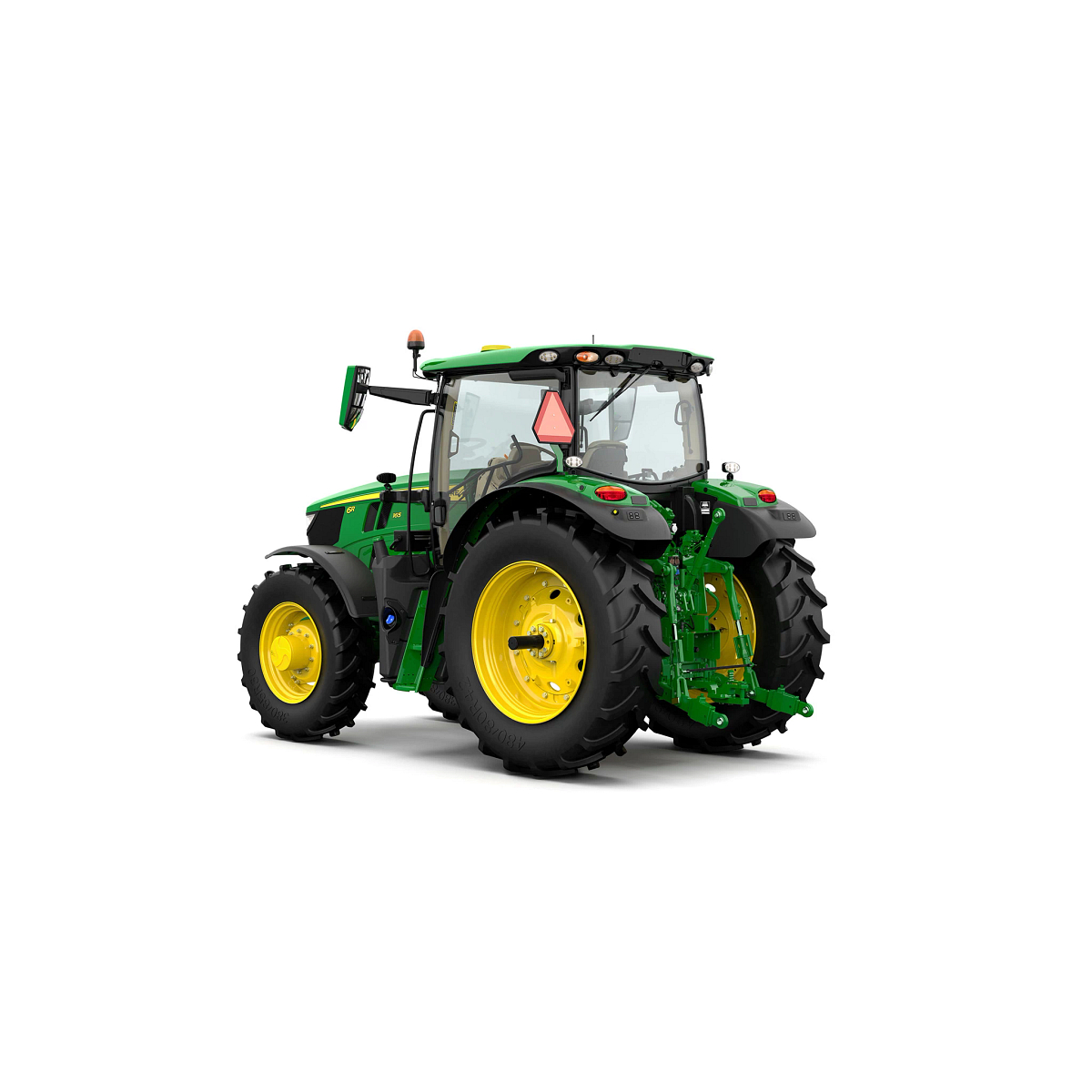

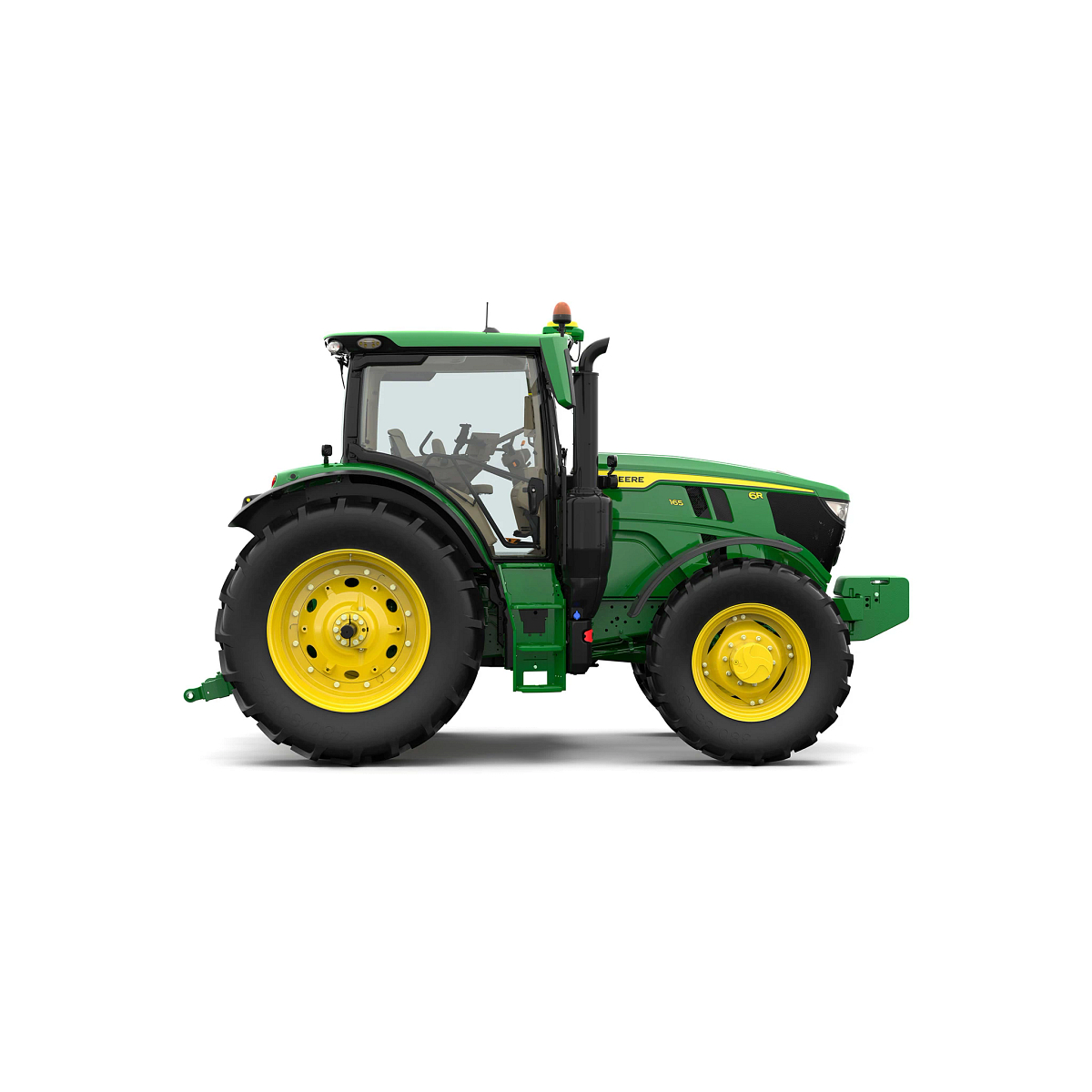

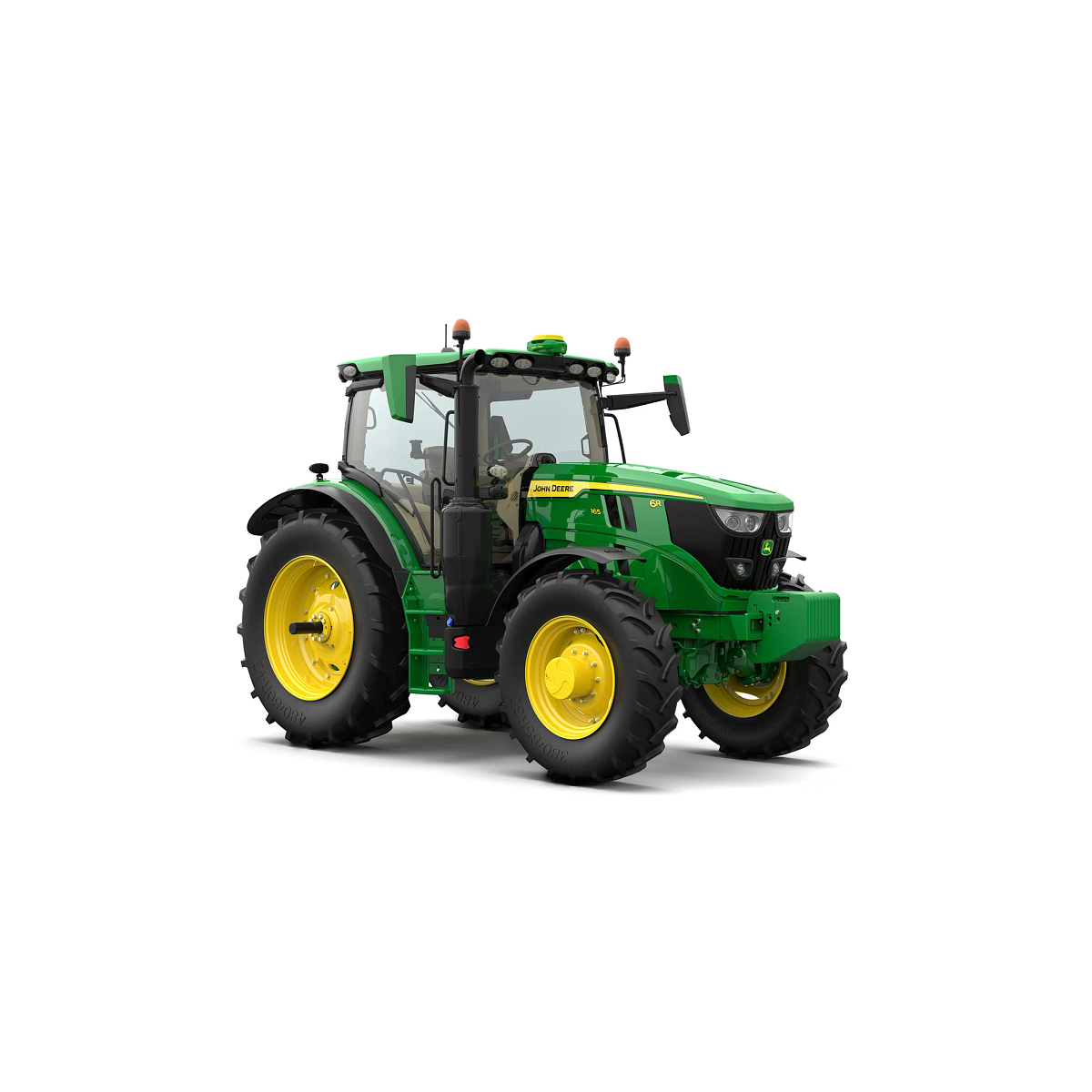

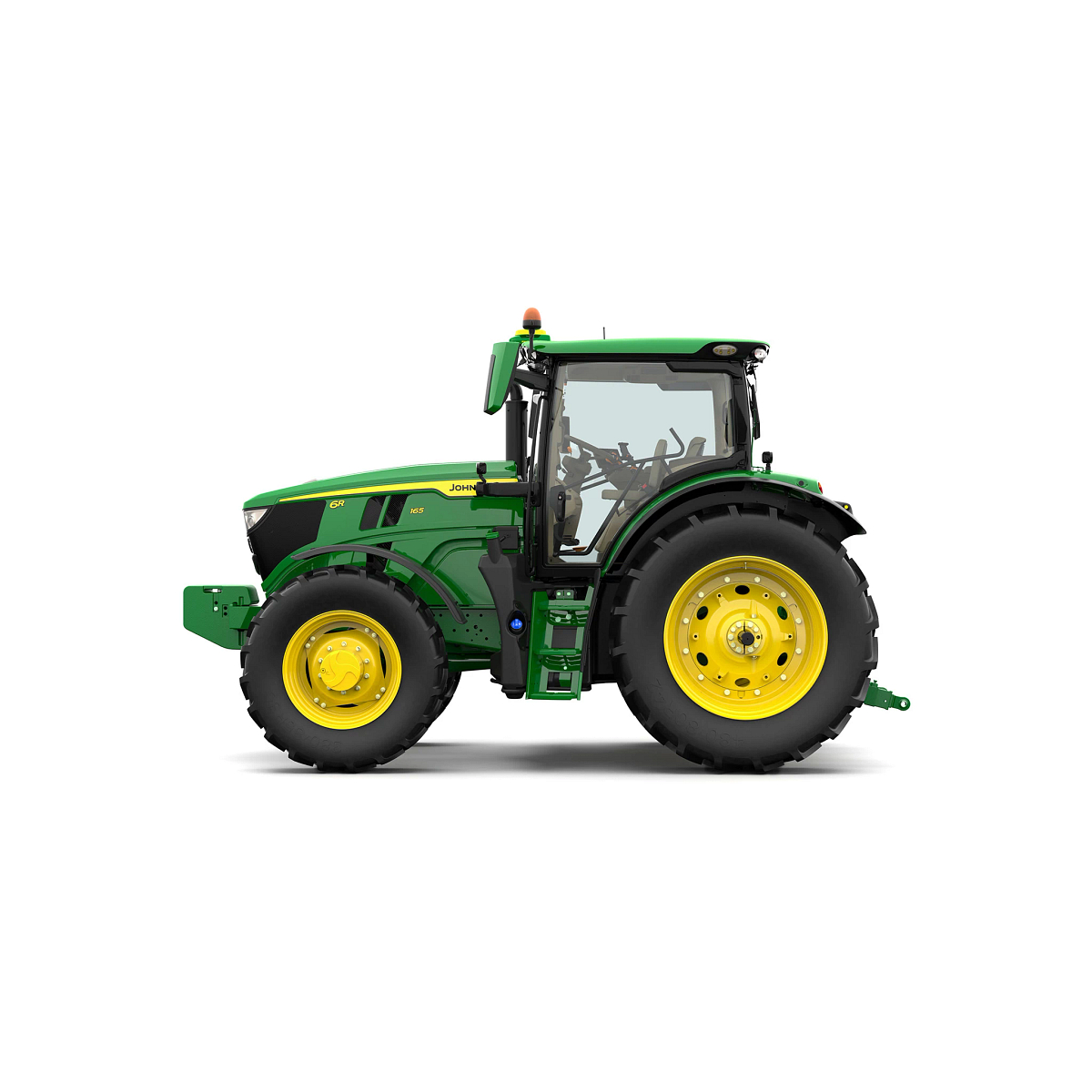

John Deere 6R 165

Starting at

Key Features

John Deere Final Tier 4 (FT4) PowerTech™ 6-Cylinder Engines
Engine hp: 182 Max / 165 Rated, up to 40 Additional hp With Intelligent Power Management (IPM)
New Offering of 1000E Power Take-Off (PTO)
Infinitely Variable Transmission™

All Day Comfort and Control

Enjoy a spacious cab that provides all-day comfort with ergonomic controls, excellent visibility, and a sealed environment. The CommandARM™ console provides a thoroughly intuitive operating interface. All the controls you need for daily work are available at your fingertips.

Interior view of John Deere tractor cab showing steering wheel, operator seat, armrest controls, touchscreen displays, joystick, mirrors, and overhead vents, photographed from behind the seat against a light background.

Technology, connectivity, and automation

Engineered for performance, technology features include an integrated precision ag platform with AutoTrac™ guidance readiness, JDLink™ connectivity, and access to John Deere Operations Center™. Advanced automation and data tools can help improve efficiency, uptime, and in-field productivity.

JDLink™ hardware comes standard with the machine. You can turn on JDLink connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to Operations Center. Consult your John Deere Dealer for coverage availability.

Close-up of John Deere in‑cab touchscreen display showing precision guidance lines and field view, with an operator’s hand pointing at the screen; mounted inside a tractor cab during field operation.

Transmissions Engineered for Performance

The transmissions are built to meet the demands of your day with the standard Infinitely Variable Transmission (IVT) or optional AutoQuad™, and Direct Drive transmissions. These help provide operators with the ability to match shifting control, automation, and efficiency to their tasks.

John Deere tractor with yellow wheels towing a red agricultural trailer along a rural paved road, driving past green fields and harvested grass under a cloudy sky.

Machine Configuration

Wheel or Track Configuration	Wheel
Drive Type	MFWD

Engine

Engine Make	John Deere
Engine Model	PowerTech™ PVS
Engine Family	VJDXL06.8309
Emissions Certifications	Final Tier 4
Displacement	415 cu in.
Displacement	6.8 L
Aspiration	Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders	6
Cylinder Liners	Wet-sleeve
Aftertreatment Type	Cooled exhaust gas recirculation (EGR) Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Intelligent Power Management (IPM)	40
Rated Engine Speed	2100 rpm
Rated Engine Power	163 hp
Rated Engine Power	123 kW
Rated Engine Power	165 PS
Rated Engine Power with IPM	202 hp
Rated Engine Power with IPM	205 PS
Engine Torque at Rated Speed	773 Nm
Maximum Engine Speed	1900 rpm
Maximum Engine Power	179 hp
Maximum Engine Power	133 kW
Maximum Engine Power	182 PS
Maximum Engine Power with IPM	210 hp
Maximum Engine Power with IPM	157 kW
Maximum Engine Power with IPM	213 PS
Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628)	133 kW
Maximum Engine Torque	570 lb-ft
Constant Power Range	1,500 - 2,100 rpm
Power Bulge	10 %
Bore and Stroke	4.2 x 5.0 in.
Compression Ratio	16.7:1
Lubrication	Pressure lubrication
Cooling System Type	Liquid
Fuel Type	Ultra-low sulfur diesel
Air Cleaner Type	PowerCore ® G2 Air Filter with pre-cleaning
Torque Rise	40 %

Transmission

Transmission Type	Standard: John Deere AutoPowr™/IVT™ 40 km/h; Optional: John Deere AutoPowr™/IVT™ 50 km/h
Maximum Speed Forward	31 mph
Minimum Speed Forward	0.02 mph
Reverser	Left-hand electrical reverser
Cruise Control	Yes

Rear Power Take-Off (PTO)

PTO Category	165
Rated PTO Power	129 hp
Rated PTO Power	96 kW
Rated PTO Power	131 PS
Rated PTO Power with IPM	165 hp
Rated PTO Power with IPM	167 PS
Economy PTO Speeds	540 rpm / 1,000 rpm
Engine rpm at Rated PTO Speeds (540/1.000)	1967 / 2000
Engine rpm at Rated PTO Speeds (540/540E/1.000)	1967 / 1753 / 2000
Engagement Method	Electrohydraulic switch
PTO Clutch	Multi-disk
Number of Splines	6 and 21

Front PTO

PTO Speed	1000
Front PTO Rotation	Clockwise rotation (viewed in direction of travel)
Engine rpm (at Rated PTO Speeds)	1969 rpm
Maximum PTO Power	107 hp
Maximum PTO Power	109 PS
Front Number of Splines	21

Front Hitch

Front Hitch Category	Category 3N
Lift Capacity Through Full Lift Range at Coupling Points	7275 lb.
Lift Capacity Through Full Lift Range at Coupling Points	3300 kg
Maximum Lift Capacity at Coupling Points	9700 lb.
Maximum Lift Capacity at Coupling Points	4000 kg
Number of Front Selective Control Valves (SCVs)	Two
Electric Power	ISOBUS Connector

Rear Hitch

Rear Hitch Category (SAE Designation)	Category 3/3N
Maximum Lift Capacity Directly at Coupling Points	8100kg / 16865 lb
Lift Capacity Through Full Lift Range Directly at Coupling Points	7280 kg / 9921 lb
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point	8708 lb
Sensing Type	Electrohydraulic sensing
Draft Control Sensing	Yes

Drawbar

Drawbar Category	Category 3
Maximum Vertical Load	6612 lb

Hydraulics

Hydraulic System Type	Closed-center, pressure/flow compensated system
Pump Rated Output	Standard: 114 L/min 30 gpm; Optional: 155 L/min 41 gpm
Maximum Operating Pressure	2970 psi
Number of Rear Selective Control Valves (SCVs)	Six
Number of Mid Selective Control Valves (SCVs)	3
SCV Control	Electrohydraulic
Auxiliary Hydraulic Features	Yes

Front Axle

Front Axle Type	Standard: Mechanical Front Wheel Drive axle; Optional: Triple Link Suspension (TLS™)
Front Axle Differential Lock	Yes

Rear Axle

Rear Axle Type	Inboard planetary three pinion
Rear Differential Lock	Yes
Differential Controls	Yes
Final Drive	Three planetary gear reduction

Steering & Brakes

Steering Type	Dynamic Load Sensing, Hydrostatic, Flow Metering
Primary Brakes	Oil-cooled, self-equalizing, self-adjusting, hydraulically actuated
Trailer Brakes	Optional: Air and/or hydraulic
Parking Brake	Intergrated parking brake

Electrical System

Battery Voltage	12 V
Electrical System Voltage	12 V
Battery Cold Cranking Amps	1230 CCA
Alternator Capacity	200
Working Lights	Yes
Driving Lights	No

Operator Station

Gearshift Location	CommandArm™
Db(A) Rating	71 dBA
Seat Suspension	Mechanic / Pneumatic
Degree of Seat Swivel, Left Hand	7 degree (angle)
Degree of Seat Swivel, Right Hand	15 degree (angle)
Cab Suspension	Yes
Instructional Seat	Yes
Primary Display	Cornerpost Display
Radio	Standard
Inner Cab Volume	116.5 cu ft
Inner Cab Volume	3.33 m³
Cab Glass Area	65.7 sq ft
Cab Glass Area	6.11 m²

Technology Integration

Guidance	SF-RTK
Secondary Display	10,1 / 12.8 inch Command Center Display
Receiver	Universal StarFire™ 7500
Connectivity	JDLink™ Modem
Remote Diagnostics	Yes
ISOBUS Ready	Yes

Capacities

Fuel Tank Capacity	74 gal.
Fuel Tank Capacity	280 L
Diesel Exhaust Fluid (DEF) Tank Capacity	4.2 gal.
Diesel Exhaust Fluid (DEF) Tank Capacity	16 L
Cooling System Capacity	7.2 gal.
Cooling System Capacity	27 L
Transmission - Hydraulic System	16.4 gal.
Transmission - Hydraulic System	75 L
Crankcase Oil Volume	6.2 gal.
Crankcase Oil Volume	23.5 L

Dimensions & Weights

Wheelbase	108.8 in.
Wheelbase	2765 mm
Base Machine Weight	17990 lb.
Base Machine Weight	7900 kg
Overall Height	119.3 in.
Overall Height	3030 mm
Transport Height	119.3 in.
Overall Width	65.5 in.
Overall Width	1664 mm
Overall Length	194.8 in.
Overall Length	4947 mm
Front Axle Ground Clearance	539 mm
Maximum Permissible Weight	25900 lb.
Maximum Permissible Weight	11750 kg

Additional Information

Country of Manufacture	Germany
Date Collected	8-Jun-26
