Utility Tractors

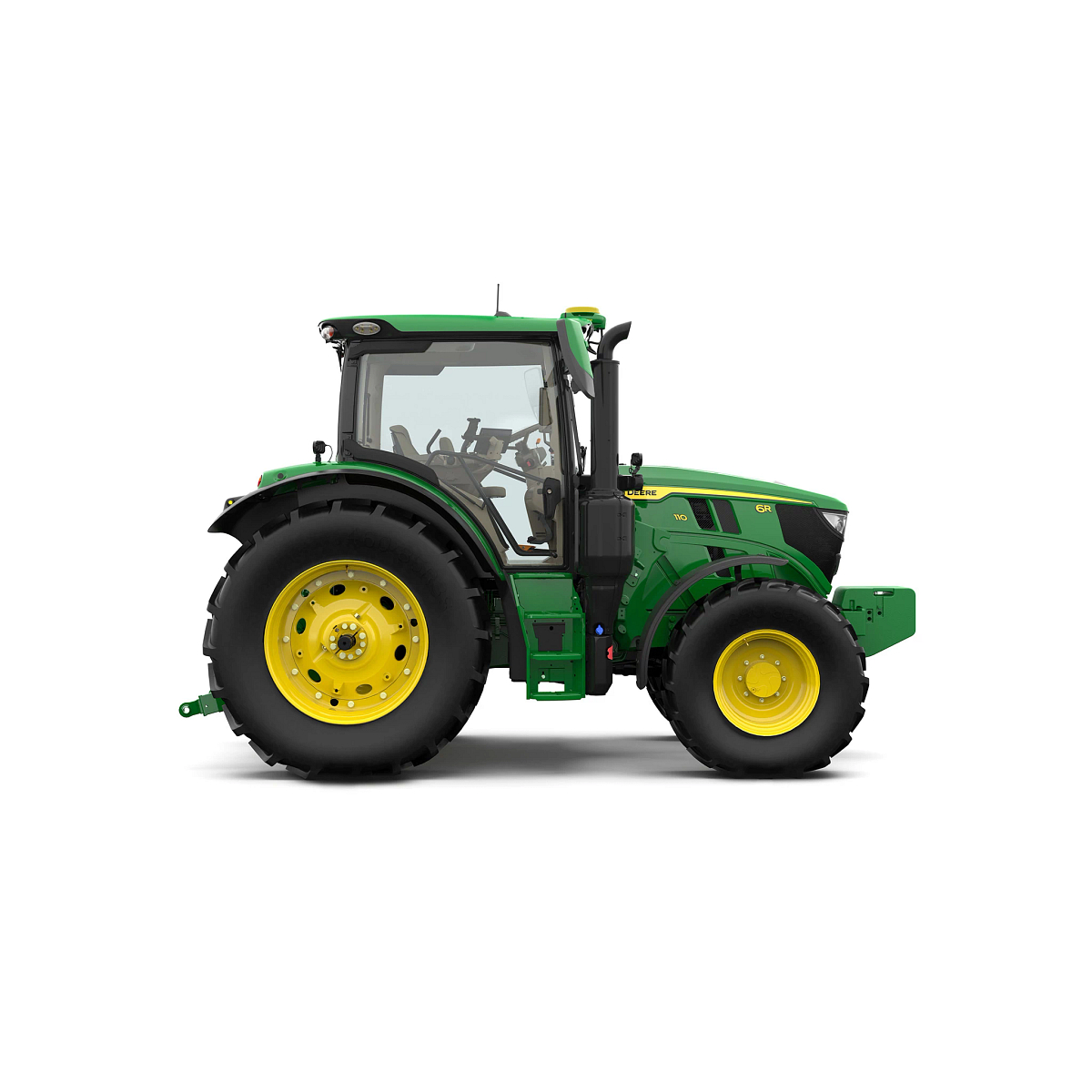

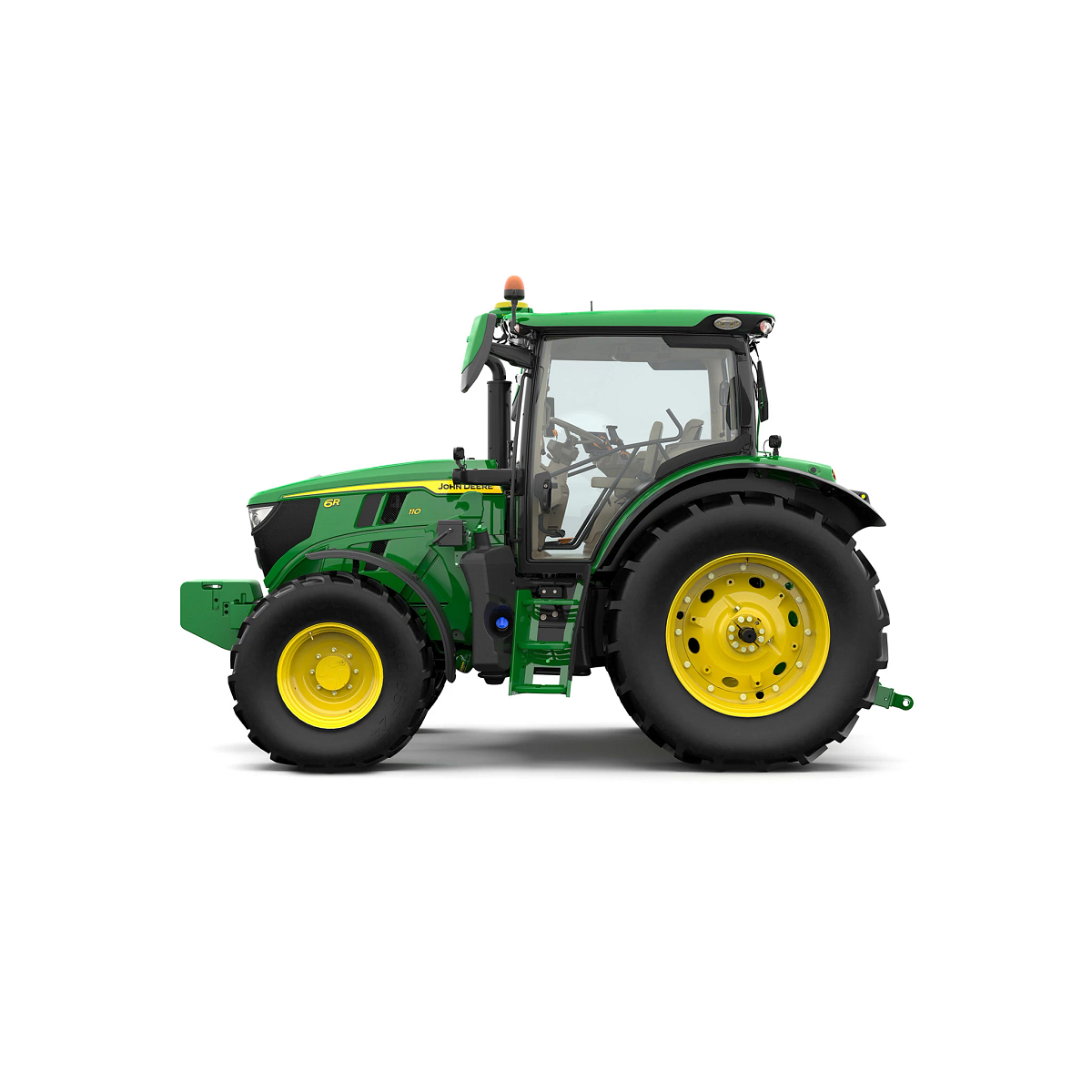

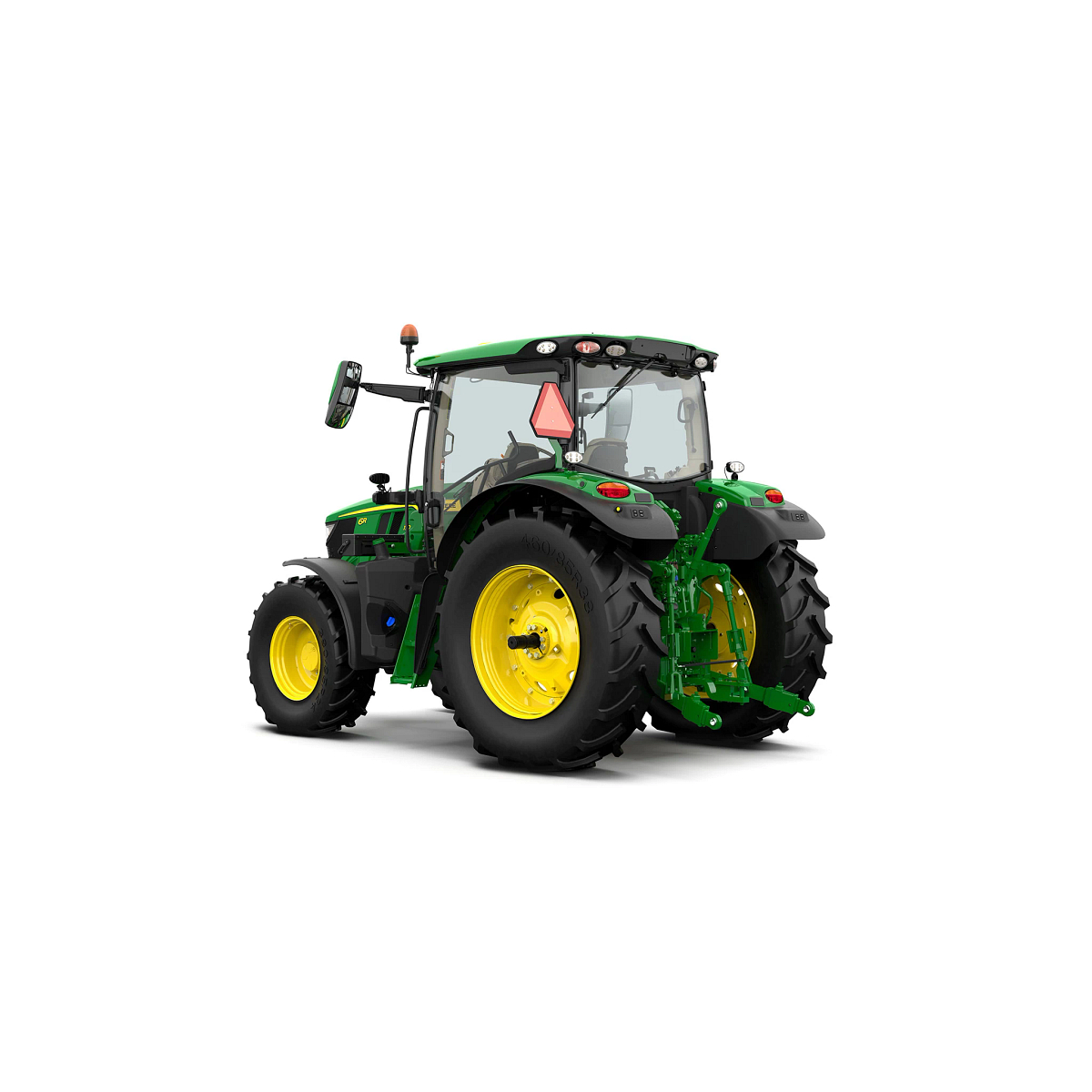

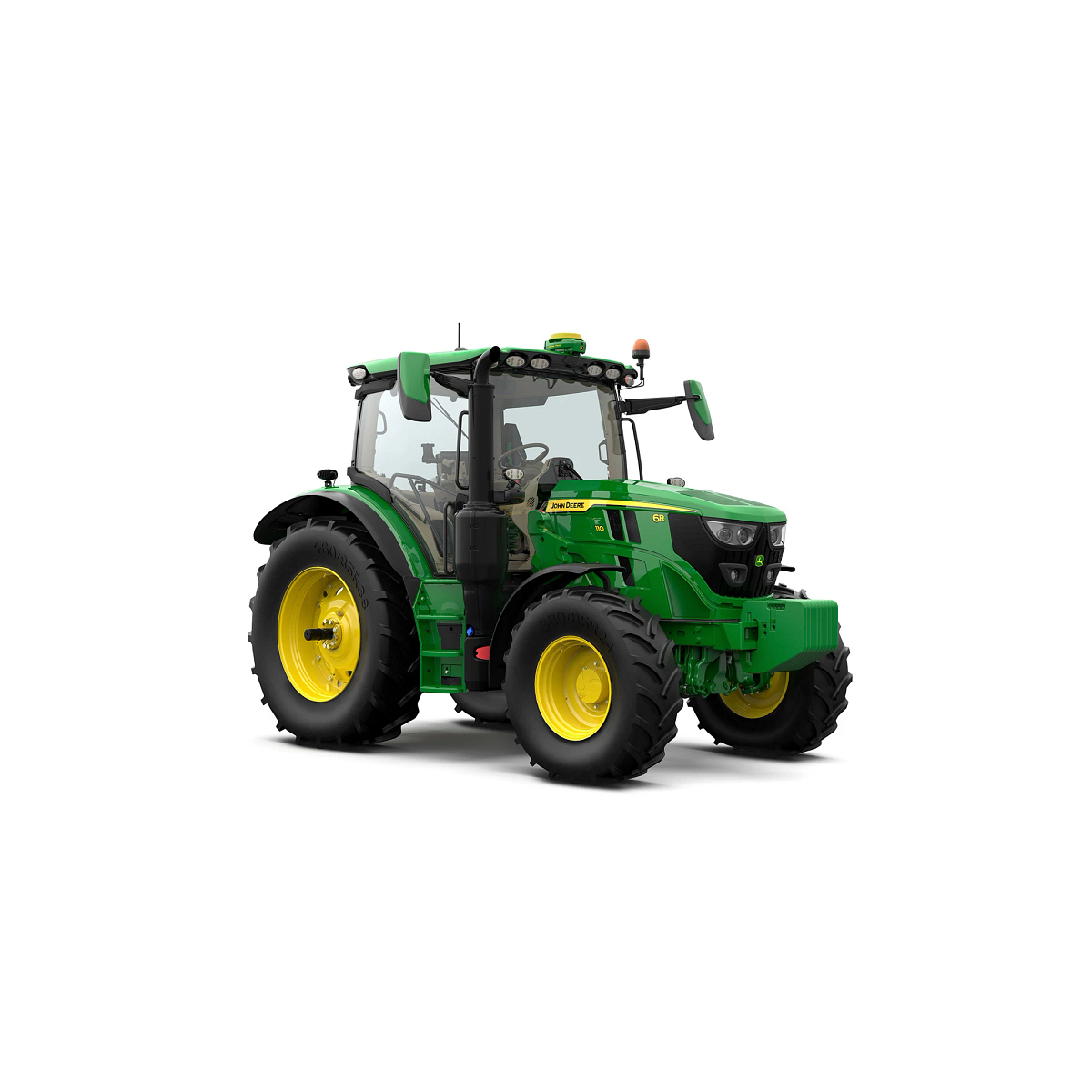

John Deere 6R 110

Starting at

Key Features

John Deere Final Tier 4 (FT4) PowerTech™ 4-Cylinder Engines
Engine hp: 121 Max / 110 Rated, up to 20 Additional hp With Intelligent Power Management (IPM)
AutoQuad™ or Infinitely Variable Transmission (IVT™)
Cat. 2/3N Hitch With Lift Capacity Over 7,900 lb.

All Day Comfort and Control

Enjoy a spacious cab that provides all-day comfort with ergonomic controls, excellent visibility, and a sealed environment. The CommandARM™ console provides a thoroughly intuitive operating interface. All the controls you need for daily work are available at your fingertips.

Interior view of John Deere tractor cab showing steering wheel, operator seat, armrest controls, touchscreen displays, joystick, mirrors, and overhead vents, photographed from behind the seat against a light background.

Technology, connectivity, and automation

Engineered for performance, technology features include an integrated precision ag platform with AutoTrac™ guidance readiness, JDLink™ connectivity, and access to John Deere Operations Center™. Advanced automation and data tools can help improve efficiency, uptime, and in-field productivity.

JDLink™ hardware comes standard with the machine. You can turn on JDLink connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to Operations Center. Consult your John Deere Dealer for coverage availability.

Close-up of John Deere in‑cab touchscreen display showing precision guidance lines and field view, with an operator’s hand pointing at the screen; mounted inside a tractor cab during field operation.

Transmissions Engineered for Performance

The transmissions are built to meet the demands of your day with the standard Infinitely Variable Transmission (IVT) or optional AutoQuad™ transmission. These help provide operators with the ability to match shifting control, automation, and efficiency to their tasks.

John Deere tractor with yellow wheels towing a red agricultural trailer along a rural paved road, driving past green fields and harvested grass under a cloudy sky.

Specs & Compare

Select up to 4 models to compare specifications

John Deere

6R 110

Tractor

John Deere

6R 120 FT4 (Model year 2024)

John Deere

6R 130 FT4 (Model year 2024)

John Deere

6R 140 FT4 (Model year 2024)

John Deere

6R 145 FT4 (Model year 2024)

John Deere

6R 150 FT4 (Model year 2024)

John Deere

6R 155 FT4 (Model year 2024)

John Deere

6R 165 FT4 (Model year 2024)

John Deere

6R 175 FT4 (Model year 2024)

John Deere

6R 185 FT4 (Model year 2024)

John Deere

6R 195 FT4 (Model year 2024)

John Deere

6R 215 FT4 (Model year 2024)

John Deere

6R 230 FT4 (Model year 2024)

John Deere

6R 250 FT4 (Model year 2024)

ADD MODEL


Machine Configuration
Wheel or Track Configuration	Wheel
Drive Type	MFWD	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion
Engine
Engine Make	John Deere
Engine Model	PowerTech™ PSS
Engine Family	VJDXL06.8309	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324	NJDXL06.8324
Emissions Certifications	Final Tier 4
Displacement	275 cu in.	4.5 L 275 cu in.	4.5 L 275 cu in.	4.5 L 275 cu in.	6.8 L 415 cu in.	4.5 L 275 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.
Displacement	4.5 L	4.5 L 275 cu in.	4.5 L 275 cu in.	4.5 L 275 cu in.	6.8 L 415 cu in.	4.5 L 275 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.	6.8 L 415 cu in.
Aspiration	Dual turbochargers, wastegate turbo with fixed geometry turbo in series	Turbocharged, fixed geometry first stage-variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, fixed geometry first stage-variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, fixed geometry first stage, variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, fixed geometry first stage, variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, fixed geometry first stage-variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, fixed geometry first stage-variable geometry second stage, air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, variable geometry and fixed turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation	Turbocharged, variable geometry and fixed turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders	4
Cylinder Liners	Wet-sleeve
Aftertreatment Type	Cooled exhaust gas recirculation (EGR) Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Intelligent Power Management (IPM)	20	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp 20 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp 20 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp 20 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp 20 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp 40 hp
Rated Engine Speed	2100 rpm	97/68EC: 88 kW 120 hp	97/68EC: 96 kW 130 hp	97/68EC: 103 kW 140 hp	97/68EC: 108 kW 145 hp	97/68EC: 110 kW 150 hp	97/68EC: 116 kW 155 hp	97/68EC: 123 kW 165 hp	97/68EC: 129 kW 175 hp	97/68EC: 136 kW 185 hp	97/68EC: 143 kW 195 hp	97/68EC: 158 kW 215 hp	97/68EC: 169 kW 230 hp	97/68EC: 184 kW 250 hp
Rated Engine Power	110 hp
Rated Engine Power	82 kW
Rated Engine Power	111 PS
Rated Engine Power with IPM	128 hp
Rated Engine Power with IPM	96 kW
Rated Engine Power with IPM	130 PS
Maximum Engine Speed	1900 rpm	97/68EC: 88 kW 120 hp	97/68EC: 96 kW 130 hp	97/68EC: 103 kW 140 hp	97/68EC: 108 kW 145 hp	97/68EC: 110 kW 150 hp	97/68EC: 116 kW 155 hp	97/68EC: 123 kW 165 hp	97/68EC: 129 kW 175 hp	97/68EC: 136 kW 185 hp	97/68EC: 143 kW 195 hp	97/68EC: 158 kW 215 hp	97/68EC: 169 kW 230 hp	97/68EC: 184 kW 250 hp
Maximum Engine Power	119 hp
Maximum Engine Power	89 kW
Maximum Engine Power	121 PS
Maximum Engine Power with IPM	133 hp
Maximum Engine Power with IPM	99 kW
Maximum Engine Power with IPM	135 PS
Maximum Engine Torque	515 Nm / 380 lb-ft
Constant Power Range	1,500 - 2,100 rpm
Power Bulge	10 %
Bore and Stroke	4.2 x 5.0 in.
Bore and Stroke	106.5 x 127 mm
Compression Ratio	16.7:1
Lubrication	Pressure lubrication
Cooling System Type	Liquid
Fuel Type	Ultra-low sulfur diesel
Air Cleaner Type	PowerCore ® G2 Air Filter with pre-cleaning
Torque Rise	40 %	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent	40 percent
Transmission
Transmission Type	Standard: John Deere AutoPowr™/IVT™ 40 km/h; Optional: John Deere AutoPowr™/IVT™ 50 km/h, 24-speed AutoQuad PLUS ECO (40K), 24-speed AutoQuad PLUS ECO (50K)	Standard: IVT, 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K)	Standard: IVT, 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K)	Standard: IVT, 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K)	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad™ PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K) 24-speed Direct Drive (40K) 24-speed Direct Drive (50K)	Standard: IVT, 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad™ PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K) 24-speed Direct Drive (40K) 24-speed Direct Drive (50K)	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad™ PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K) 24-speed Direct Drive (40K) 24-speed Direct Drive (50K)	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad™ PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K) 24-speed Direct Drive (40K) 24-speed Direct Drive (50K)	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph 24-speed AutoQuad™ PLUS ECO (40K) 24-speed AutoQuad PLUS ECO (50K) 24-speed Direct Drive (40K) 24-speed Direct Drive (50K)	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph	Standard: Infinitely variable transmission (IVT™), 0.05-42 km/h 0.03-26 mph Optional: IVT, 0.05-50 km/h 0.03-31 mph
Maximum Speed Forward	50 km/h / 31 mph
Minimum Speed Forward	0.03 km/h / 0.02 mph
Reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser	Left-hand electrical reverser
Cruise Control	Yes
Rear Power Take-Off (PTO)
Rated PTO Power	83 hp	68 kW 91 hp	75 kW 101 hp	82 kW 110 hp	84 kW 113 hp	89 kW 119 hp	91 kW 122 hp	96 kW 129 hp	102 kW 137 hp	110 kW 147 hp	116 kW 156 PTO hp	130 kW 174 hp	137 kW 184 hp	150 kW 201 hp
Rated PTO Power	62 kW	68 kW 91 hp	75 kW 101 hp	82 kW 110 hp	84 kW 113 hp	89 kW 119 hp	91 kW 122 hp	96 kW 129 hp	102 kW 137 hp	110 kW 147 hp	116 kW 156 PTO hp	130 kW 174 hp	137 kW 184 hp	150 kW 201 hp
Rated PTO Power	84 PS	68 kW 91 hp	75 kW 101 hp	82 kW 110 hp	84 kW 113 hp	89 kW 119 hp	91 kW 122 hp	96 kW 129 hp	102 kW 137 hp	110 kW 147 hp	116 kW 156 PTO hp	130 kW 174 hp	137 kW 184 hp	150 kW 201 hp
Rated PTO Power with IPM	101 hp
Rated PTO Power with IPM	75 kW
Rated PTO Power with IPM	102 PS
Economy PTO Speeds	540 rpm / 1,000 rpm
Engine rpm at Rated PTO Speeds (540/1.000)	1967 / 1962
Engine rpm at Rated PTO Speeds (540/540E/1.000)	1967 / 1496 / 1962
Engagement Method	Electrohydraulic switch
PTO Clutch	Multi-disk
Number of Splines	6 and 21
Front PTO
PTO Speed	1000	1967 engine rpm at 540 rpm PTO 1496 engine rpm at 540E rpm PTO 1962 engine rpm at 1000 rpm PTO	1967 engine rpm at 540 rpm PTO 1496 engine rpm at 540E rpm PTO 1962 engine rpm at 1000 rpm PTO	1967 engine rpm at 540 rpm PTO 1496 engine rpm at 540E rpm PTO 1962 engine rpm at 1000 rpm PTO	1967 engine rpm at 540 rpm PTO 1753 engine rpm at 540E rpm PTO 2000 engine rpm at 1000 rpm PTO	1967 engine rpm at 540 rpm PTO 1496 engine rpm at 540E rpm PTO 1962 engine rpm at 1000 rpm PTO	1967 engine rpm at 540 rpm PTO 1753 engine rpm at 540E rpm PTO 2000 engine rpm at 1000 rpm PTO	1967 engine rpm at 540 rpm PTO 1753 engine rpm at 540E rpm PTO 2000 engine rpm at 1000 rpm PTO	1950 engine rpm at 540/1000 rpm PTO 1761 engine rpm at 540E rpm PTO 1756 engine rpm at 1000E rpm PTO	1967 engine rpm at 540 rpm PTO 1753 engine rpm at 540E rpm PTO 2000 engine rpm at 1000 rpm PTO	1950 engine rpm at 540/1000 rpm PTO 1761 engine rpm at 540E rpm PTO 1756 engine rpm at 1000E rpm PTO	1950 engine rpm at 540/1000 rpm PTO 1761 engine rpm at 540E rpm PTO 1756 engine rpm at 1000E rpm PTO	1950 engine rpm at 540/1000 rpm PTO 1761 engine rpm at 540E rpm PTO 1756 engine rpm at 1000E rpm PTO	1950 engine rpm at 540/1000 rpm PTO 1761 engine rpm at 540E rpm PTO 1756 engine rpm at 1000E rpm PTO
Front PTO Rotation	Clockwise rotation (viewed in direction of travel)
Engine rpm (at Rated PTO Speeds)	1969 rpm
Maximum PTO Power	107 hp
Maximum PTO Power	80 kW
Maximum PTO Power	109 PS
Front Number of Splines	21
Front Hitch
Front Hitch Category	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N	Category 3N
Lift Capacity Through Full Lift Range at Coupling Points	7275 lb.
Lift Capacity Through Full Lift Range at Coupling Points	3300 kg
Maximum Lift Capacity at Coupling Points	9700 lb.
Maximum Lift Capacity at Coupling Points	4400 kg
Number of Front Selective Control Valves (SCVs)	Two
Electric Power	ISOBUS Connector
Rear Hitch
Rear Hitch Category (SAE Designation)	Category 2/3N	Standard: Category 2/3N: 3600 kg 7937 lb Optional: Category 2/3N: 4100 kg 9039 lb	Standard: Category 2/3N: 3600 kg 7937 lb Optional: Category 2/3N: 4100 kg 9039 lb	Standard: Category 2/3N: 3600 kg 7937 lb Optional: Category 2/3N: 4100 kg 9039 lb	Category 3/3N: 4170 kg 9193 lb	Standard: Category 2/3N: 3600 kg 7937 lb Optional: Category 2/3N: 4100 kg 9039 lb	Category 3/3N: 4170 kg 9193 lb	Category 3/3N: 4170 kg 9193 lb	Standard: Category 3/3N: 4300 kg 9480 lb Optional: Category 3/3N: 4850 kg 10,690 lb	Category 3/3N: 4170 kg 9193 lb	Standard: Category 3/3N: 4300 kg 9480 lb Optional: Category 3/3N: 4850 kg 10,690 lb	Category 3/3N: 5440 kg 11,990 lb	Standard: Category 3/3N: 7000 kg 15,432 lb	Standard: Category 3/3N: 7000 kg 15,432 lb
Maximum Lift Capacity Directly at Coupling Points	5700 kg
Lift Capacity Through Full Lift Range Directly at Coupling Points	4100 kg
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point	3600 kg
Sensing Type	Electrohydraulic sensing	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic
Draft Control Sensing	Yes
Drawbar
Drawbar Category	Category 2	Category 2	Category 2	Category 2	Category 2	Category 2	Category 2	Category 2	Category 3	Category 2	Category 3	Category 3	Category 3	Category 3
Maximum Vertical Load	2,000 kg 4,409 lb	Category 2: 1200-2000 kg 2600-4400 lb Maximum vertical load dependent on drawbar position	Category 2: 1200-2000 kg 2600-4400 lb Maximum vertical load dependent on drawbar position	Category 2: 1200-2000 kg 2600-4400 lb Maximum vertical load dependent on drawbar position	Category 2: 1600-3000 kg 3300-6600 lb Maximum vertical load dependent on drawbar position	Category 2: 1200-2000 kg 2600-4400 lb Maximum vertical load dependent on drawbar position	Category 2: 1600-3000 kg 3300-6600 lb Maximum vertical load dependent on drawbar position	Category 2: 1600-3000 kg 3300-6600 lb Maximum vertical load dependent on drawbar position	Category 3: 1800-3000 kg 4000-6600 lb Maximum vertical load dependent on drawbar position	Category 2: 1600-3000 kg 3300-6600 lb Maximum vertical load dependent on drawbar position	Category 3: 1800-3000 kg 4000-6600 lb Maximum vertical load dependent on drawbar position	Category 3: 1800-3000 kg 4000-6600 lb Maximum vertical load dependent on drawbar position	Category 3: 1800-3000 kg 4000-6600 lb Maximum vertical load dependent on drawbar position	Category 3: 1800-3000 kg 4000-6600 lb Maximum vertical load dependent on drawbar position
Hydraulics
Hydraulic System Type	Closed-center, pressure/flow compensated system	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated	Closed-center, pressure-and-flow compensated
Pump Rated Output	Standard: 114 L/min / 30 gpm; Optional: 155 L/min / 41 gpm	Standard: 45 cc pump: 114 L/min 30 gpm	Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm	Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm	Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm	Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm	Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm	Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm	Optional: 60 cc pump: 155 L/min 41 gpm	Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm	Optional: 60 cc pump: 155 L/min 41 gpm	Standard: 60 cc pump: 155 L/min 41 gpm	Standard: 85 cc pump: 195 L/min 51.5 gpm	Standard: 85 cc pump: 195 L/min 51.5 gpm
Maximum Operating Pressure	2970 psi
Maximum Operating Pressure	205 bar
Number of Rear Selective Control Valves (SCVs)	Five	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to six ISO couplers	Standard: Three ISO couplers Optional: Three to five ISO couplers	Standard: Three ISO couplers Optional: Three to six ISO couplers	Standard: Three ISO couplers Optional: Three to six ISO couplers
Number of Mid Selective Control Valves (SCVs)	3	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three	Up to three
SCV Control	Electrohydraulic	Available	Available	Available	Available	Available	Available	Available	Available	Available	Available	Available	Available	Available
Auxiliary Hydraulic Features	Yes
Front Axle
Front Axle Type	Standard: Mechanical Front Wheel Drive axle; Optional: Triple Link Suspension (TLS™)
Front Axle Differential Lock	Yes	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	TLS: Limited slip TLS with brakes: Full-locking electrohydraulic	TLS: Limited slip TLS with brakes: Full-locking electrohydraulic
Rear Axle
Rear Axle Type	Inboard planetary three pinion	Standard: Flange, 1552 mm 61 in. Optional: Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2438 mm 96 in.	Standard: Flange, 1552 mm 61 in. Optional: Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2438 mm 96 in.	Standard: Flange, 1552 mm 61 in. Optional: Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2438 mm 96 in.	Rack and pinion: 2550 mm 100.4 in. Rack and pinion: 2806 mm 110.5 in. Flange: 1664 mm 65.5 in.	Standard: Flange, 1552 mm 61 in. Optional: Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2438 mm 96 in.	Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2806 mm 110.5 in. Flange: 1664 mm 65.5 in.	Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2806 mm 110.5 in. Flange: 1664 mm 65.5 in.	Standard:Rack and pinion, 2550 mm 100.4 in. Optional:Rack and pinion, 2806 mm 110.5 in. Rack and pinion, 3009 118.5	Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2806 mm 110.5 in. Flange: 1664 mm 65.5 in.	Standard:Rack and pinion, 2550 mm 100.4 in. Optional:Rack and pinion, 2806 mm 110.5 in. Rack and pinion, 3009 118.5	Standard:Rack and pinion, 2550 mm 100.4 in. Optional:Rack and pinion, 2806 mm 110.5 in. Rack and pinion, 3009 118.5	Standard: Flange, 1892 mm 74.5 in. Optional: Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 3009 mm 118.5 in.	Standard: Flange, 1892 mm 74.5 in. Optional: Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 3009 118.5 in.
Rear Differential Lock	Yes
Differential Controls	Yes	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic	Full-locking electrohydraulic
Final Drive	Three planetary gear reduction	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion	Inboard planetary three pinion
Steering & Brakes
Steering Type	Dynamic Load Sensing, Hydrostatic, Flow Metering	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power	Hydrostatic power
Primary Brakes	Oil-cooled, self-equalizing, self-adjusting, hydraulically actuated
Trailer Brakes	Optional: Air and/or hydraulic
Parking Brake	Intergrated parking brake
Electrical System
Battery Voltage	12 V
Electrical System Voltage	12 V
Battery Cold Cranking Amps	1200 CCA
Alternator Capacity	120 amp
Working Lights	Yes	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Available: 12 LED plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen	Standard: 14 halogen Available: 12 light-emitting diode (LED) plus two halogen
Driving Lights	No
Operator Station
Gearshift Location	Standard: CommandArm™; Optional: Right Hand Console
Db(A) Rating	71 dBA
Seat Suspension	Mechanic / Pneumatic
Degree of Seat Swivel, Left Hand	7 degree (angle)
Degree of Seat Swivel, Right Hand	15 degree (angle)
Cab Suspension	Yes	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)	Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus)
Instructional Seat	Yes	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Primary Display	Cornerpost Display
Radio	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Inner Cab Volume	117.5 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft
Inner Cab Volume	3.3 m³	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft	3.33 m³ 117.59 cu ft
Cab Glass Area	65.7 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft
Cab Glass Area	6.1 m²	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft	6.11 m² 65.77 sq ft
Technology Integration
Guidance	SF-RTK
Secondary Display	10,1 / 12.8 inch Command Center Display
Receiver	Universal StarFire™ 7500
Connectivity	JDLink™ Modem
Remote Diagnostics	Yes
ISOBUS Ready	Yes
Capacities
Fuel Tank Capacity	52.6 gal.
Fuel Tank Capacity	199 L
Diesel Exhaust Fluid (DEF) Tank Capacity	3.6 gal.	14 L 3.6 U.S. gal.	14 L 3.6 U.S. gal.	14 L 3.6 U.S. gal.	16 L 4.2 U.S. gal.	14 L 3.6 U.S. gal.	16 L 4.2 U.S. gal.	16 L 4.2 U.S. gal.	20 L 5.3 U.S. gal.	16 L 4.2 U.S. gal.	20 L 5.3 U.S. gal.	20 L 5.3 U.S. gal.	25 L 6.6 U.S. gal.	25 L 6.6 U.S. gal.
Diesel Exhaust Fluid (DEF) Tank Capacity	13.5 L	14 L 3.6 U.S. gal.	14 L 3.6 U.S. gal.	14 L 3.6 U.S. gal.	16 L 4.2 U.S. gal.	14 L 3.6 U.S. gal.	16 L 4.2 U.S. gal.	16 L 4.2 U.S. gal.	20 L 5.3 U.S. gal.	16 L 4.2 U.S. gal.	20 L 5.3 U.S. gal.	20 L 5.3 U.S. gal.	25 L 6.6 U.S. gal.	25 L 6.6 U.S. gal.
Cooling System Capacity	5.8 gal.
Cooling System Capacity	22 L
Transmission - Hydraulic System	15.9 (AutoPowr™) / 14.0 (AutoQuad™) gal.	IVT: 60 L 15.9 U.S. gal. AutoQuad: 53 L 14 U.S. gal.	IVT: 60 L 15.9 U.S. gal. AutoQuad: 53 L 14.0 U.S. gal.	IVT: 60 L 15.9 U.S. gal. AutoQuad: 53 L 14.0 U.S. gal.	IVT: 62 L 16.4 U.S. gal. AutoQuad: 63 L 16.6 U.S. gal. DirectDrive ECO: 75 L 19.8 U.S. gal.	IVT: 60 L 15.9 U.S. gal.	IVT: 62 L 16.4 U.S. gal. AutoQuad: 63 L 16.6 U.S. gal. DirectDrive ECO: 75 L 19.8 U.S. gal.	IVT: 62 L 16.4 U.S. gal.	IVT: 75 L 19.8 U.S. gal. AutoQuad: 71 L 18.8 U.S. gal. DirectDrive ECO: 81 L 21.4 U.S. gal.	IVT: 62 L 16.4 U.S. gal.	IVT: 75 L 19.8 U.S. gal. AutoQuad: 71 L 18.8 U.S. gal. DirectDrive ECO: 81 L 21.4 U.S. gal.	IVT: 75 L 19.8 U.S. gal. AutoQuad: 71 L 18.8 U.S. gal. DirectDrive ECO: 81 L 21.4 U.S. gal.	IVT: 123 L 32.5 U.S. gal.	IVT: 123 L 32.5 U.S. gal.
Transmission - Hydraulic System	60 (AutoPowr™) / 53 (AutoQuad™) L	IVT: 60 L 15.9 U.S. gal. AutoQuad: 53 L 14 U.S. gal.	IVT: 60 L 15.9 U.S. gal. AutoQuad: 53 L 14.0 U.S. gal.	IVT: 60 L 15.9 U.S. gal. AutoQuad: 53 L 14.0 U.S. gal.	IVT: 62 L 16.4 U.S. gal. AutoQuad: 63 L 16.6 U.S. gal. DirectDrive ECO: 75 L 19.8 U.S. gal.	IVT: 60 L 15.9 U.S. gal.	IVT: 62 L 16.4 U.S. gal. AutoQuad: 63 L 16.6 U.S. gal. DirectDrive ECO: 75 L 19.8 U.S. gal.	IVT: 62 L 16.4 U.S. gal.	IVT: 75 L 19.8 U.S. gal. AutoQuad: 71 L 18.8 U.S. gal. DirectDrive ECO: 81 L 21.4 U.S. gal.	IVT: 62 L 16.4 U.S. gal.	IVT: 75 L 19.8 U.S. gal. AutoQuad: 71 L 18.8 U.S. gal. DirectDrive ECO: 81 L 21.4 U.S. gal.	IVT: 75 L 19.8 U.S. gal. AutoQuad: 71 L 18.8 U.S. gal. DirectDrive ECO: 81 L 21.4 U.S. gal.	IVT: 123 L 32.5 U.S. gal.	IVT: 123 L 32.5 U.S. gal.
Crankcase Oil Volume	4.2 gal.	16 L 4.2 U.S. gal.	16 L 4.2 U.S. gal.	16 L 4.2 U.S. gal.	23.5 L 6.2 U.S. gal.	16 L 4.2 U.S. gal.	23.5 L 6.2 U.S. gal.	23.5 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	23.5 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.
Crankcase Oil Volume	16 L	16 L 4.2 U.S. gal.	16 L 4.2 U.S. gal.	16 L 4.2 U.S. gal.	23.5 L 6.2 U.S. gal.	16 L 4.2 U.S. gal.	23.5 L 6.2 U.S. gal.	23.5 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	23.5 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.	24 L 6.2 U.S. gal.
Dimensions & Weights
Wheelbase	102 in.	MFWD: 2580 mm 102 in.	MFWD: 2580 mm 102 in.	MFWD: 2580 mm 102 in.	MFWD: 2765 mm 108.8 in.	MFWD: 2580 mm 102 in.	MFWD: 2765 mm 108.8 in.	MFWD: 2765 mm 108.8 in.	2800 mm 110.2 in.	MFWD: 2765 mm 108.8 in.	2800 mm 110.2 in.	2800 mm 110.2 in.	2900 mm 114 in.	MFWD: 2900 mm 114 in.
Wheelbase	2580 mm	MFWD: 2580 mm 102 in.	MFWD: 2580 mm 102 in.	MFWD: 2580 mm 102 in.	MFWD: 2765 mm 108.8 in.	MFWD: 2580 mm 102 in.	MFWD: 2765 mm 108.8 in.	MFWD: 2765 mm 108.8 in.	2800 mm 110.2 in.	MFWD: 2765 mm 108.8 in.	2800 mm 110.2 in.	2800 mm 110.2 in.	2900 mm 114 in.	MFWD: 2900 mm 114 in.
Base Machine Weight	14330 lb.	6500 kg 14,330 lb	6500 kg 14,330 lb	6500 kg 14,330 lb	8120 kg 17,990 lb	6500 kg 14,330 lb	7100 kg 15,653 lb	8120 kg 17,900 lb	8800 kg 19,400 lb	8120 kg 17,900 lb	8800 kg 19,400 lb	8800 kg 19,400 lb	9650 kg 21,275 lb	9650 kg 21,275 lb
Base Machine Weight	6500 kg	6500 kg 14,330 lb	6500 kg 14,330 lb	6500 kg 14,330 lb	8120 kg 17,990 lb	6500 kg 14,330 lb	7100 kg 15,653 lb	8120 kg 17,900 lb	8800 kg 19,400 lb	8120 kg 17,900 lb	8800 kg 19,400 lb	8800 kg 19,400 lb	9650 kg 21,275 lb	9650 kg 21,275 lb
Overall Height	112.8 in.	2865 mm 112.8 in.	2865 mm 112.8 in.	2865 mm 112.8 in.	3030 mm 119.3 in.	2865 mm 112.8 in.	3030 mm 119.3 in.	3030 mm 119.3 in.	3160 mm 124.4 in.	3030 mm 119.3 in.	3160 mm 124.4 in.	3160 mm 124.4 in.	3160 mm 124.4 in.	3160 mm 124.4 in.
Overall Height	2865 mm	2865 mm 112.8 in.	2865 mm 112.8 in.	2865 mm 112.8 in.	3030 mm 119.3 in.	2865 mm 112.8 in.	3030 mm 119.3 in.	3030 mm 119.3 in.	3160 mm 124.4 in.	3030 mm 119.3 in.	3160 mm 124.4 in.	3160 mm 124.4 in.	3160 mm 124.4 in.	3160 mm 124.4 in.
Transport Height	112.8 in.
Transport Height	2865 mm
Overall Width	66.1 in.	1680 mm 66.1 in.	1680 mm 66.1 in.	1680 mm 66.1 in.	1664 mm 65.5 in.	1680 mm 66.1 in.	1664 mm 65.5 in.	1664 mm 65.5 in.	1892 mm 74.5 in.	1664 mm 65.5 in.	1892 mm 74.5 in.	1892 mm 74.5 in.	1892 mm 74.5 in.	1892 mm 74.5 in.
Overall Width	1680 mm	1680 mm 66.1 in.	1680 mm 66.1 in.	1680 mm 66.1 in.	1664 mm 65.5 in.	1680 mm 66.1 in.	1664 mm 65.5 in.	1664 mm 65.5 in.	1892 mm 74.5 in.	1664 mm 65.5 in.	1892 mm 74.5 in.	1892 mm 74.5 in.	1892 mm 74.5 in.	1892 mm 74.5 in.
Overall Length	178.8 in.	4542 mm 178.8 in.	4542 mm 178.8 in.	4542 mm 178.8 in.	4947 mm 194.8 in.	4542 mm 178.8 in.	4947 mm 194.8 in.	4947 mm 194.8 in.	5045 mm 198.6 in.	4947 mm 194.8 in.	5045 mm 198.6 in.	5045 mm 198.6 in.	5050 mm 198.8 in.	5050 mm 198.8 in.
Overall Length	4542 mm	4542 mm 178.8 in.	4542 mm 178.8 in.	4542 mm 178.8 in.	4947 mm 194.8 in.	4542 mm 178.8 in.	4947 mm 194.8 in.	4947 mm 194.8 in.	5045 mm 198.6 in.	4947 mm 194.8 in.	5045 mm 198.6 in.	5045 mm 198.6 in.	5050 mm 198.8 in.	5050 mm 198.8 in.
Maximum Permissible Weight	21940 lb.	9950 kg 21,940 lb	9950 kg 21,940 lb	9950 kg 21,940 lb	11,750 kg 25,900 lb	9950 kg 21,940 lb	11,750 kg 25,900 lb	11,750 kg 25,900 lb	13,450 kg 29,650 lb	11,750 kg 25,900 lb	13,450 kg 29,650 lb	13,450 kg 29,650 lb	Flange axle: 14,000 kg 30,860 lb Rack-and-pinion axle: 12,000 kg 26,460 lb	Flange axle: 14,000 kg 30,860 lb Rack-and-pinion axle: 12,000 kg 26,460 lb
Maximum Permissible Weight	9950 kg	9950 kg 21,940 lb	9950 kg 21,940 lb	9950 kg 21,940 lb	11,750 kg 25,900 lb	9950 kg 21,940 lb	11,750 kg 25,900 lb	11,750 kg 25,900 lb	13,450 kg 29,650 lb	11,750 kg 25,900 lb	13,450 kg 29,650 lb	13,450 kg 29,650 lb	Flange axle: 14,000 kg 30,860 lb Rack-and-pinion axle: 12,000 kg 26,460 lb	Flange axle: 14,000 kg 30,860 lb Rack-and-pinion axle: 12,000 kg 26,460 lb
Additional Information
Country of Manufacture	Germany	Germany	Germany	Germany	Germany	Germany	Germany	Germany	Germany	Germany	Germany	Germany	Germany	Germany
Date Collected	8-Jun-26	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23	1-Jun-23
