Utility Tractors

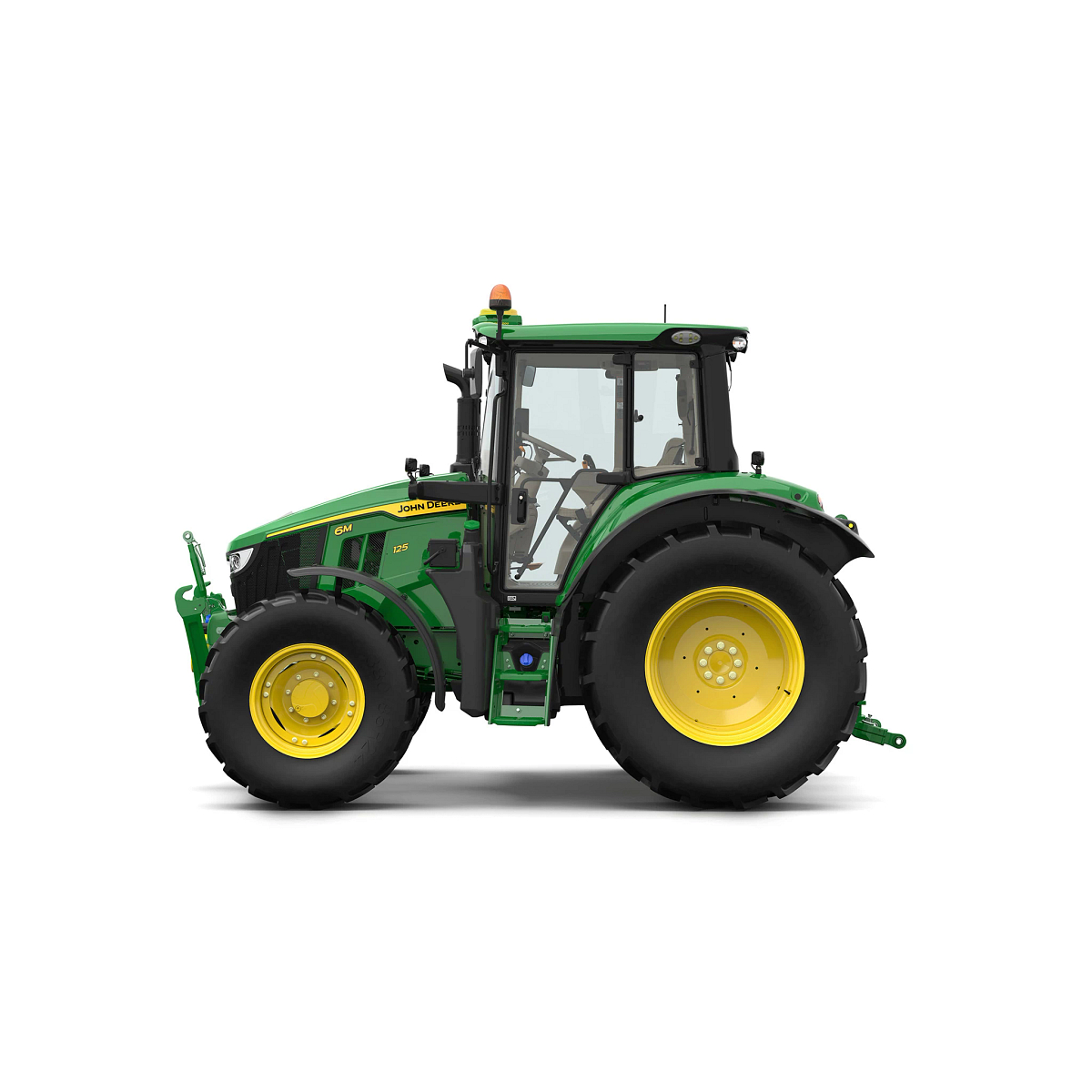

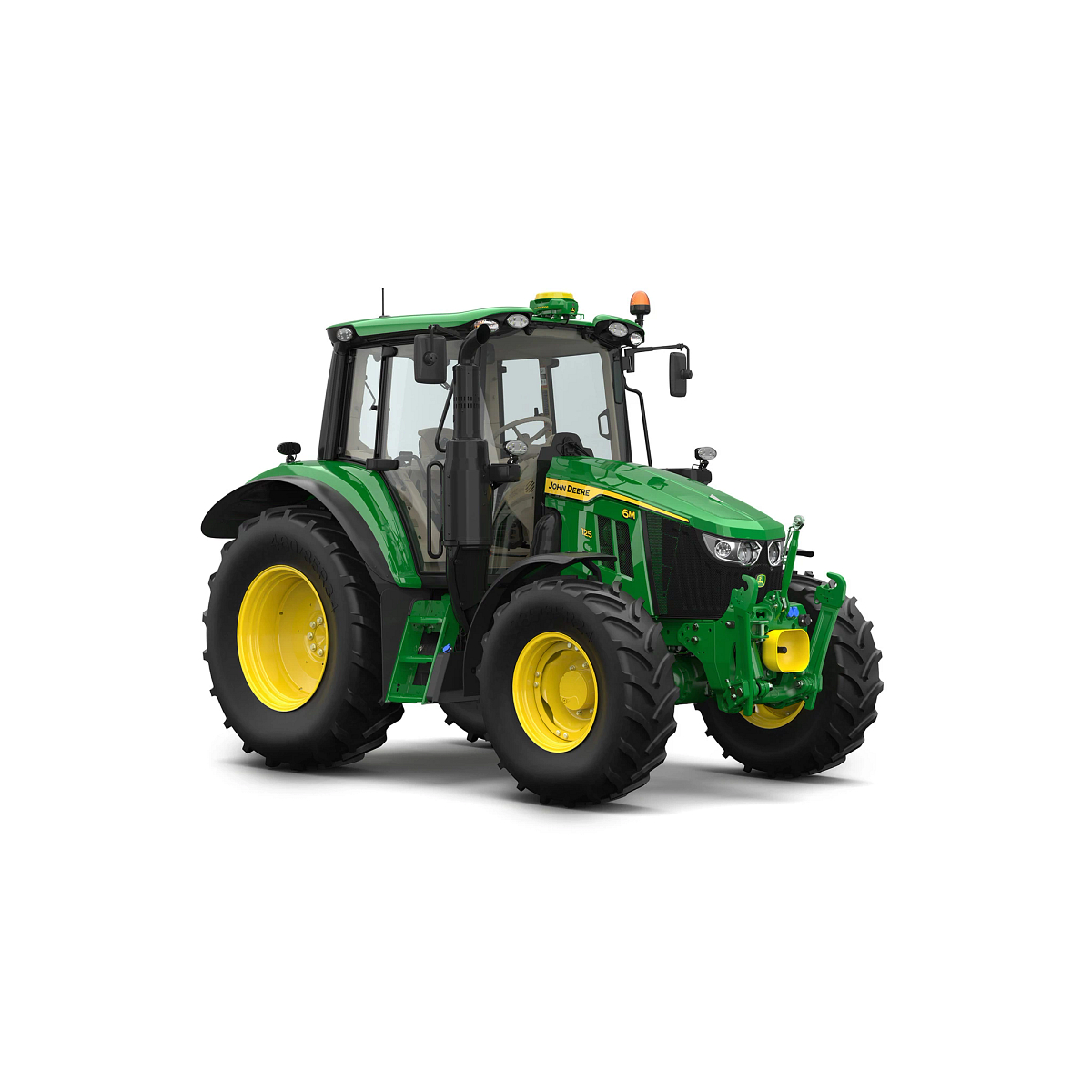

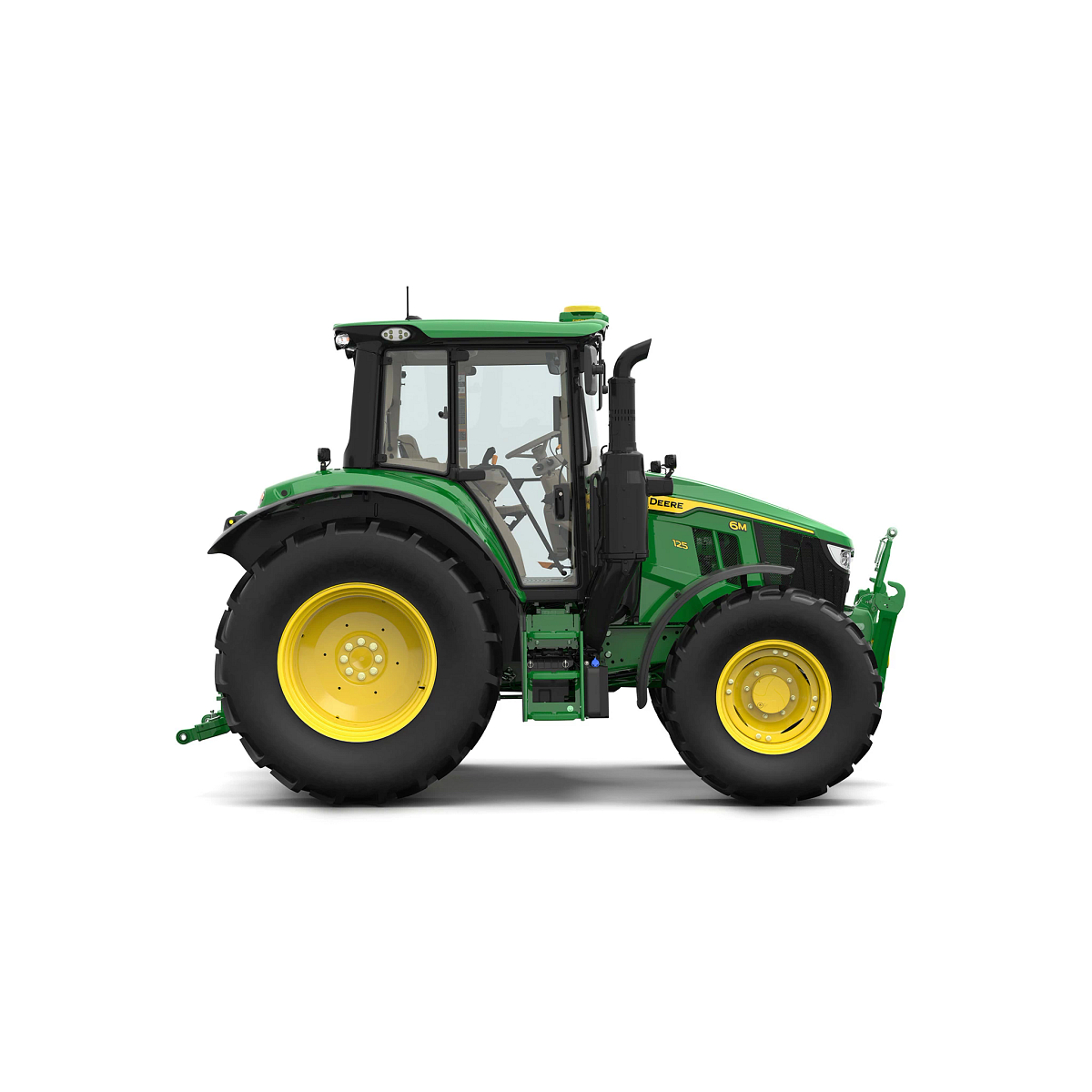

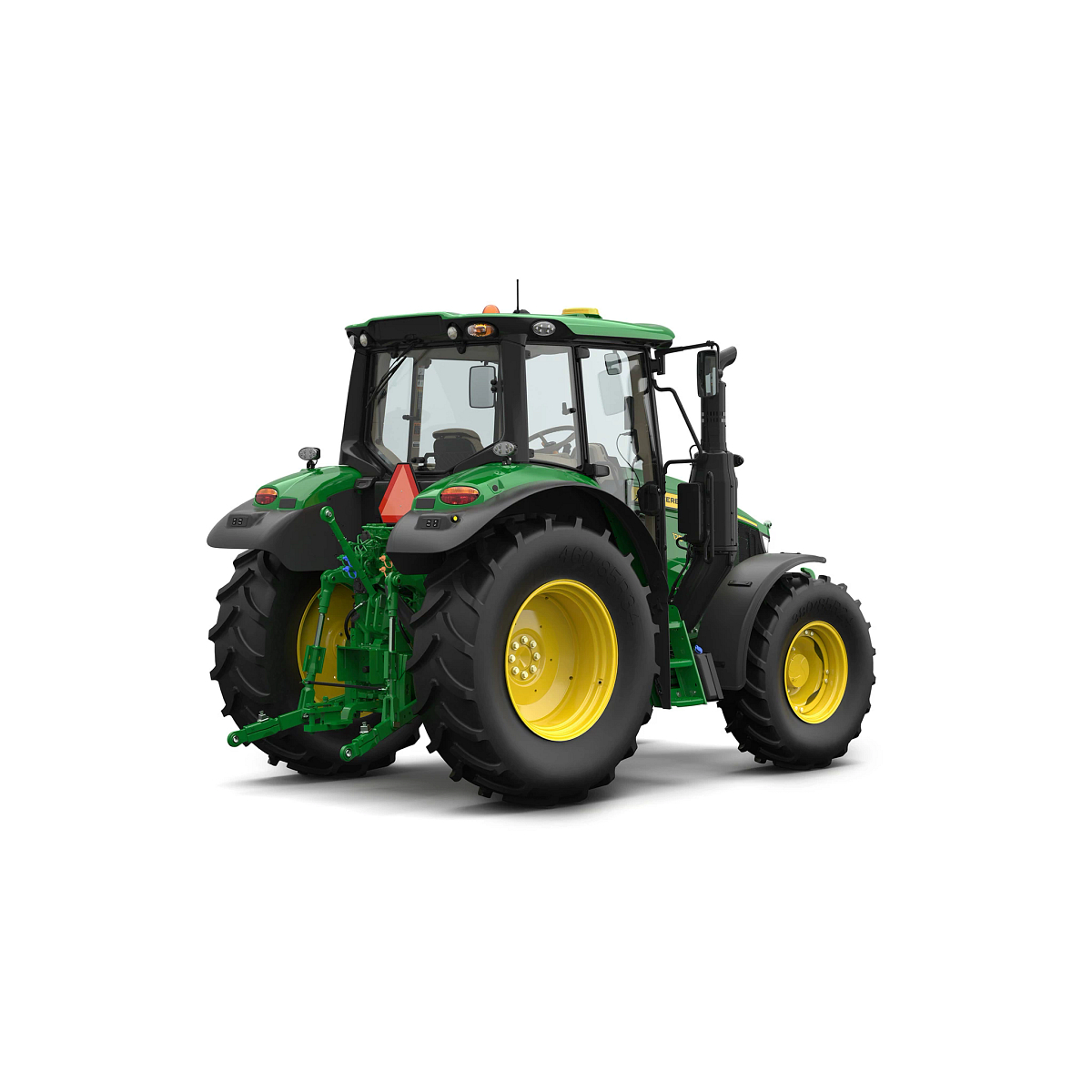

John Deere 6M 125

Starting at

Key Features

Engine hp¹: 138 Max / 125 Rated
John Deere PowerTech™ PSS Engine
Transmission Options: PowrQuad™ Plus, AutoQuad™ Plus, CommandQuad™ Plus, or Infinitely Variable Transmission™
Up to 20 hp Boost With Intelligent Power Management (IPM) in Non-Stationary Power Take-Off (PTO) and Transport Applications

Efficient, More Comfortable 6M Cab

Your time in the cab can be comfortable and efficient with the 6M interior environment. Built with the operator in mind, we offer three cab customizations, allowing you to select the package that best meets your needs.

Operator’s view inside John Deere tractor cab showing fabric operator seat, steering wheel, armrest controls, touchscreen displays, and wide windshield overlooking a harvested field.

Precision Technology to Help Improve Efficiency

Precision ag technology availability includes AutoTrac™ guidance readiness, JDLink™ connectivity, and an intuitive corner post display to help operators improve accuracy, efficiency, and uptime.

Activation required. JDLink hardware comes standard with the machine. You can turn on JDLink Connected service in your John Deere Operations Center™ account for free. JDLink requires a cellular connection to transfer information from machine to a JDLink website. Consult your John Deere dealer for coverage availability.

Interior of a John Deere tractor cab showing steering wheel, CommandPRO joystick, and multiple touchscreen displays with guidance and machine data, while operating over a grassy field.

Transmission Choices That Are Up To The Task

Choose from a versatile lineup of transmission options, including PowrQuad™, AutoQuad™, CommandQuad™, and available Infinitely Variable Transmission (IVT™). This broad selection allows operators to match shifting control, automation, and efficiency to the demands of their day.

Machine Configuration

Wheel or Track Configuration	Wheel
Drive Type	MFWD

Engine

Engine Make	John Deere
Engine Model	John Deere PowerTech™ EWL
Engine Family	VJDXL04.5317
Emissions Certifications	Final Tier 4
Displacement	275 cu in.
Displacement	4.5 L
Aspiration	Turbocharged, wastegate turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders	4
Cylinder Liners	Wet-sleeve
Aftertreatment Type	Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Intelligent Power Management (IPM)	20
Rated Engine Speed	2100 rpm
Rated Engine Power	94 hp
Rated Engine Power	70 kW
Rated Engine Power	95 PS
Rated Engine Power with IPM	103 hp
Rated Engine Power with IPM	77 kW
Rated Engine Power with IPM	105 PS
Maximum Engine Speed	1900 rpm
Maximum Engine Power	103 hp
Maximum Engine Power	77 kW
Maximum Engine Power	105 PS
Maximum Engine Power with IPM	118 hp
Maximum Engine Power with IPM	88 kW
Maximum Engine Power with IPM	120 PS
Maximum Engine Torque	328 lb-ft (445 Nm)
Constant Power Range	1,550 - 2,100 rpm
Power Bulge	10 %
Bore and Stroke	4.2 x 5.0 in.
Bore and Stroke	106.5 x 127 mm
Compression Ratio	17.1:1
Lubrication	Pressure lubrication / greased outer axle bearing
Cooling System Type	Liquid
Fuel Type	Ultra-low sulfur diesel
Air Cleaner Type	PowerCore® G2 Air Filter with pre-cleaning
Torque Rise	40 %

Transmission

Transmission Type	Standard: John Deere 24-speed PowrQuad Plus 40 km/h; Optional: John Deere 16-speed PowrQuad Plus 30 km/h, John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h, John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h, John Deere AutoPowr™/IVT™ 40 km/h & 50 km/h. Creeper available: PowrQuad Plus and AutoQuad Plus
Maximum Speed Forward	31 mph (50 km/h)
Minimum Speed Forward	0.02 mph (0.03 km/h)
Creeper	Optional
Reverser	Electronic left-hand reverser
Cruise Control	Yes

Rear Power Take-Off (PTO)

Rated PTO Power	70 hp
Rated PTO Power	52 kW
Rated PTO Power	71 PS
Rated PTO Power with IPM	88 hp
Rated PTO Power with IPM	66 kW
Rated PTO Power with IPM	89 PS
Economy PTO Speeds	540 rpm
Engagement Method	Electrohydraulic switch
PTO Clutch	Multi-disk
Number of Splines	6 and 21

Front PTO

PTO Speed	1000
Front PTO Rotation	Clockwise rotation (viewed in direction of travel)
Engine rpm (at Rated PTO Speeds)	1969 rpm
Maximum PTO Power	108 hp
Maximum PTO Power	80 kW
Maximum PTO Power	109 PS
Front Number of Splines	21

Front Hitch

Front Hitch Category	Category 3N
Lift Capacity Through Full Lift Range at Coupling Points	7275 lb.
Lift Capacity Through Full Lift Range at Coupling Points	3300 kg
Maximum Lift Capacity at Coupling Points	9700 lb.
Maximum Lift Capacity at Coupling Points	4400 kg
Number of Front Selective Control Valves (SCVs)	1
Electric Power	ISOBUS Connector

Rear Hitch

Rear Hitch Category (SAE Designation)	Category 2
Maximum Lift Capacity Directly at Coupling Points	Standard: 9,590 lb (4,350 kg); Optional: 12,560 lb (5,700 kg)
Lift Capacity Through Full Lift Range Directly at Coupling Points	Standard: 6,940 lb (3,150 kg); Optional: 9,030 lb (4,100 kg)
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point	Standard: 6,060 lb (2,750 kg); Optional: 7,930 lb (3,600 kg)
Sensing Type	Electrohydraulic sensing
Draft Control Sensing	Electronic Stepper Motor

Drawbar

Drawbar Category	Category 2
Maximum Vertical Load	2000

Hydraulics

Hydraulic System Type	Closed-Center System with Low Stand-By Pressure and Load-Sensing Control
Pump Rated Output	Standard: 21 gpm (80 L/min); Optional: 30 gpm (114 L/min)
Maximum Operating Pressure	2973 psi
Maximum Operating Pressure	205 bar
Number of Rear Selective Control Valves (SCVs)	4
Number of Mid Selective Control Valves (SCVs)	3
SCV Control	Mechanical or Electrohydraulic

Front Axle

Front Axle Type	Standard: Mechanical Front Wheel Drive axle; Optional: Triple Link Suspension (TLS™)
Front Axle Differential Lock	Yes

Rear Axle

Rear Axle Type	Inboard planetary three pinion
Rear Differential Lock	Yes
Differential Controls	Yes
Final Drive	Three planetary gear reduction

Steering & Brakes

Steering Type	Dynamic Load Sensing, Hydrostatic, Flow Metering
Primary Brakes	Oil-cooled, self-equalizing, self-adjusting, hydraulically actuated
Secondary Brake	Lever right hand side at console, hydraulically actuated, integrated into rear axle service brake
Trailer Brakes	Optional: Air and/or hydraulic
Parking Brake	Intergrated parking brake

Tires

Front Tires Size	380/85R24
Rear Tires Size	460/85R34

Electrical System

Battery Voltage	12 V
Electrical System Voltage	12 V
Battery Cold Cranking Amps	1150/1400 CCA
Battery Capacity	154 Ah/174 Ah
Alternator Capacity	125 A/250A
Working Lights	Yes
Driving Lights	No

Operator Station

Gearshift Location	Standard: Right Hand Console; Optional: CommandArm
Db(A) Rating	70 dBA
Seat Suspension	Suspension with automatic weight adjustment
Degree of Seat Swivel, Left Hand	7 degree (angle)
Degree of Seat Swivel, Right Hand	15 degree (angle)
Cab Suspension	Yes
Instructional Seat	Yes
Primary Display	Cornerpost Display
Radio	Standard
Inner Cab Volume	106 cu ft
Inner Cab Volume	3 m³
Cab Glass Area	52.2 sq ft
Cab Glass Area	4.85 m²

Technology Integration

Guidance	SF-RTK
Secondary Display	10,1 / 12.8 inch Command Center Display
Receiver	Universal StarFire™ 7500
Connectivity	JDLink™ Modem
Remote Diagnostics	Yes
ISOBUS Ready	Yes

Capacities

Fuel Tank Capacity	46.2 gal.
Fuel Tank Capacity	175 L
Diesel Exhaust Fluid (DEF) Tank Capacity	5 gal.
Diesel Exhaust Fluid (DEF) Tank Capacity	19 L
Cooling System Capacity	5.3 gal.
Cooling System Capacity	20 L
Transmission - Hydraulic System	15.9 gal.
Transmission - Hydraulic System	60 L
Crankcase Oil Volume	4.5 gal.
Crankcase Oil Volume	17.1 L

Dimensions & Weights

Wheelbase	94.5 in.
Wheelbase	2400 mm
Base Machine Weight	13779 lb.
Base Machine Weight	6250 kg
Overall Height	110.2 in.
Overall Height	2800 mm
Transport Height	110.2 in.
Transport Height	2800 mm
Overall Width	96.8 in.
Overall Width	2460 mm
Overall Length	168.9 in.
Overall Length	4290 mm
Front Axle Ground Clearance	18.2 in.
Front Axle Ground Clearance	462 mm
Maximum Permissible Weight	20944 lb.
Maximum Permissible Weight	9500 kg

Additional Information

Country of Manufacture	Germany
Date Collected	8-Jun-26
