Utility Tractors

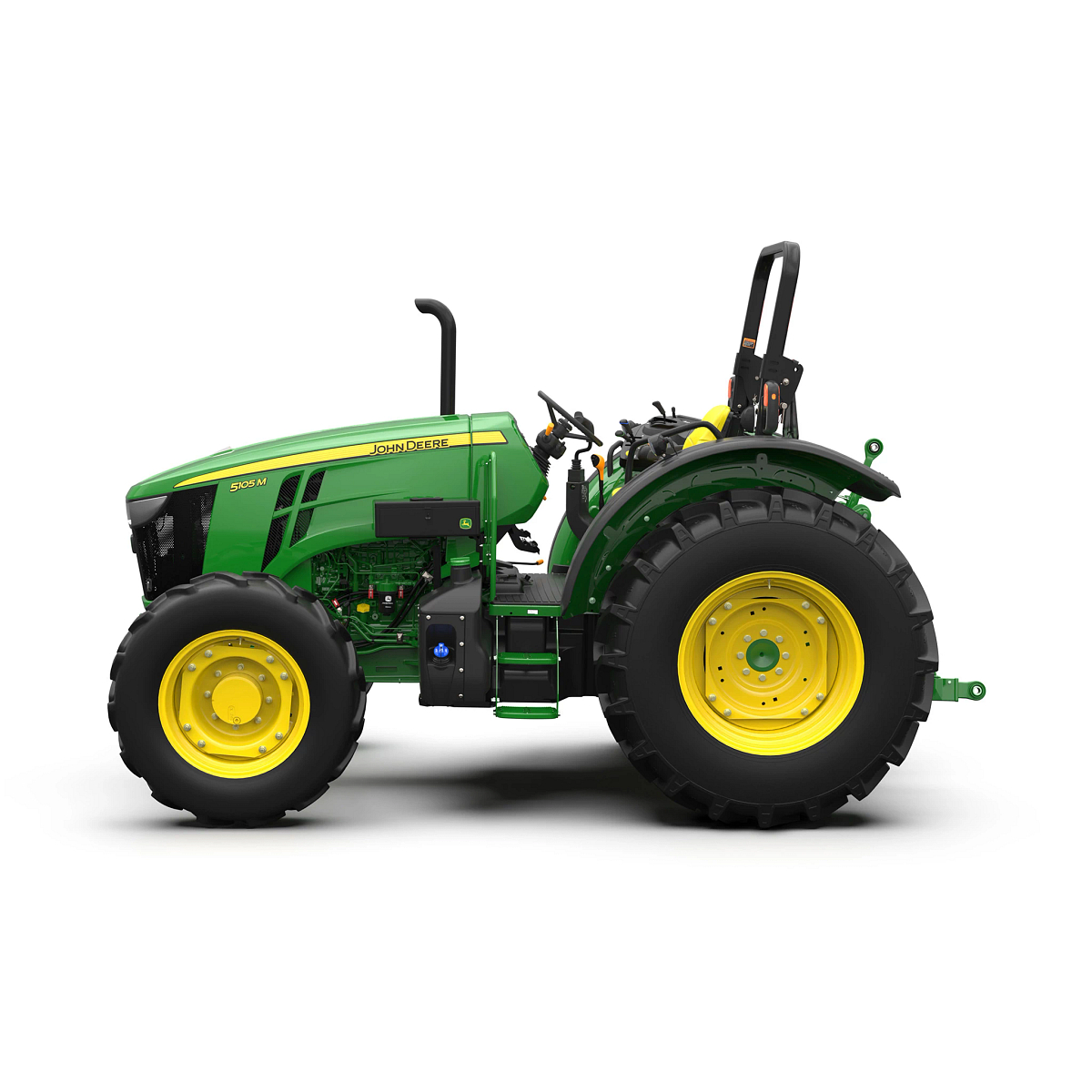

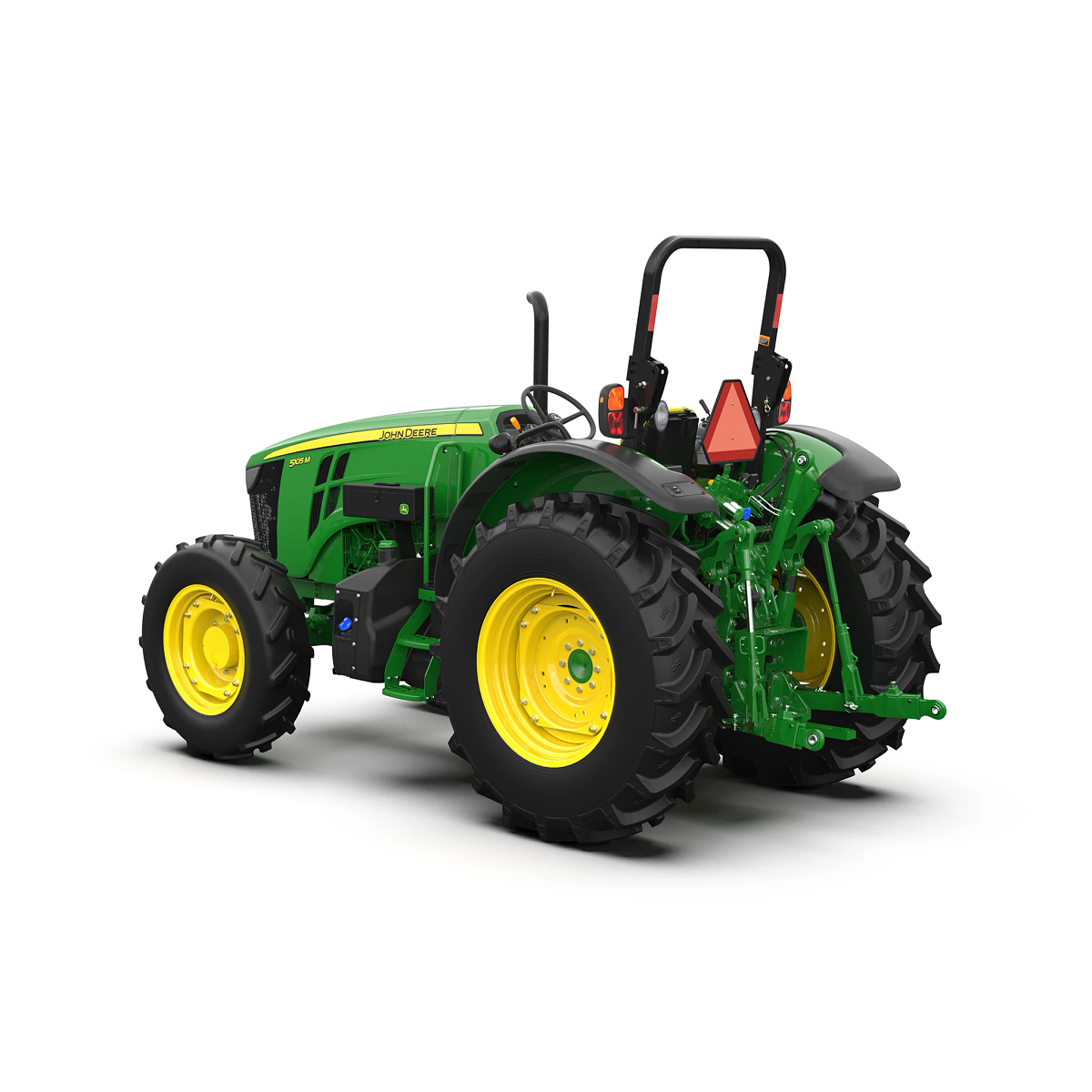

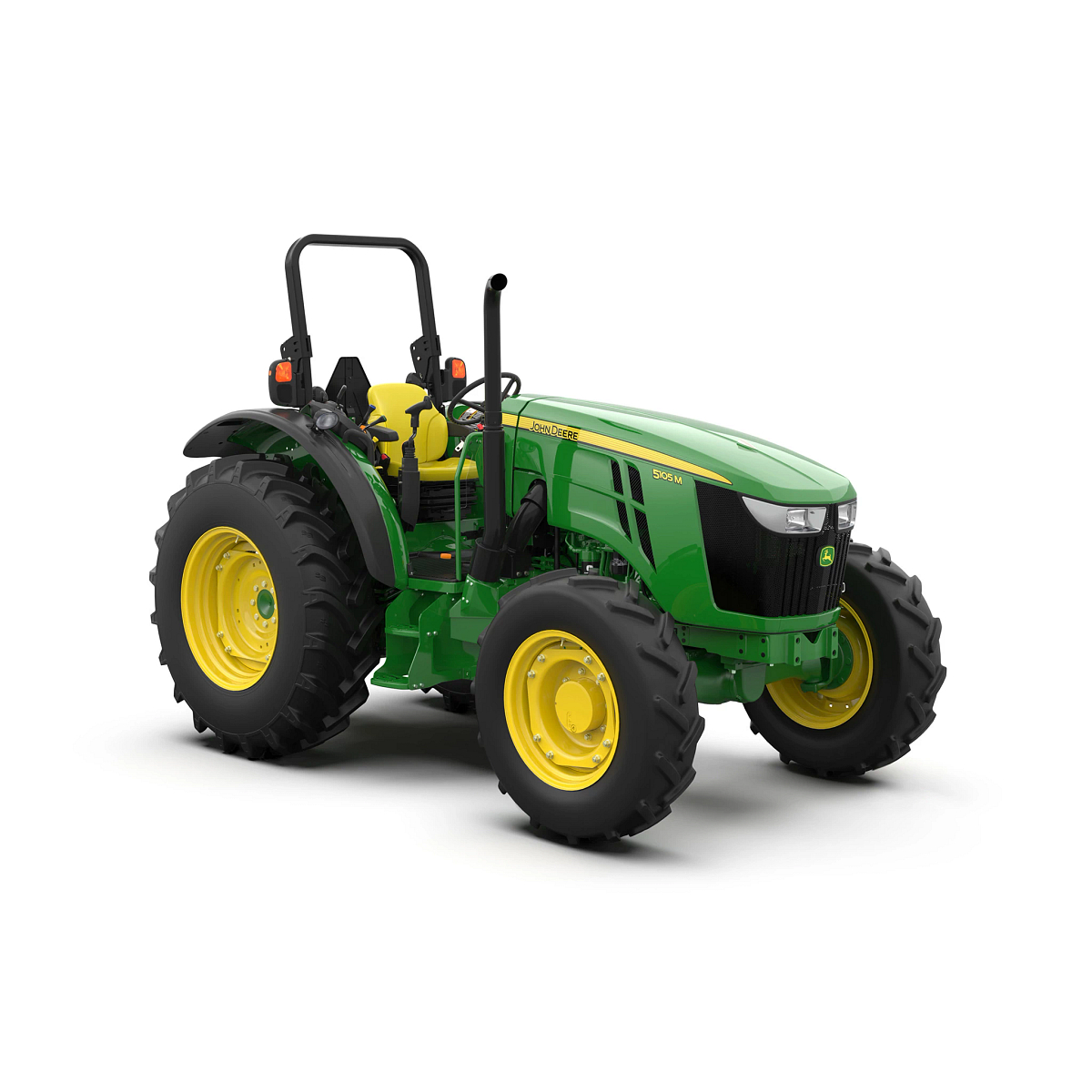

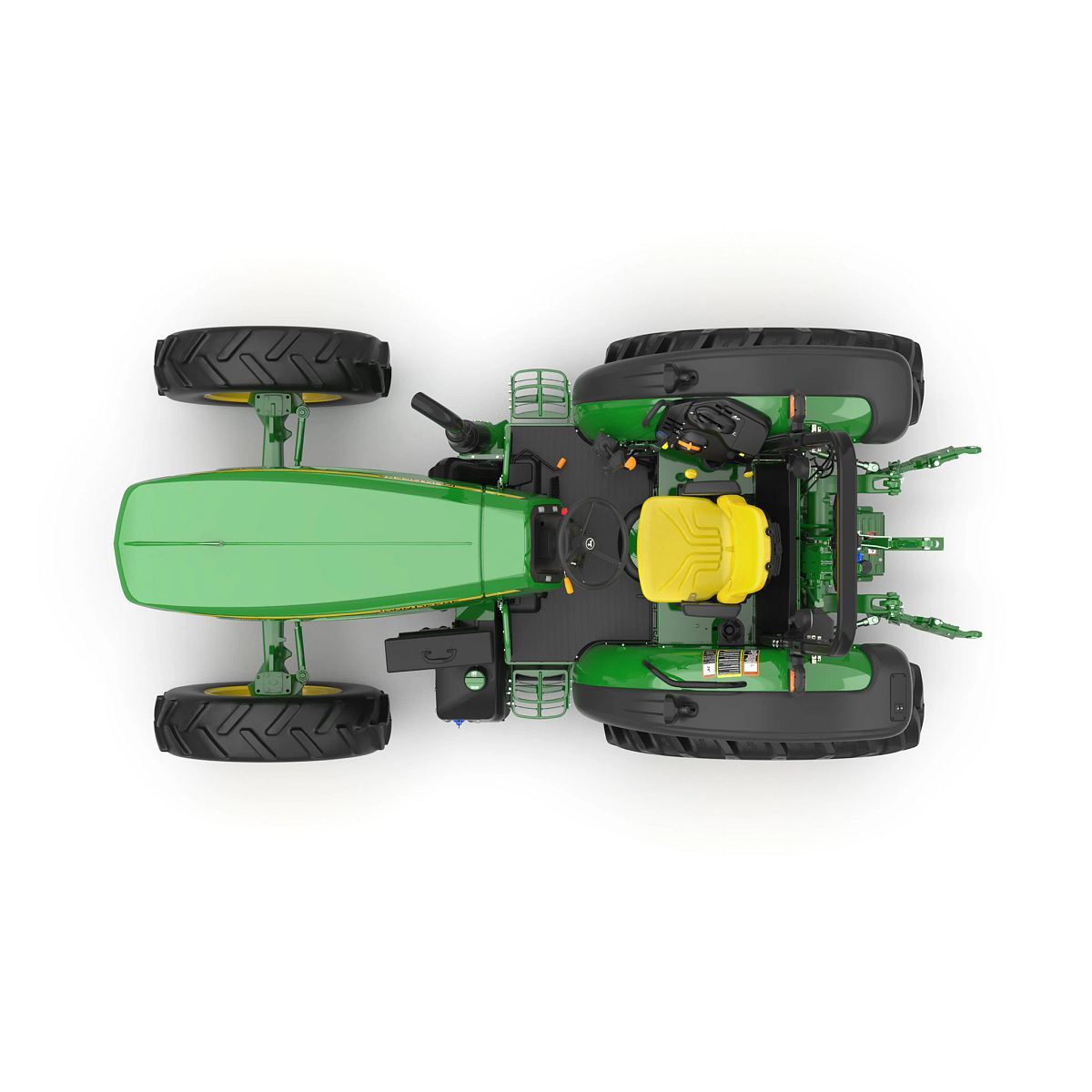

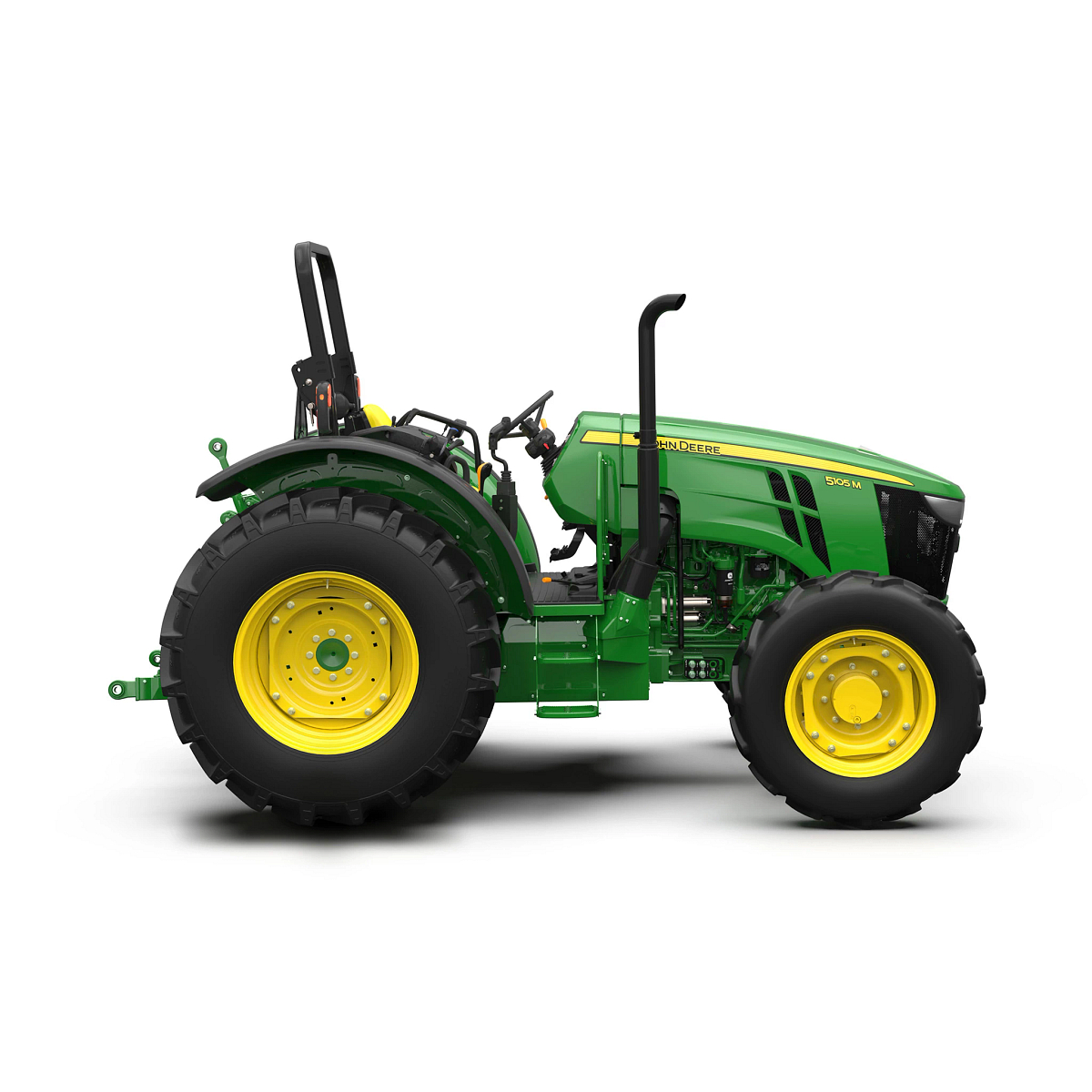

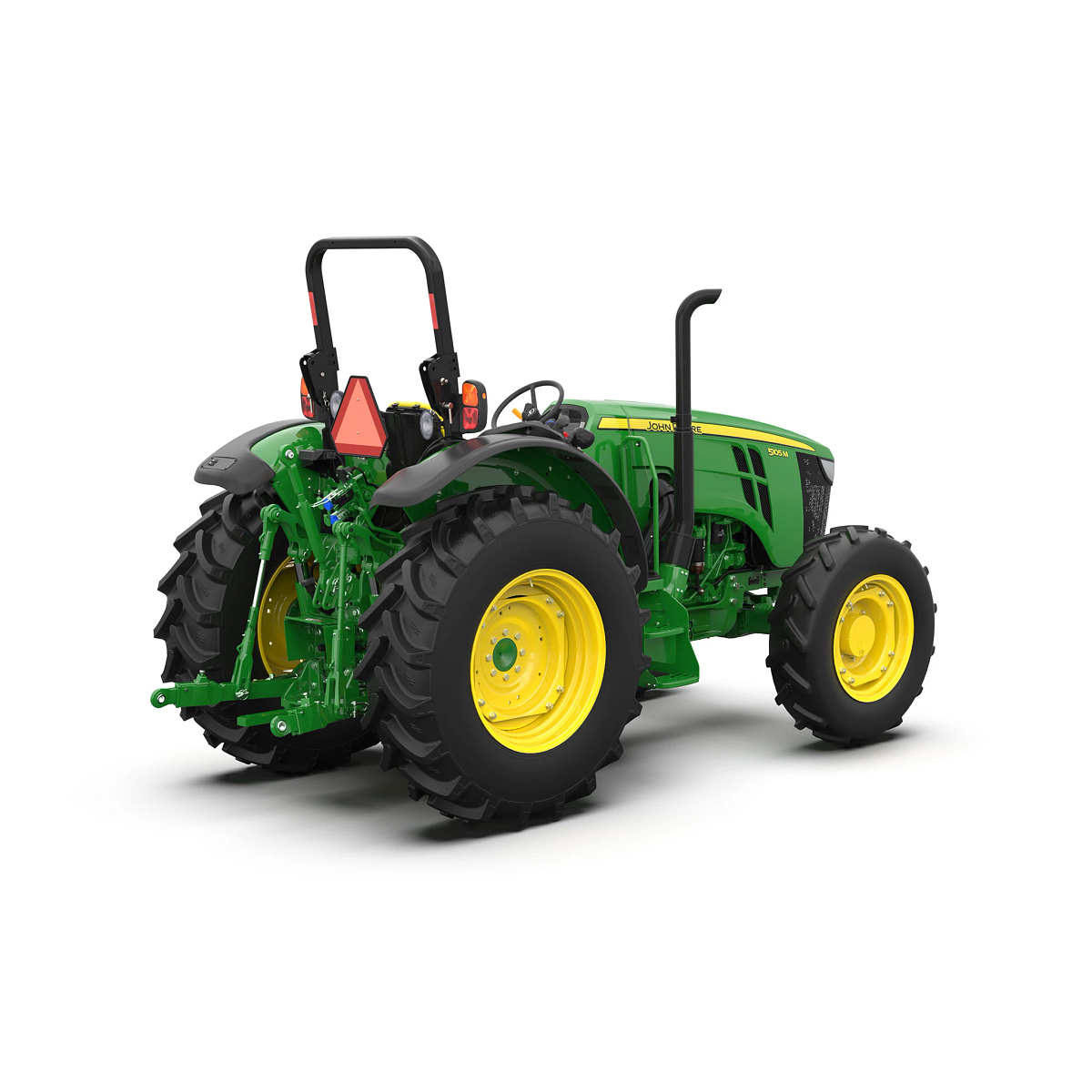

John Deere 5105M

Starting at

Key Features

PowrReverser™, PowrQuad™ PLUS or Powr8™ Transmission Options
Choose Climate-Controlled Cab or Open Station
Hitch Lift Capacity Starting at 5,150 lb. (2,336 kg) and Optional up to 7,860 lb. (3,565 kg)
Work Longer in Comfort, Any Season With a Premium Cab

Cab with a View

Enjoy an 80% improvement in upward visibility with clear sightlines for easier operation when lifting bales or doing loader work above the cab with the Panorama roof on the premium cab.

Compared to previous models.

Operator seated inside a tractor cab, holding the steering wheel with one hand and adjusting an overhead control with the other

PowrQuad™ PLUS and Powr8™ Transmissions

Operators can easily find the right working speed using push-button gear shifting, while PowrQuad™ PLUS and Powr8™ transmissions boost productivity with clutchless hydraulic shifting between forward and reverse. The ergonomically placed control lever and fingertip directional switch streamline gear changes and direction shifts, reducing clutch wear and enhancing efficiency in tight spaces.

Close-up, studio view of a 5130ML tractor's orange gear lever in cab

Ready for Technology

Whether it’s added on or available from the factory, an abundance of technology options are available. From AutoTrac™ to JDLink™ to GreenStar™/ISOBUS ready, your John Deere Dealer can help you decide what technology options are available to bring more efficiency to your operation.

John Deere electronic control module with black and gray housing and a multi‑pin connector port, shown isolated on a white background with John Deere branding visible on the top label.

Specs & Compare

Select up to 4 models to compare specifications

John Deere

5105M

Tractor

John Deere

5075M (Model year 2024)

John Deere

5095M (Model year 2024)

John Deere

5120M (Model year 2024)

John Deere

5130M (Model year 2024)

ADD MODEL


Machine Configuration
Wheel or Track Configuration	Wheel
Engine
Engine Make	John Deere PowerTech™ 4045 PWS
Emissions Certifications	Final Tier 4
Aspiration	Turbocharged	Turbocharged and air-to-air aftercooled	Turbocharged/air-to-air aftercooled	Turbocharged/air-to-air aftercooled	Turbocharged/air-to-air aftercooled
Cylinder Liners	Wet sleeved
Aftertreatment Type	EGR/DOC/DPF/SCR
Rated Engine Power	105 hp	At 2200 rpm: 55.1 kW 75 hp	At 2200 rpm: 70.0 kW 95 hp	At 2200 rpm: 88.5 kW 120 hp	At 2200 rpm: 95.8 kW 130 hp
Rated Engine Power	77 kW	At 2200 rpm: 55.1 kW 75 hp	At 2200 rpm: 70.0 kW 95 hp	At 2200 rpm: 88.5 kW 120 hp	At 2200 rpm: 95.8 kW 130 hp
Rated Engine Power	105 PS	At 2200 rpm: 55.1 kW 75 hp	At 2200 rpm: 70.0 kW 95 hp	At 2200 rpm: 88.5 kW 120 hp	At 2200 rpm: 95.8 kW 130 hp
Maximum Engine Power	108 hp	55.1 kW 75 hp	73.0 kW 97.8 hp	92.1 kW 123.5 hp	99.9 kW 133.9 hp
Maximum Engine Power	81 kW	55.1 kW 75 hp	73.0 kW 97.8 hp	92.1 kW 123.5 hp	99.9 kW 133.9 hp
Maximum Engine Power	110 PS	55.1 kW 75 hp	73.0 kW 97.8 hp	92.1 kW 123.5 hp	99.9 kW 133.9 hp
Maximum Engine Torque	541 Nm / 399 lb-ft
Transmission
Transmission Type	PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R with creeper	Standard: PowrReverser™ 16F/16R Optional: PowrReverser Hi-Lo 32F/16R	Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper	Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper	Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper
Creeper	Powr8™ 32F/16R with creeper	Not available	Powr8™ 32F/16R with creeper	Powr8™ 32F/16R with creeper	Powr8™ 32F/16R with creeper
Reverser	Yes	Left hand, electrohydraulic	Left hand, electrohydraulic	Left hand, electrohydraulic	Left hand, electrohydraulic
Clutch	Wet	Wet	Wet	Wet	Wet
Rear Power Take-Off (PTO)
PTO Category	540/540E/1000
Engagement Method	Electrohydraulic
Front Hitch
Front Hitch Category	Category 2		Category 2	Category 2	Category 2
Rear Hitch
Rear Hitch Category (SAE Designation)	Category 2; convertible to 1	Category 2; convertible to 1	Category 2; convertible to 1	Category 2; convertible to 1	Category 2; convertible to 1
Sensing Type	Top link	Lower link	Lower link	Lower link	Lower link
Draft Control Sensing	Electrohydraulic
Drawbar
Drawbar Category	Category 2	Category 2	Category 2	Category 2	Category 2
Maximum Vertical Load	Road/field use (250-mm extended): 1450 kg / 3197 lb; Field use (350-mm extended): 1200 kg / 2646 lb; Field use (400-mm extended): 1200 kg / 2646 lb	Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb	Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb	Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb	Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb
Hydraulics
Hydraulic System Type	Pressure-and-flow compensated (PFC) system	Open center	Open center	Open center	Open center
Pump Rated Output	117 L/min / 31 gpm	94 L/min 24.7 gpm	PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm	PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm	97 L/min 25.6 gpm
Available Flow at a Single Rear SCV	100 L/min / 26.4 gpm	70 L/min 18.4 gpm	70 L/min 18.4 gpm	PowrReverser™: 70 L/min 18.4 gpm PowrQuad™ PLUS/Powr8™: 73 L/min 19.3 gpm	73 L/min 19.3 gpm
SCV Control	Rear SCVs: Mechanical, Mid-SCVs: Electrohydraulic	Mechanical	Mechanical	Mechanical	Mechanical
Front Axle
Front Axle Type	Mechanical Front Wheel Drive (MFWD)	Standard: Mechanical Front Wheel Drive (MFWD)	Standard: Mechanical Front Wheel Drive (MFWD)	Mechanical Front Wheel Drive (MFWD)	Mechanical Front Wheel Drive (MFWD)
Rear Axle
Rear Axle Type	Flange	Flange	Standard: Flange Optional: Rack-and-pinion (Bar)	Standard: Flange Optional: Rack-and-pinion (Bar)	Standard: Flange Optional: Rack-and-pinion (Bar)
Rear Differential Lock	Electrohydraulic
Differential Controls	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic
Final Drive	Inboard planetary	Inboard planetary	Inboard planetary	Inboard planetary	Inboard planetary
Steering & Brakes
Primary Brakes	Hydraulic wet disc
Secondary Brake	Yes, when equipped with Hydraulic trailer brakes
Trailer Brakes	Optional
Tires
Rear Tires Size	19.5L-24 in. R4 Bias
Wheel Tread Range	Front: 1299–1997 mm / 51.1–78.6 in	MFWD: front: 1299-1997 mm 51.1-78.6 in.	MFWD: front: 1299-1997 mm 51.1-78.6 in. rear: 1350-2286 mm 53.1-90 in.	MFWD: front: 1299-1997 mm 51.1-78.6 in. rear: 1350-2286 mm 53.1-90 in.	MFWD: front: 1299-1997 mm 51.1-78.6 in. rear: 1350-2286 mm 53.1-90 in.
Electrical System
Alternator Capacity	120 amp / ISOBUS/GreenStar™ Ready: 200 amp
Working Lights	Standard: Halogen / Optional: LED	Standard: Halogen Optional: LED	Standard: Halogen Optional: LED	Standard: Halogen Optional: LED	Standard: Halogen Optional: LED
Driving Lights	Standard: Halogen / Optional: LED
Operator Station
ROPS Type	Foldable, two-post
Gearshift Location	Floor
Seat Suspension	Air Ride
Instructional Seat	Not Available	Optional	Optional	Optional	Optional
Primary Display	Digital Dash Display with three liquid crystal displays (LCDs)
Radio	Optional	Optional	Optional	Optional	Optional
Technology Integration
Guidance	Optional: AutoTrac™ with AutoTrac Basic		Optional: AutoTrac™ with AutoTrac Basic	Optional: AutoTrac™ with AutoTrac Basic	Optional: AutoTrac™ with AutoTrac Basic
Connectivity	JDLink™ Modem
Remote Diagnostics	Yes
ISOBUS Ready	Optional for cab models	No	Optional with PowrQuad™ PLUS/Powr8™ models	Optional with PowrQuad™ PLUS/Powr8™ models	Optional
Capacities
Fuel Tank Capacity	38 gal.
Fuel Tank Capacity	144 L
Additional Information
Country of Manufacture	Pune, India	Pune, India	Pune, India	Pune, India	Pune, India
Date Collected	2023_01_06T00:00:00.0000000	6-Jan-2023	6-Jan-2023	6-Jan-2023	6-Jan-2023
