Utility Tractors

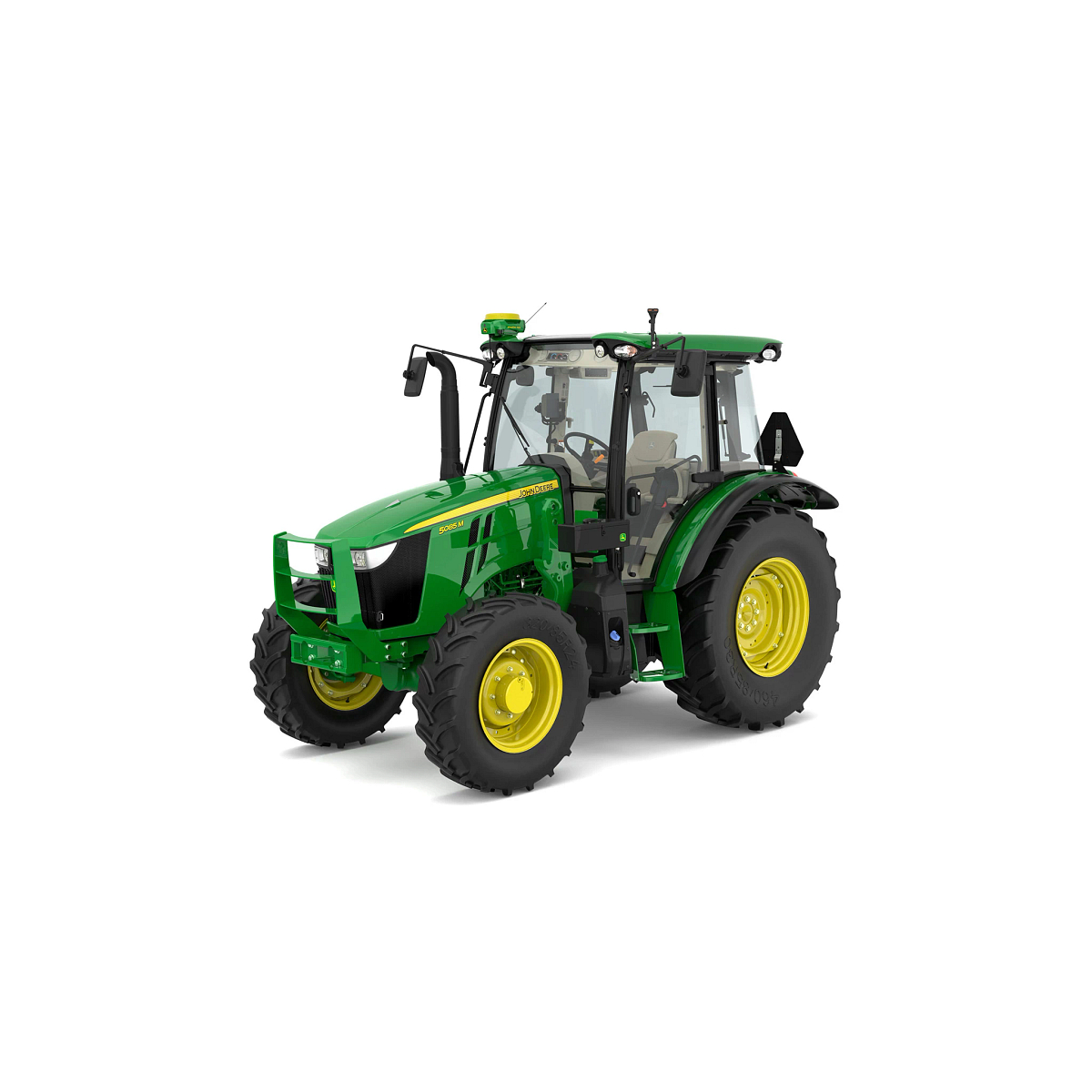

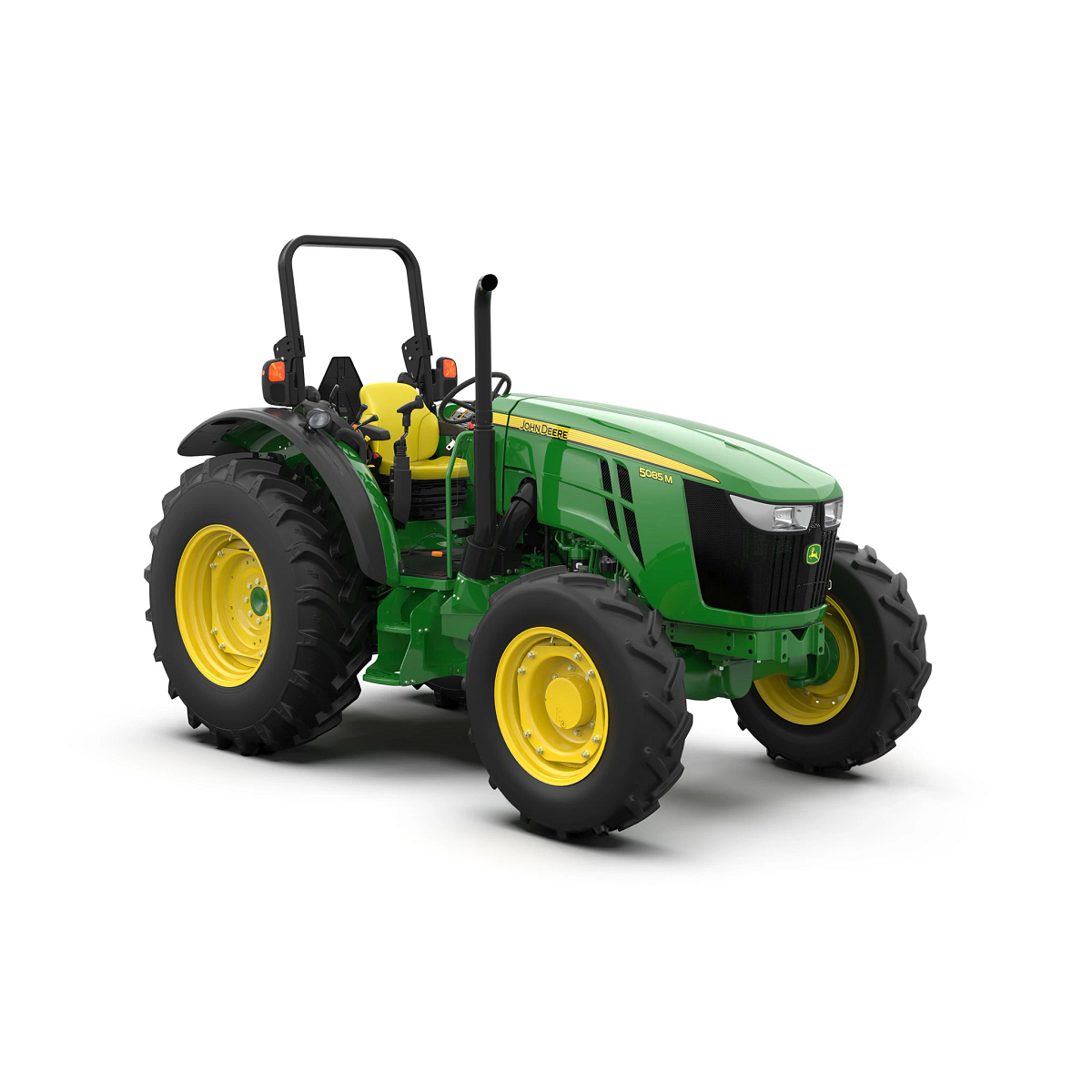

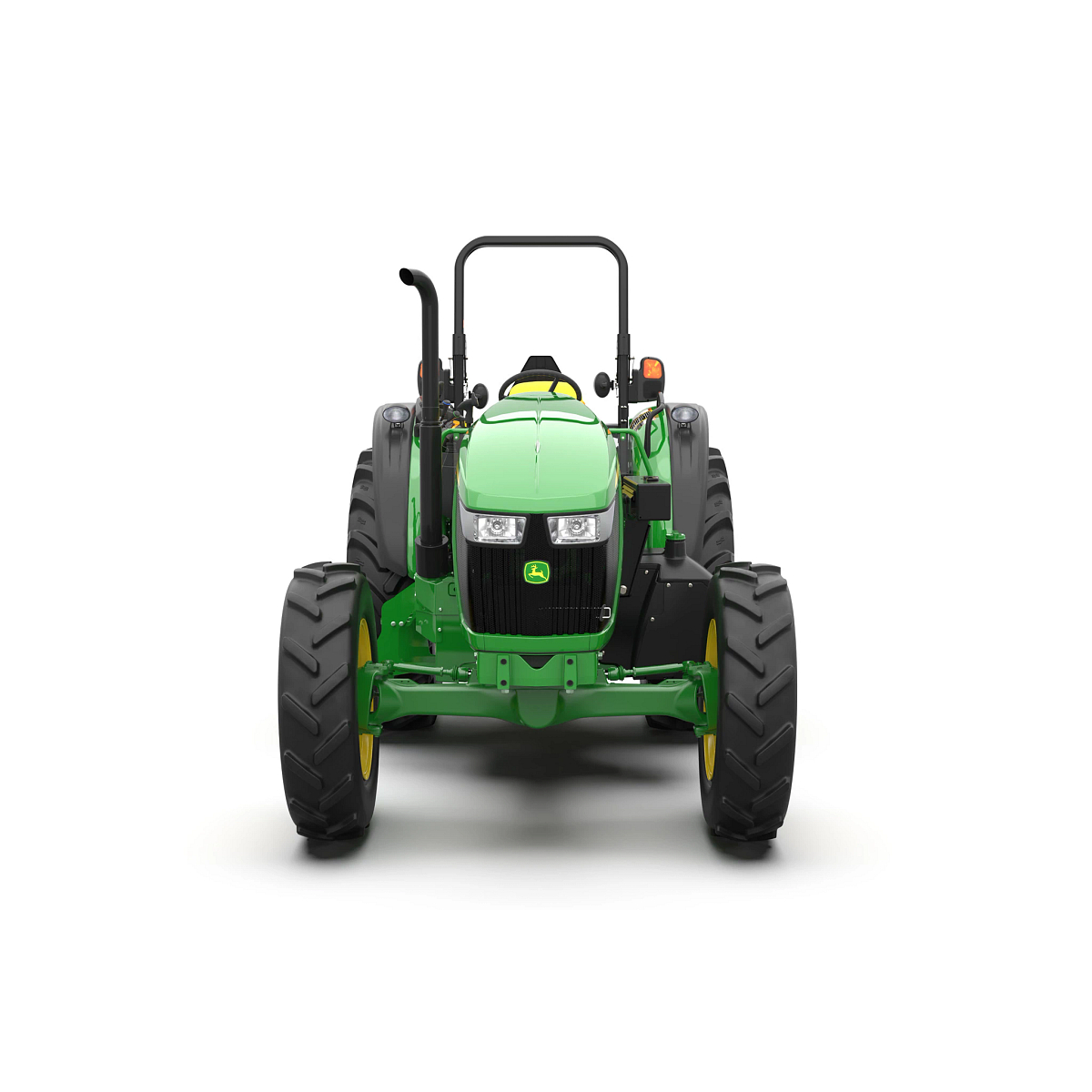

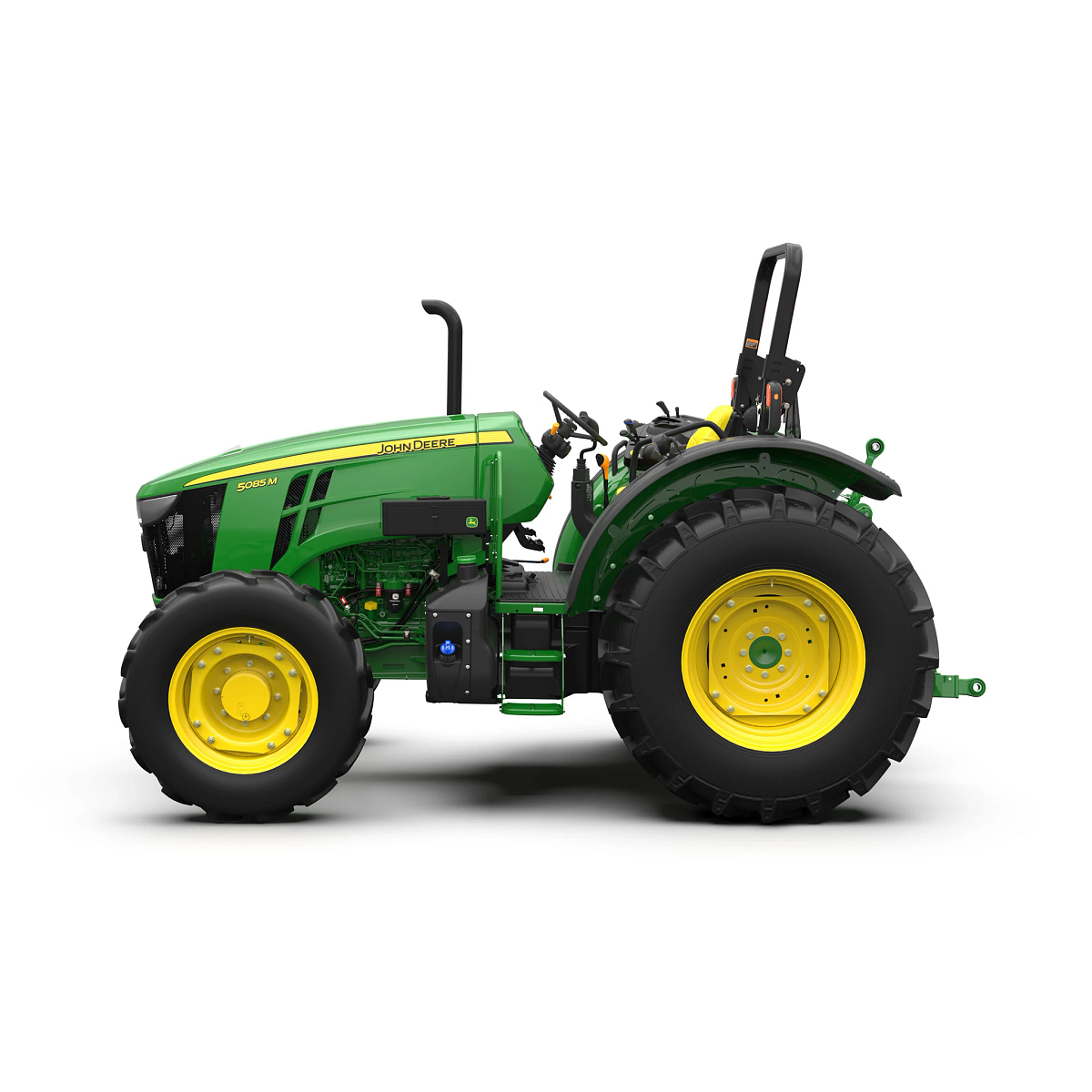

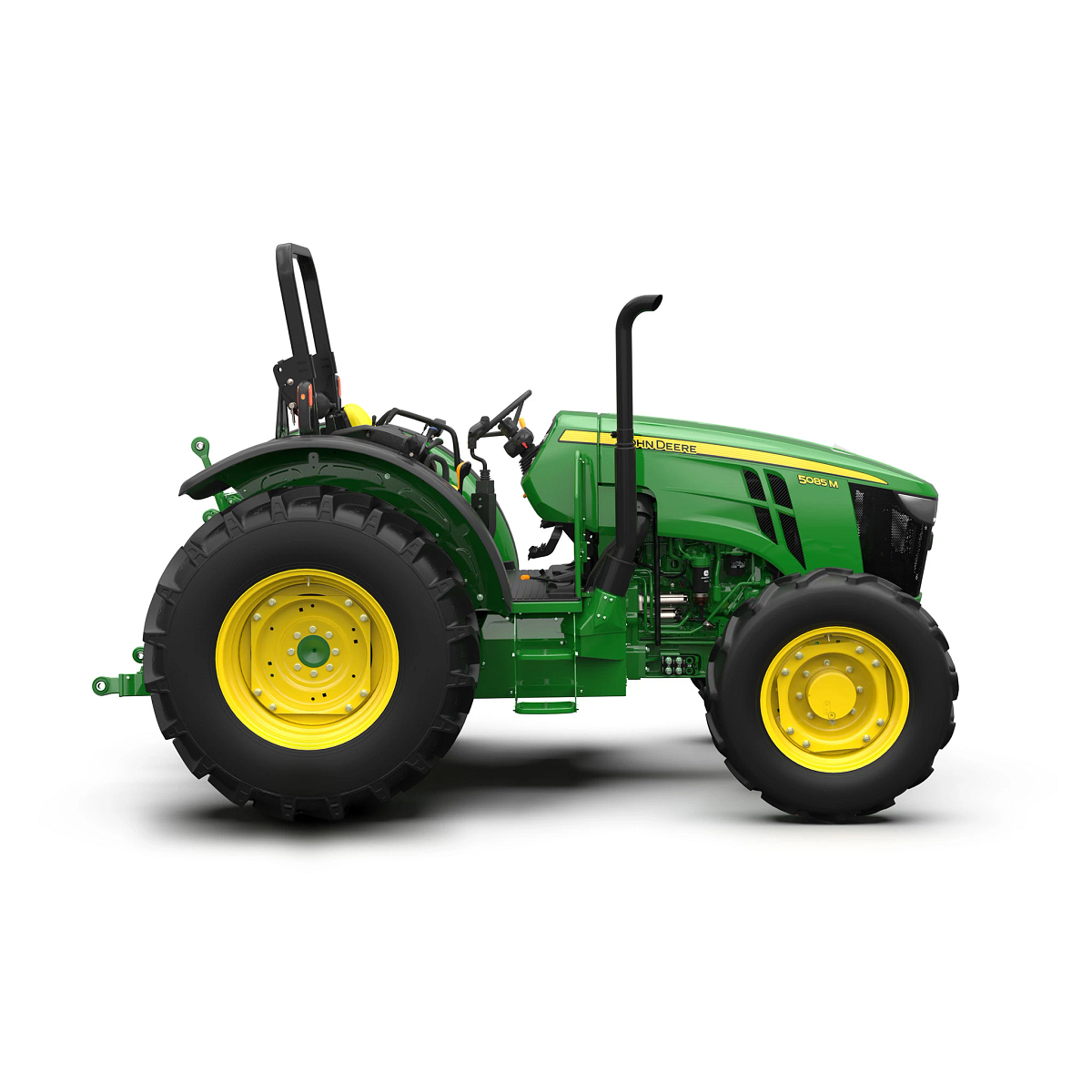

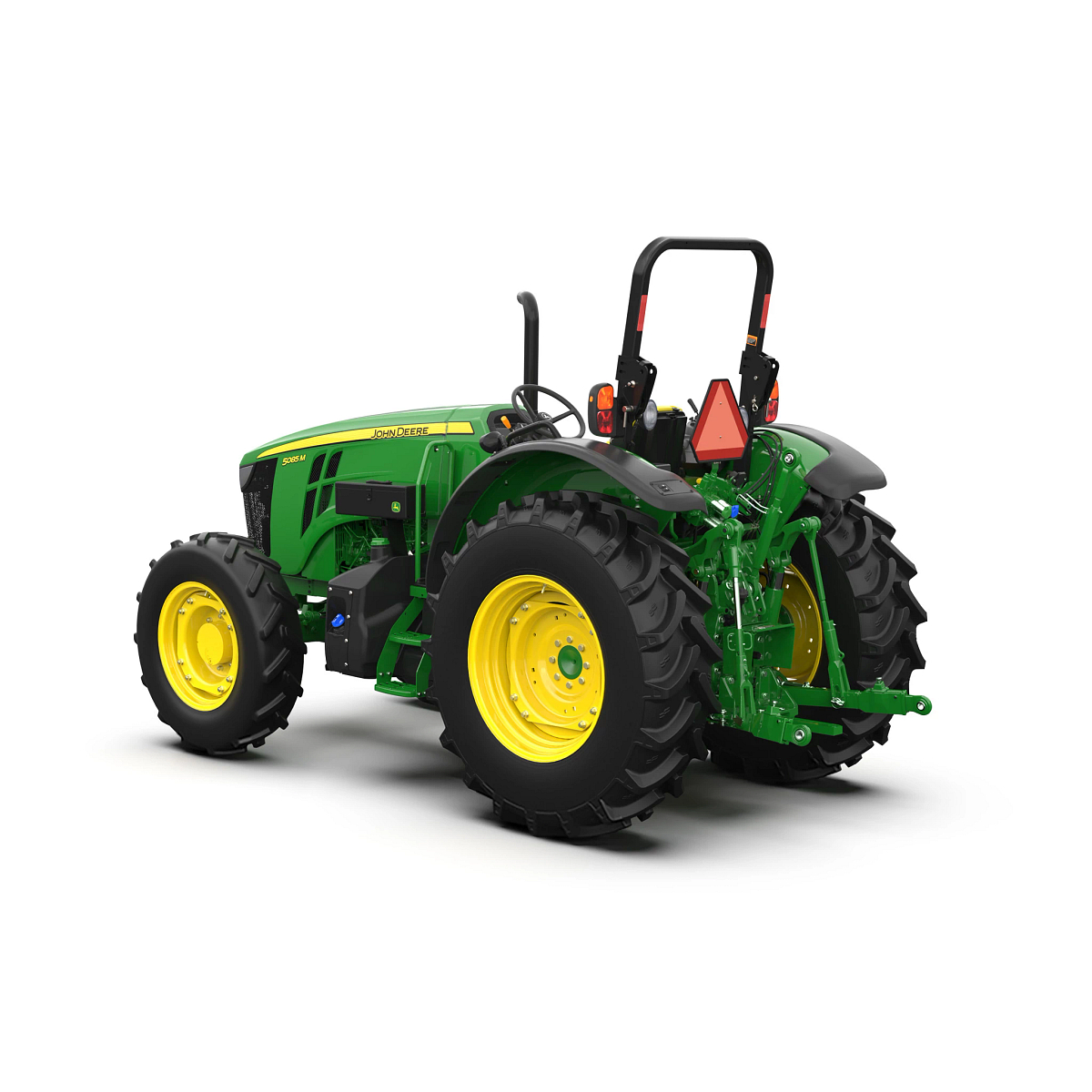

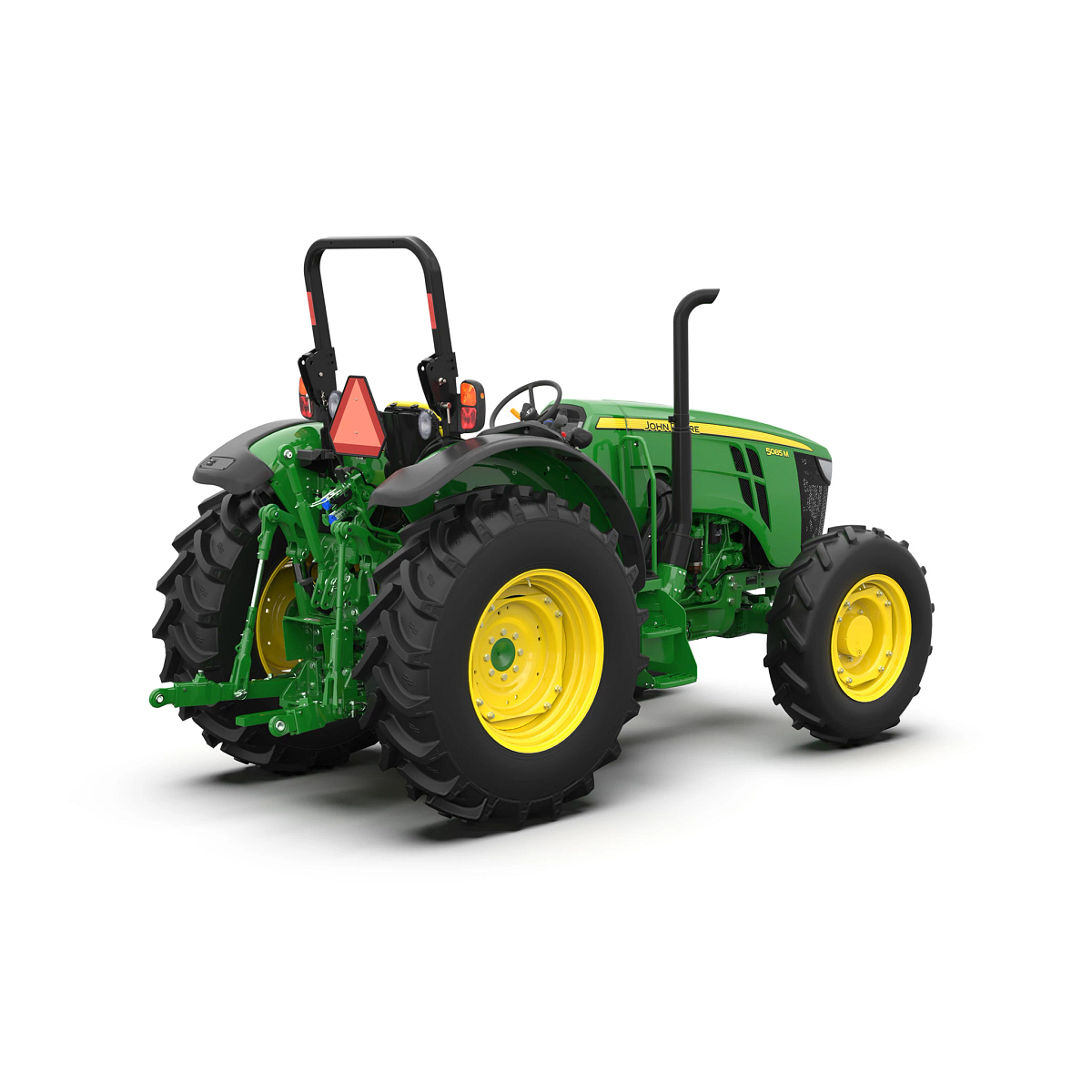

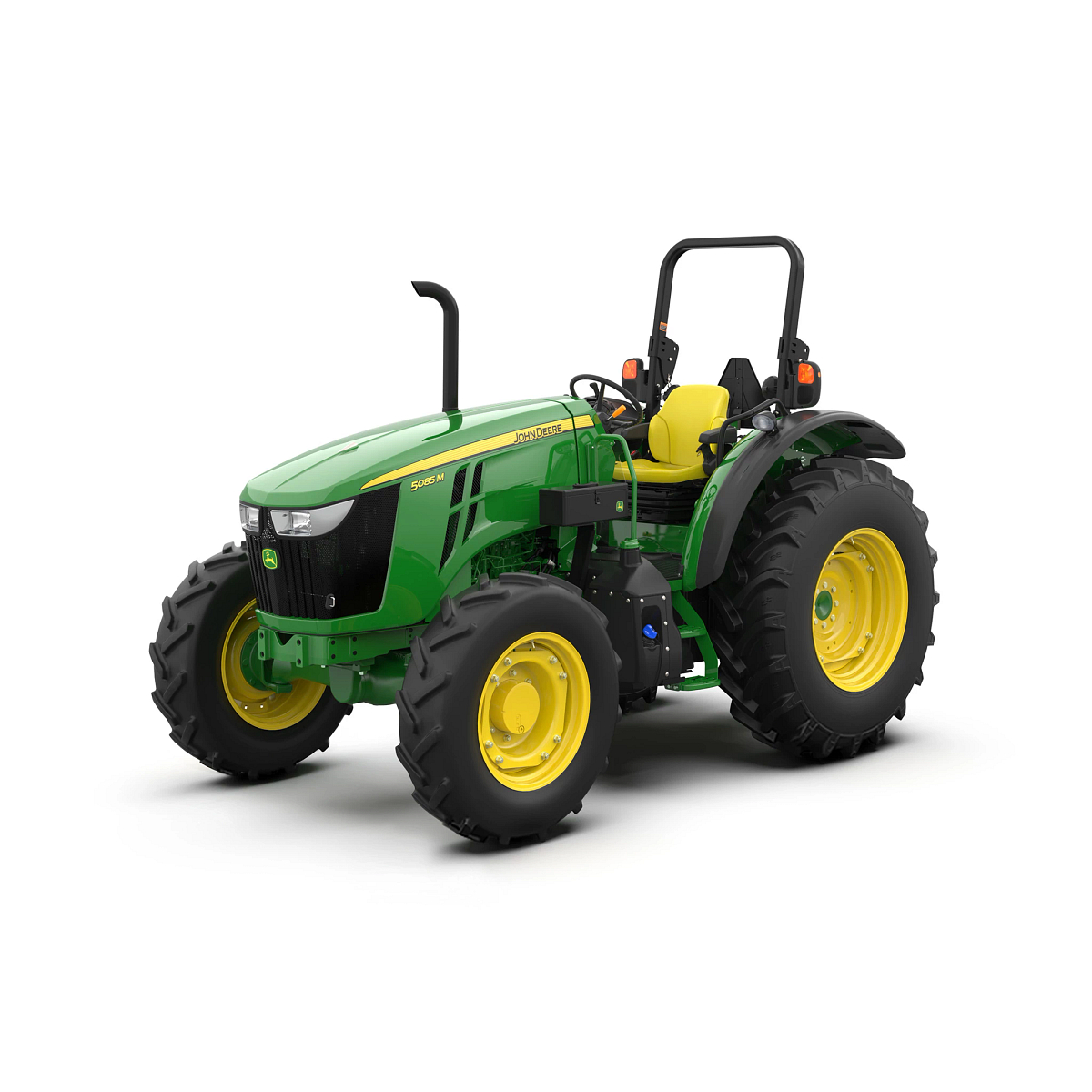

John Deere 5085M

Starting at

Key Features

PowrReverser™, PowrQuad™ PLUS or Powr8™ Transmission Options
Choose Climate-Controlled Cab or Open Station
Hitch Lift Capacity Starting at 5,150 lb. (2,336 kg) and Optional up to 7,860 lb. (3,565 kg)
Powerful PowerTech™ Diesel Engine

Cab with a View

Enjoy an 80% improvement in upward visibility with clear sightlines for easier operation when lifting bales or doing loader work above the cab with the Panorama roof on the premium cab.

Compared to previous models.

Operator seated inside a tractor cab, holding the steering wheel with one hand and adjusting an overhead control with the other

Ready for Technology

Whether it’s added on or available from the factory, an abundance of technology options are available. From AutoTrac™ to JDLink™ to GreenStar™/ISOBUS ready, your John Deere Dealer can help you decide what technology options are available to bring more efficiency to your operation.

John Deere electronic control module with black and gray housing and a multi‑pin connector port, shown isolated on a white background with John Deere branding visible on the top label.

Maximum Maneuverability

The 5M can maneuver into tight spaces, like barns, alley ways, through gates or mowing around obstacles. With a maximum steering angle of 50 degrees and a shorter turning radius of 12.6 ft. (3.85 m), the 5M is designed for tight areas.

John Deere equipment consisting of a green tractor with enclosed cab pulling a green round baler on a gravel driveway near a farm fence, with trees and a barn in the background under late-day sunlight.

Machine Configuration

Wheel or Track Configuration	Wheel
Drive Type	Mechanical front-wheel drive (MFWD) or two-wheel drive (2WD)

Engine

Engine Make	John Deere
Emissions Certifications	Final Tier 4
Aspiration	Turbocharged, wastegate turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Cylinder Liners	Wet-sleeve
Aftertreatment Type	Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
Rated Engine Power	85 hp
Rated Engine Power	63 kW
Rated Engine Power	86 PS
Maximum Engine Power	85 hp
Maximum Engine Power	63 kW
Maximum Engine Power	86 PS
Maximum Engine Torque	494 Nm (364 lb-ft)
Fuel Type	Diesel
Alternative Fuel Type	B20 diesel compatible

Transmission

Transmission Type	Standard: John Deere 12F/12R PowrReverser™ transmission; Optional: John Deere 12F/12R PowrReverser transmission with creeper; John Deere 24F/12R PowrReverser transmission
Maximum Speed Forward	12F/12R PowrReverser transmission: 30 km/h (19 mph); 24F/12R PowrReverser transmission: 40 km/h (25 mph)
Creeper	Optional

Rear Power Take-Off (PTO)

PTO Category

Independent; 35 mm (1.375 in.) 540 rpm/1000 rpm reversible shaft

Rear Hitch

Rear Hitch Category (SAE Designation)	Standard: Category 2 standard lift; Optional: Category 2 heavy-duty lift
Sensing Type	Optional

Drawbar

Drawbar Category	Standard: Category 2; Optional: Category 2 heavy duty
Maximum Vertical Load	Standard: Category 2, 1000-1250 kg (2205-2756 lb); Optional: Category 2 heavy duty, 1200-1900 kg (2645-4189 lb); Maximum vertical load is dependent on drawbar position.

Hydraulics

Hydraulic System Type	Open-center; Gear driven
Pump Rated Output	36.5 cc pump: 75.7 L/min (20 gpm)
Available Flow at a Single Rear SCV	75.7 L/min (20 gpm)
SCV Control	Mechanical

Front Axle

Front Axle Type	Standard: Mechanical front-wheeled drive (MFWD); Optional: Two-wheel drive (2WD)
Front Axle Differential Lock	MFWD: limited slip; 2WD: None

Rear Axle

Rear Axle Type	Flange
Rear Differential Lock	Full-locking mechanical
Final Drive	Inboard Planetary

Steering & Brakes

Steering Type

Hydrostatic power

Tires

Wheel Tread Range

2WD: 1533–2043 mm (60.4–80.4 in.); MFWD: 1516–2016 mm (59.7–79.4 in.)

Electrical System

Alternator Capacity

90 amp

Operator Station

Seat Suspension	Standard: Mechanical suspension; Optional: Air suspension
Instructional Seat	Optional
Primary Display	LCD instrument cluster

Capacities

Fuel Tank Capacity	44.4 gal.
Fuel Tank Capacity	168 L

Additional Information

Country of Manufacture	Pune, India
Date Collected	9-Oct-2019
