Utility Tractors

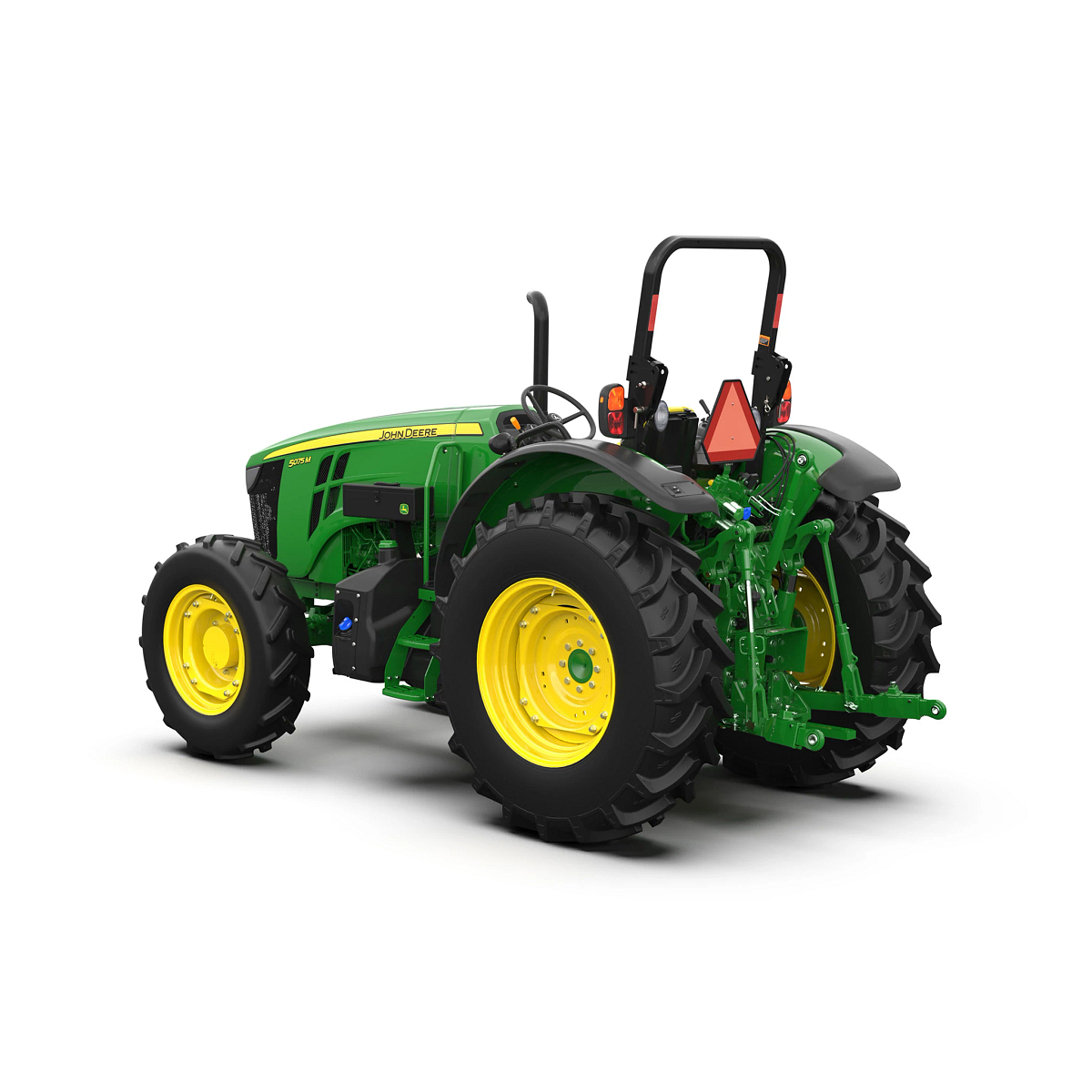

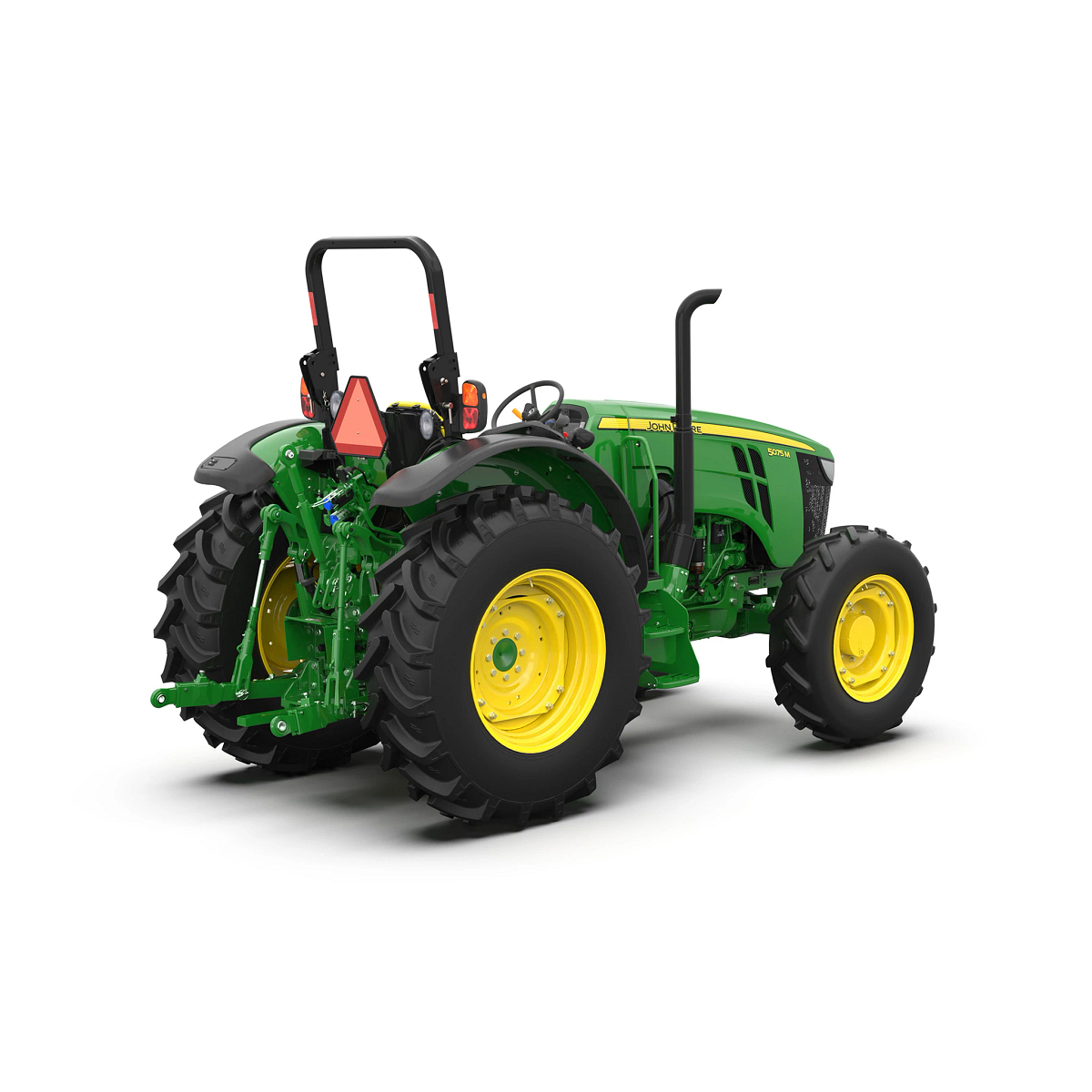

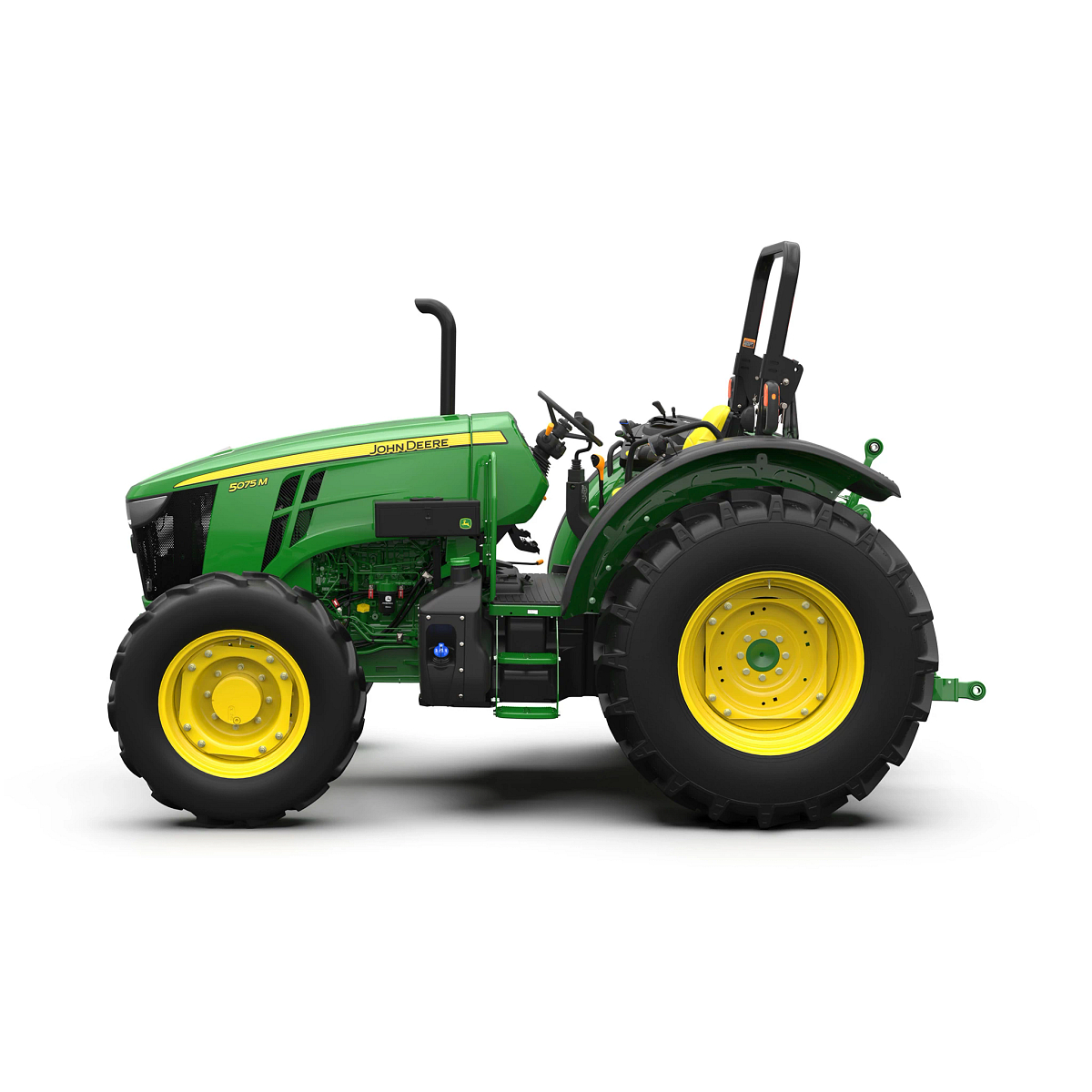

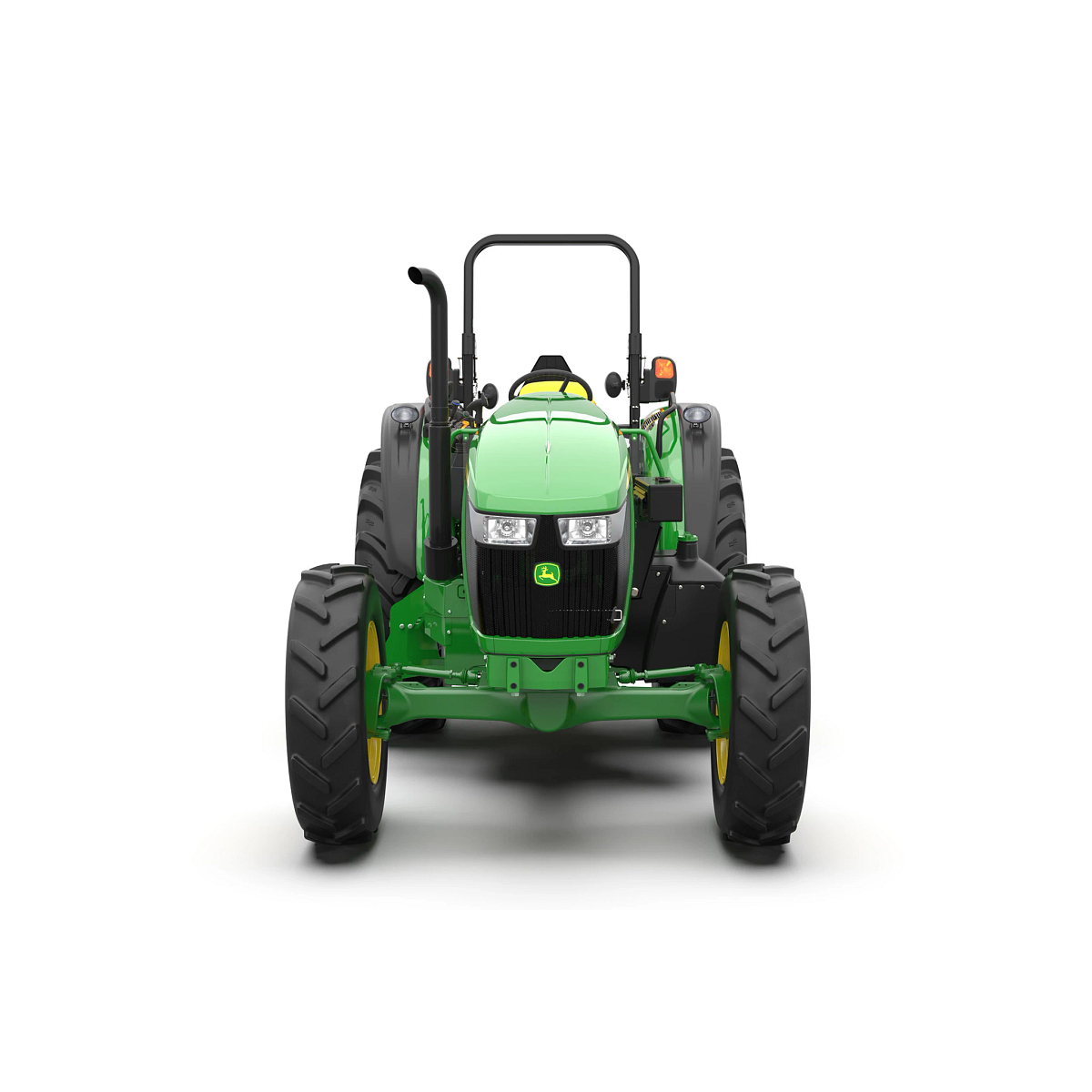

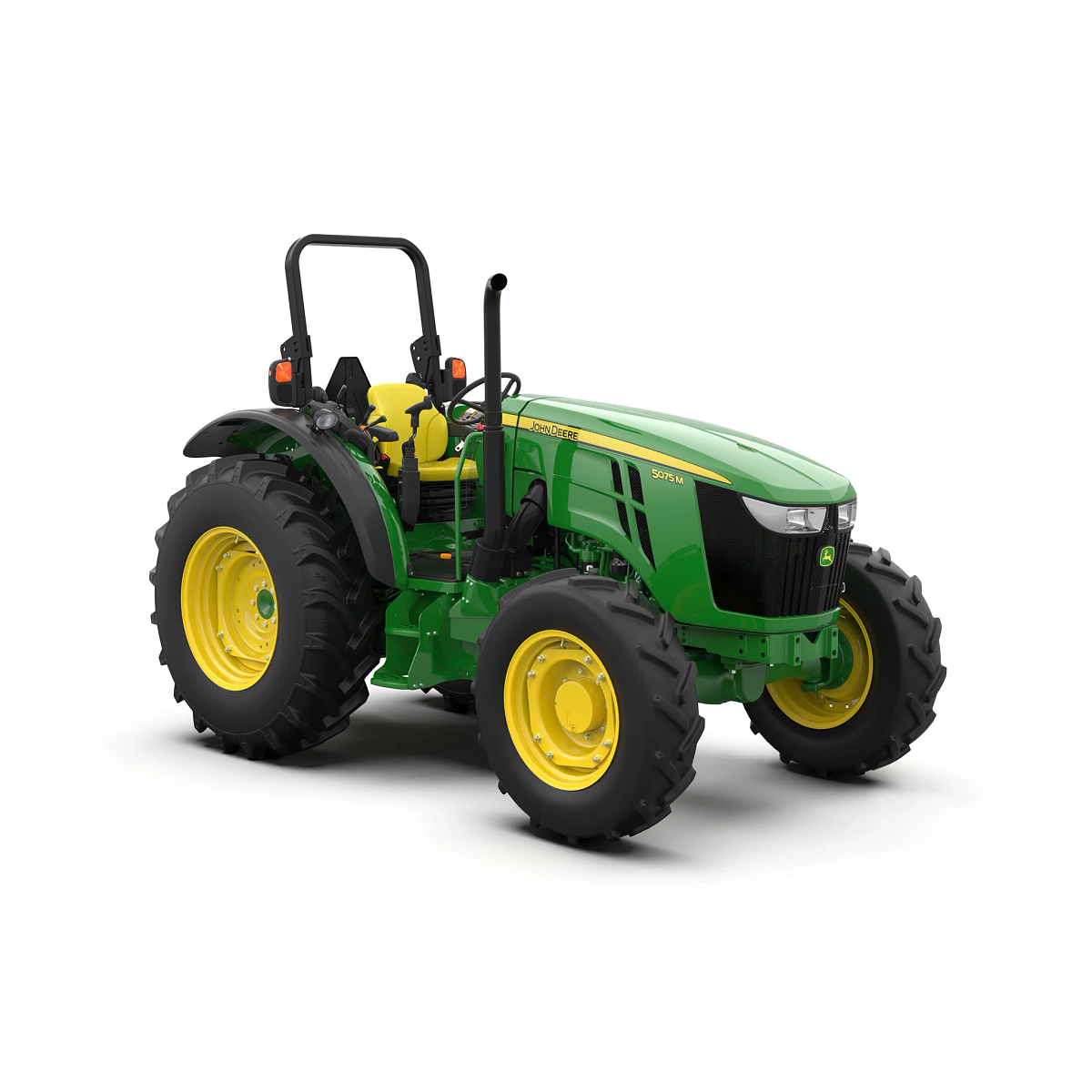

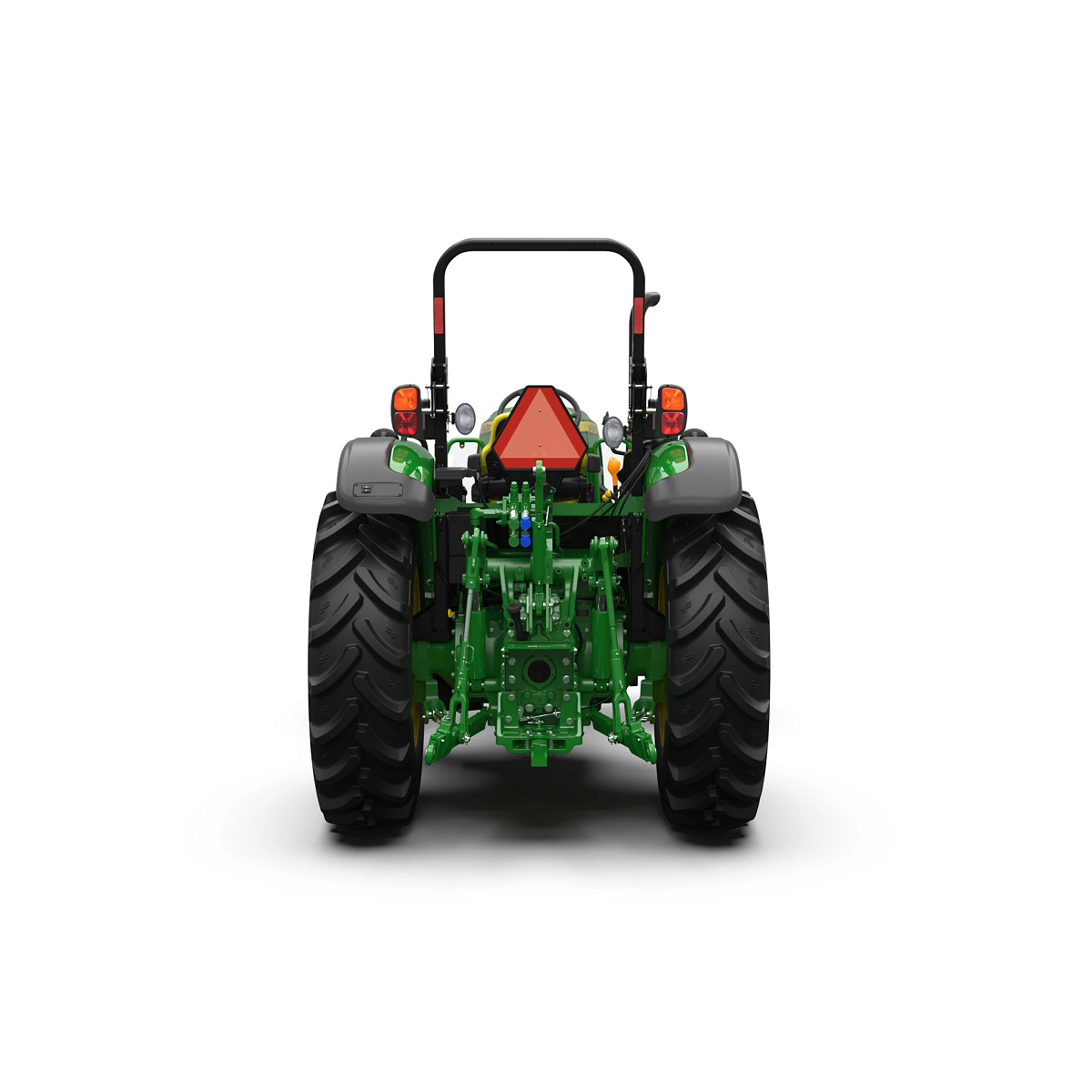

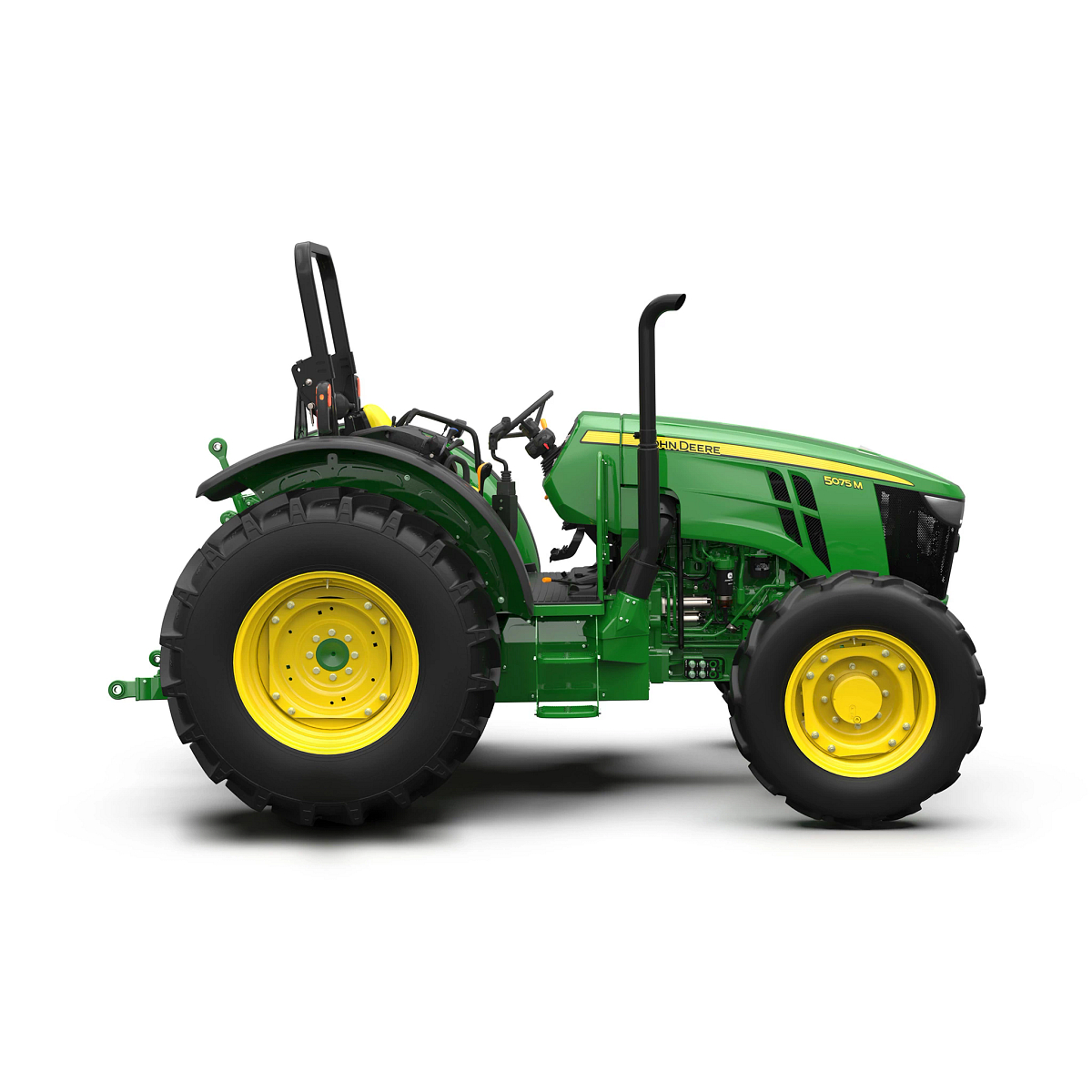

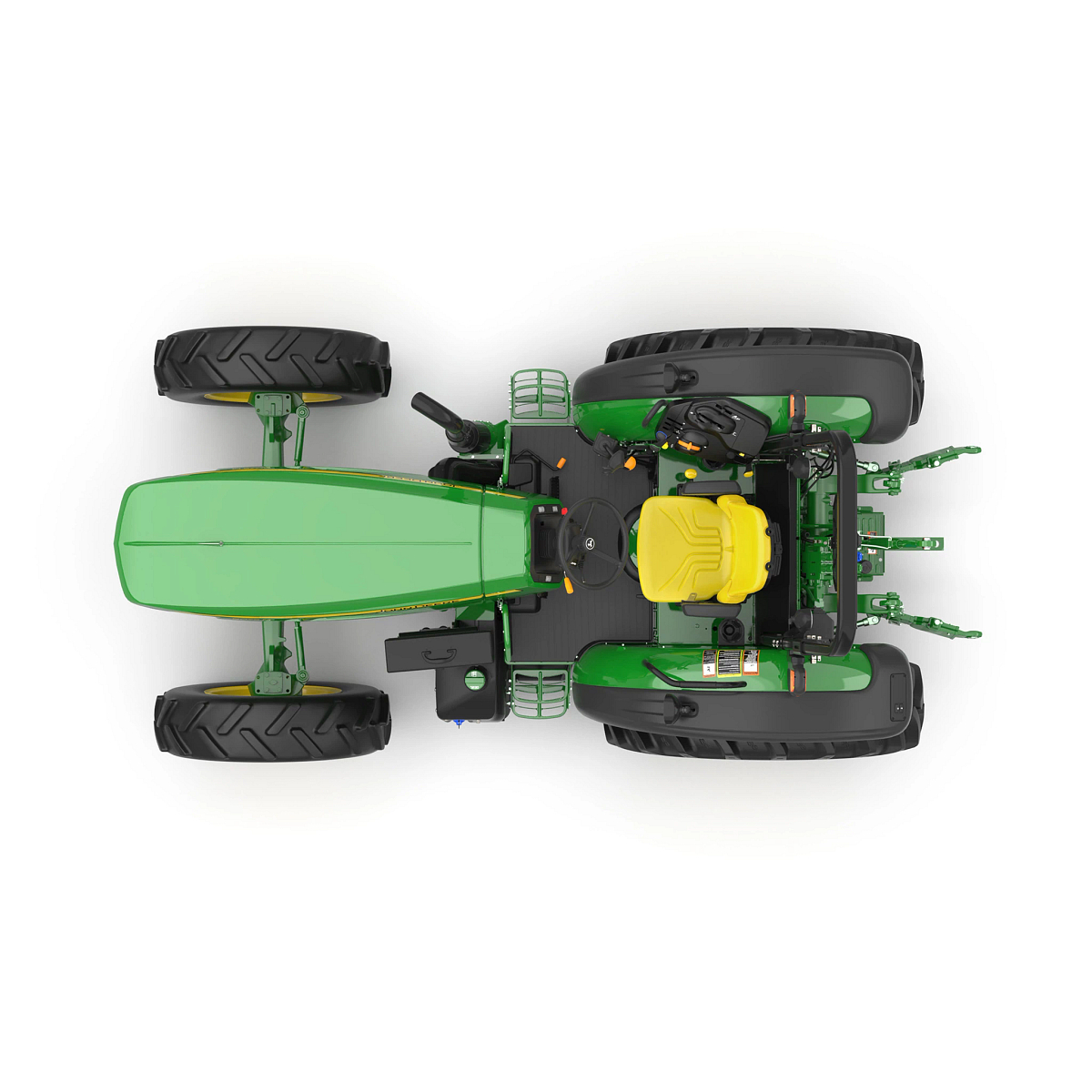

John Deere 5075M

Starting at

Key Features

PowrReverser™ 16F/16R and 32F/16R Hi-Lo Transmission Options
Choose Climate-Controlled Cab or Open Station
Heavy-Duty 3-Point Hitch
Powerful PowerTech™ Diesel Engine

Maximum Maneuverability

The 5M can maneuver into tight spaces, like barns, alley ways, through gates or mowing around obstacles. With a maximum steering angle of 50 degrees and a shorter turning radius of 12.6 ft. (3.85 m), the 5M is designed for tight areas.

John Deere equipment consisting of a green tractor with enclosed cab pulling a green round baler on a gravel driveway near a farm fence, with trees and a barn in the background under late-day sunlight.

Ready for Technology

Whether it’s added on or available from the factory, an abundance of technology options are available. From AutoTrac™ to JDLink™ to GreenStar™/ISOBUS ready, your John Deere Dealer can help you decide what technology options are available to bring more efficiency to your operation.

John Deere electronic control module with black and gray housing and a multi‑pin connector port, shown isolated on a white background with John Deere branding visible on the top label.

Cab with a View

Enjoy an 80% improvement in upward visibility with clear sightlines for easier operation when lifting bales or doing loader work above the cab with the Panorama roof on the premium cab.

Compared to previous models.

Operator seated inside a tractor cab, holding the steering wheel with one hand and adjusting an overhead control with the other

Machine Configuration

Wheel or Track Configuration

Wheel

Engine

Emissions Certifications	Final Tier 4
Aspiration	Turbocharged/air-to-air aftercooled
Cylinder Liners	Wet sleeved
Aftertreatment Type	DOC/SCR
Rated Engine Power	75 hp
Rated Engine Power	55 kW
Rated Engine Power	75 PS
Maximum Engine Power	74 hp
Maximum Engine Power	55 kW
Maximum Engine Power	75 PS
Maximum Engine Torque	At 1600 rpm: 396 Nm; 292 lb-ft

Transmission

Transmission Type	Standard: PowrReverser™ 16F/16R; Optional: PowrReverser™ Hi-Lo 32F/16R; PowrQuad™ PLUS 16F/16R; Powr8™ 32F/16R; Powr8™ 32F/16R with creeper
Creeper	Powr8™ 32F/16R with creeper
Reverser	Left hand, electrohydraulic
Clutch	Wet

Rear Power Take-Off (PTO)

Economy PTO Speeds	540/540E
Engagement Method	Electrohydraulic
Number of Splines	6; optional 21

Front PTO

Front Number of Splines

Front Hitch

Front Hitch Category

Category 2

Rear Hitch

Rear Hitch Category (SAE Designation)	Category 2; convertible to 1
Sensing Type	Lower link
Draft Control Sensing	Mechanical or Electrohydraulic

Drawbar

Drawbar Category	Category 2
Maximum Vertical Load	Road/field use (250-mm extended): 1450 kg / 3197 lb; Field use (350-mm extended): 1200 kg / 2646 lb; Field use (400-mm extended): 1200 kg / 2646 lb

Hydraulics

Hydraulic System Type	Open center
Pump Rated Output	PowrReverser™: 94 L/min 24.7 gpm; PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm
Available Flow at a Single Rear SCV	70 L/min 18.4 gpm
SCV Control	Mechanical
Auxiliary Hydraulic Features	Remote control valves available: Standard Two; Optional Three

Front Axle

Front Axle Type

Mechanical Front Wheel Drive (MFWD)

Rear Axle

Rear Axle Type	Standard: Flange; Optional: Rack-and-pinion (Bar)
Rear Differential Lock	Electrohydraulic
Differential Controls	Electrohydraulic
Final Drive	Inboard planetary

Steering & Brakes

Primary Brakes

Hydraulic wet disc

Tires

Rear Tires Size	MFWD: 18.4R30 (460/85R30) R1W Radial
Wheel Tread Range	MFWD front: 1299–1997 mm (51.1–78.6 in); rear: 1350–2286 mm (53.1–90 in)

Electrical System

Alternator Capacity	OOS: 90 amp; Cab: 120 amp; ISOBUS/GreenStar™ Ready: 200 amp
Working Lights	Standard: Halogen; Optional: LED
Driving Lights	Standard: Halogen; Optional: LED

Operator Station

ROPS Type	Foldable, two-post
Gearshift Location	Floor
Seat Suspension	Standard: Mechanical; Optional: Air Ride or Premium Air Ride
Instructional Seat	Optional
Primary Display	Automotive-style LED instrument cluster (PowrReverser™) / Digital Dash Display with three LCDs (PowrQuad™ PLUS/Powr8™)
Radio	Optional

Technology Integration

Guidance	Optional: AutoTrac™ with AutoTrac Basic
ISOBUS Ready	Optional with PowrQuad™ PLUS/Powr8™ models

Capacities

Fuel Tank Capacity	37.7 U.S. gal or 43.7 U.S. gal (Open station variants) gal.
Fuel Tank Capacity	142.7 L or 165.4 L (Open station variants) L

Additional Information

Country of Manufacture

Pune, India
