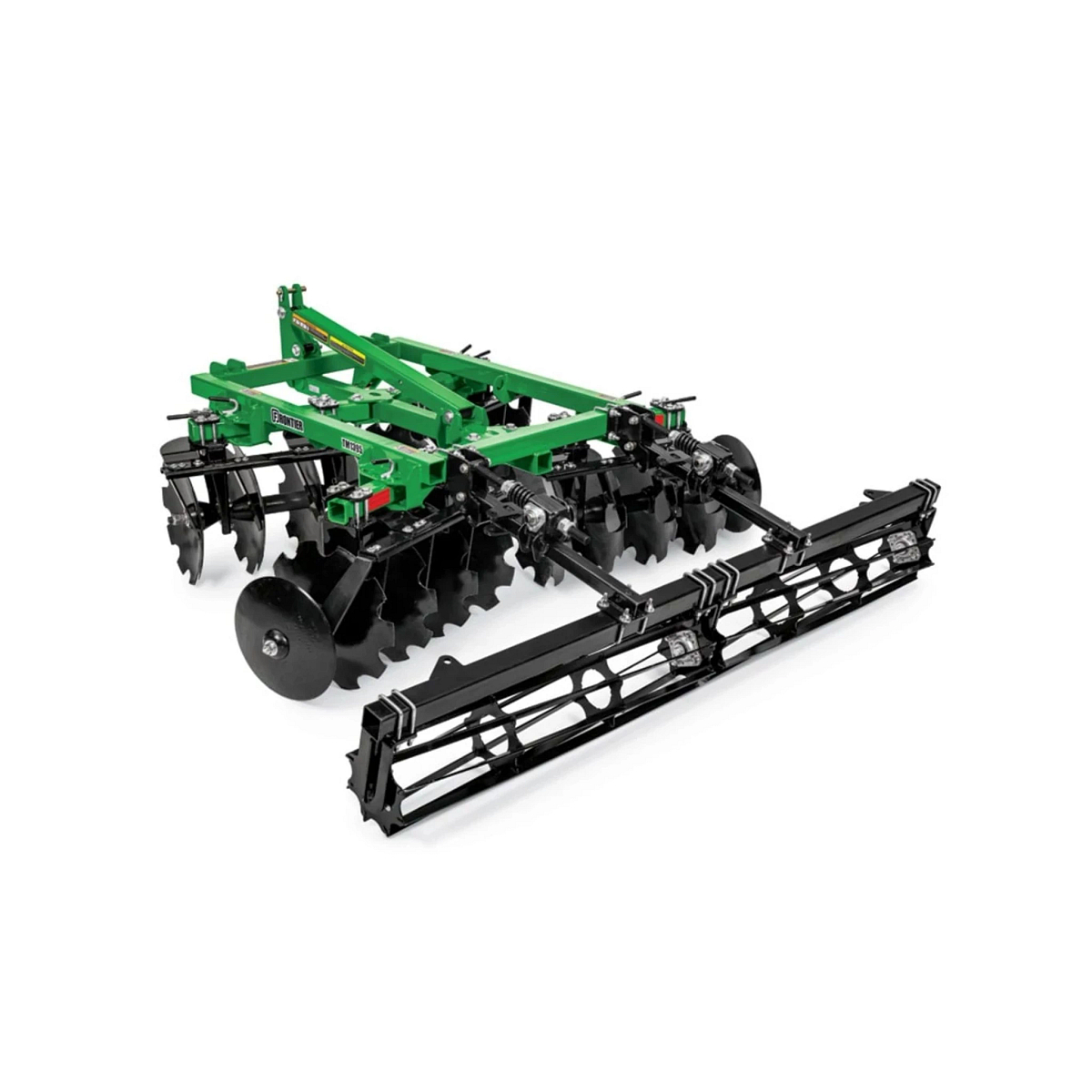

To help break up clods for improved levelness and uniformity of field finish, an 11-in. (27.9-cm) diameter rolling basket can be added to the TM13. With just a wrench, the down pressure of the rolling basket can be adjusted to suit the conditions.

A scraper kit (as pictured) is available to improve disk blade performance by removing soil buildup from disk blades in wet, sticky soil types with the scraper kit. The Furrow Filler Kit provides additional smaller-diameter disk blades to mount onto the outermost rear disk gangs, helping to fill in the furrow and eliminate ridging that can be created by the outermost disk blade.

Each disk gang can be adjusted individually without tools for ease of use. This allows precise disk angle settings to match different soil conditions. The mismatched front and rear gang angles enable straighter tracking for a smoother finish.

Answer text goes here
Working Width | 96 in. |
Working Width | 243.8 cm |
Overall Width | 98.375 in. |
Overall Width | 250 cm |
Overall Height | 48 in. |
Overall Height | 122 cm |
Overall Length | 72.75 in. |
Overall Length | 185 cm |
Weight Per Disk | 65 lb. |
Weight Per Disk | 29.5 kg |
Operating Weight | 1346 lb. |
Operating Weight | 610.5 kg |
Disk Spacing | 9 in. |
Disk Spacing | 22.9 cm |
Disk Thickness | 0.16 in. |
Disk Thickness | 4 mm |
Disk Diameter | 22 in. |
Disk Diameter | 55.88 cm |
Number Of Disks | 20 |
Notched (Front) / Notched (Rear) | Optional |
Notched (Front) / Smooth (Rear) | Optional |
Operating Weight | 1346 lb. |
Operating Weight | 610.5 kg |
Weight Per Disc | 65 lb. |
Weight Per Disc | 29.5 kg |
Engine HP Range | 33.6-74.6 (45-100) kW |
Gang / Frame Tubing | 4x3 rectangle |
Category | Category 1 & Category 2 |
iMatch / Quick Hitch | Yes |
Type | Integral |
Height To Hitch Pins | 20 in. |
Height To Hitch Pins | 50.8 cm |
Spacing | 9 in. |
Spacing | 22.9 cm |
Quantity | 20 |
Notched (Front) Notched (Rear) | Optional |
Notched (Front) Smooth (Rear) | Optional |
Diameter | 1.125 in. |
Diameter | 2.86 cm |
Type | Square |
Material | AISI 1045 |
Front Gang Angles | 6,11,16,21 degree (angle) |
Rear Gang Angles | 4,9,14,19 degree (angle) |
Gang / Frame Tubing | 3x3 square |
Bearing Type | 1 1/8 SQ with steel flanges |
Material Thickness | 3/16 U-shape x 3/8 top plate |
Approximate Assembly Time | 30 minutes |
Scraper Kit | Option |
Furrow Filler Kit | Option |
Rolling Basket | Option |
