John Deere
TM1292
Compact Tractors Attachments

John Deere TM1292

Starting at

Disk Blades for Various Conditions

Notched front blades come standard on the TM12 Tandem Disk Harrow, providing an aggressive cut for different material sizes. The rear blades, available in smooth or notched, allow for better soil control, deeper tilling depths, and improved soil penetration.

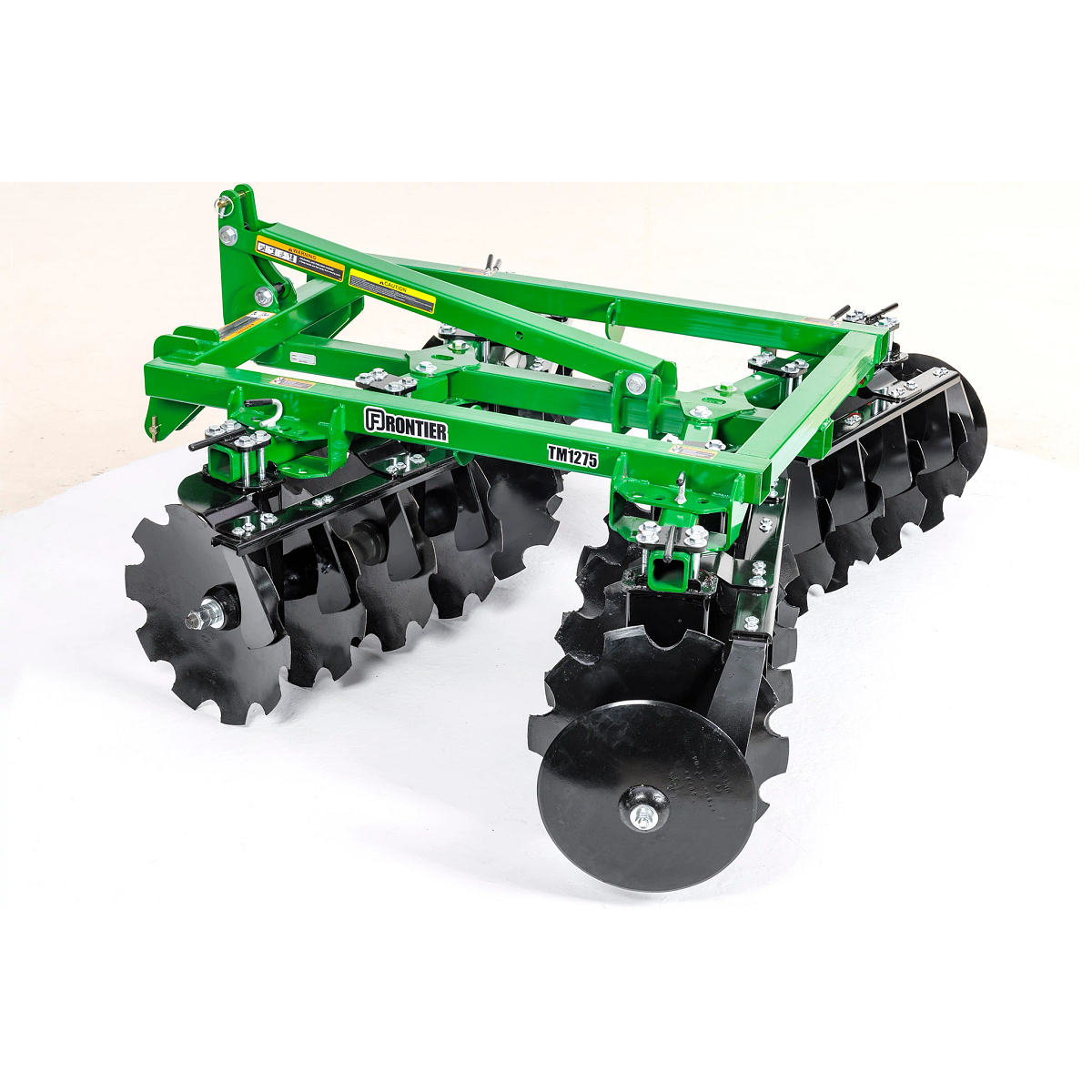

Studio view of TM1275 Notched Disk Harrow
Additional Kits Available

A scraper kit (as pictured) is available to improve disk blade performance by removing soil buildup from disk blades in wet, sticky soil types with the scraper kit. The Furrow Filler Kit provides additional smaller-diameter disk blades to mount onto the outermost rear disk gangs, helping to fill in the furrow and eliminate ridging that can be created by the outermost disk blade.

Close‑up of a black agricultural disc assembly showing multiple scalloped steel blades mounted on a horizontal axle, secured with metal brackets, bolts, and spacers.
Easy Gang Angle Adjustments

Each disk gang can be adjusted individually without tools for ease of use. This allows precise disk angle settings to match different soil conditions. The mismatched front and rear gang angles enable straighter tracking for a smoother finish.

Close-up of agricultural implement frame showing a reinforced mounting bracket with a locking handle, bolt holes, warning label, and spring‑loaded adjustment components.
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
TM1292
Tandem Disk Harrow
Frontier
TM1275
ADD MODEL

Dimensions

Working Width92 in.
Working Width233.7 cm
Overall Width97.75 in.79 1/2 (202 cm)
Overall Width248 cm79 1/2 (202 cm)
Overall Height39.13 in.39 1/8  (99.5 cm)
Overall Height99.5 cm39 1/8  (99.5 cm)
Overall Length72.75 in.69 3/4 (177 cm)
Overall Length185 cm69 3/4 (177 cm)
Weight Per Disk50 lb.
Weight Per Disk22.7 kg
Shipping Weight1376 lb.471.7 kg 1,040 lb
Shipping Weight624.1 kg471.7 kg 1,040 lb
Operating Weight968 lb.890 lb
Operating Weight439.1 kg890 lb

Disk Hillers

Disk Spacing9 in.9 in. (22.9 cm)
Disk Spacing22.9 cm9 in. (22.9 cm)
Disk Thickness0.138 in.3.5 mm
Disk Thickness3.5 mm3.5 mm
Disk Diameter20 in.20 in.
Disk Diameter50.8 cm20 in.
Number Of Disks2016
Notched (Front) / Notched (Rear)Optional
Notched (Front) / Smooth (Rear)Optional

Weight

Operating Weight968 lb.890 lb
Operating Weight439.1 kg890 lb
Shipping Weight1376 lb.471.7 kg 1,040 lb
Shipping Weight624.1 kg471.7 kg 1,040 lb
Weight Per Disc50 lb.55
Weight Per Disc22.7 kg55

Tractor Requirements

Engine HP Range30-55.9 (40-75) kW

Construction

Gang / Frame Tubing3x3 square

Hitch

CategoryCategory 1Category 1
iMatch / Quick HitchYes
TypeIntegral
Height To Hitch Pins20 in.
Height To Hitch Pins50.8 cm

Disks

Spacing9 in.9 in. (22.9 cm)
Spacing22.9 cm9 in. (22.9 cm)
Quantity20
Notched (Front) Notched (Rear)Optional
Notched (Front) Smooth (Rear)Optional

Gang axle

Diameter1.125 in.20 in.
Diameter2.86 cm20 in.
TypeSquare
MaterialAISI 1045

Gang angles

Front Gang Angles6,11,16,21 degree (angle)
Rear Gang Angles4,9,14,19 degree (angle)

Tubing

Gang / Frame Tubing3x3 square

Bearing hanger

Bearing Type1 1/8 SQ with steel flanges
Material Thickness3/16 U-shape x 3/8 top plate3/16 U-shape x 3/8 Top plate

Setup Time

Approximate Assembly Time30 minutes30 minutes
Scraper KitOptionOption
Furrow Filler KitOptionOption
Rolling BasketNoNo
