Each disk gang can be adjusted individually without tools for ease of use. This allows precise disk angle settings to match different soil conditions. The mismatched front and rear gang angles enable straighter tracking for a smoother finish.

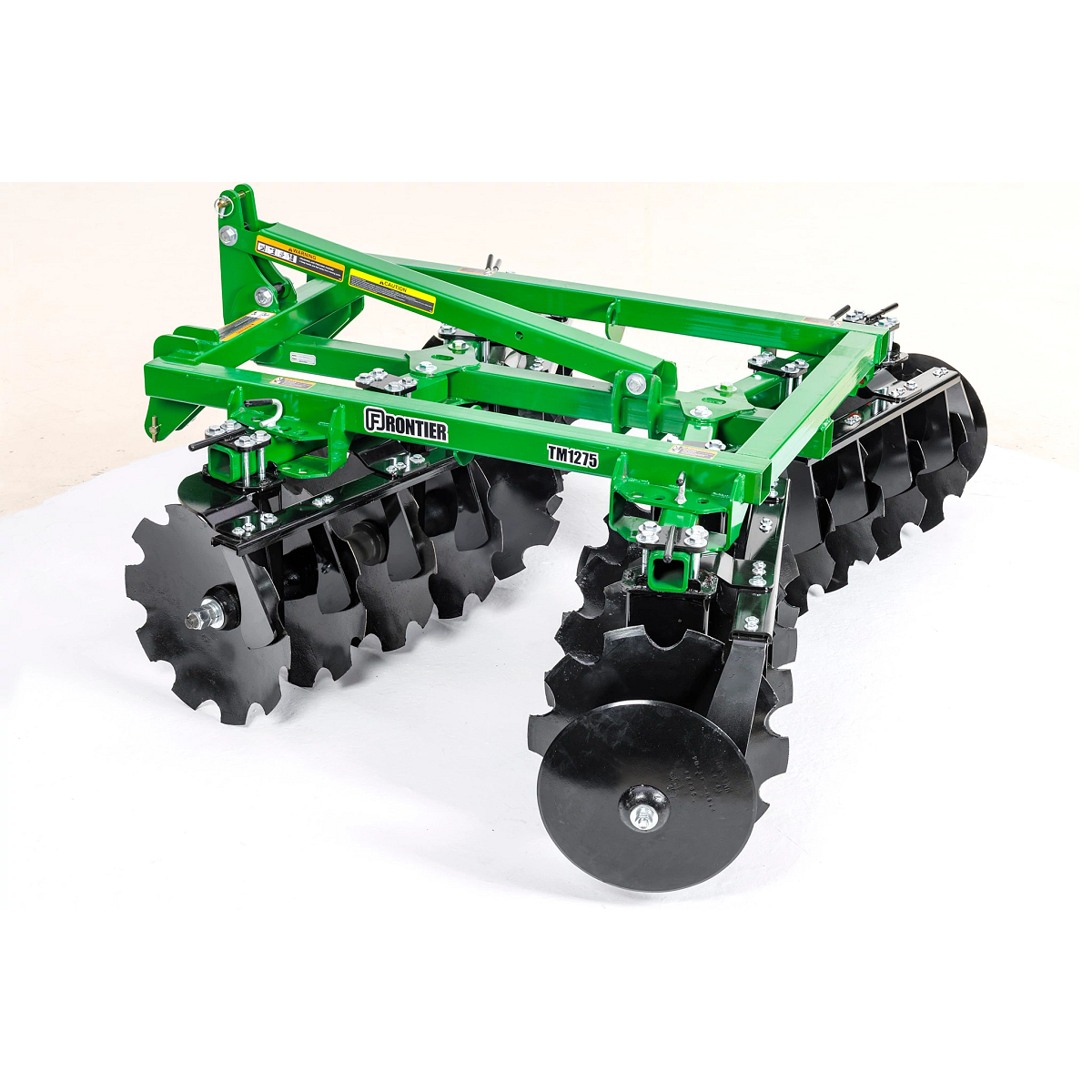

Notched front blades come standard on the TM12 Tandem Disk Harrow, providing an aggressive cut for different material sizes. The rear blades, available in smooth or notched, allow for better soil control, deeper tilling depths, and improved soil penetration.

A scraper kit (as pictured) is available to improve disk blade performance by removing soil buildup from disk blades in wet, sticky soil types with the scraper kit. The Furrow Filler Kit provides additional smaller-diameter disk blades to mount onto the outermost rear disk gangs, helping to fill in the furrow and eliminate ridging that can be created by the outermost disk blade.

Answer text goes here
Dimensions | ||
| Working Width | 75 in. | |
| Working Width | 190.5 cm | |
| Overall Width | 79.5 in. | 79 1/2 (202 cm) |
| Overall Width | 202 cm | 79 1/2 (202 cm) |
| Overall Height | 39.13 in. | 39 1/8 (99.5 cm) |
| Overall Height | 99.5 cm | 39 1/8 (99.5 cm) |
| Overall Length | 69.75 in. | 69 3/4 (177 cm) |
| Overall Length | 177 cm | 69 3/4 (177 cm) |
| Weight Per Disk | 55 lb. | |
| Weight Per Disk | 24.9 kg | |
| Shipping Weight | 1040 lb. | 471.7 kg 1,040 lb |
| Shipping Weight | 471.7 kg | 471.7 kg 1,040 lb |
| Operating Weight | 890 lb. | 890 lb |
| Operating Weight | 403.7 kg | 890 lb |
Disk Hillers | ||
| Disk Spacing | 9 in. | 9 in. (22.9 cm) |
| Disk Spacing | 22.9 cm | 9 in. (22.9 cm) |
| Disk Thickness | 0.14 in. | 3.5 mm |
| Disk Thickness | 3.5 mm | 3.5 mm |
| Disk Diameter | 20 in. | 20 in. |
| Disk Diameter | 50.8 cm | 20 in. |
| Number Of Disks | 16 | 16 |
| Notched (Front) / Notched (Rear) | Optional | |
| Notched (Front) / Smooth (Rear) | Optional | |
Weight | ||
| Operating Weight | 890 lb. | 890 lb |
| Operating Weight | 403.7 kg | 890 lb |
| Shipping Weight | 1040 lb. | 471.7 kg 1,040 lb |
| Shipping Weight | 471.7 kg | 471.7 kg 1,040 lb |
| Weight Per Disc | 55 lb. | 55 |
| Weight Per Disc | 24.9 kg | 55 |
Tractor Requirements | ||
| Engine HP Range | 30-55.9 (40-75) kW | |
Construction | ||
| Gang / Frame Tubing | 3x3 square | |
Hitch | ||
| Category | Category 1 | Category 1 |
| iMatch / Quick Hitch | Yes | |
| Type | Integral | |
| Height To Hitch Pins | 20 in. | |
| Height To Hitch Pins | 50.8 cm | |
Disks | ||
| Spacing | 9 in. | 9 in. (22.9 cm) |
| Spacing | 22.9 cm | 9 in. (22.9 cm) |
| Quantity | 16 | |
| Notched (Front) Notched (Rear) | Optional | |
| Notched (Front) Smooth (Rear) | Optional | |
Gang axle | ||
| Diameter | 1.125 in. | 20 in. |
| Diameter | 2.86 cm | 20 in. |
| Type | Square | |
| Material | AISI 1045 | |
Gang angles | ||
| Front Gang Angles | 6,11,16,21 degree (angle) | |
| Rear Gang Angles | 4,9,14,19 degree (angle) | |
Tubing | ||
| Gang / Frame Tubing | 3x3 square | |
Bearing hanger | ||
| Bearing Type | 1 1/8 SQ with steel flanges | |
| Material Thickness | 3/16 U-shape x 3/8 top plate | 3/16 U-shape x 3/8 Top plate |
Setup Time | ||
| Approximate Assembly Time | 30 minutes | 30 minutes |
| Scraper Kit | Option | Option |
| Furrow Filler Kit | Option | Option |
| Rolling Basket | No | No |
