John Deere
TM1173
Compact Tractors Attachments

John Deere TM1173

Starting at

Gang Angle Adjustments Made Easy

Each disk gang can be adjusted individually from outside of the frame, improving operator ease. This adjustment eliminates the need to reach into the frame, allowing precise disk angle settings for different soil types and finishes. Front and rear angles enable straighter tracking for a smoother finish.

Close-up of an L-shaped pin being adjusted on a green agricultural implement frame, with metal brackets, fasteners, and a tractor tire.
Versatile Rear Hitch

The rear hitch was designed specifically with increased versatility in mind. The rear hitch enables a chain harrow to be attached. Attaching a chain harrow offers a fewer pass solution that helps improve soil finish, reducing time spent in the field.

Close‑up of a green agricultural frame showing a flat metal mounting plate with bolt holes and fasteners.
Disk Blades for a Variety of Conditions

Notched front and rear disk blades provide more aggressive soil penetration and versatility to create a finer soil finish. Individual gang angle adjustments enable notched front and rear disk blades to be easily adjusted for a finer soil finish than is typically seen with smooth disk blades.

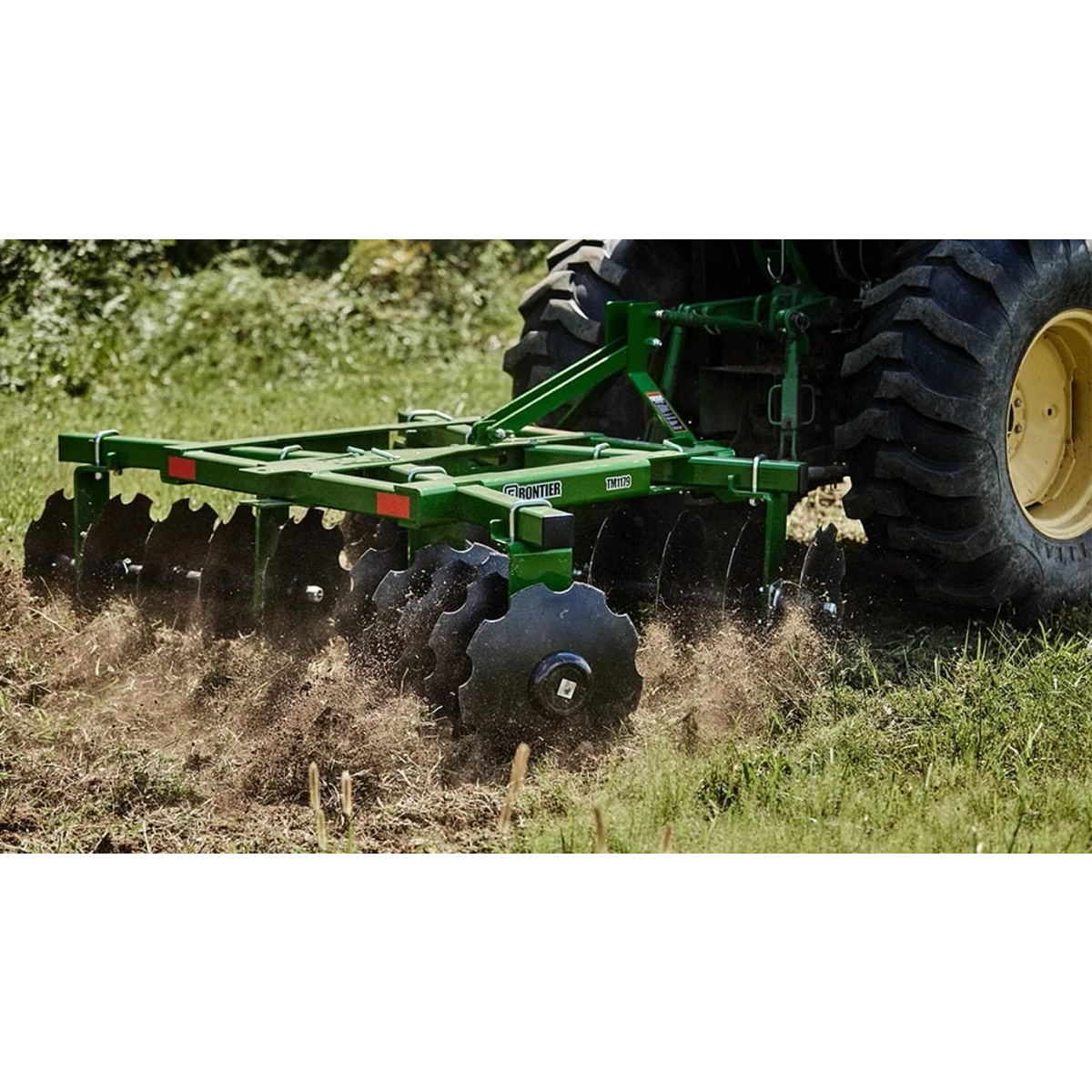

Close-up of a disc harrow being pulled through soil, with angled metal discs cutting into the ground and kicking up dirt in a grassy field
Question text goes here

Answer text goes here

Dimensions
Working Width

73 in.

Working Width

185.4 cm

Overall Width

79 in.

Overall Width

200.7 cm

Overall Height

38 in.

Overall Height

96.5 cm

Overall Length

57 in.

Overall Length

144.8 cm

Weight Per Disk

45 lb.

Weight Per Disk

20.4 kg

Shipping Weight

814 lb.

Shipping Weight

369.2 kg

Operating Weight

721 lb.

Operating Weight

327.1 kg

Disk Hillers
Disk Spacing

9 in.

Disk Thickness

0.118 in.

Disk Thickness

3 mm

Disk Diameter

18 in.

Disk Diameter

45.7 cm

Number Of Disks

16

Front Gang Blade Type

Notched

Rear Gang Blade Type

Notched

Weight
Operating Weight

721 lb.

Operating Weight

327.1 kg

Shipping Weight

814 lb.

Shipping Weight

369.2 kg

Weight Per Disc

45 lb.

Weight Per Disc

20.4 kg

Tractor Requirements
Engine HP Range

26.1-55.9 (35-75) kW

Hitch
Category

Category I

iMatch / Quick Hitch

Yes

Type

Clevis with Pin

Height To Hitch Pins

18 in.

Height To Hitch Pins

45.7 cm

Disks
Spacing

9 in.

Spacing

22.86 cm

Quantity

16

Notched (Front) Notched (Rear)

Yes

Gang axle
Diameter

1 in.

Diameter

2.54 cm

Type

Square

Gang angles
Front Gang Angles

0,7,14,21 degree (angle)

Rear Gang Angles

0,5,12,19 degree (angle)

Adjustment

Tool-less

Tubing
Gang / Frame Tubing

2x3 rectangle with end caps
