John Deere
SW2184
Compact Tractors Attachments

John Deere SW2184

Starting at

Brush Diameter for Large Jobs

The 32-in. (83-cm) diameter brush is large enough for the toughest jobs.

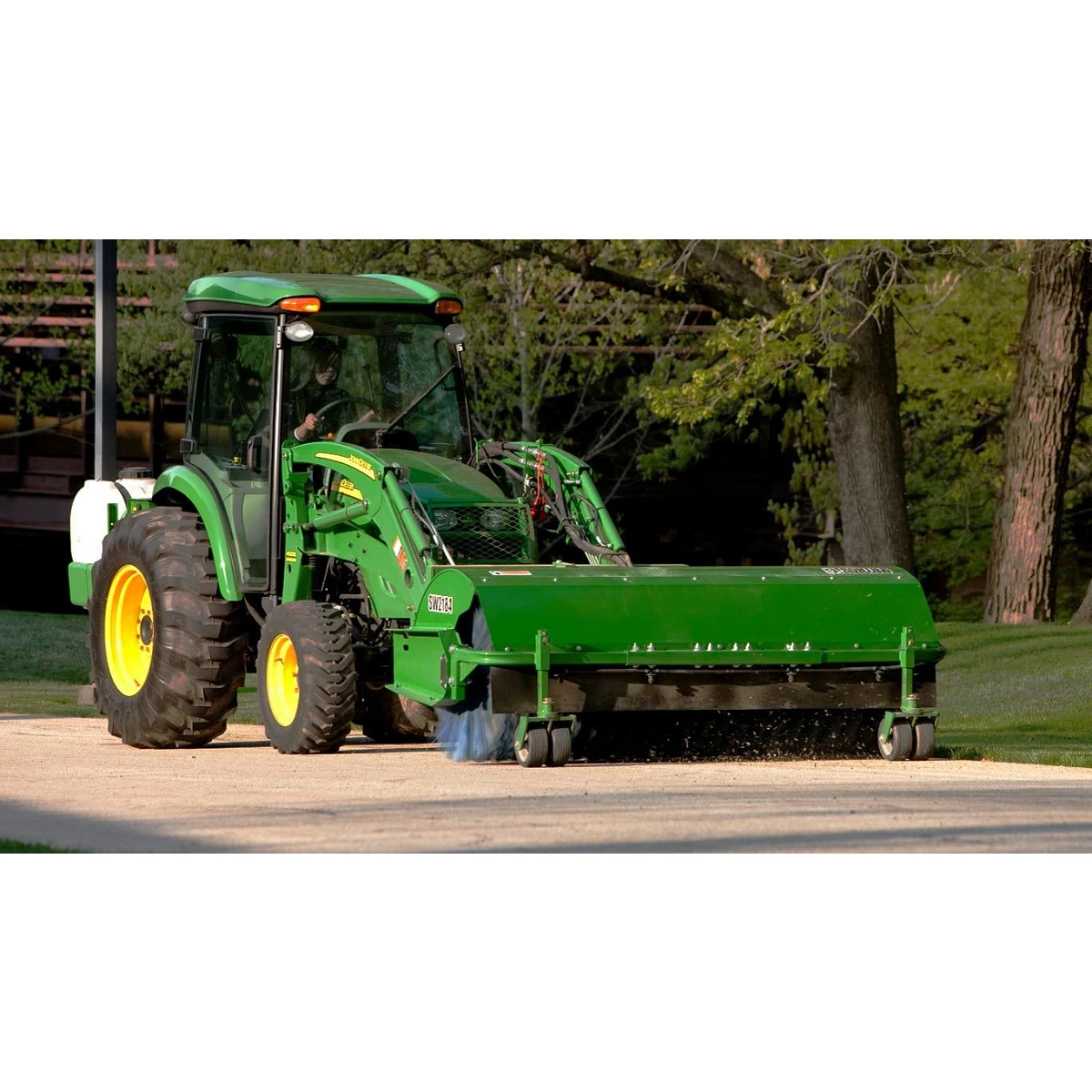

Side right view of a 400 Series Carrier Loader using a SW2184 Mount Rotary Broom along a residential road
Angling degree range

The loader-mount hydraulic rotary broom has an angling range from 0 to 23 degrees both left and right. Setting the angle allows for the windrowing of material off of surfaces.

Front right view of a compact utility tractor angling a SW21 Series front mount rotary broom along a road between lawns
Optional dust suppression system

The optional dust suppression system consists of a 60 gal. (227 L) tank supplying water up the nozzles that are positioned in the front of the broom. The nozzles are easily controlled by a toggle switch located by the height hitch lever.

Front left view of a SW21 front mount rotary broom on a 300CX carrier loader using the optional dust suppression system along a road lined with flowering trees
Question text goes here

Answer text goes here

Dimensions
Machine Length

69 in.

Machine Length

175 cm

Machine Width

96 in.

Machine Width

244 cm

Power Pack Width

38 in.

Power Pack Width

97 cm

Machine Height

34.25 in.

Machine Height

87 cm

Power Pack Height

52 in.

Power Pack Height

132 cm

Weight
Machine Operating Weight

920 lb.

Machine Operating Weight

417 kg

Power Pack Operating Weight

535 lb.

Power Pack Operating Weight

243 kg

Machine Shipping Weight

1237 lb.

Machine Shipping Weight

561 kg

Power Pack Shipping Weight

535 lb.

Power Pack Shipping Weight

243 kg

Tractor Compatibility
PTO Minimum Power

35 hp

PTO Minimum Power

26.1 kW

PTO

540 rpm

Current John Deere Loader Series

400

Brush
Standard Bristle Materials

Poly

Standard Bristle Materials - Diameter

32 in.

Standard Bristle Materials - Diameter

81 cm

Standard Bristle Materials - Number Of Brush Wafers

46

Optional Bristle Material

Combination (poly/wire)

Optional Bristle Materials - Diameter

32 in.

Optional Bristle Materials - Diameter

81 cm

Optional Bristle Material - Number of Brush Wafers

46

Operation
Working Width

84 in.

Working Width

213.36 cm

Working Width At Maximum Angle

77 in.

Working Width At Maximum Angle

195.58 cm

Brush Speed

200 rpm

Angling
Angling Range - Left

23 degree (angle)

Angling Range - Right

23 degree (angle)

Shear Pin Protection

Standard

Angling Method

Hydraulic

Gauge Wheels
Standard

Optional

Material

Solid

Location

Front

Size (Diameter)

3.5x10 in.

Size (Diameter)

89x254 mm

Adjustable Height Range - Total

7.5 in.

Adjustable Height Range - Total

190.5 mm

Adjustable Height Range - Underground Level

2.5 in.

Adjustable Height Range - Underground Level

63.5 mm

Hydraulics
Operating Pressure

3000 psi

Operating Pressure

207 bar

Flow Required At Operating Pressure

16 gpm

Flow Required At Operating Pressure

61 L/min

Power Pack Reservoir

15 gal.

Power Pack Reservoir

57 L

System Capacity

17 gal.

System Capacity

64 L

Construction
Hood Thickness

0.0747 in.

Hood Thickness

0.19 cm

Side Frame Construction

0.1875 in.

Side Frame Construction

0.48 cm

Miscellaneous
Quantity Of Parking Stands Standard With Unit

4

Hydraulic Protection (Relief Valve)

Standard

Dust Deflector

Optional

Dust Suppression System (60-Gal. Water Tank)

Optional

Brackets For De-Icer Optional System

Standard

Shipping
Configuration

Wood crate

Units Per Crate

1

Setup Time
Labor Hours

0.5 hr

Labor Hours- With Power Pack

0-2.5 hr

Warranty
Time Period (Machine)

1 year
