John Deere
SS1023B
Compact Tractors Attachments

John Deere SS1023B

Starting at

Power Take-off (PTO) Driven Broadcast Spreaders

With the PTO-Driven Broadcast Spreader, you can spread seed, granular fertilizers, crystalline herbicide, pesticide, sand, and salt at 540 RPM’s and in three diverse patterns.

SS1067B on utility tractor in field
Hitching Capabilities

The broadcast spreader is compatible with tractors featuring Category 0 and 1 3-point hitches.

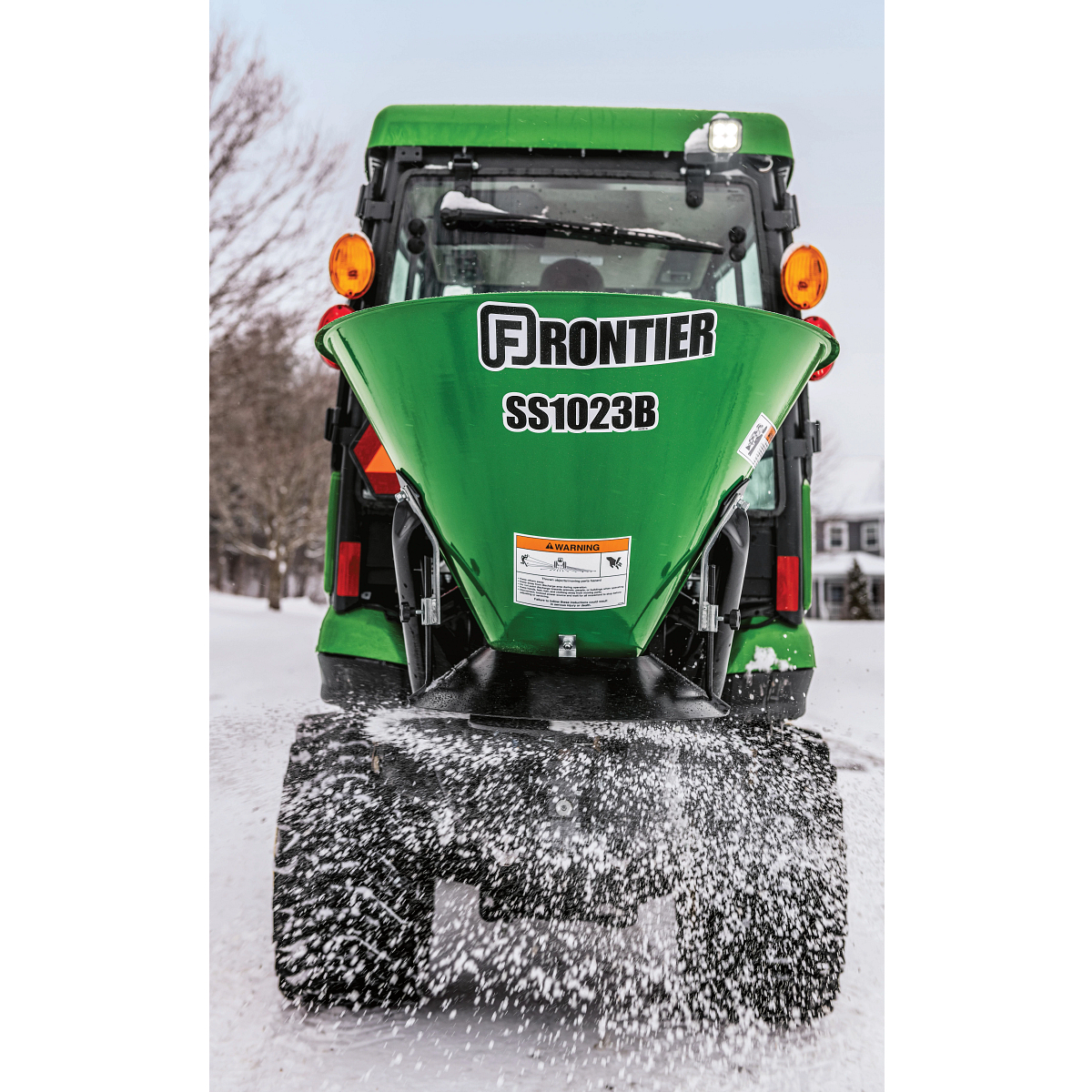

View of SS1023B spreader in snowy scene
Spreader Strong Enough for Rough Handling and Heavy Use

The one-piece, seamless, all-steel hoppers are strong enough to endure rough handling and heavy use. Each unit features heat-treated paint to prevent corrosion and comes standard with a fixed agitator and shielded driveline gearbox.

Hopper Strong Enough for Rough Handling and Heavy Use
Question text goes here

Answer text goes here

Dimensions
Hopper Width

32 in.

Hopper Width

81.3 cm

Hopper Loading Height

31 in.

Hopper Loading Height

78.7 cm

Weight
Hopper Capacity

226 lb.

Hopper Capacity

102.5 kg

Machine

81 lb.

Machine

36.7 kg

Shipping (Per Pair)

232 lb.

Shipping (Per Pair)

105.2 kg

Hopper
Volume Capacity

3.5 cu ft

Volume Capacity

0.1 m³

Material

Steel

PTO
RPM

540 rpm

Tractor Horsepower Range

16-30 hp

Tractor Horsepower Range

12-22.8 kW

Shaft Category

1: Heavy-duty shielded; 3.5 cm 1.375 in.

Range
Swath Spread

23 ft

Swath Spread

7 m

Hitch
Type

3-point, Category 1

Setup Time
Labor Hours

0.5

Warranty
Time Period

1 year
