John Deere
SB1392R
Compact Tractors Attachments

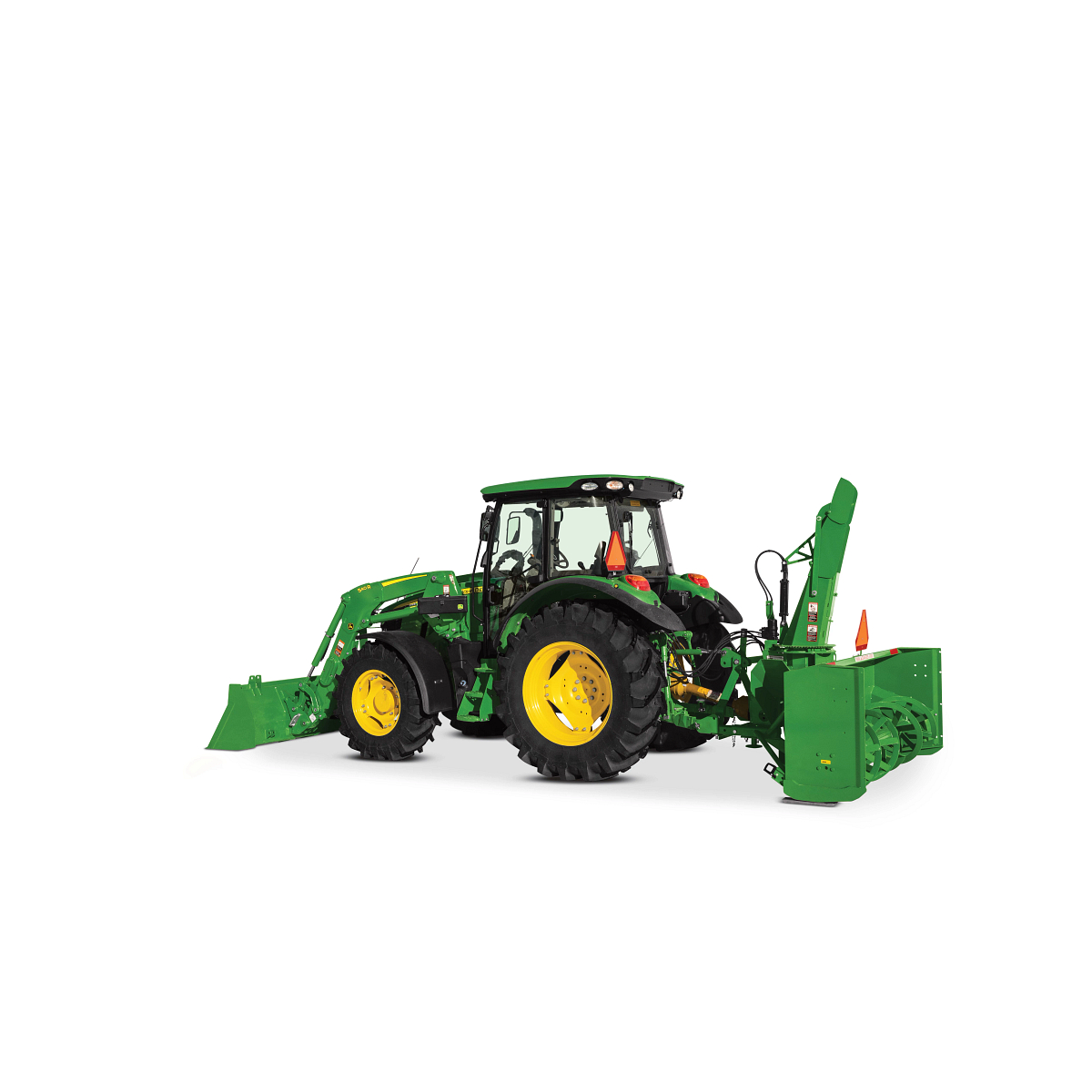

John Deere SB1392R

Starting at

Adjustable Skid Shoes Increase Durability

The adjustable steel skid shoes on the SB13 Series increase the durability and life of the snowblowers.

Close-up studio view of skid shoe on the underside of the SB13 Snowblower
Hydraulic drum rotation

On all SB13R models, the hydraulic drum rotation is standard and is great for operators who want to move large amounts of snow at a faster rate of speed while consuming less horsepower when discharging snow out the drum door. The drum door is hydraulically opened and closed, allowing operators to discharge snow to the side when it is open or discharge snow through the chute when the door is closed. All of this can be done without ever leaving the seat of the tractor.

Close up studio view of the hydraulic drum on a SB1309 Snowblower
Hydraulic Chute Rotation Blows Snow Anywhere

All SB13 Series Snowblowers are equipped with hydraulic chute rotation. Chute rotation adds versatility by allowing the operator to blow snow exactly where they want it to go.

Close-up of a green snowblower housing showing a rotating chute base with gear teeth, hydraulic hoses, and safety decals
Question text goes here

Answer text goes here

Dimensions
Transport Width

93 in.

Transport Width

236.2 cm

Working Width

92 in.

Working Width

233.7 cm

Length

67 in.

Length

170.2 cm

Working Height

44 in.

Working Height

111.8 cm

Weights
Operating Weight

2183 lb.

Operating Weight

990.2 kg

Shipping Weight

2230 lb.

Shipping Weight

1011.5 kg

Chute
Chute Type

Two part: Includes manual deflector; Three part: Includes cylinder (2 in. x 8 in.), hoses, and tips; Base: Heavy Duty

Standard Chute Deflector Adjustment

Manual - Must Choose a Chute Option

Optional Chute Deflector Adjustment

Hydraulic Cylinder (2 in. x 8 in.); Including hoses and tips

Chute Rotation Type

Hydraulic motor chute rotation

Chute Diameter

37.78 cm

Chute Rotation Degrees

270 degree (angle)

Chute Diameter

14.875 in.

Drum
Drum Rotation

Standard

Auger
Auger Diameter

24 in.

Auger Diameter

61 cm

Auger Speed

190 rpm

Auger - Single / Dual

Single/Dual

Second Auger Diameter

15 in. (38.1 cm)

Auger Flighting Thickness

7/16 in. (1.11 cm)

Impeller
Impeller Blades

Six

Impeller Speed

540 rpm

Impeller Diameter

31.5 in.

Impeller Diameter

80 cm

Impeller Width

14 in.

Impeller Width

35.6 cm

Impeller Shaft Diameter

2 in.

Impeller Shaft Diameter

5.1 cm

Tractor Compatibility
Minimum Power

75 hp

Minimum Power

55.9 kW

Maximum Power

125 hp

Maximum Power

93.2 kW

PTO Speed

540 rpm (1000 rpm optional) rpm

Housing
Side Panel Thickness

0.63 in.

Side Panel Thickness

0.63 cm

Impeller Housing Thickness

0.19 in.

Impeller Housing Thickness

0.48 cm

Chain
Chain Roller

80

Chain Idler Adjustment

Automatic

Hitch
Hitch Compatibility

Category II

Parking Stand

Standard

Compatibility With Quick Hitch

Quick Coupler Compatible

Cutting Edge
Cutting Edge Type

Bolt-on / Reversible

Cutting Edge Dimension

0.5 x 4 in.

Cutting Edge Dimension

1.27 x 10.2 cm

Skid Shoes
Adjustable And Replaceable Skid Shoe

Adjustable

Skid Shoe Material

Steel

Drive
Number Of Auger Shearbolt

5/16 in. (0.79 cm) 5 SAE

Setup Time
Set-Up Time Labor Hours

100 minutes
