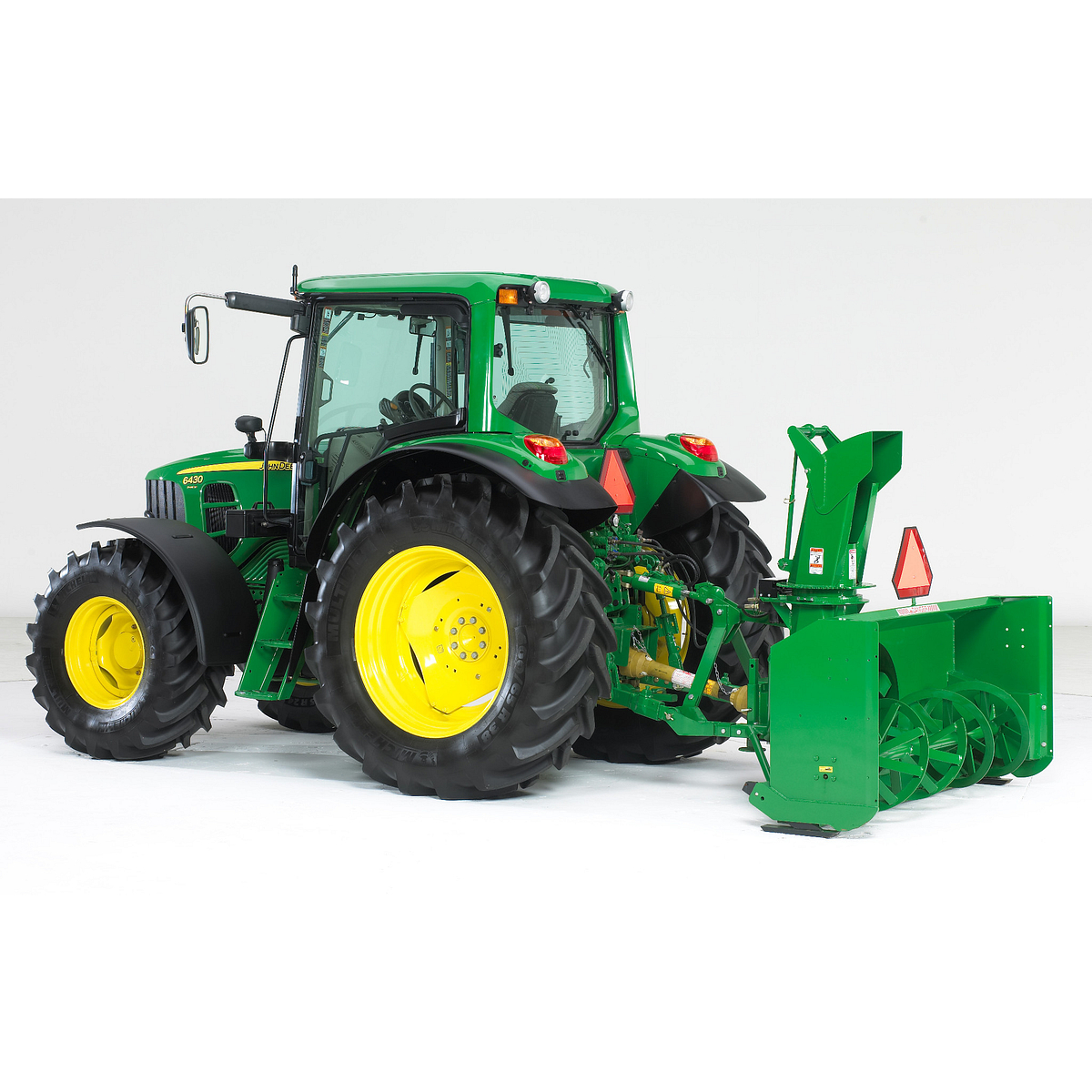

Side left studio view of 6430 Tractor with a SB1388 Snowblower

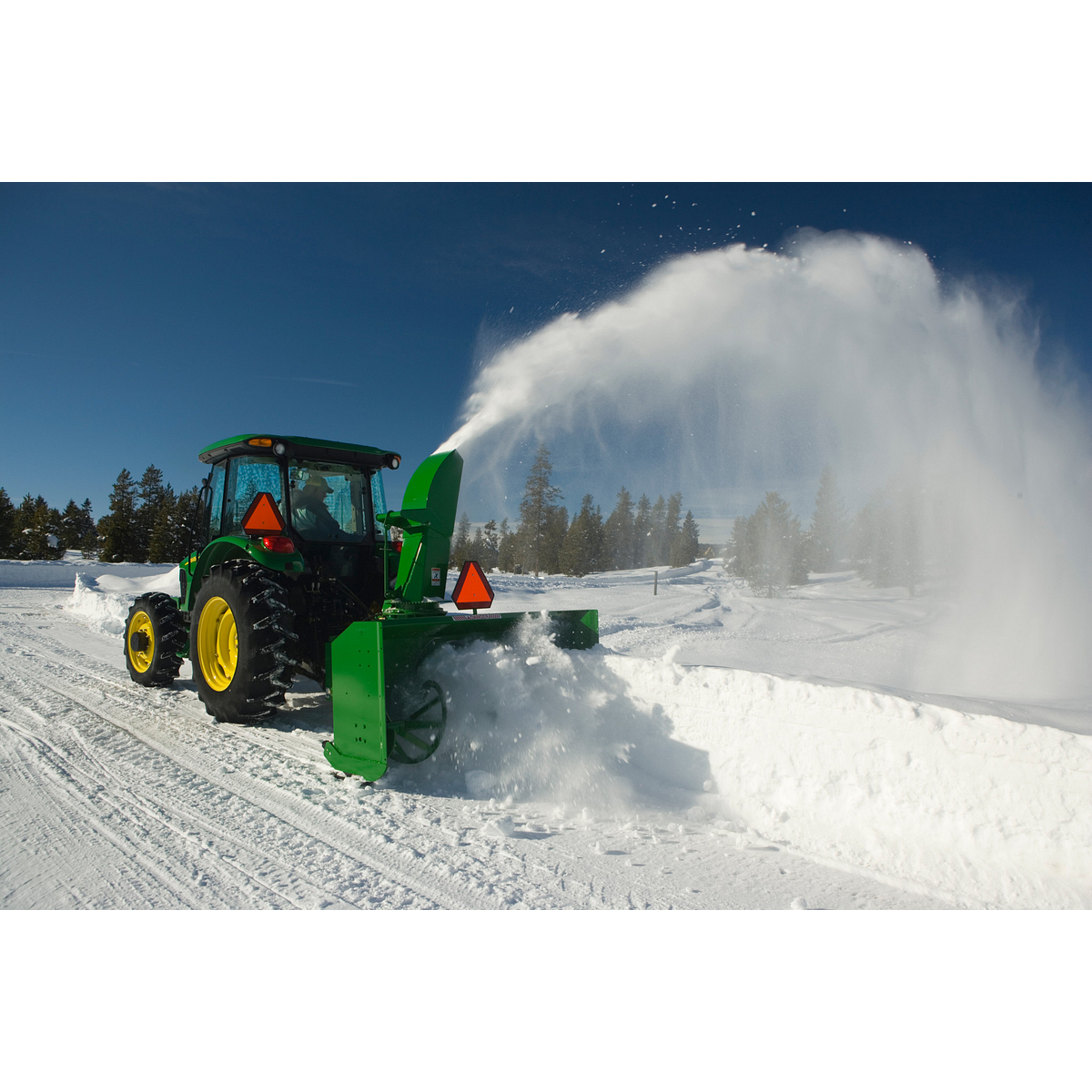

Blowing snow using a SB1388 Snowblower on 5426 Tractor
No items found.
new
John Deere
SB1388
Compact Tractors Attachments

John Deere SB1388

Starting at

Key Features

  • 88-Inch Width
  • Adjustable Skid Shoes
  • Hydraulic Chute Rotation
  • Gearbox Reducer Kit
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Adjustable Skid Shoes Increase Durability

The adjustable steel skid shoes on the SB13 Series increase the durability and life of the snowblowers.

Close-up studio view of skid shoe on the underside of the SB13 Snowblower
Move snow faster and blow it farther with impeller blades

Moving snow faster and blowing it farther is simple with four impeller blades.

Studio view of SB1388 Snowblower
Hydraulic Chute Rotation Blows Snow Anywhere

All SB13 Series Snowblowers are equipped with hydraulic chute rotation. Chute rotation adds versatility by allowing the operator to blow snow exactly where they want it to go.

Close-up of a green snowblower housing showing a rotating chute base with gear teeth, hydraulic hoses, and safety decals
Question text goes here

Answer text goes here

Dimensions
Height

40 in.

Height

101.6 cm

Transport Width

88.5 in.

Transport Width

224.8 cm

Working Width

88 in.

Working Width

223.5 cm

Length

61 in.

Length

154.9 cm

Weights
Operating Weight

1552 lb.

Operating Weight

704 kg

Shipping Weight

1597 lb.

Shipping Weight

724.4 kg

Chute
Chute Type

Two-part or three-part

Standard Chute Deflector Adjustment

Manual

Optional Chute Deflector Adjustment

Hydraulic cylinder

Chute Rotation Type

Hydraulic

Chute Diameter

32.4 cm

Chute Rotation Degrees

270 degree (angle)

Chute Diameter

12.75 in.

Drum
Drum Rotation

Optional

Auger
Auger Diameter

22 in.

Auger Diameter

55.9 cm

Auger Speed

170 rpm

Auger Overload Protection

Single, dual is optional

Impeller
Impeller Blades

Four

Impeller Speed

540 rpm

Impeller Diameter

28 in.

Impeller Diameter

71.2 cm

Impeller Width

12 in.

Impeller Width

30.48 cm

Optional Secondary Auger Diameter

14 in.

Optional Secondary Auger Diameter

35.6 cm

Tractor Compatibility
Minimum Power

45 hp

Minimum Power

33.6 kW

Maximum Power

95 hp

Maximum Power

70.8 kW

PTO Overload Protection

Shearbolt

PTO Speed

Standard: 540 rpm; Optional: 1000 rpm rpm

Housing
Side Panel Thickness

0.63 in.

Side Panel Thickness

1.59 cm

Impeller Housing Thickness

0.25 in.

Impeller Housing Thickness

0.64 cm

Chain
Chain Roller

80

Chain Idler Adjustment

Automatic

Hitch
Hitch Compatibility

Category 2

Quick Coupler

Yes

Cutting Edge
Cutting Edge Type

Bolt on reversible

Skid Shoes
Skid Shoe Type

Steel, adjustable

Skid Shoe Material

Steel

Setup Time
Set-Up Time Labor Hours

1.5 hours

Warranty period
Machine Warranty Period

1 year

Gear Box Warranty Period

1 year
