John Deere SB1174

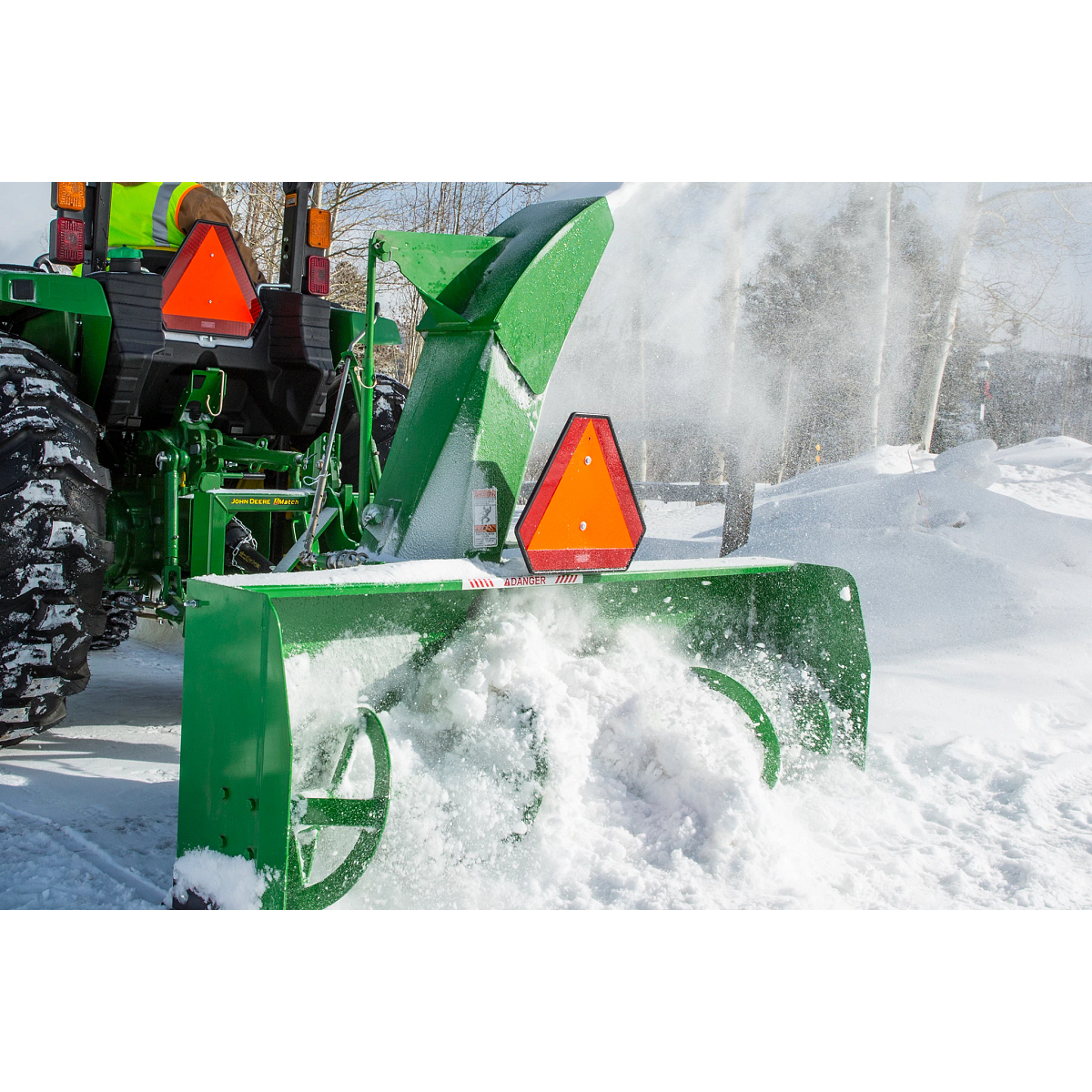

SB1174 Snowblower blowing snow on 4052M Tractor

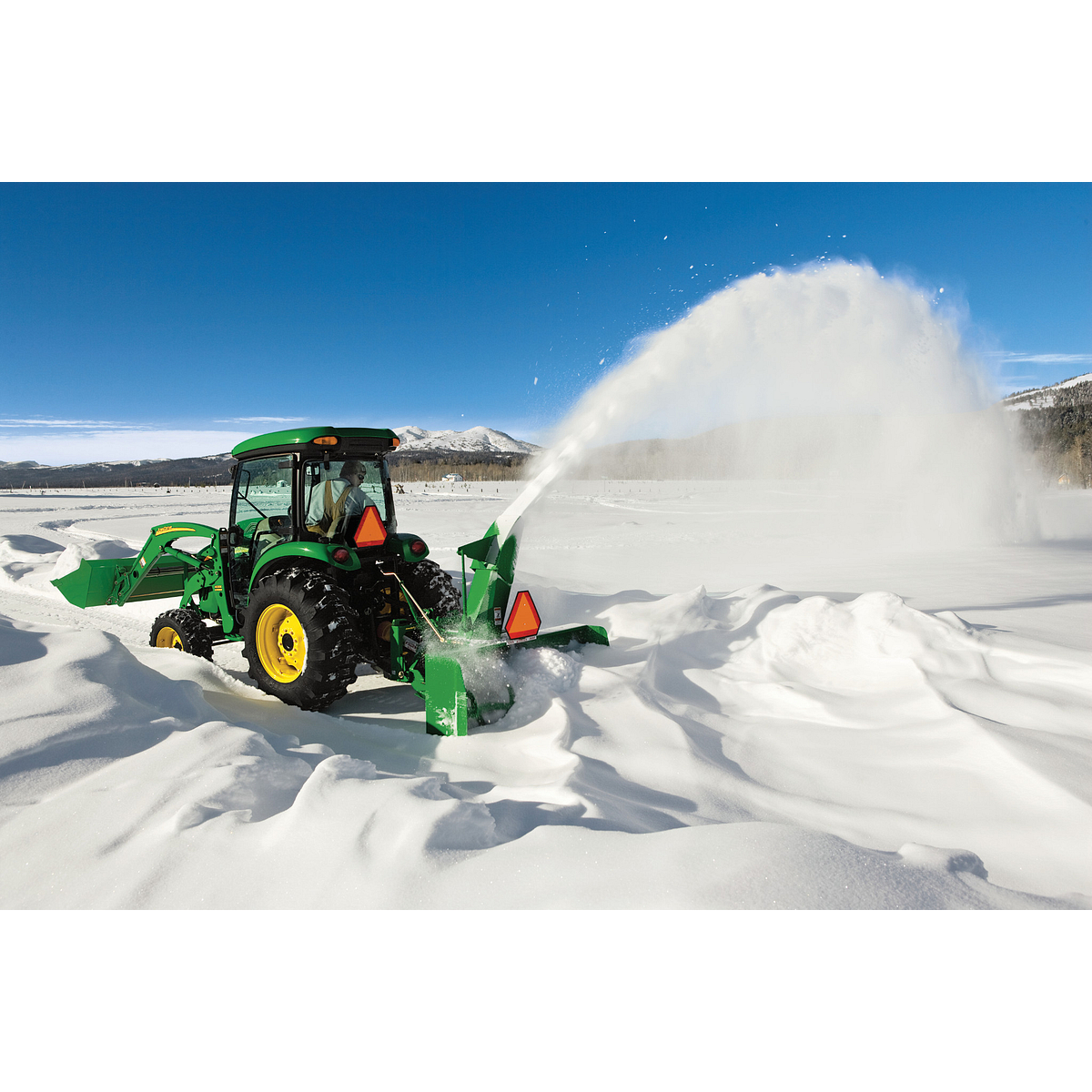

Blowing snow on a driveway using a SB1174 Snowblower on Utility Tractor

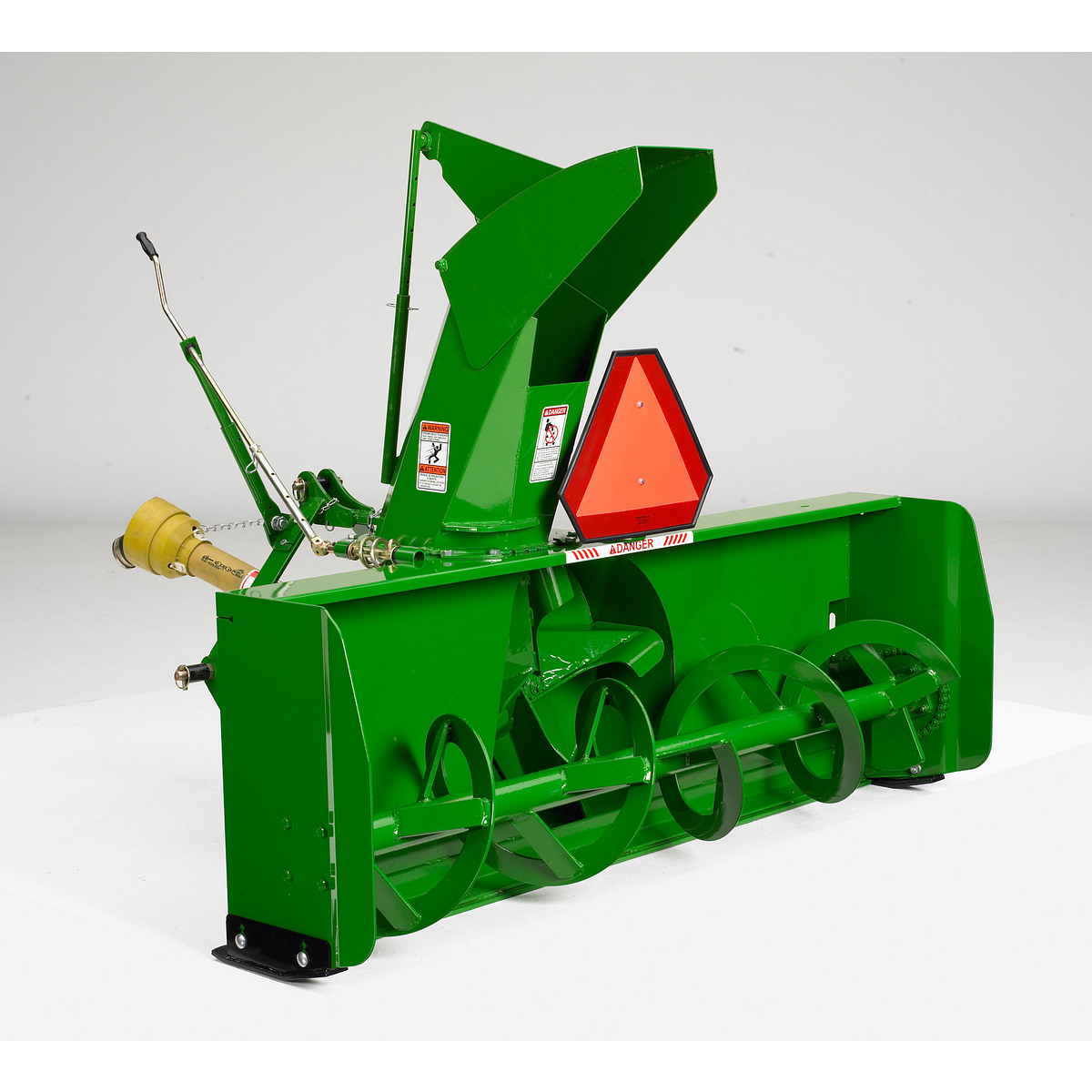

Studio view of SB1174 Snowblower

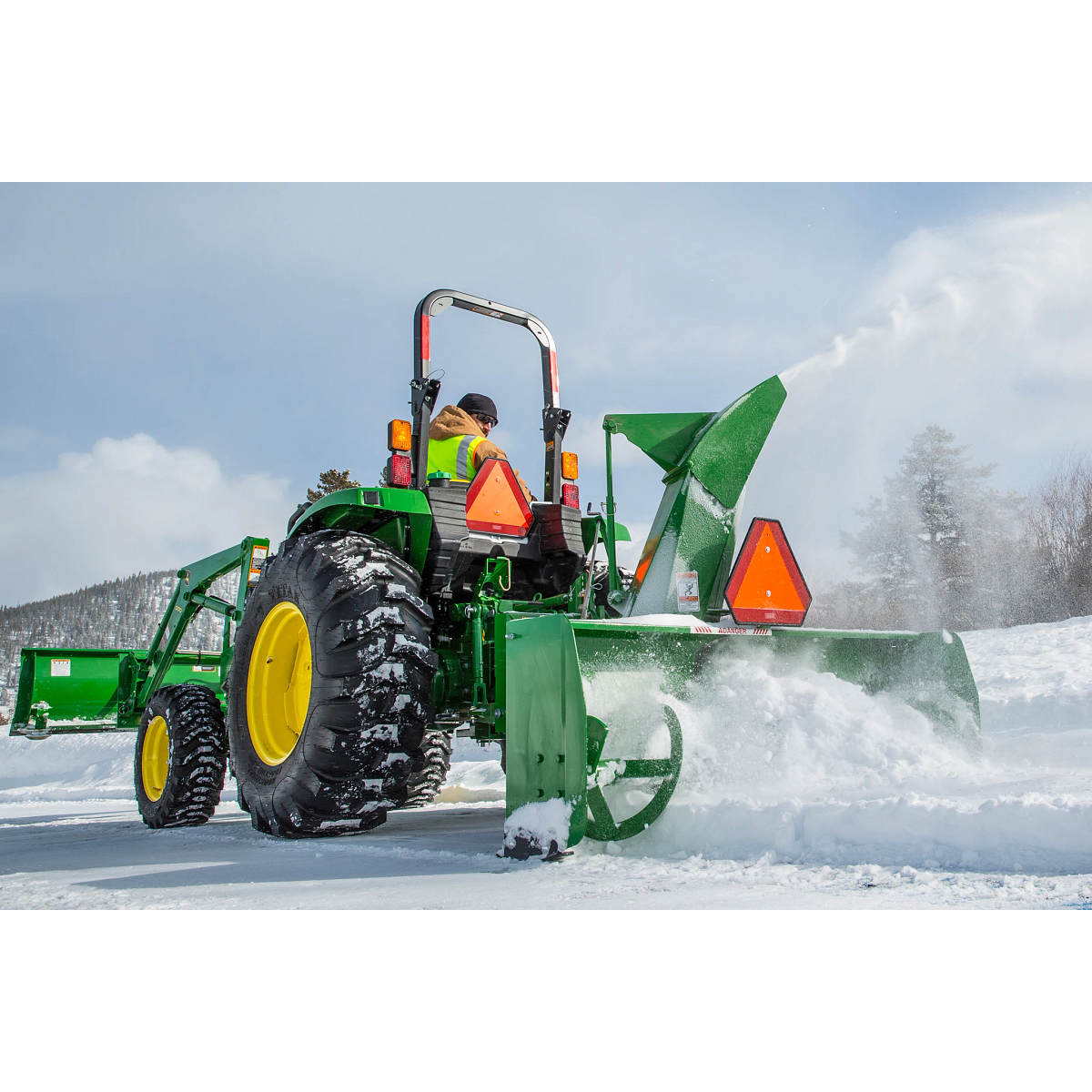

Blowing snow using a SB1174 Snowblower on 4052M Tractor on snowy drive
No items found.
new
John Deere
SB1174
Compact Tractors Attachments

John Deere SB1174

Starting at

Key Features

  • 74-Inch Width
  • Chute Deflector for Easy Snow Removal
  • Optional Hydraulic Chute Rotation
  • Adjustable Steel Skid Shoes Prevent Gouging
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Chute Rotation Can Be Easily Adjusted for Versatility

Chute rotation adds versatility by allowing operators to blow snow exactly where they want it. Standard-equipped manual chute rotation adjustments are easily done from the seat of the tractor.

Close-up of snowblower showing a metal control lever and linkage mounted beside the discharge chute
Multiple Hitch Capabilities for Different Uses

SB11 Series Snowblowers have different hitch capabilities. Models SB1148, SB1154, SB1164, and SB1174 are Category 1 and iMatch compatible. Model SB1184 is Category 1 and iMatch compatible and Category 2 and Quik-Coupler compatible. Model SB1194 is Category 2 and Quik-Coupler compatible.

Front right studio view of SB Series Snowblower 3-point hitch
Impeller Blade Provides Fast Snow Removal

Moving snow faster and blowing it farther is simple with four impeller blades on the SB11 Series Snowblowers.

Close-up of the interior of a snowblower showing curved metal paddles and blades arranged around a central hub
Question text goes here

Answer text goes here

Dimensions
Height

26 in.

Height

66 cm

Transport Width

74.5 in.

Transport Width

189.2 cm

Working Width

74 in.

Working Width

188 cm

Length

47.75 in.

Length

121.3 cm

Weights
Operating Weight

628 lb.

Operating Weight

284.9 kg

Shipping Weight

715 lb.

Shipping Weight

324.3 kg

Chute
Chute Type

Two-part

Standard Chute Deflector Adjustment

Manual

Optional Chute Deflector Adjustment

Hydraulic cylinder or electric actuator

Chute Rotation Type

Manual or hydraulic

Chute Diameter

12 in.

Chute Diameter

30.5 cm

Chute Rotation Degrees

210 degree (angle)

Auger
Auger Diameter

15 in.

Auger Diameter

38.1 cm

Auger Speed

170 rpm

Auger Overload Protection

Single

Impeller
Impeller Blades

Four

Impeller Speed

540 rpm

Impeller Diameter

24 in.

Impeller Diameter

61 cm

Impeller Width

8.875 in.

Impeller Width

22.5 cm

Tractor Compatibility
PTO Speed

540 rpm

Minimum Power

35 hp

Minimum Power

26 kW

Maximum Power

50 hp

Maximum Power

37 kW

PTO Overload Protection

Shearbolt

Chain
Chain Roller

60

Chain Idler Adjustment

Manual

Hitch
Hitch Compatibility

Category 1

iMatch Compatibility

Yes

Cutting Edge
Cutting Edge Type

Welded

Skid Shoes
Skid Shoe Type

Steel, adjustable

Setup Time
Set-Up Time Labor Hours

1 hour

Warranty period
Machine Warranty Period

One year

Gear Box Warranty Period

1 year
