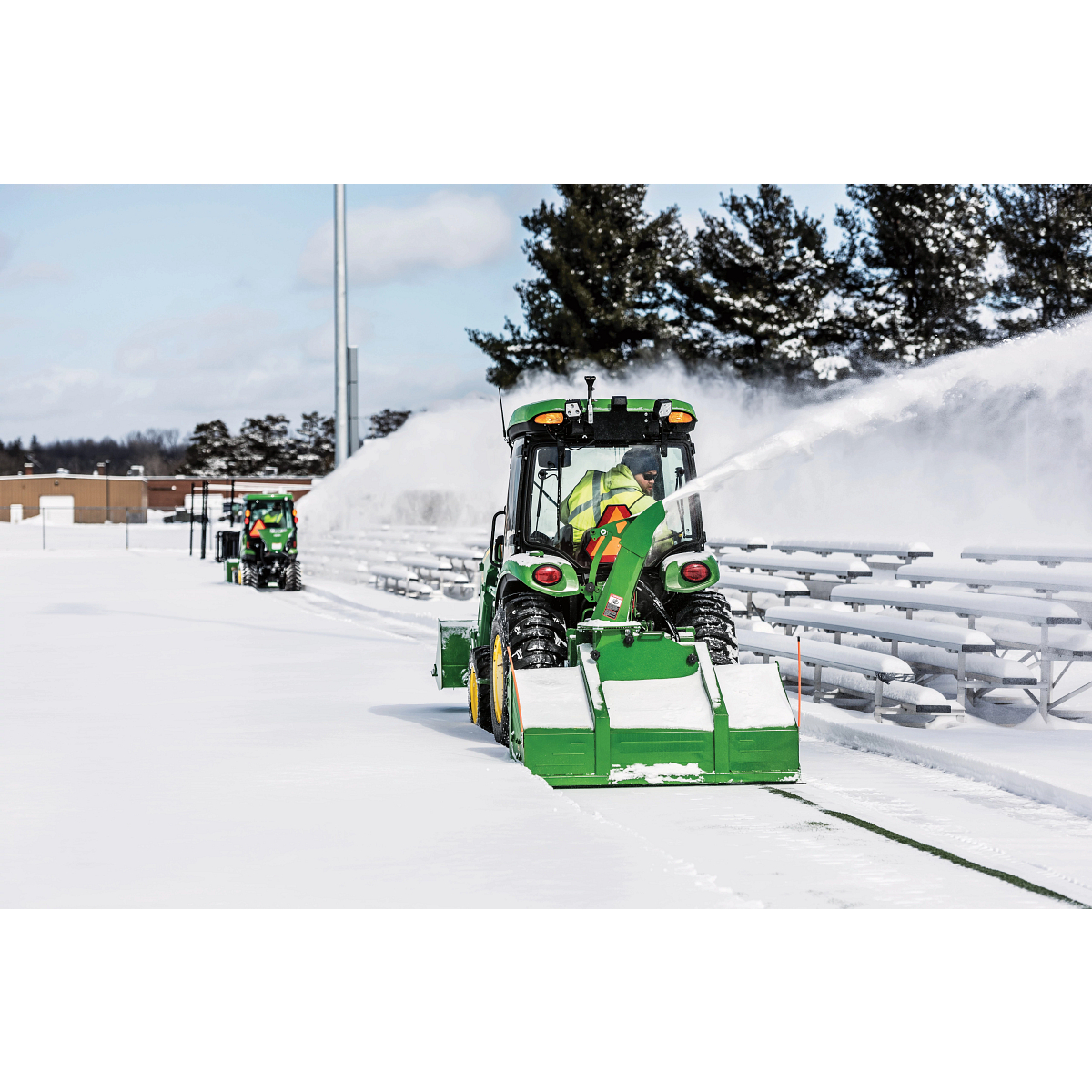

Blowing snow using SB1164P Snowblower on 3046R Tractor

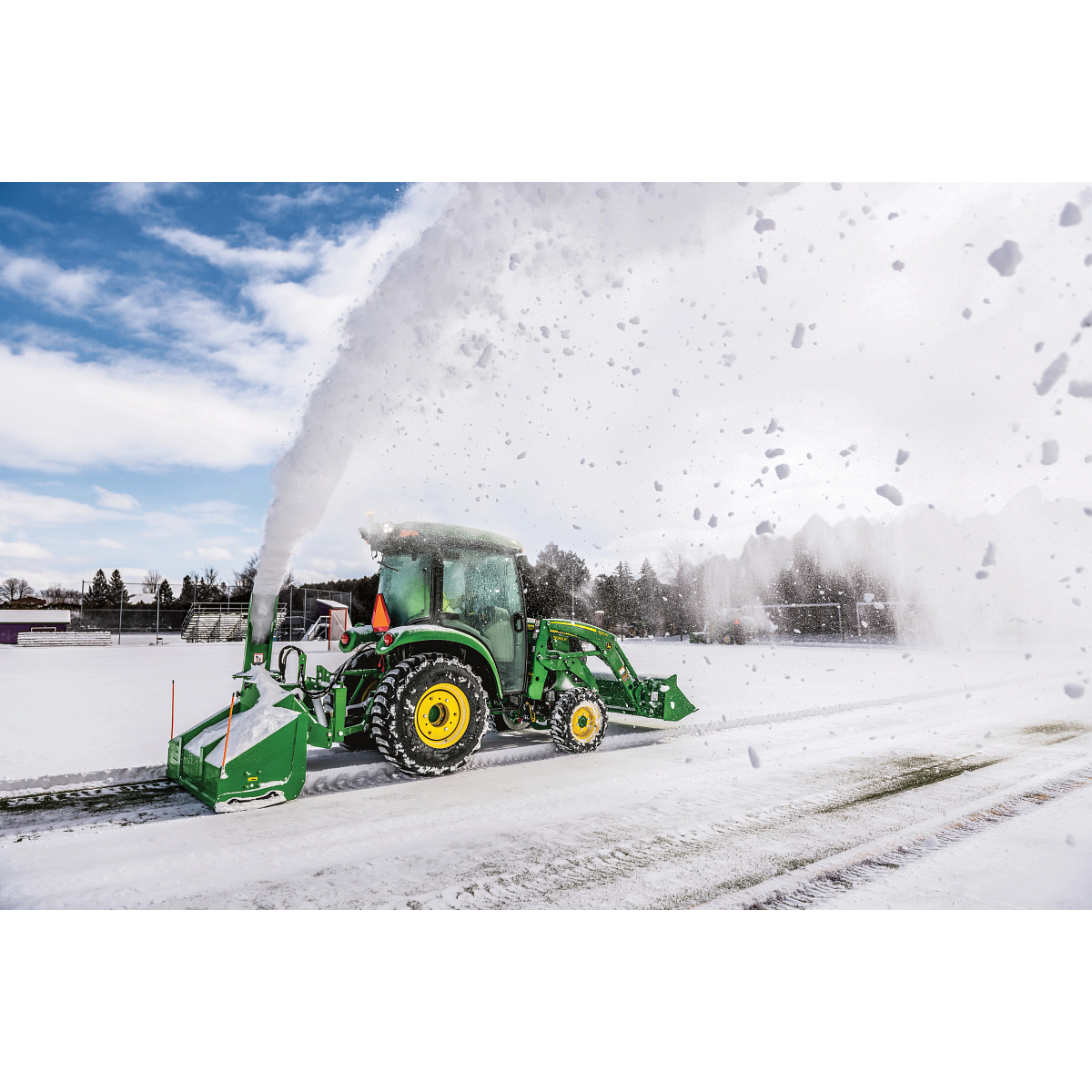

Blowing snow using a SB1164P Snowblower on 3046R Tractor in parking log
No items found.
new
John Deere
SB1164P
Compact Tractors Attachments

John Deere SB1164P

Starting at

Key Features

  • 64-Inch Width
  • Adjustable Chute Deflector
  • 245° Chute Rotation (Manual or Hydraulic)
  • Adjustable and Replaceable Steel Skid Shoes
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Adjustable skid shoes extend the life of the snowblower

Adjustable and replaceable steel skid shoes are in base equipment on the SB11P. Adjustable steel skid shoes can help prevent damage or injury from stones being thrown, by raising the cutting edge off the ground. Replaceable skid shoes will help extend the life of the snowblower.

Adjustable Skid Shoes Extend the Life of the Snowblower
iMatch™ Quick-Hitch Compatible

The snow blower is compatible with the iMatch™ quick-hitch system and Category 1 hitches.

Green three-point hitch attachment mounted at the rear of a compact tractor, showing adjustable mounting hooks and hardware
Blow Snow with Manual or Hydraulic Chute Rotation

All SB11P Series Snowblowers are equipped with manual or hydraulic chute rotation. Chute rotation adds versatility by allowing the operator to blow snow exactly where they want it to go, without repositioning the tractor.

Close up view of SB1164 Snowblower blowing snow
Question text goes here

Answer text goes here

Dimensions
Working Height

25.5 in.

Working Height

64.8 cm

Overall Height (Without Chute)

36.5 in.

Overall Height (Without Chute)

92.7 cm

Overall Height (With Chute Closed)

60.5 in.

Overall Height (With Chute Closed)

153.7 cm

Overall Length

40.25 in.

Overall Length

102.2 cm

Overall Width

65 in.

Overall Width

165.1 cm

Weights
Shipping Weight

640 lb.

Shipping Weight

290.3 kg

Operating Weight, Incl. Chute

610 lb.

Operating Weight, Incl. Chute

276.7 kg

Chute
Chute Position

Right

Chute Rotation Type

Manual or hydraulic

Chute Rotation Degrees

245 degree (angle)

Flow Restrictor (Rotation)

Yes

Flow Restrictor (Deflector)

No (available via parts)

Hoses Support

Yes

Deflector Adjustment (2 Part Chute)

Manual (hydraulic or electric in option)

Drum
Drum Rotation

No

Auger
Auger Diameter

1.25 in.

Auger Diameter

3.175 cm

Auger Speed

170 rpm

Auger Overload Protection

Single

Auger - Single / Dual

Single

Main Auger Diameter

15 in., 3.175 cm

Auger Driven System

Chain No.60

Auger Shaft Diameter

1.25 in., 3.175 cm

Second Auger Diameter

N/A

Second Auger Driven System

N/A

Impeller
Impeller Blades

Four

Impeller Speed

540 rpm

Impeller Width

7 in.

Impeller Width

17.8 cm

Impeller Shaft Diameter

1.375 in.

Impeller Shaft Diameter

3.5 cm

Direction Of Impeller Rotation

Counterclockwise

Tractor Compatibility
Minimum Power

20 hp

Minimum Power

15 kW

Maximum Power

50 hp

Maximum Power

37.3 kW

PTO Power Maximum

50 hp

PTO Power Maximum

37.3 kW

PTO Power Minimum

20 hp

PTO Power Minimum

15 kW

PTO Speed

540 rpm

Hitch
Parking Stand

Yes

Type Of Hitch

3 point, Category 1

Compatibility With Quick Hitch

Yes

Cutting Edge
Replaceable & Reversible Cutting Edge

Fixed

Cutting Edge Material

Carbon steel

Cutting Edge Dimension

0.375 in. x 2 in. in.

Cutting Edge Dimension

0.9525 cm x 5.08 cm cm

Skid Shoes
Adjustable And Replaceable Skid Shoe

Yes, 3 positions

Skid Shoe Material

Carbon steel

Drive
Drive Chain Idler

Yes

Number Of Auger Shearbolt

1 (on the driving shaft)

Number Of Impeller Shearbolt

1 (on the driveline)

Setup Time
Set-Up Time Labor Hours

1 hour

Warranty period
Machine Warranty Period

1 year
