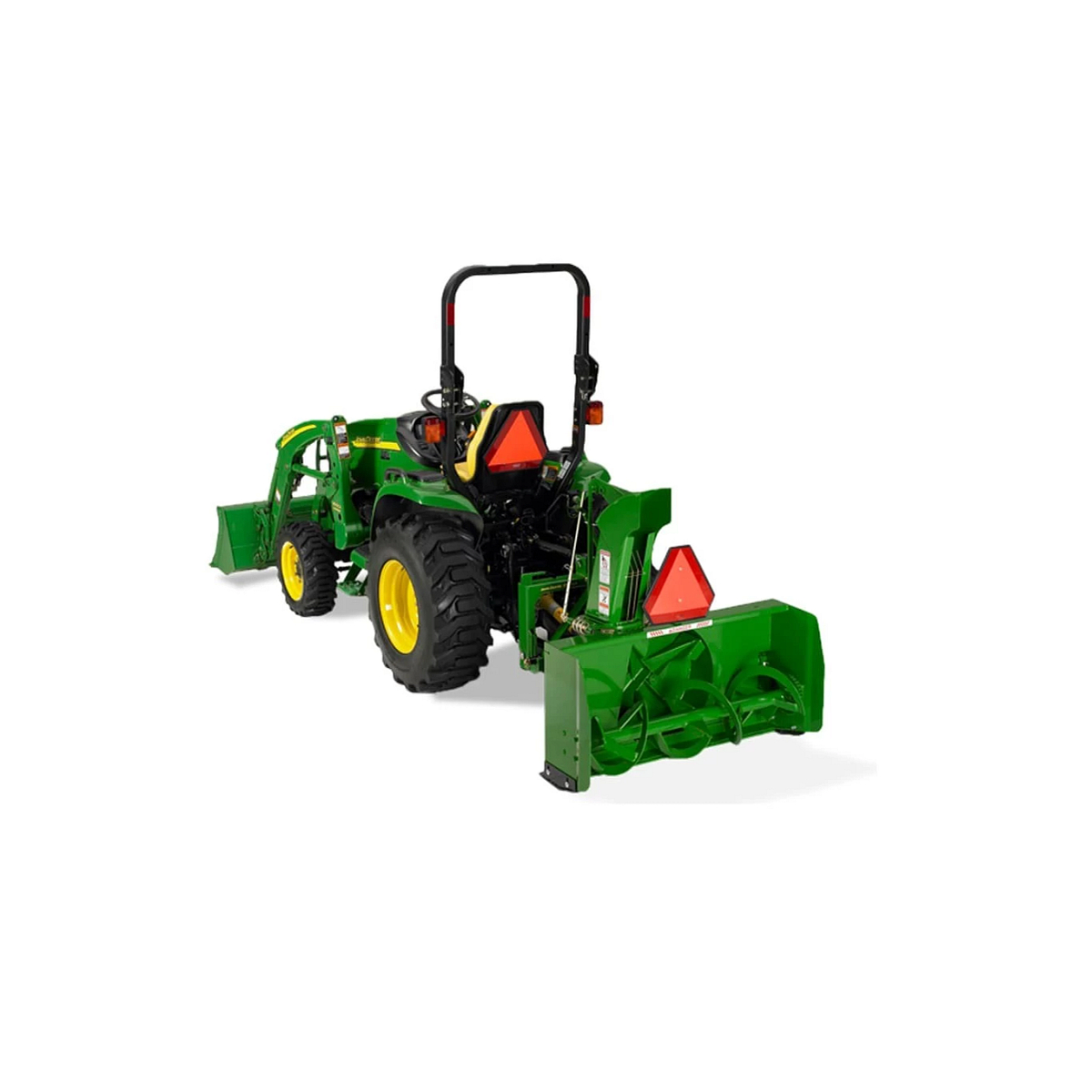

Rear left studio image of SB11 Snowblower attached to tractor
No items found.
new
John Deere
SB1148
Compact Tractors Attachments

John Deere SB1148

Starting at

Key Features

  • 48-in. Width
  • Chute Deflector for Easy Snow Removal
  • Optional Hydraulic Chute Rotation
  • Adjustable Steel Skid Shoes Prevent Gouging
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Chute rotation can be easily adjusted for versatility

Chute rotation adds versatility by allowing operators to blow snow exactly where they want it. Standard-equipped manual chute rotation adjustments are easily done from the seat of the tractor.

Close-up of snowblower showing a metal control lever and linkage mounted beside the discharge chute
Multiple hitch capabilities for different uses

SB11 Series Snowblowers have different hitch capabilities. Models SB1148, SB1154, SB1164, and SB1174 are Category 1 and iMatch compatible. Model SB1184 is Category 1 and iMatch compatible and Category 2 and Quik-Coupler compatible. Model SB1194 is Category 2 and Quik-Coupler compatible.

Front right studio view of SB Series Snowblower 3-point hitch
Impeller blade provides fast snow removal

Moving snow faster and blowing it farther is simple with four impeller blades on the SB11 Series Snowblowers.

Close-up of the interior of a snowblower showing curved metal paddles and blades arranged around a central hub
Question text goes here

Answer text goes here

Dimensions
Height

24.625 in.

Height

62.5 cm

Transport Width

48.5 in.

Transport Width

123.2 cm

Working Width

48 in.

Working Width

121.9 cm

Length

39 in.

Length

99.1 cm

Weights
Operating Weight

375 lb.

Operating Weight

170.1 kg

Shipping Weight

405 lb.

Shipping Weight

183.7 kg

Chute
Chute Type

Two-part

Standard Chute Deflector Adjustment

Manual

Optional Chute Deflector Adjustment

Hydraulic cylinder or electric actuator

Chute Rotation Type

Manual or hydraulic

Chute Diameter

20.3 cm

Chute Rotation Degrees

210 degree (angle)

Chute Diameter

8 in.

Auger
Auger Diameter

15 in.

Auger Diameter

38.1 cm

Auger Speed

170 rpm

Auger Overload Protection

Single

Impeller
Impeller Blades

Four

Impeller Speed

540 rpm

Impeller Diameter

20 in.

Impeller Diameter

50.8 cm

Impeller Width

6 in.

Impeller Width

15.2 cm

Tractor Compatibility
Minimum Power

16 hp

Minimum Power

11.9 kW

Maximum Power

35 hp

Maximum Power

26.1 kW

PTO Overload Protection

Shearbolt

PTO Speed

540 rpm rpm

Chain
Chain Roller

50

Chain Idler Adjustment

Manual

Hitch
Hitch Compatibility

Category 1

iMatch Compatibility

Yes

Cutting Edge
Cutting Edge Type

Welded

Skid Shoes
Skid Shoe Type

Steel, adjustable

Setup Time
Set-Up Time Labor Hours

1 hour

Warranty period
Machine Warranty Period

1 year

Gear Box Warranty Period

1 year
