John Deere
RT2293
Compact Tractors Attachments

John Deere RT2293

Starting at

Cage roller adjustment for firming action is easy

The hand crank makes adjusting the depth of the roller easy on the RT22 and RT23 Series Rotary Tillers. Use a lower setting for more firming action, ideal for controlling wind erosion. The RT22 and RT23 Series have an optional hydraulic cage roller adjustment kit available to allow for depth adjustments without leaving the tractor seat.

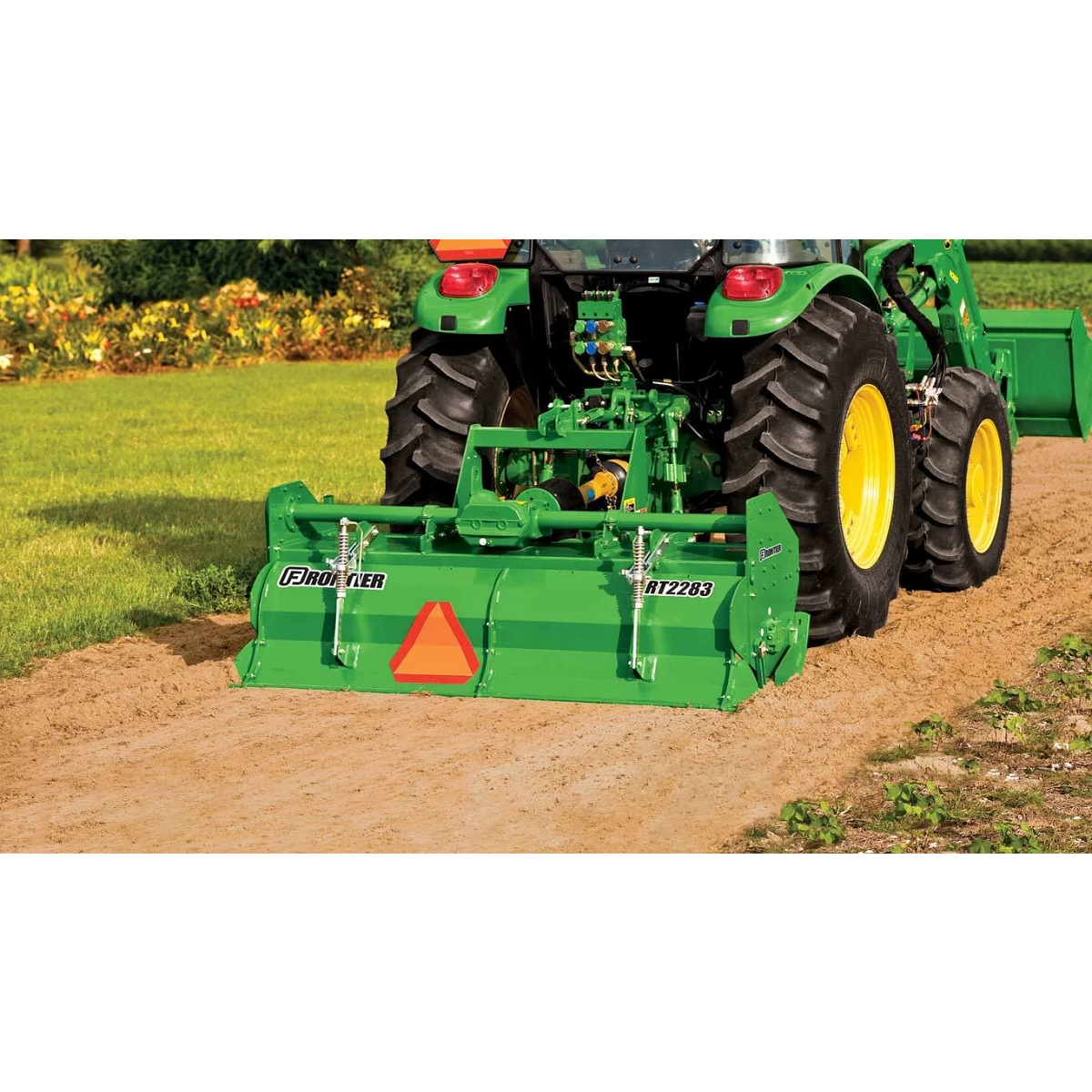

Green Frontier soil‑conditioning or seedbed‑preparation attachment mounted behind a tractor, showing the rear leveling bar and guard with an orange safety slow‑moving vehicle sign visible above the implement.
Heavy-duty wear shields for added gearcase protection

The gearcase is protected from abrasion and premature wear by the heavy-duty wear shields.

Close‑up of a green Frontier agricultural mower attachment showing the curved protective side panel with the Frontier logo, mounted low to the ground with crop residue and soil around the cutting area.
Rotor Is Helical-Shaped for Higher Efficiency

The helical-shaped rotor decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.

Front studio view of helical rotors on the RT Series Rotary Tiller
Question text goes here

Answer text goes here

Dimensions
Working Width

93 in.

Working Width

2362 mm

Outside To Outside Width

98 in.

Outside To Outside Width

2489 mm

Weight
Operating With Skid Shoes

1807 lb.

Operating With Skid Shoes

819.6 kg

Tractor Compatibility
PTO Speed

540 rpm

Minimum PTO Power

50 hp

Minimum PTO Power

37 kW

Maximum PTO Power

90 hp

Maximum PTO Power

67 kW

Gearbox
Gearbox Type

Multi-speed

Drive System
Drive System Type

Gear

Hitch
3-Point Compatible

Category 2

Quick Coupler (Category 2)

Yes

PTO Shaft
Clutch Type

Friction

Blade
Blade Shape

L-shape

Rotor
Flanges (Quantity)

9

Blades (Quantity)

6

Depth Control
Depth Control Type

Skid shoes

Maximum Working Depth

10.6 in.

Maximum Working Depth

27 cm

Safety And Markings
Rear Door Support

Chain

Parking Stand

Standard

Markings

Standard

Duty
Duty Type

Medium

Warranty
Time Period

1 year
