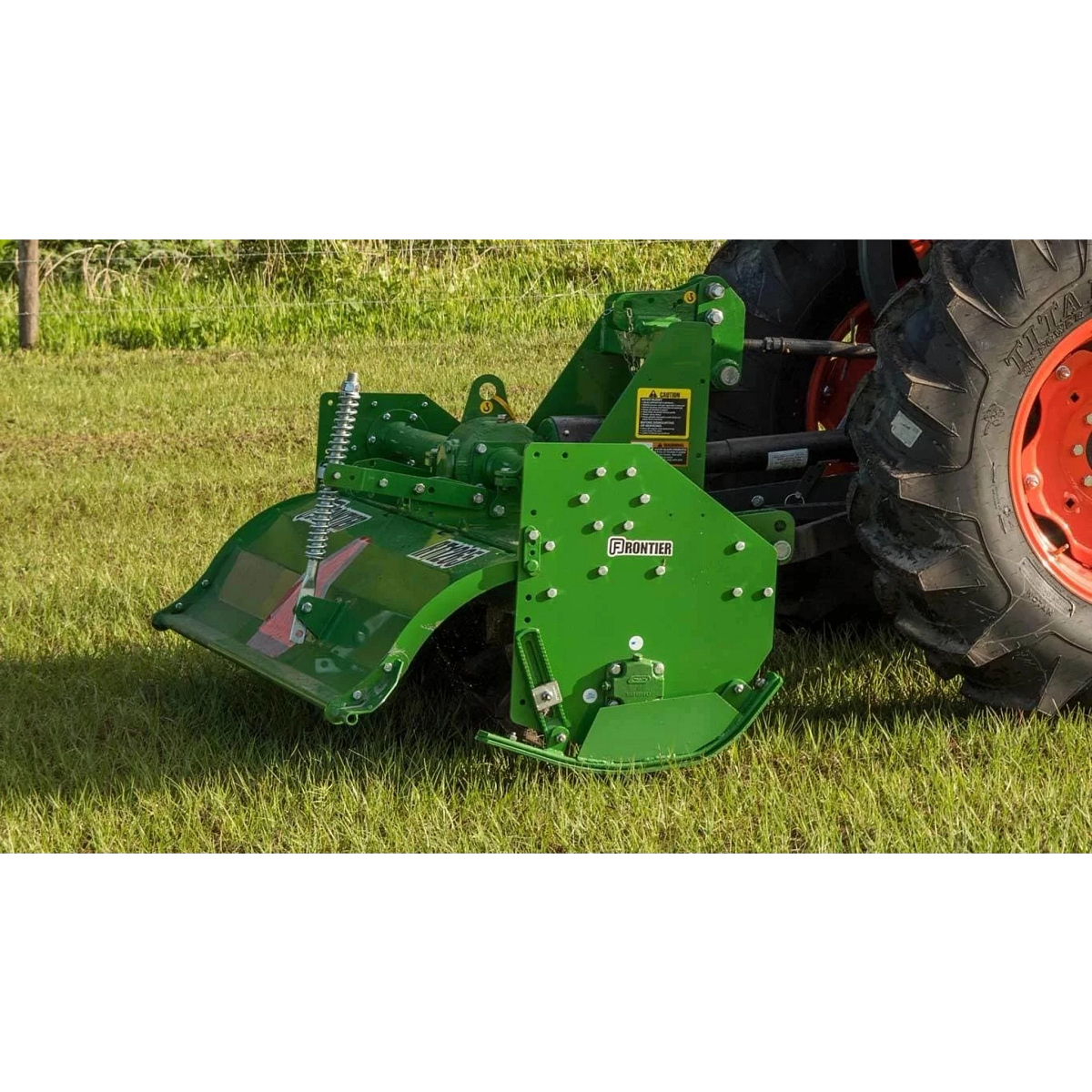

The helical-shaped rotor on the RT Series Rotary Tillers decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.

The working depth can be adjusted by the height of the skids, which is easily done with the adjustment bracket on the RT Series Rotary Tillers.

Adjustable offset allows the tiller to be used in a central or side position with respect to the tractor’s wheel track allowing you to till closer to existing plants and into deep corners. The chain-supported tailgate is self-leveling.
Answer text goes here
Working Width | 65 in. |
Working Width | 1651 mm |
Outside To Outside Width | 70 in. |
Outside To Outside Width | 1778 mm |
Operating With Skid Shoes | 616 lb. |
Operating With Skid Shoes | 279.4 kg |
PTO Speed | 540 rpm |
Minimum PTO Power | 24 hp |
Minimum PTO Power | 18 kW |
Maximum PTO Power | 50 hp |
Maximum PTO Power | 37 kW |
Gearbox Type | Single speed |
Drive System Type | Chain |
Chain, ASAE | ASA 100 |
3-Point Compatible | Category 1, Category 3 |
iMatch™ Compatible (Category 1) | Yes |
Quick Coupler (Category 2) | Yes |
Clutch Type | Friction |
Blade Shape | C-shape |
Flanges (Quantity) | 8 |
Blades (Quantity) | 6 |
Depth Control Type | Skid shoes |
Maximum Working Depth | 7.9 in. |
Maximum Working Depth | 20 cm |
Rear Door Support | Chain |
Parking Stand | Standard |
Markings | Standard |
Duty Type | Medium |
Labor Hours | 0.6 |
Time Period | 1 year |
