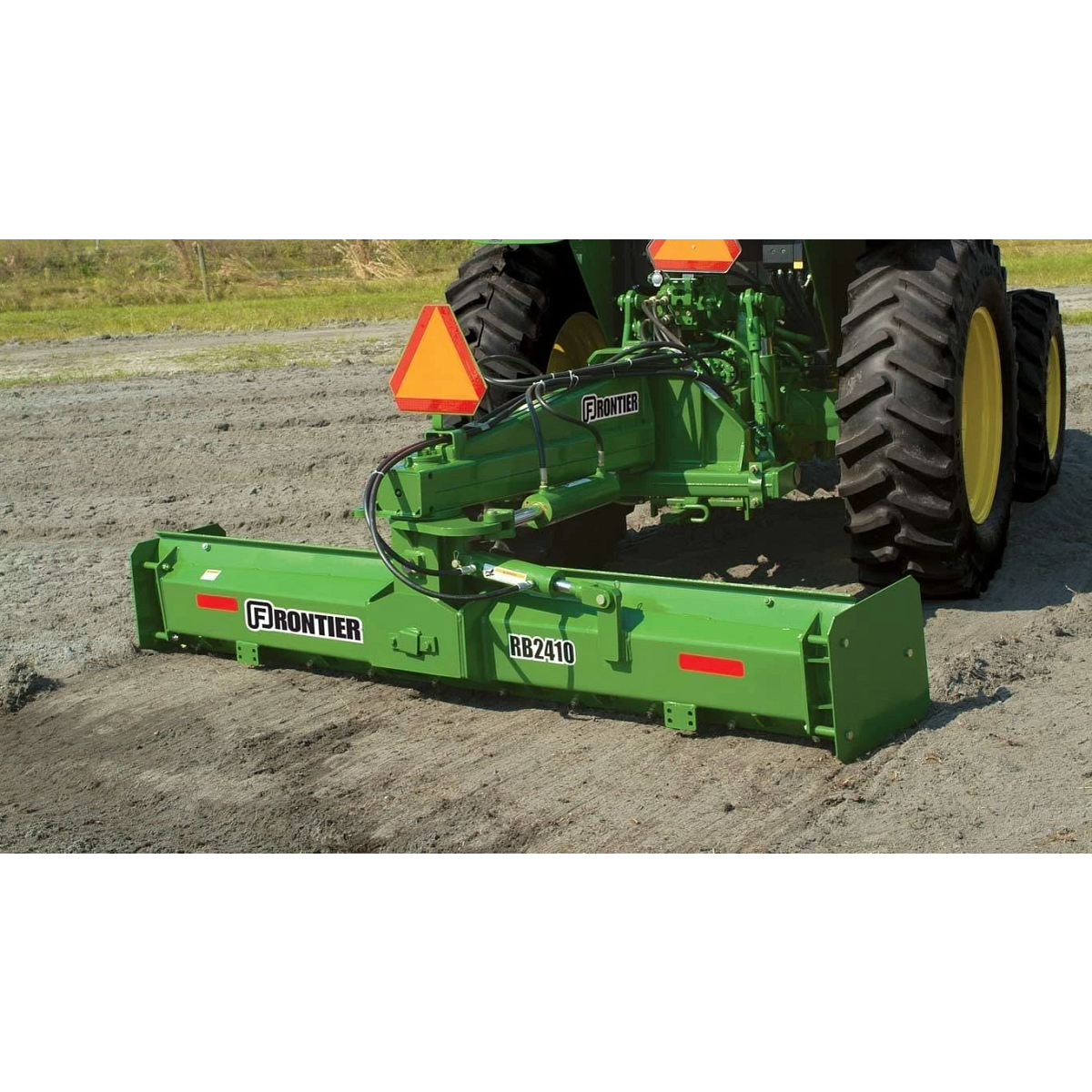

The Frontier™ RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.

The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.

Answer text goes here
Dimensions | ||
| Width In Working Position | 10 ft | |
| Width In Working Position | 3 m | |
| Moldboard Length | 120 in. | 243.8 cm 96 in. |
| Moldboard Length | 304.8 cm | 243.8 cm 96 in. |
| Moldboard Height | 19 in. | 45.7 cm 18 in. |
| Moldboard Height | 48.3 cm | 45.7 cm 18 in. |
| Moldboard Thickness | 0.3125 in. | 1.27 cm 0.5 in. |
| Moldboard Thickness | 0.8 cm | 1.27 cm 0.5 in. |
Weight | ||
| Machine | 1550 lb. | 639.1 kg 1,409 lb |
| Machine | 703.1 kg | 639.1 kg 1,409 lb |
| Shipping Per Unit | 1653 lb. | |
| Shipping Per Unit | 749.8 kg | |
Tractor Requirements | ||
| PTO | 2WD: 160; 4WD: 145 hp | |
| PTO | 2WD: 119.3; 4WD: 108.1 kW | |
| Hydraulic Offset Kit (Hoses And Fittings Included) | Standard, manual offset and tilt require one hydraulic remote | |
Angle, Tilt, Offset, Pivot | ||
| Pivot Angle Degrees | 360 degree (angle) | |
| Angle Forward, Number Of Positions | Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle) | |
| Angle Reverse, Number Of Positions | Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle) | |
| Tilt Positions/Degrees | Two positions up and down, up to 15 degree (angle) | |
| Offset Position Left or Right | 0-36 in. | 93.9 cm 37 in. |
| Offset Position Left or Right | 0-91.44 cm | 93.9 cm 37 in. |
Hitch | ||
| Type | Category 2 and Category 3 | Category 2 and Category 3 |
| Quick Hitch Compatibility | ASAE Category 2 and 3 quick coupler | |
Reversible Cutting Edge | ||
| Thickness | 0.5 in. | 1.27 cm 0.5 in. |
| Thickness | 1.3 cm | 1.27 cm 0.5 in. |
| Height | 6 in. | 45.7 cm 18 in. |
| Height | 15.2 cm | 45.7 cm 18 in. |
Duty | ||
| Type | Heavy plus | Category 2 and Category 3 |
Parking Stand | ||
| Standard With Machine | Standard | Standard |
Warranty | ||
| Time Period | 1 year | |
