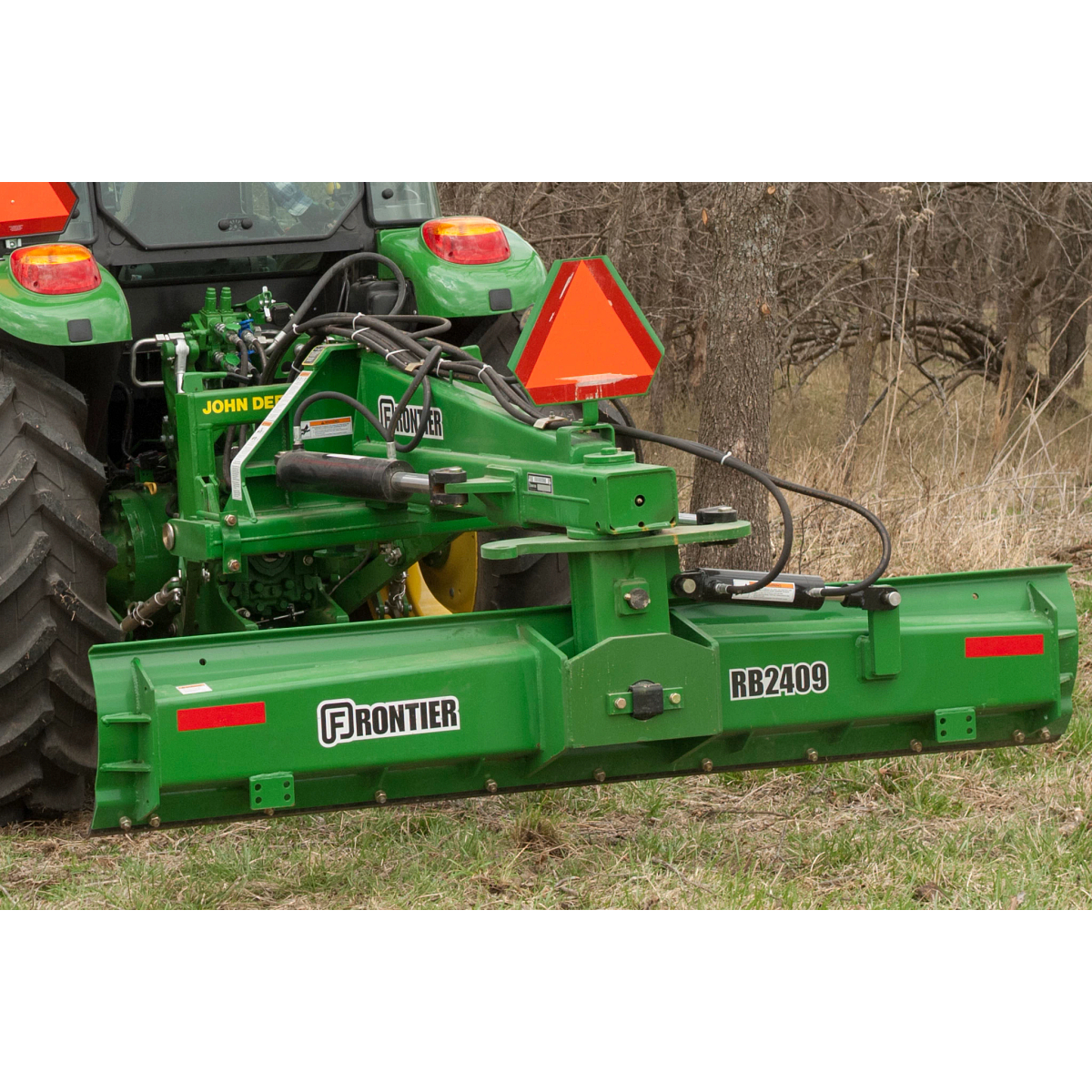

Field view of RB2409 Rear Blade on 5115M Tractor
No items found.
new
John Deere
RB2409
Compact Tractors Attachments

John Deere RB2409

Starting at

Key Features

  • Width: 108 in. (274.3 cm)
  • Duty: Heavy Plus
  • Reversible Cutting Edge
  • Optional End Plates
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Frame's Tubular Steel Is Crafted for Tough Jobs

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.

3038E Tractor with rear blade and front loader on dirt drive
Quickly and Efficiently Attach to Hitch

The Frontier™ RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.

Front view of an RB2308 rear blade grading grassy dirt on the back of a 5100R tractor
Manually Adjustable Angle, Tilt, and Offset

The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

Rear view of adjustable turntable on Frontier rear blade hooked up to a tractor in a field
Question text goes here

Answer text goes here

Dimensions
Width In Working Position

9 ft

Width In Working Position

2.7 m

Moldboard Length

108 in.

Moldboard Length

274.3 cm

Moldboard Height

19 in.

Moldboard Height

48.3 cm

Moldboard Thickness

0.3125 in.

Moldboard Thickness

0.8 cm

Weight
Machine

1501 lb.

Machine

660.8 kg

Shipping Per Unit

1604 lb.

Shipping Per Unit

727.6 kg

Tractor Requirements
PTO

160 hp (2WD); 145 hp (4WD) hp

PTO

119.3 kW (2WD); 108.1 kW (4WD) kW

Hydraulic Offset Kit (Hoses And Fittings Included)

Standard, manual offset and tilt require one hydraulic remote

Angle, Tilt, Offset, Pivot
Pivot Angle Degrees

360 degree (angle)

Angle Forward, Number Of Positions

Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle)

Angle Reverse, Number Of Positions

Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle)

Tilt Positions/Degrees

Two positions up and down, up to 15 degree (angle) up and down

Offset Position Left or Right

0 to 36.0 in.

Offset Position Left or Right

0 to 91.44 cm

Hitch
Type

Category 2 and Category 3

Quick Hitch Compatibility

ASAE Category 2 and 3 quick coupler

Reversible Cutting Edge
Thickness

0.5 in.

Thickness

1.3 cm

Height

6 in.

Height

15.2 cm

Duty
Type

Heavy plus

Parking Stand
Standard With Machine

Standard

Warranty
Time Period

1 year
