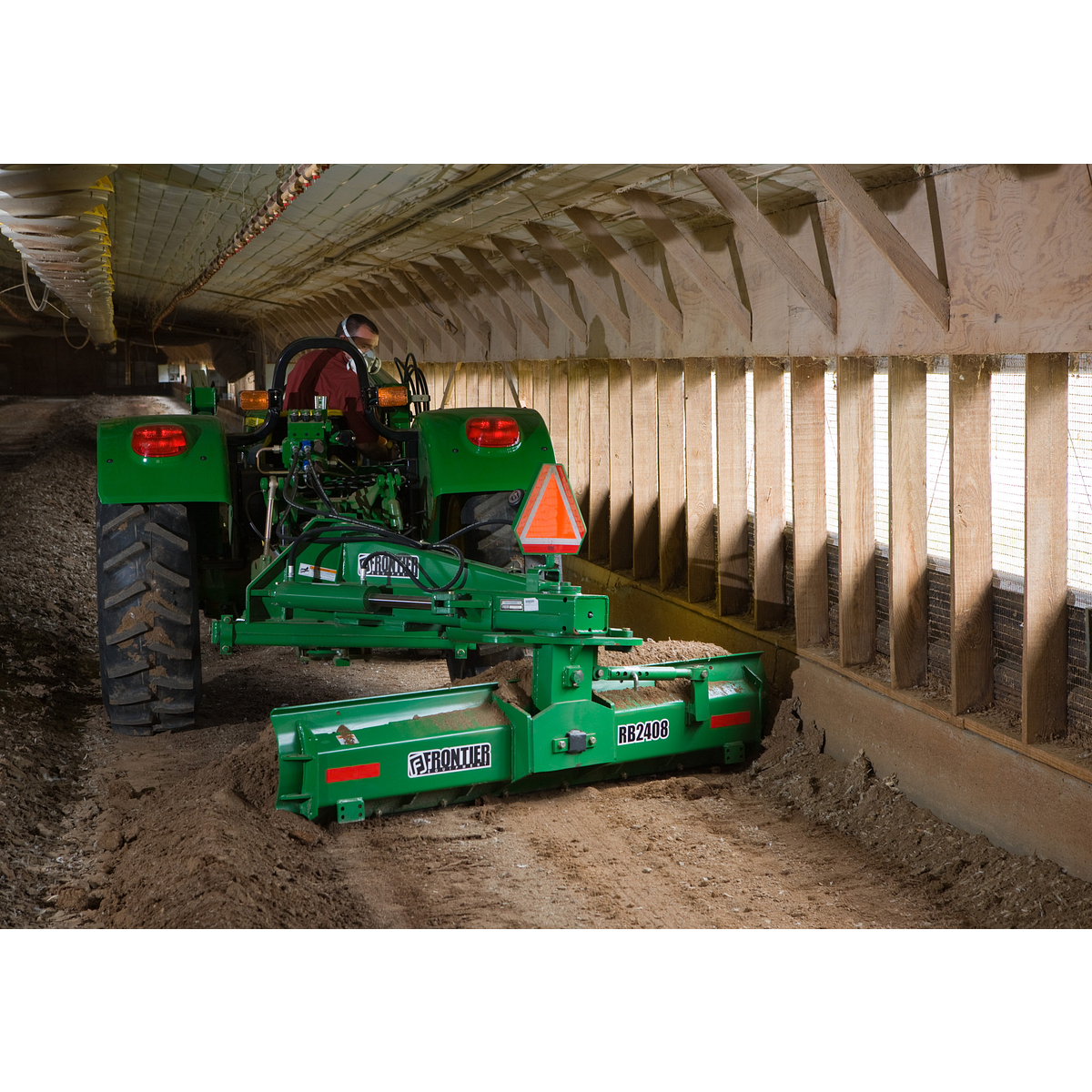

RB24 Rear Blade being pulled behind a tractor
No items found.
new
John Deere
RB2408
Compact Tractors Attachments

John Deere RB2408

Starting at

Key Features

  • Width: 96 in. (243.8 cm)
  • Duty: Heavy Plus
  • Reversible Cutting Edge
  • Optional End Plates
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Quickly and Efficiently Attach to Hitch

The Frontier™ RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.

Front view of an RB2308 rear blade grading grassy dirt on the back of a 5100R tractor
Manually Adjustable Angle, Tilt, and Offset

The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

Rear view of adjustable turntable on Frontier rear blade hooked up to a tractor in a field
Frame's Tubular Steel Is Crafted for Tough Jobs

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.

3038E Tractor with rear blade and front loader on dirt drive
Question text goes here

Answer text goes here

Dimensions
Width In Working Position

8 ft

Width In Working Position

2.4 m

Moldboard Length

96 in.

Moldboard Length

243.8 cm

Moldboard Height

19 in.

Moldboard Height

48.3 cm

Moldboard Thickness

0.3125 in.

Moldboard Thickness

0.8 cm

Weight
Machine

1451 lb.

Machine

658.2 kg

Shipping Per Unit

1554 lb.

Shipping Per Unit

704.9 kg

Tractor Requirements
PTO

2WD: 160; 4WD: 145 hp

PTO

2WD: 119.3; 4WD: 108.1 kW

Hydraulic Offset Kit (Hoses And Fittings Included)

Standard, manual offset and tilt require one hydraulic remote

Angle, Tilt, Offset, Pivot
Pivot Angle Degrees

360 degree (angle)

Angle Forward, Number Of Positions

Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle)

Angle Reverse, Number Of Positions

Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle)

Tilt Positions/Degrees

Two positions up and down, up to 15 degree (angle) up and down

Offset Position Left or Right

0-36 in.

Offset Position Left or Right

0-91.44 cm

Hitch
Type

Category 2, Category 3

Quick Hitch Compatibility

ASAE Category 2 and 3 quick coupler

Reversible Cutting Edge
Thickness

0.5 in.

Thickness

1.3 cm

Height

6 in.

Height

15.2 cm

Duty
Type

Heavy plus

Parking Stand
Standard With Machine

Standard

Warranty
Time Period

1 year
