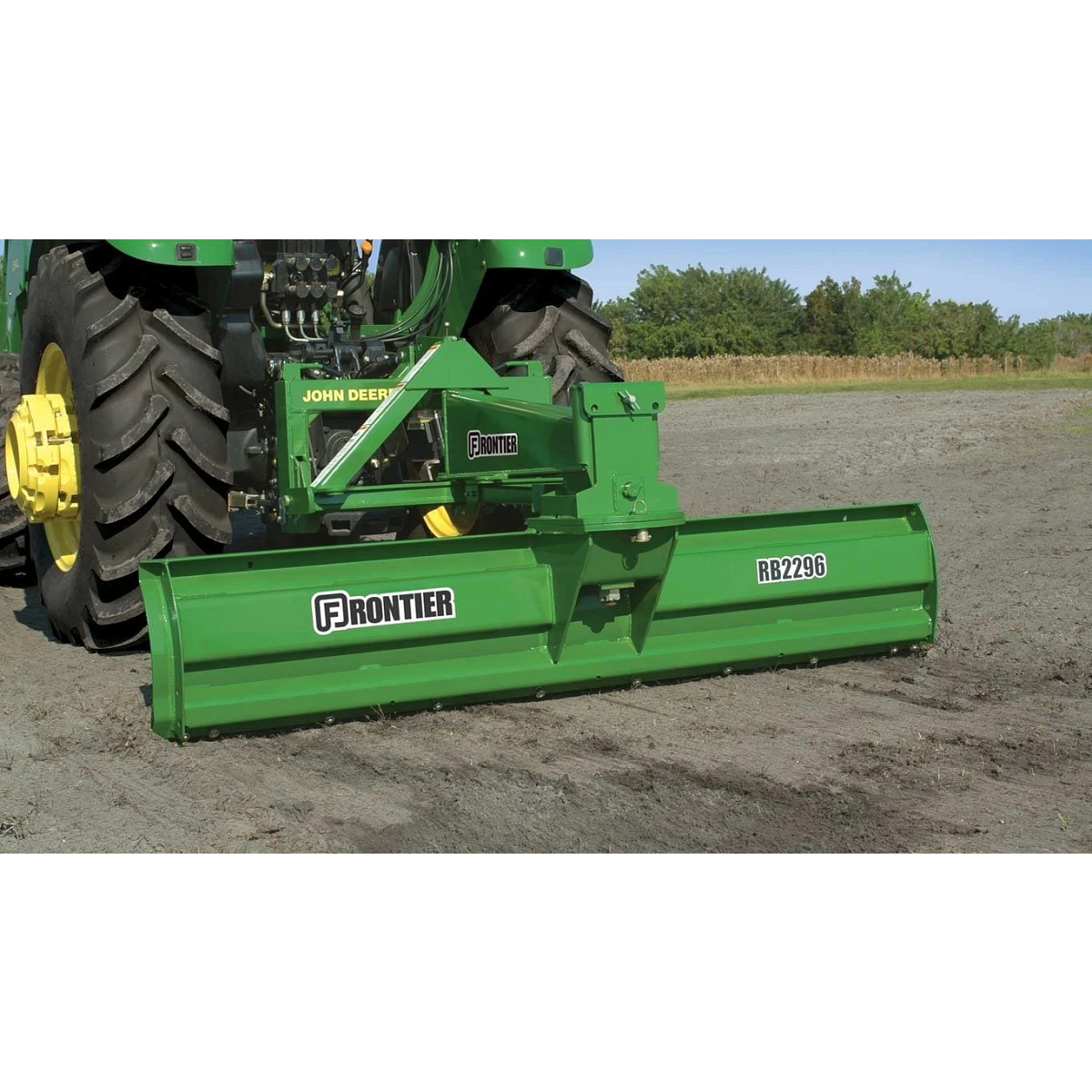

RB22 Rear Blade being pulled behind a tractor
No items found.
new
John Deere
RB2272
Compact Tractors Attachments

John Deere RB2272

Starting at

Key Features

  • Manually-Adjustable Angle
  • Reversible Cutting Edge for Longer Life
  • Optional End Plates Hold Extra Material
  • Optional Skid Shoes Increase Cutting Edge Life
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Longer Wear Life With Reversible Cutting Edge

All Frontier™ RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.

Close-up of a rear blade's black reversible cutting edge on green blade
Manually adjustable angle, tilt, and offset

The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

Rear view of adjustable turntable on Frontier rear blade hooked up to a tractor in a field
Frame's tubular steel is crafted for tough jobs

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.

3038E Tractor with rear blade and front loader on dirt drive
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
RB2272
Rear Blade
Bush Hog
91-08
Land Pride
RBT3596
Rhino
850 - 8 foot working width
ADD MODEL

Dimensions

Width In Working Position6 ft
Width In Working Position1.8 m
Moldboard Length72 in.243.8 cm
96 in.		243.8 cm
96 in.		243.8 cm
96 in.
Moldboard Length182.9 cm243.8 cm
96 in.		243.8 cm
96 in.		243.8 cm
96 in.
Moldboard Height19 in.48.3 cm
19 in.		43.2 cm
17 in.		40.64 cm
16 in.
Moldboard Height48.3 cm48.3 cm
19 in.		43.2 cm
17 in.		40.64 cm
16 in.
Moldboard Thickness0.25 in.0.8 cm
0.3125 in.		0.8 cm
0.3125 in.		0.8 cm
0.3125 in.
Moldboard Thickness0.6 cm0.8 cm
0.3125 in.		0.8 cm
0.3125 in.		0.8 cm
0.3125 in.

Weight

Machine738 lb.375.1 kg
827 lb		337.9 kg
745 lb		375.1 kg
827 lb
Machine334.8 kg375.1 kg
827 lb		337.9 kg
745 lb		375.1 kg
827 lb
Shipping Per Unit795 lb.
Shipping Per Unit360.6 kg

Tractor Requirements

PTO2WD: 80; 4WD: 70 hp
PTO2WD: 59.7; 4WD: 52.2 kW
Hydraulic Offset Kit (Hoses And Fittings Included)Optional hydraulic offset - up to one hydraulic remotes required

Angle, Tilt, Offset, Pivot

Pivot Angle Degrees360 degree (angle)
Angle Forward, Number Of PositionsThree positions, each side up to 45 degree (angle)
Angle Reverse, Number Of PositionsThree positions, each side up to 45 degree (angle)
Tilt Positions/DegreesThree positions, up or down up to 23 degree (angle)
Offset Position Left or Right9, 18 in.76.2 in.
30 in.
Offset Position Left or Right22.9, 45.7 cm76.2 in.
30 in.

Hitch

TypeCategory 2Category 1 and Category 2Category 1 and Category 2Cat. 1 and 2
Quick Hitch CompatibilityASAE Category 2 Quick coupler compatible

Reversible Cutting Edge

Thickness0.5 in.0.8 cm
0.3125 in.		0.8 cm
0.3125 in.		0.8 cm
0.3125 in.
Thickness1.3 cm0.8 cm
0.3125 in.		0.8 cm
0.3125 in.		0.8 cm
0.3125 in.
Height6 in.48.3 cm
19 in.		43.2 cm
17 in.		40.64 cm
16 in.
Height15.2 cm48.3 cm
19 in.		43.2 cm
17 in.		40.64 cm
16 in.

Duty

TypeMedium plusCategory 1 and Category 2Category 1 and Category 2Cat. 1 and 2

Parking Stand

Standard With MachineYesYesYesYes

Warranty

Time Period1 year
