new
John Deere
PR1184
Compact Tractors Attachments

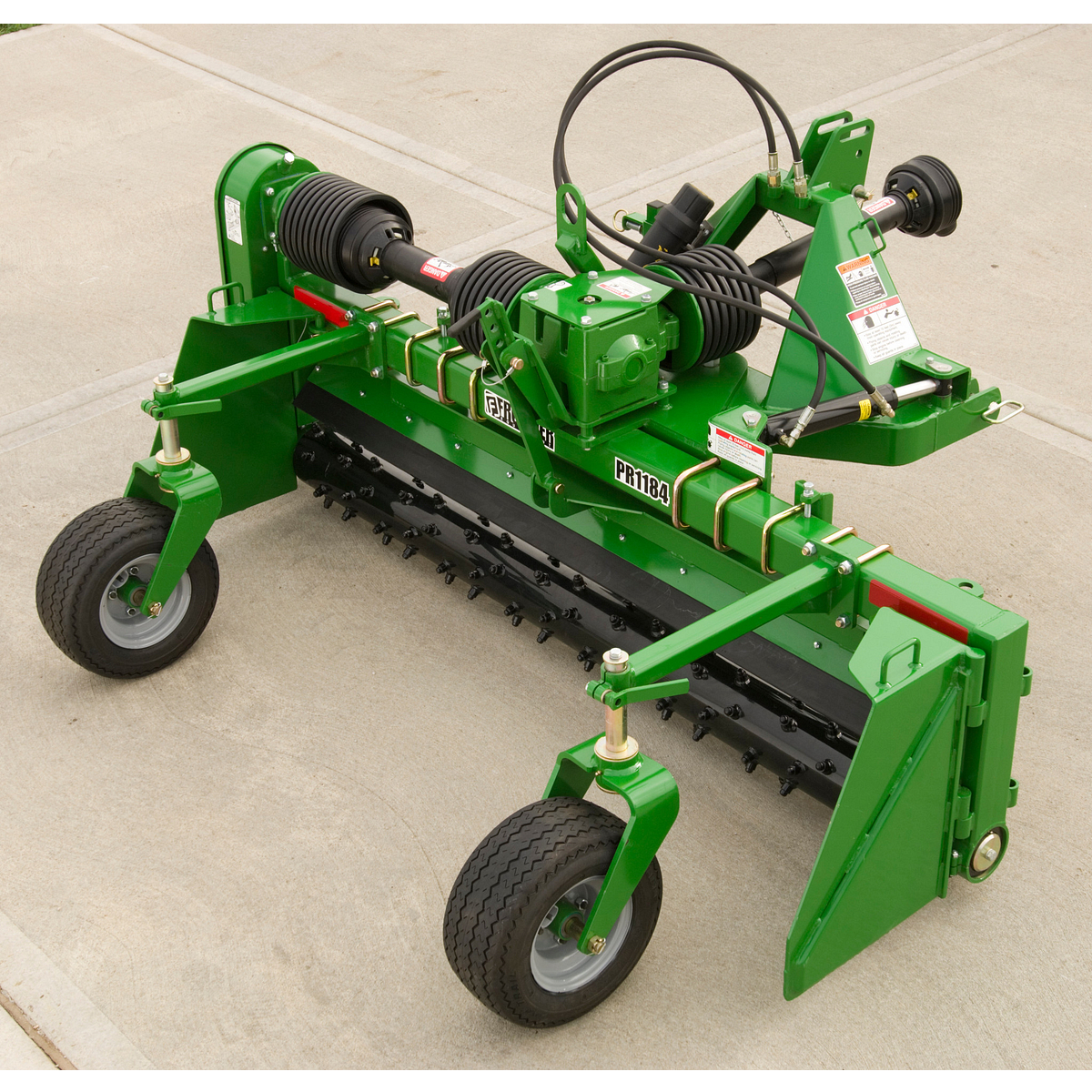

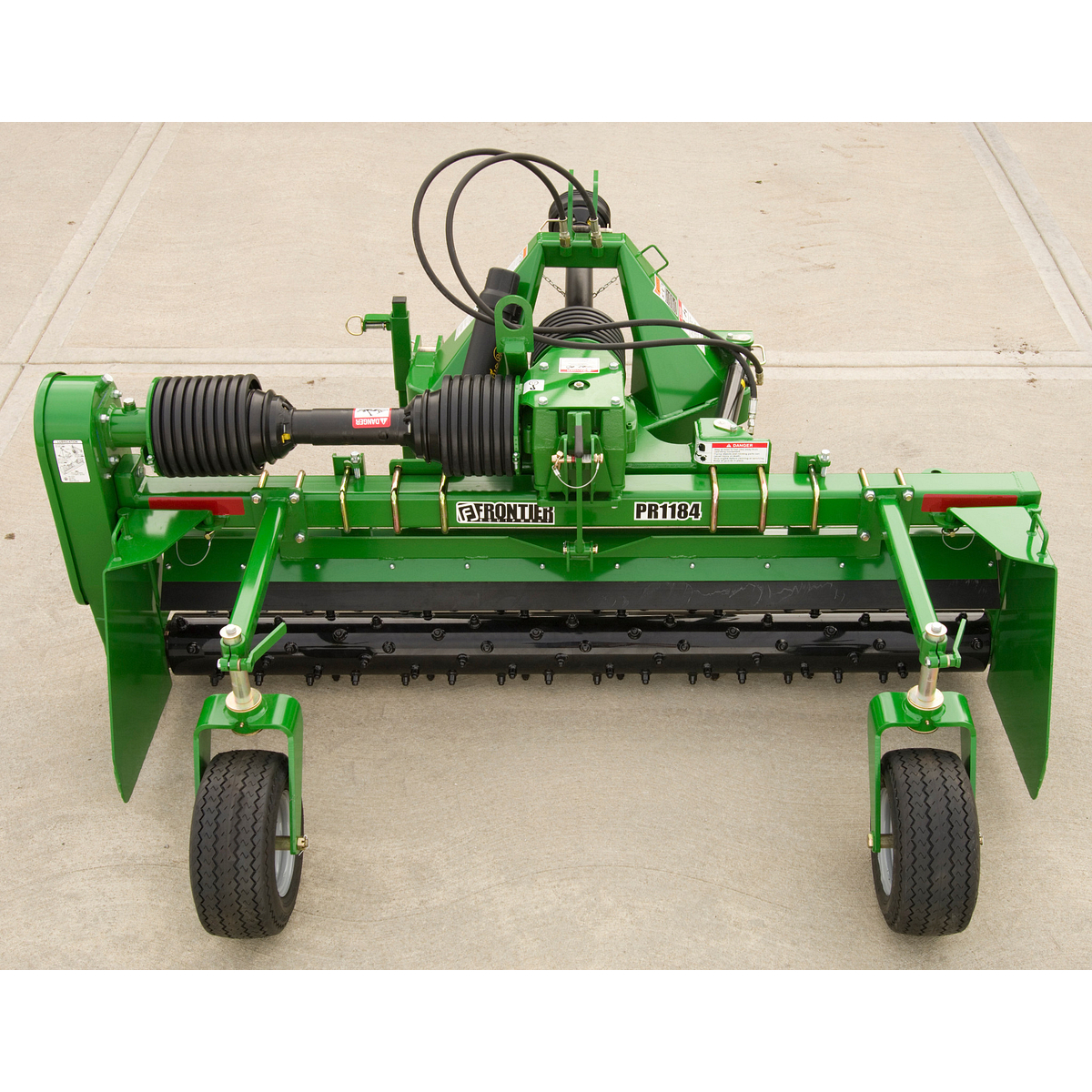

John Deere PR1184

Starting at

Adjustable end plate

End plates on the Frontier™ PR11 Series Power Rakes are reinforced with hardened steel for longer life and are easily movable. When the end plate is in the forward position, the power rake becomes a box blade and collects larger material for disposal on the edge of the worksite. In the storage position, the power rake becomes a rear blade, forming windrows of larger material and debris. The end plate can be flared out when working along foundations or sidewalks.

Close-up of PR11 Power Series Rake showing adjustable end plate with hydraulic lines and a roller with multiple blades underneath
Angle adjustment

From the tractor seat, the operator can easily adjust the angle of the Frontier™ PR11 Series Power Rake for directing material by using the hydraulic controls. The steel frame offers excellent visibility of the work being done.

Frontier power rake hitched to a small tractor raking dirt along a stone retaining wall
Carbide teeth retain moisture with fracture pattern

By striking the seedbed sub base, the carbide teeth on Frontier™ PR11 Series Power Rakes leave a fracture pattern that retains moisture. The carbide material provides long life and durability.

Close-up of a row of black carbide cutting teeth mounted along the edge of a rotating drum
Question text goes here

Answer text goes here

Dimensions
Machine Length

70 in.

Machine Length

177.8 cm

Machine Height

44 in.

Machine Height

118.8 cm

Transport Width

93 in.

Transport Width

236.2 cm

Working Width

84 in.

Working Width

213.4 cm

Working Width At Max Angle

81 in.

Working Width At Max Angle

205.7 cm

Weight
Operating

1260 lb.

Operating

571.5 kg

Shipping

1700 lb.

Shipping

771.1 kg

Tractor Compatibility
PTO Horsepower

42-80 hp

PTO Horsepower

31.3-59.7 kW

PTO Speed

540 rpm

Hydraulic Requirement

1500 rpm

Hitch
Compatibility

Category 1, Category 2

Quick Coupler (Cat. 2)

Yes

Rotor
Speed

270 rpm

Direction Of Travel

Against DOT

Quantity Of Carbide Teeth Per Rotor

132

Working angles
Degrees Left or Right

0-15 degree (angle)

Parking Stands
Standard

Yes

Depth Control
Type

Dual independent adjustable gauge wheels

Setup Time
Labor Hours

1 hr

Warranty
Time Period

1 year
