new
John Deere
PR1172
Compact Tractors Attachments

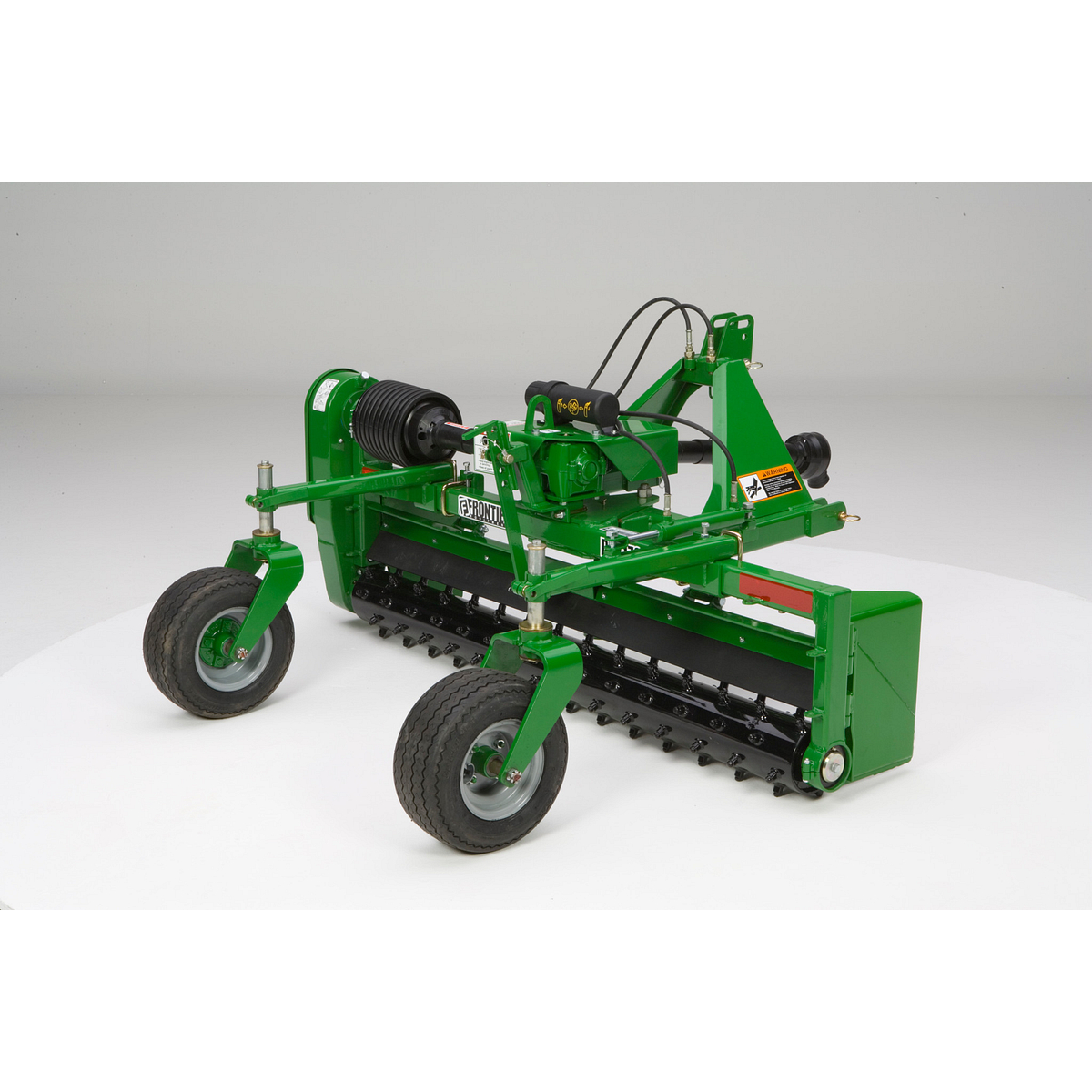

John Deere PR1172

Starting at

Angle adjustment

From the tractor seat, the operator can easily adjust the angle of the Frontier™ PR11 Series Power Rake for directing material by using the hydraulic controls. The steel frame offers excellent visibility of the work being done.

Frontier power rake hitched to a small tractor raking dirt along a stone retaining wall
Carbide teeth retain moisture with fracture pattern

By striking the seedbed sub base, the carbide teeth on Frontier™ PR11 Series Power Rakes leave a fracture pattern that retains moisture. The carbide material provides long life and durability.

Close-up of a row of black carbide cutting teeth mounted along the edge of a rotating drum
Adjustable end plate

End plates on the Frontier™ PR11 Series Power Rakes are reinforced with hardened steel for longer life and are easily movable. When the end plate is in the forward position, the power rake becomes a box blade and collects larger material for disposal on the edge of the worksite. In the storage position, the power rake becomes a rear blade, forming windrows of larger material and debris. The end plate can be flared out when working along foundations or sidewalks.

Close-up of PR11 Power Series Rake showing adjustable end plate with hydraulic lines and a roller with multiple blades underneath
Question text goes here

Answer text goes here

Dimensions
Machine Length

62 in.

Machine Length

157.5 cm

Machine Height

40 in.

Machine Height

101.6 cm

Transport Width

81 in.

Transport Width

205.7 cm

Working Width

72 in.

Working Width

182.9 cm

Working Width At Max Angle

69.5 in.

Working Width At Max Angle

176.5 cm

Weight
Operating

840 lb.

Operating

376.5 kg

Shipping

1100 lb.

Shipping

499 kg

Tractor Compatibility
PTO Horsepower

30-40 hp

PTO Horsepower

22.4-29.8 kW

PTO Speed

540 rpm

Hydraulic Requirement

1500 rpm

Hitch
Compatibility

Cat. 1

Rotor
Speed

270 rpm

Direction Of Travel

Against DOT

Quantity Of Carbide Teeth Per Rotor

114

Working angles
Degrees Left or Right

0-15 degree (angle)

Parking Stands
Standard

Yes

Depth Control
Type

Dual independent adjustable gauge wheels

Setup Time
Labor Hours

0.75 hr

Warranty
Time Period

1 year
