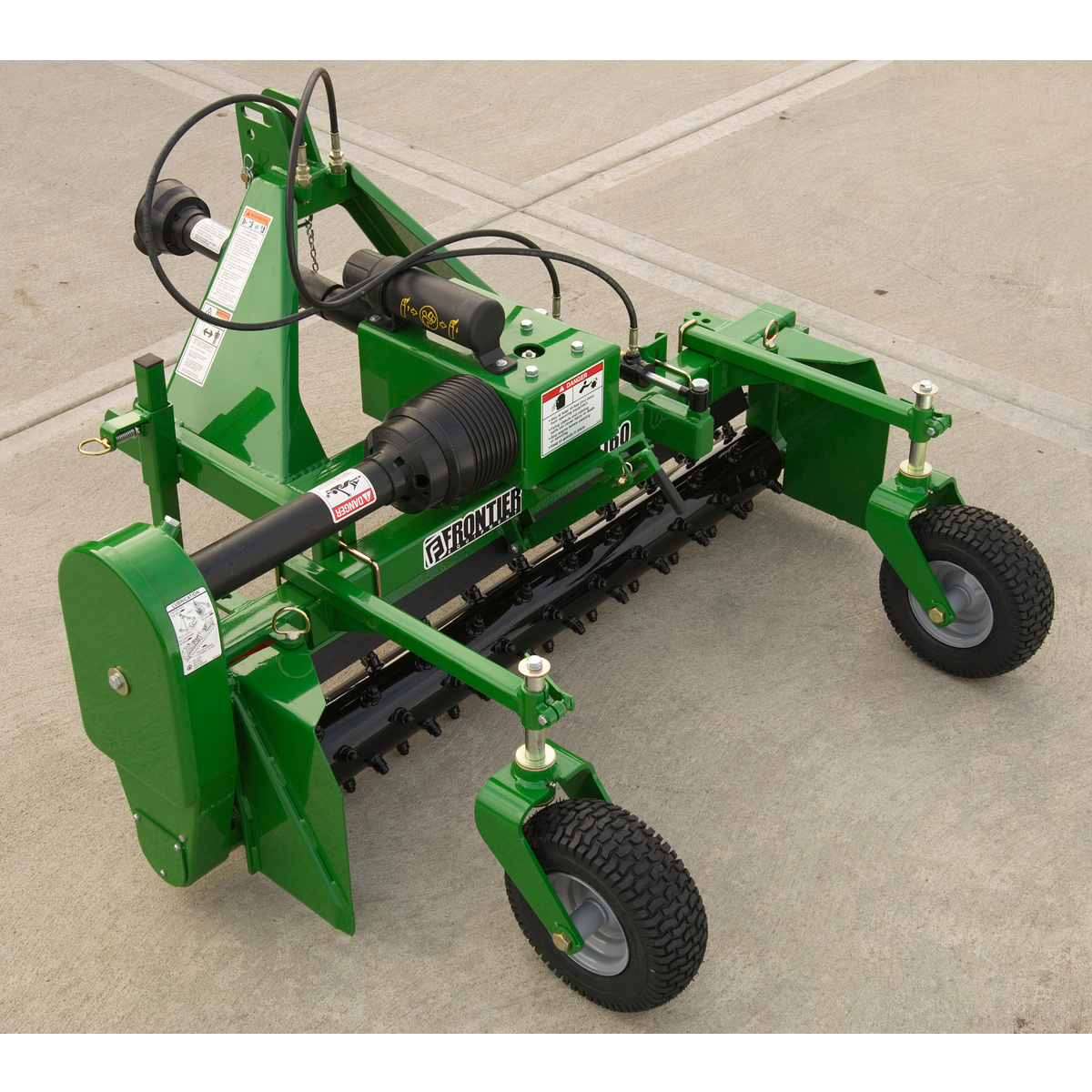

Green agricultural machine with a steel frame, hydraulic motor and hoses, rotating drum, and four rubber wheels, shown outdoors on a concrete surface with warning labels and manufacturer branding visible.

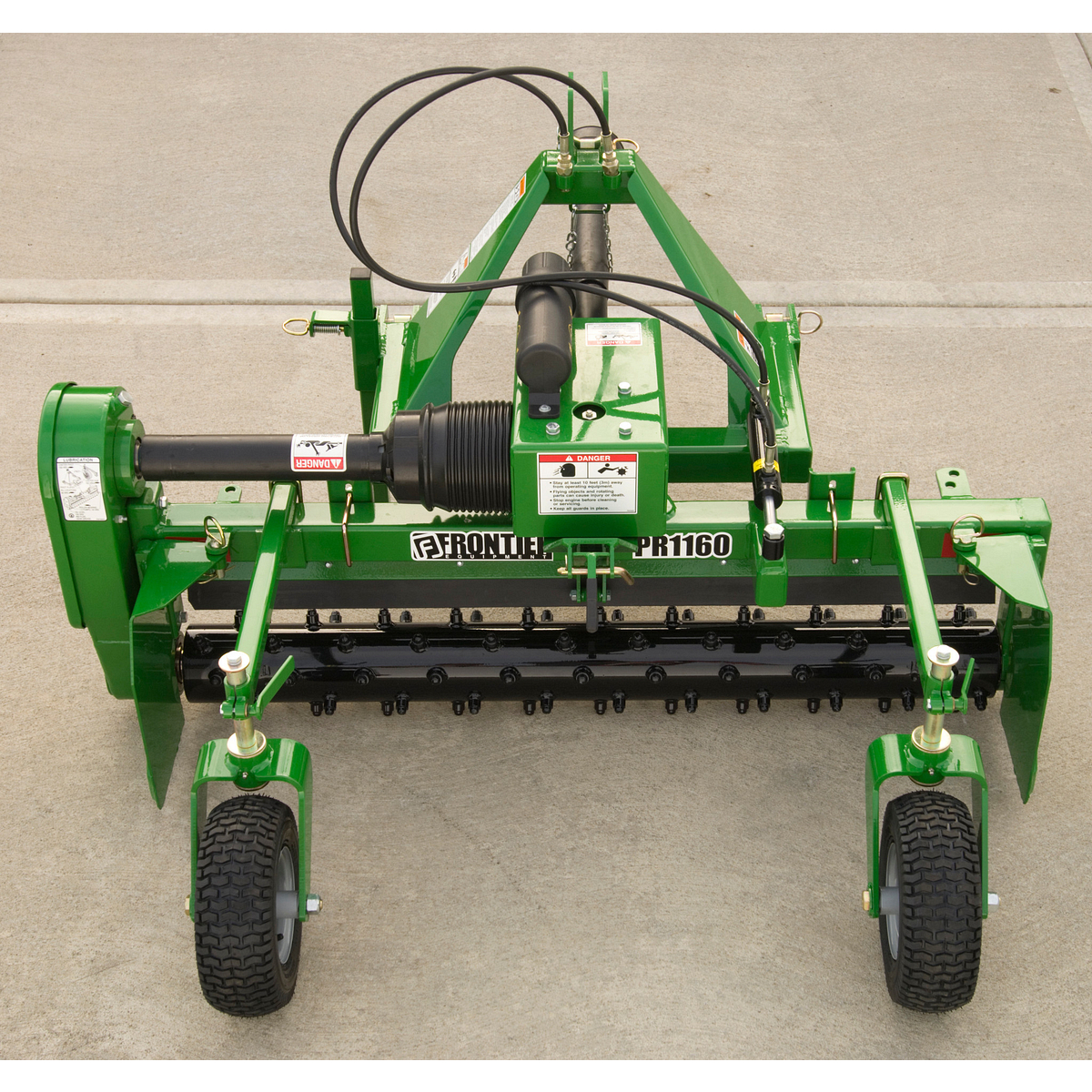

Front view of a green Frontier PR1160 agricultural implement with a steel frame, hydraulic hoses, rotating cutting drum, adjustable side skids, and two black rubber support wheels on a concrete surface.

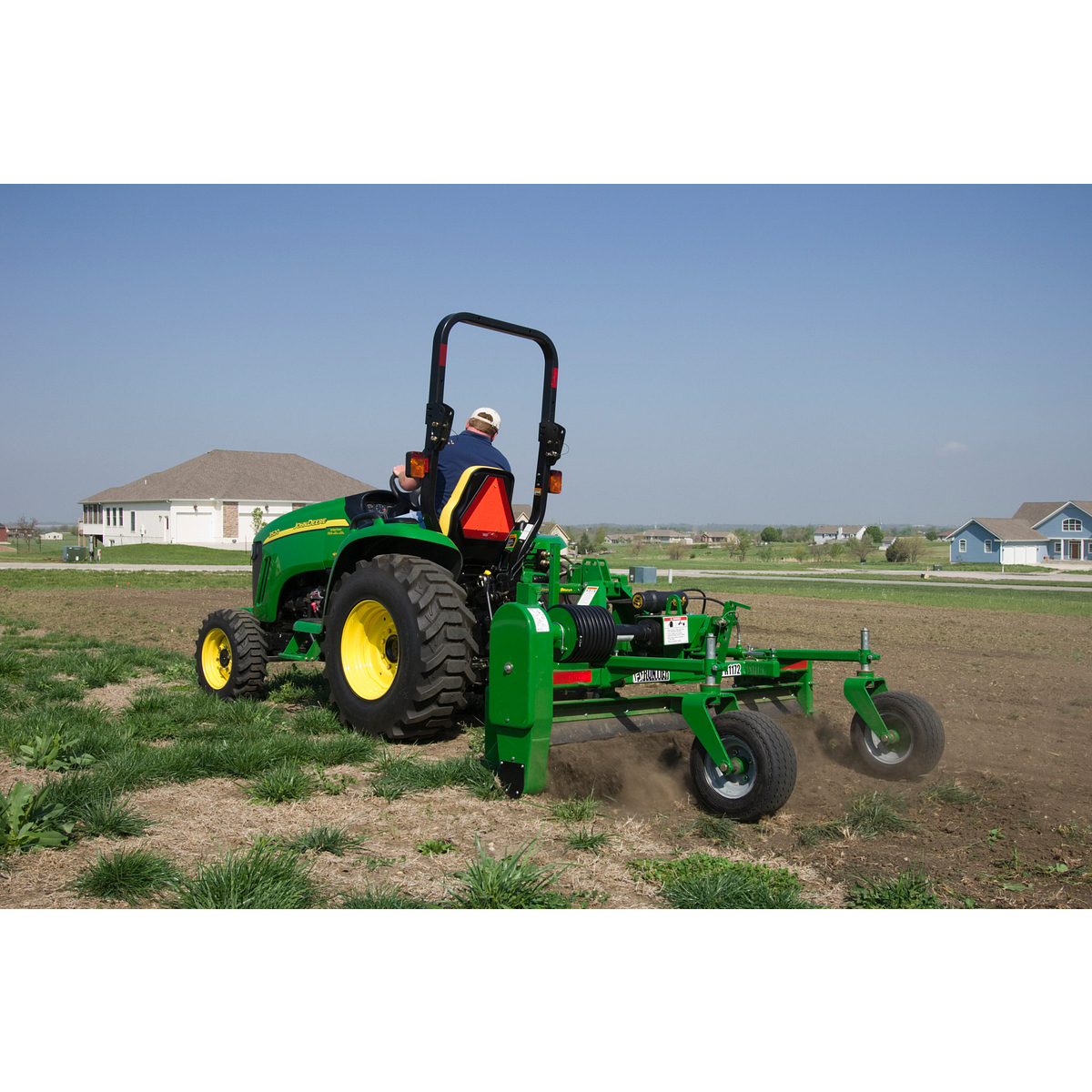

A person operating a green tractor with a rear-mounted soil cultivation attachment, moving across a dry, grassy field. Dirt is being turned behind the implement, with houses and open land visible in the background under a clear sky.

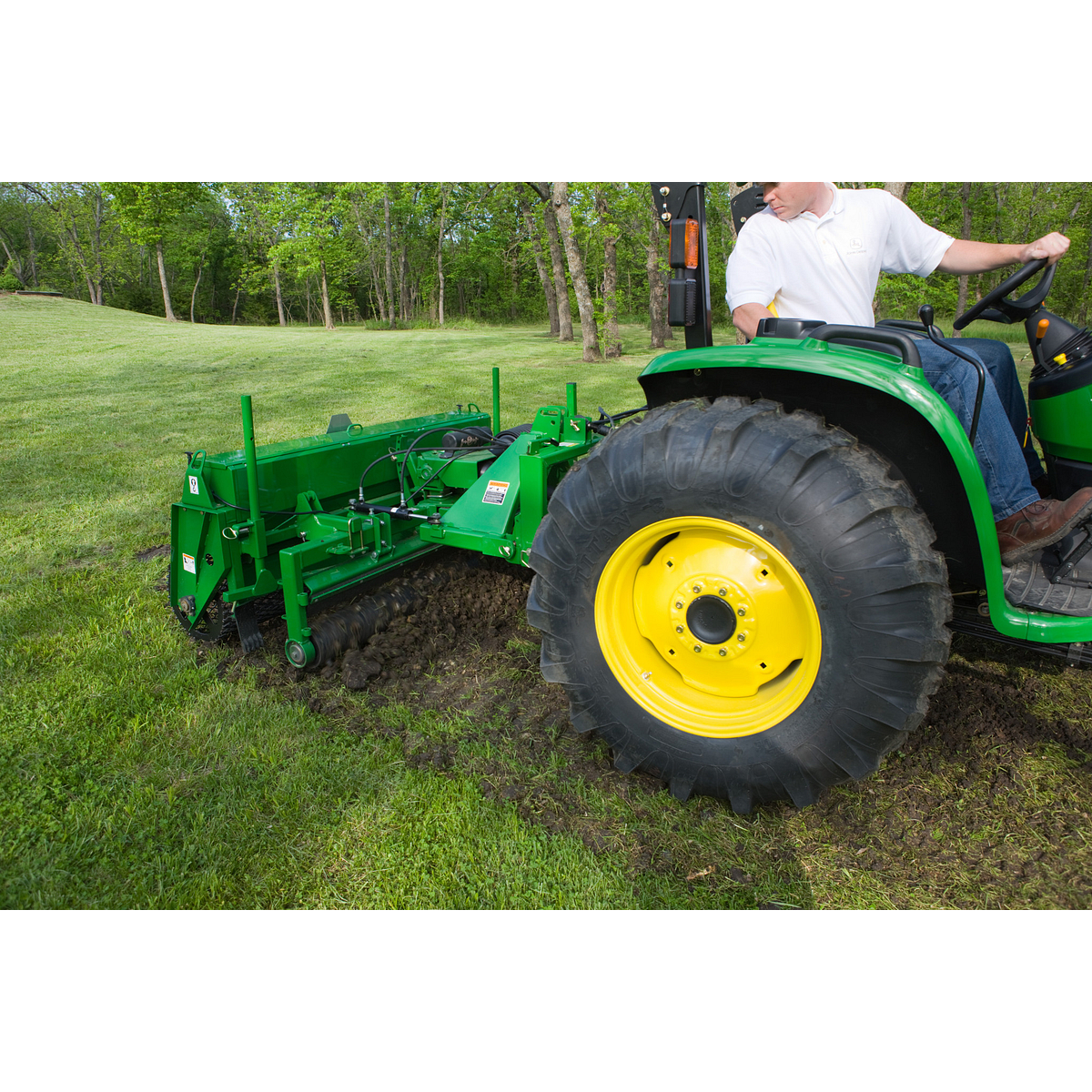

A green tractor with yellow wheels pulls a green soil-cutting attachment that is digging a narrow trench in a grassy field, while a person operates the tractor. Trees and open lawn are visible in the background.
No items found.
new
John Deere
PR1160
Compact Tractors Attachments

John Deere PR1160

Starting at

Angle adjustment

From the tractor seat, the operator can easily adjust the angle of the Frontier™ PR11 Series Power Rake for directing material by using the hydraulic controls. The steel frame offers excellent visibility of the work being done.

Frontier power rake hitched to a small tractor raking dirt along a stone retaining wall
Carbide teeth retain moisture with fracture pattern

By striking the seedbed sub base, the carbide teeth on Frontier™ PR11 Series Power Rakes leave a fracture pattern that retains moisture. The carbide material provides long life and durability.

Close-up of a row of black carbide cutting teeth mounted along the edge of a rotating drum
Adjustable end plate

End plates on the Frontier™ PR11 Series Power Rakes are reinforced with hardened steel for longer life and are easily movable. When the end plate is in the forward position, the power rake becomes a box blade and collects larger material for disposal on the edge of the worksite. In the storage position, the power rake becomes a rear blade, forming windrows of larger material and debris. The end plate can be flared out when working along foundations or sidewalks.

Close-up of PR11 Power Series Rake showing adjustable end plate with hydraulic lines and a roller with multiple blades underneath
Question text goes here

Answer text goes here

Dimensions
Machine Length

55 in.

Machine Length

139.7 cm

Machine Height

36 in.

Machine Height

91.4 cm

Transport Width

64 in.

Transport Width

162.6 cm

Working Width

56 in.

Working Width

142.2 cm

Working Width At Max Angle

54 in.

Working Width At Max Angle

137.2 cm

Weight
Operating

575 lb.

Operating

249.5 kg

Shipping

750 lb.

Shipping

340.2 kg

Tractor Compatibility
PTO Horsepower

18-35 hp

PTO Horsepower

13.4-26.1 kW

PTO Speed

540 rpm

Hydraulic Requirement

1500 rpm

Hitch
Compatibility

Category 1

Rotor
Speed

285 rpm

Direction Of Travel

Against DOT

Quantity Of Carbide Teeth Per Rotor

89

Working angles
Degrees Left or Right

0-15 degree (angle)

Parking Stands
Standard

Yes

Depth Control
Type

Dual independent adjustable gauge wheels

Setup Time
Labor Hours

0.33 hr

Warranty
Time Period

1 year
