John Deere
PR1148
Compact Tractors Attachments

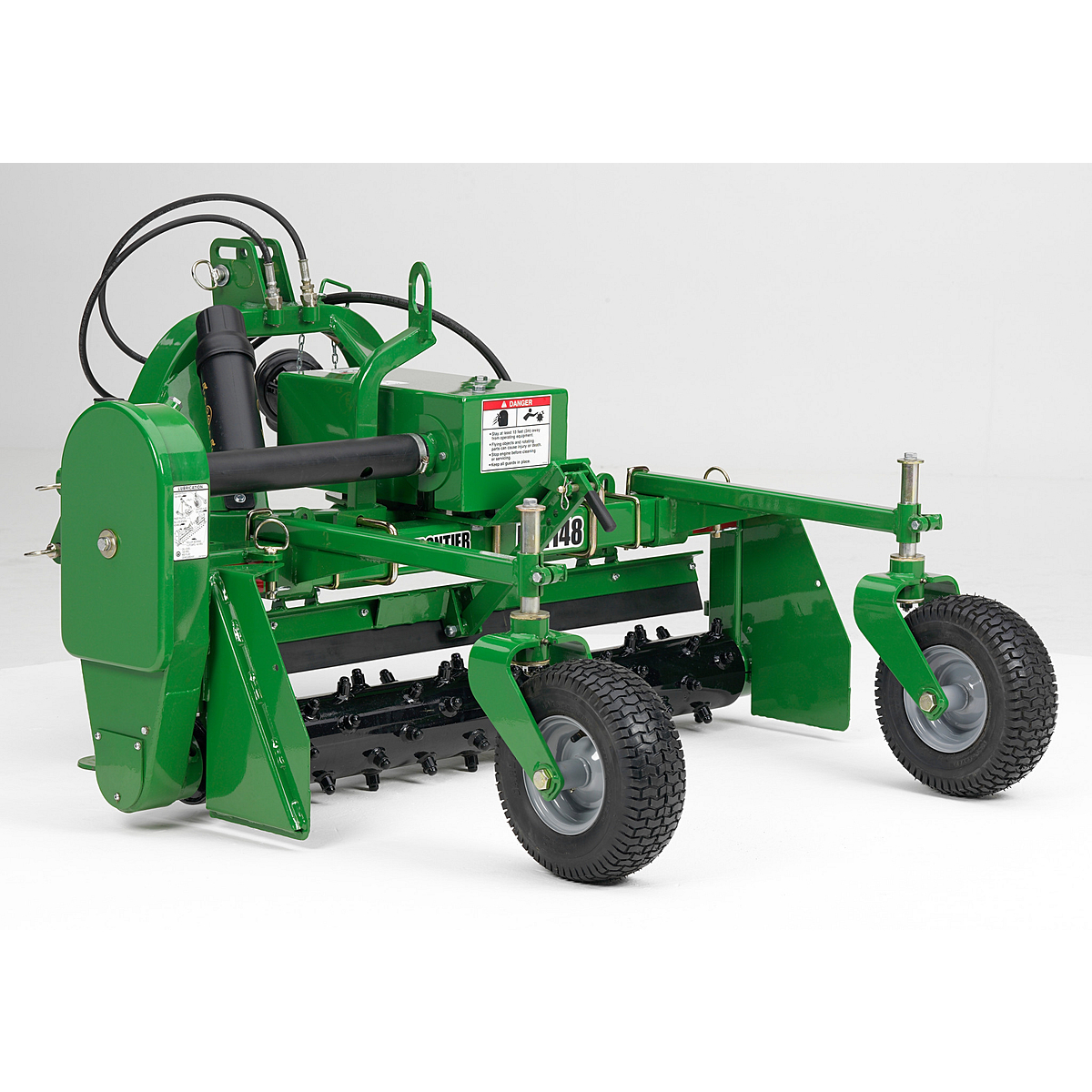

John Deere PR1148

Starting at

Carbide teeth retain moisture with fracture pattern

By striking the seedbed sub base, the carbide teeth on Frontier™ PR11 Series Power Rakes leave a fracture pattern that retains moisture. The carbide material provides long life and durability.

Close-up of a row of black carbide cutting teeth mounted along the edge of a rotating drum
Adjustable end plate

End plates on the Frontier™ PR11 Series Power Rakes are reinforced with hardened steel for longer life and are easily movable. When the end plate is in the forward position, the power rake becomes a box blade and collects larger material for disposal on the edge of the worksite. In the storage position, the power rake becomes a rear blade, forming windrows of larger material and debris. The end plate can be flared out when working along foundations or sidewalks.

Close-up of PR11 Power Series Rake showing adjustable end plate with hydraulic lines and a roller with multiple blades underneath
Angle adjustment

From the tractor seat, the operator can easily adjust the angle of the Frontier™ PR11 Series Power Rake for directing material by using the hydraulic controls. The steel frame offers excellent visibility of the work being done.

Frontier power rake hitched to a small tractor raking dirt along a stone retaining wall
Question text goes here

Answer text goes here

Dimensions
Machine Length

54 in.

Machine Length

137.2 cm

Machine Height

34 in.

Machine Height

86.4 cm

Transport Width

54 in.

Transport Width

137.2 cm

Working Width

48 in.

Working Width

121.9 cm

Working Width At Max Angle

46 in.

Working Width At Max Angle

116.8 cm

Weight
Operating

550 lb.

Operating

226.8 kg

Shipping

700 lb.

Shipping

317.5 kg

Tractor Compatibility
PTO Horsepower

15-22 hp

PTO Horsepower

11.2-16.4 kW

PTO Speed

540 rpm

Hydraulic Requirement

1500 rpm

Hitch
Compatibility

Category 1

Rotor
Speed

285 rpm

Direction Of Travel

Against DOT

Quantity Of Carbide Teeth Per Rotor

76

Working angles
Degrees Left or Right

0-15 degree (angle)

Parking Stands
Standard

Yes

Depth Control
Type

Dual independent adjustable gauge wheels

Setup Time
Labor Hours

0.33 hr

Warranty
Time Period

1 year
