John Deere
PHD235
Compact Tractors Attachments

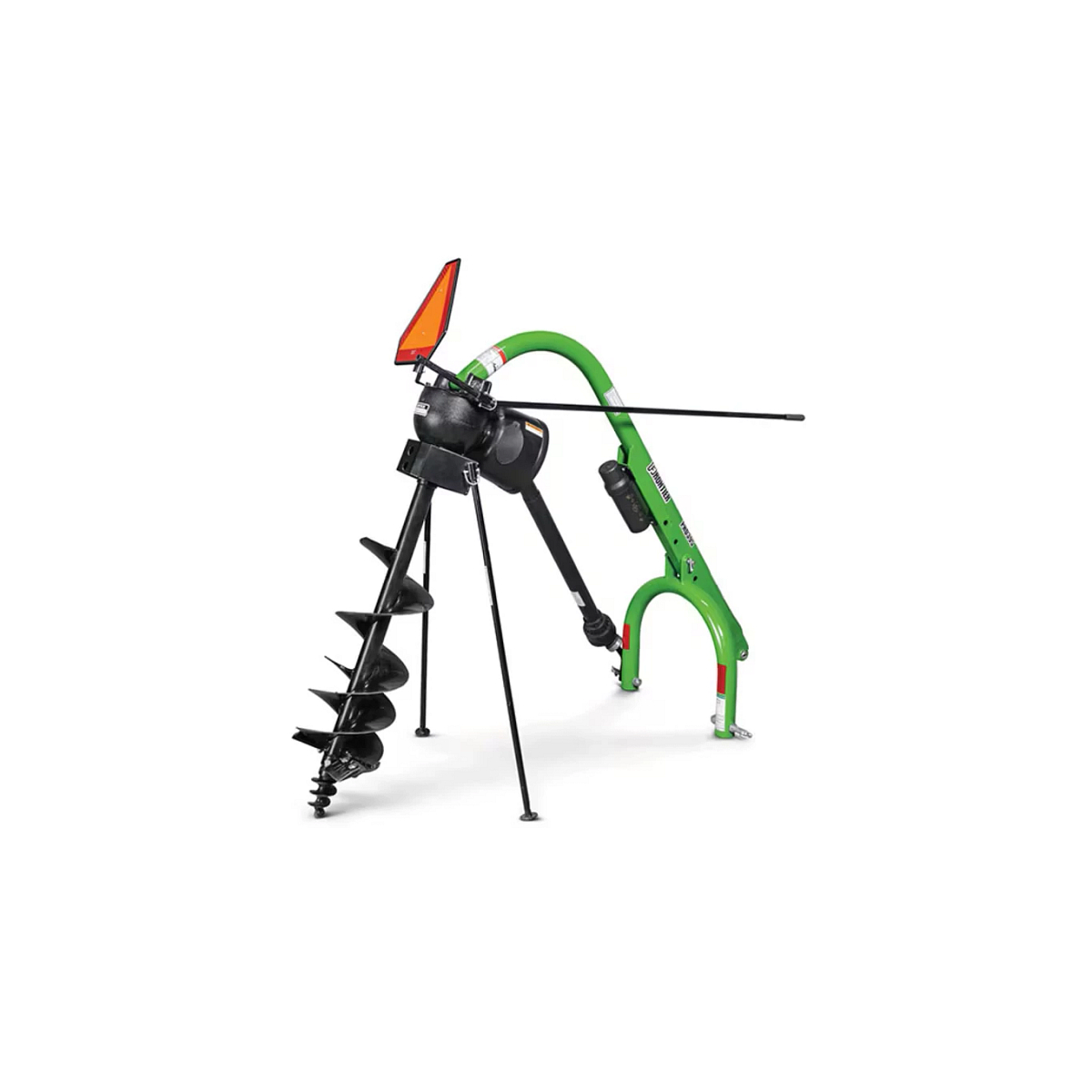

John Deere PHD235

Starting at

Anti-Burying Plate

The anti-burying plate positions the teeth at a steeper angle, ensuring aggressive soil penetration. This design prevents the auger from screwing itself into the ground, allowing soil to pulverize efficiently.

Studio close-up of the anti-burying plate on a black post hole digger's auger
Auger Positioning Handle

The auger positioning handle allows the operator to easily align the auger into the desired position from the operator’s seat prior to digging. The auger positioning handle is in base equipment on all PHD Series Post-Hole Diggers.

PHD395 post hole digger with auger positioning handle standing in a shop
Hook-Up Parking Stand

The removable hook-up parking stand makes mounting and detaching the post hole digger to the tractor a safer, easier, one-person job. While in-between jobs, the parking stand allows the post hole digger to be stored in the upright position.

Side view of a post hole digger with green hook-up parking stand set up in a workshop
Question text goes here

Answer text goes here

Dimensions
Boom OD

3.5 in.

Boom OD

8.9 cm

Yoke OD

3.11 in.

Yoke OD

7.9 cm

Auger Speed
Rotations Per Minute

185

Gearbox
Gear Ratio

2.92:1

Tractor Compatibility
PTO HP Range

20-35 hp

PTO HP Range

13.4-29 kW

3-Point Hitch
Category

Category 1

Weight
Unit

178 lb.

Unit

90.7 kg

Shipping (2 Per Case)

356 lb.

Shipping (2 Per Case)

213.2 kg

Auger
Model Number

PHD235

Auger Weight

33 (6x48 in.), 41 (9x48 in.), 60 (12x48 in.) lb.

Auger Weight

15 (6x48 in.), 18.6 (9x48 in.), 27.2 (12x48 in.) kg

Auger Flighting Type

Semi-Double Flighting

Auger Dimensions

6x48, 9x48, 12x48 in.

Auger Points

Spiral Point or Cast Ductile Iron

Cutting Edges

Replaceable Carbide Cutting Edge
