Jet agitation or recirculation ensures even mixture of material from start to finish. With an in-line filter and shutoff valve, a dirty filter can be cleaned whenever needed, even if the tank is full. When you’re done, a tank sump allows for complete drainage.

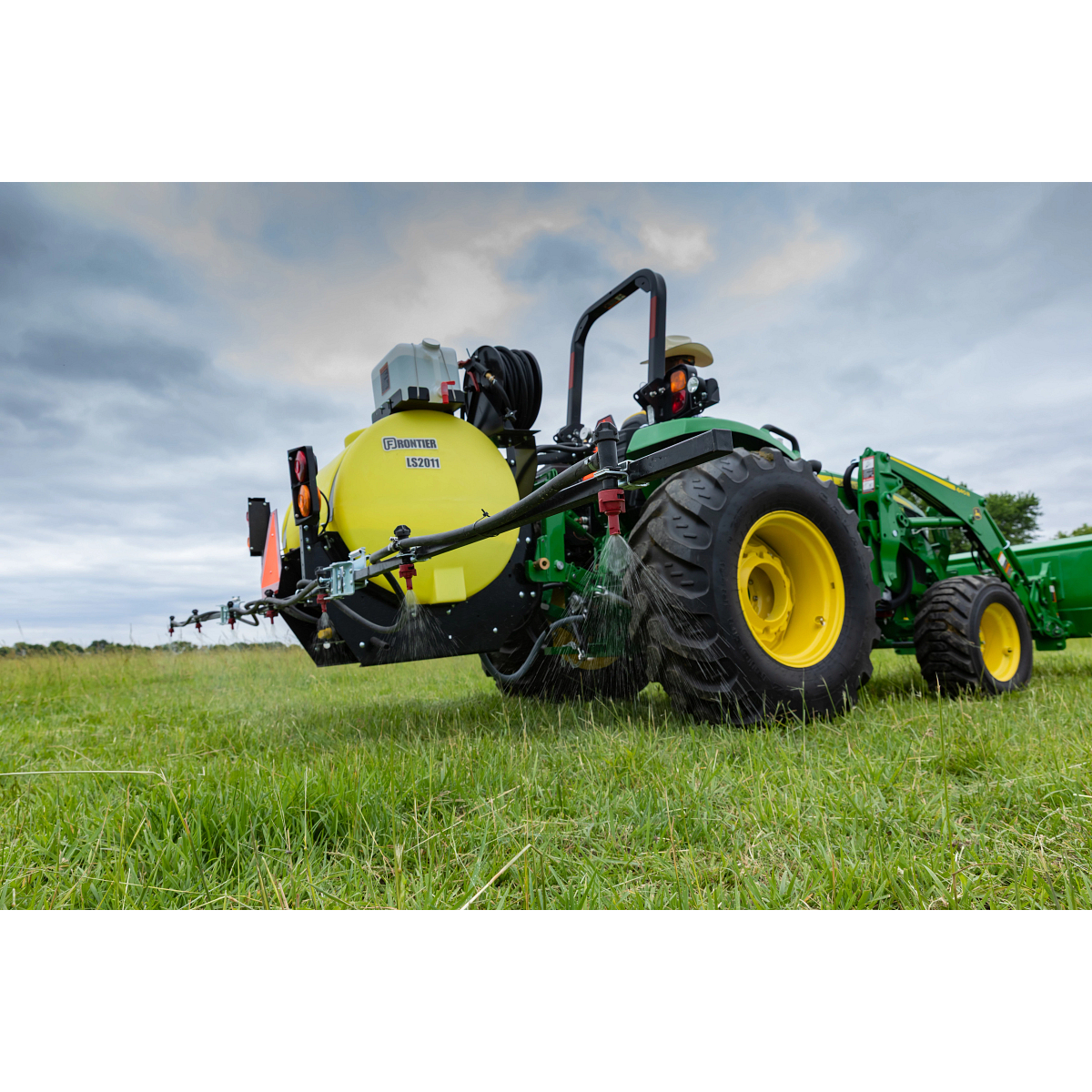

For hard-to-reach or small areas, a 100-ft (30.5-m) hose reel kit is available (pictured). All models in the LS20 Series Sprayers include a hand-held spray gun with a 30-ft (9.14-m) hose as standard equipment.

Implement-to-tractor hookup is simple with iMatch™ Quick-Hitch Category 1 compatibility.

Answer text goes here
Working Width | 18, 24, 30 ft |
Working Width | 5.5, 7.3, 9.1 m |
Working Width - Boomless | 30 ft |
Working Width - Boomless | 9.1 m |
Transport Width | 6.4, 6.3; Boomless: 4.6 ft |
Transport Width | 1.96, 1.93; Boomless: 1.4 m |
Length | 57, 54; Boomless: 51 in. |
Length | 145, 137; Boomless: 130 cm |
Height | 57, 83, 89; Boomless: 57 in. |
Height | 145, 210, 226; Boomless: 145 cm |
Sprayer Tank Capacity | Sprayer tank: 110; Fresh water tank: 5 gal. |
Sprayer Tank Capacity | Sprayer tank: 416.4; Fresh water tank: 19 L |
Dry Weight | 271-450 lb. |
Dry Weight | 123-204 kg |
Laden Weight | 1229-1450 lb. |
Laden Weight | 557-658 kg |
Type | Category 1 (Category 2 optional kit 5CS0023); Quick hitch compatible |
Type | Dry boom |
PTO | Standard 6-roller pump: Hypro 6 roller PTO cast iron (6500C); Optional 6-roller pump: Hypro 6 roller PTO silver cast (6500XL); Optional 7-roller pump: Hypro 7 roller PTO cast iron (7700C); Optional 7-roller pump: Hypro 7 roller PTO silver cast (7700XL) |
Flow Rate | Hypro 6-roller pump maximum flow at 540 rpm: 36.7 L/min, 9.7 gpm; Hypro 7-roller pump maximum flow at 540 rpm: 53.8 L/min, 14.2 gpm |
Max Pressure | 20.7 bar, 300 psi (6-roller pump); 13.8 bar/ 200 psi (7-roller pump) |
Hose Size | 0.5 in., 1.3 cm |
Sizes | 18, 24, 30 ft, Boomless: 30 ft; 5.5, 7.3, 9.1 m, Boomless: 9.1 m |
Structure | Square tube construction, three sections |
Fold | Manual |
Breakaway | Rear |
Nozzle Type | Nozzle body: 1/4 turn diaphragm with check valve |
Nozzle Tip | Quantity: 3 (boomless), 7, 14, 18; Type: Air induction, 110-degree flat spray (Boomless: flood) |
Nozzle Tip Size | 1.5 L/min, 0.4 gpm; Boomless: 1.9 L/min, 0.5 gpm |
Nozzle Spacing | 76, 51 cm, 30, 20 in.; Boomless: N/A |
Spot Sprayer | Spray gun, 30 ft (9.1 m) hose |
Pump Control | PTO |
Pressure Control | Adjustable |
Max Working Pressure | 150 psi |
Max Working Pressure | 10.3 bar |
Section Control | 6B control valves |
Agitation | Jet agitation |
Transport Lights | 7-pin trailer plug (SAE J560) |
Equipment | Optional hose reel, 100 ft (30.5 m) hose |
Date Collected | 2020-08-01 |
