John Deere
LS2004
Compact Tractors Attachments

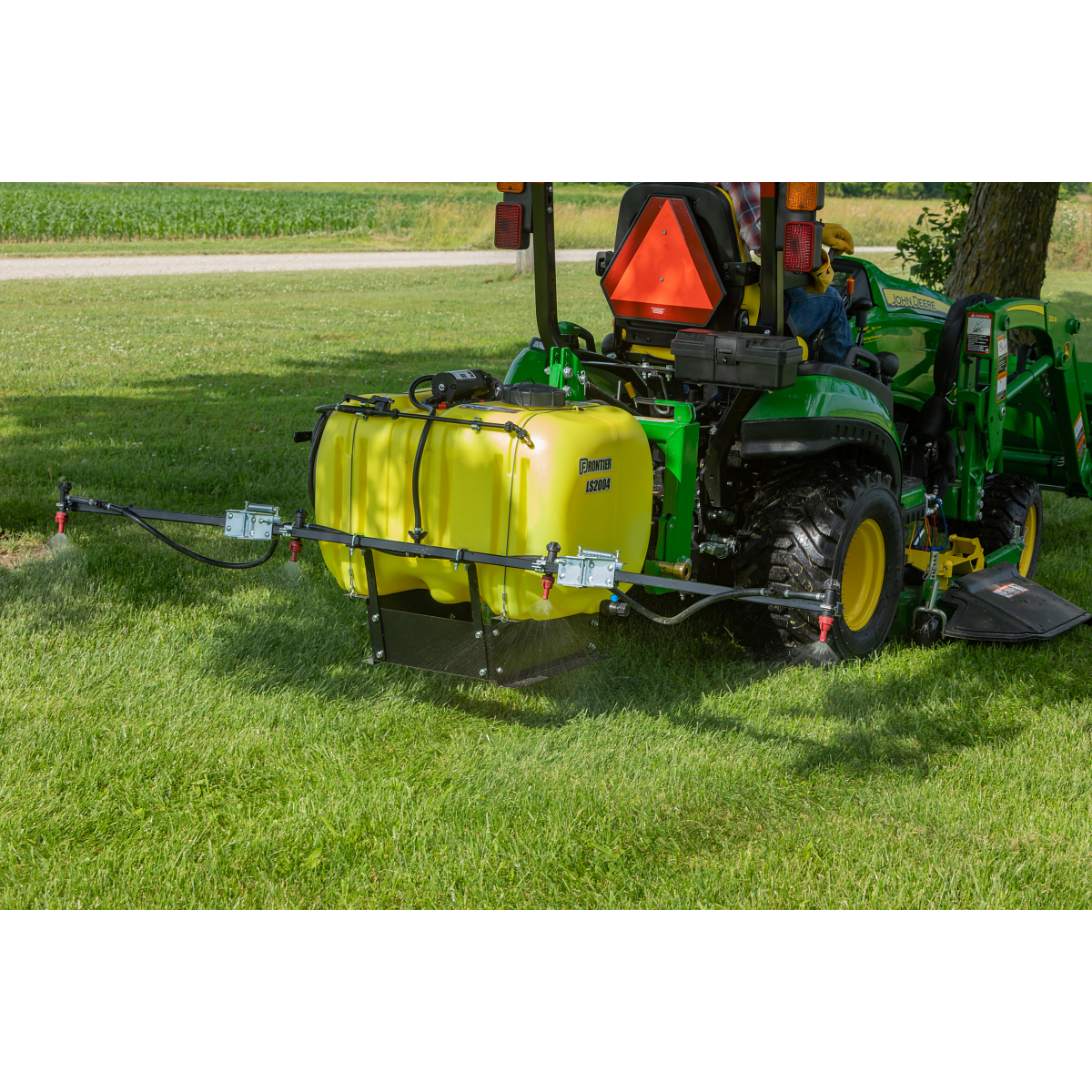

John Deere LS2004

Starting at

iMatch™ Quick-Hitch compatible for easy hookup

Implement-to-tractor hookup is simple with iMatch™ Quick-Hitch Category 1 compatibility.

Top view of the green frame, yellow tank, and connection point between an LS liquid sprayer and tractor using iMatch™ Quick-Hitch compatibility
Reach Stubborn Weeds

For hard-to-reach or small areas, a 100-ft (30.5-m) hose reel kit is available (pictured). All models in the LS20 Series Sprayers include a hand-held spray gun with a 30-ft (9.14-m) hose as standard equipment.

Close-up of a hose reel mounted on a yellow agricultural sprayer, featuring a coiled black hose and fittings, with a grassy field and trees in the background.
Tank Components for Consistent Placement of Chemicals

Jet agitation or recirculation ensures even mixture of material from start to finish. With an in-line filter and shutoff valve, a dirty filter can be cleaned whenever needed, even if the tank is full. When you’re done, a tank sump allows for complete drainage.

Close-up of the jet recirculation stream within a yellow LS2004 3-Point Mounted Liquid Sprayer's tank
Question text goes here

Answer text goes here

Dimensions
Working Width

10, 12.5 ft

Working Width

3, 3.8 m

Working Width - Boomless

24 ft

Working Width - Boomless

7.3 m

Transport Width

3.6, 4.33; Boomless: 2.75 ft

Transport Width

1.12, 1.32; Boomless: 0.84 m

Length

32; Boomless: 28 in.

Length

81.28; Boomless: 71 cm

Height

32, 34; Boomless: 34 in.

Height

81, 86; Boomless: 86 cm

Tank
Sprayer Tank Capacity

45 gal.

Sprayer Tank Capacity

170.3 L

Weight
Dry Weight

79-96 lb.

Dry Weight

36-44 kg

Laden Weight

79-96 lb.

Laden Weight

36-44 kg

Tractor Compatibility
Voltage

12

Current Draw

At 6.9 bar (100 psi): 10 amp, 17.5 amp

Hitch
Type

Limited Category 1/Category 1; Quick hitch compatible

Pump
Type

Dry boom

Electric

Standard: Electric diaphragm, 15.5 L/min, 4.1 gpm; Optional: Electric diaphragm, 8.3 L/min, 2.2 gpm

Flow Rate

Electric pump maximum flow: 8.3 L/min, 2.2 gpm; 15.5 L/min, 4.1 gpm

Max Pressure

Electric pump: 6.9 bar, 100 psi

Hose Size

0.95 cm, 1.3 cm; 3/8 in., 1/2 in.; Boomless: 1.3 cm, 0.5 in.

Boom
Sizes

3 m, 3.8 m; 10 ft, 12.5 ft; Boomless: 7.3 m, 24 ft

Structure

Square tube construction, three sections

Fold

Manual

Breakaway

Rear

Application
Nozzle Type

Nozzle body: 1/4 turn diaphragm with check valve

Nozzle Tip

Quantity: three (boomless), four, five; Type: Air induction, 110-degree flat spray (boomless: flood)

Nozzle Tip Size

0.4 gpm, 1.5 L/min; Boomless: 0.5 gpm, 1.9 L/min

Nozzle Spacing

76 cm, 30 in.; Boomless: N/A

Spot Sprayer

Sprayer wand, spray gun; Hose length: 6.1 m, 20 ft

Control System
Pump Control

Inline switch

Pressure Control

Adjustable; Not applicable on 3 m (10 ft) boom

Max Working Pressure

100 psi

Max Working Pressure

6.9 bar

Section Control

Inline valves

Agitation

Excess flow plumb to tank

Options
Equipment

Optional hose reel; Hose length: 30.5 m, 100 ft

Additional Information
Date Collected

2020-08-01
