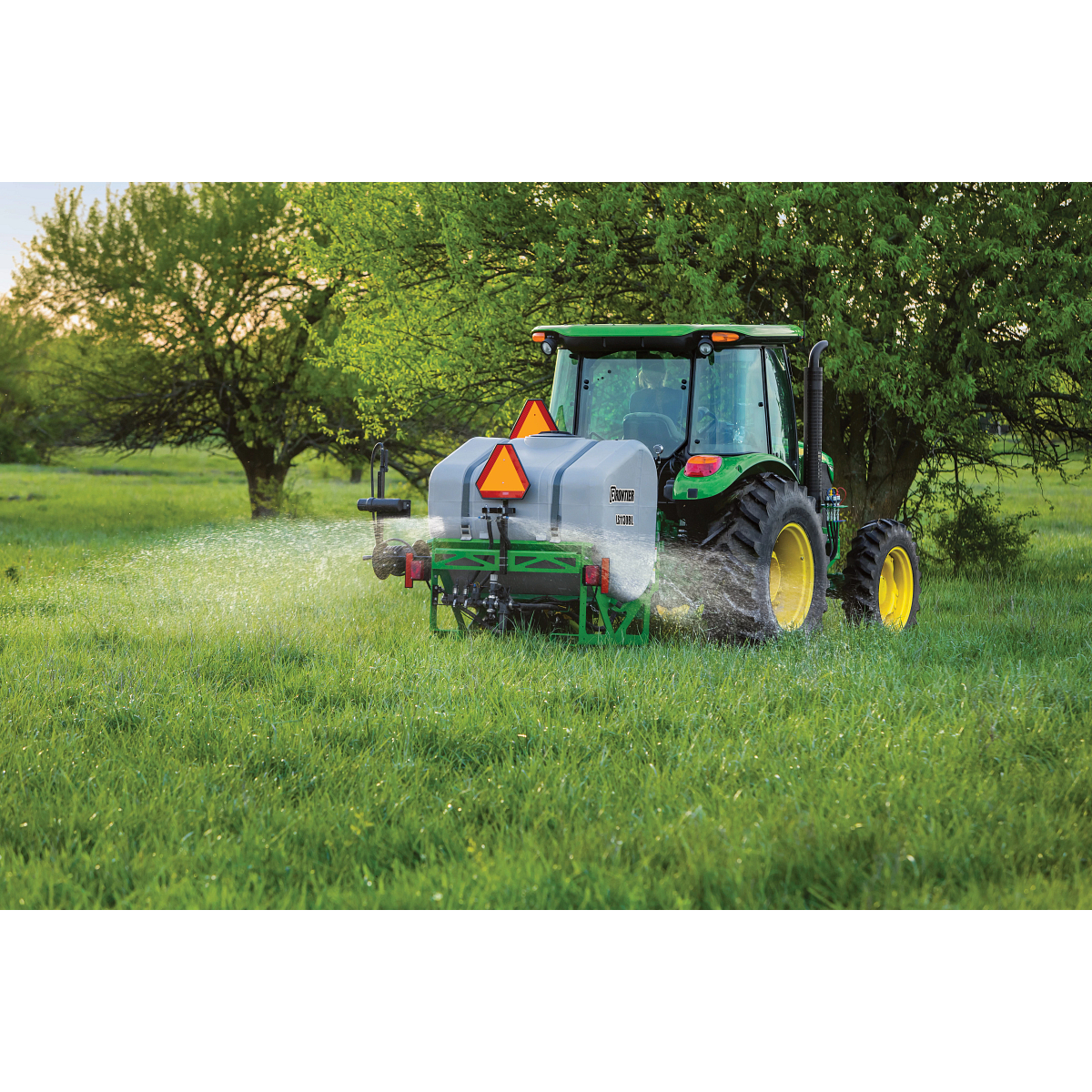

A tractor drives through a grassy field, spraying liquid from a tank-mounted applicator on the back, with trees in the background on a sunny day.

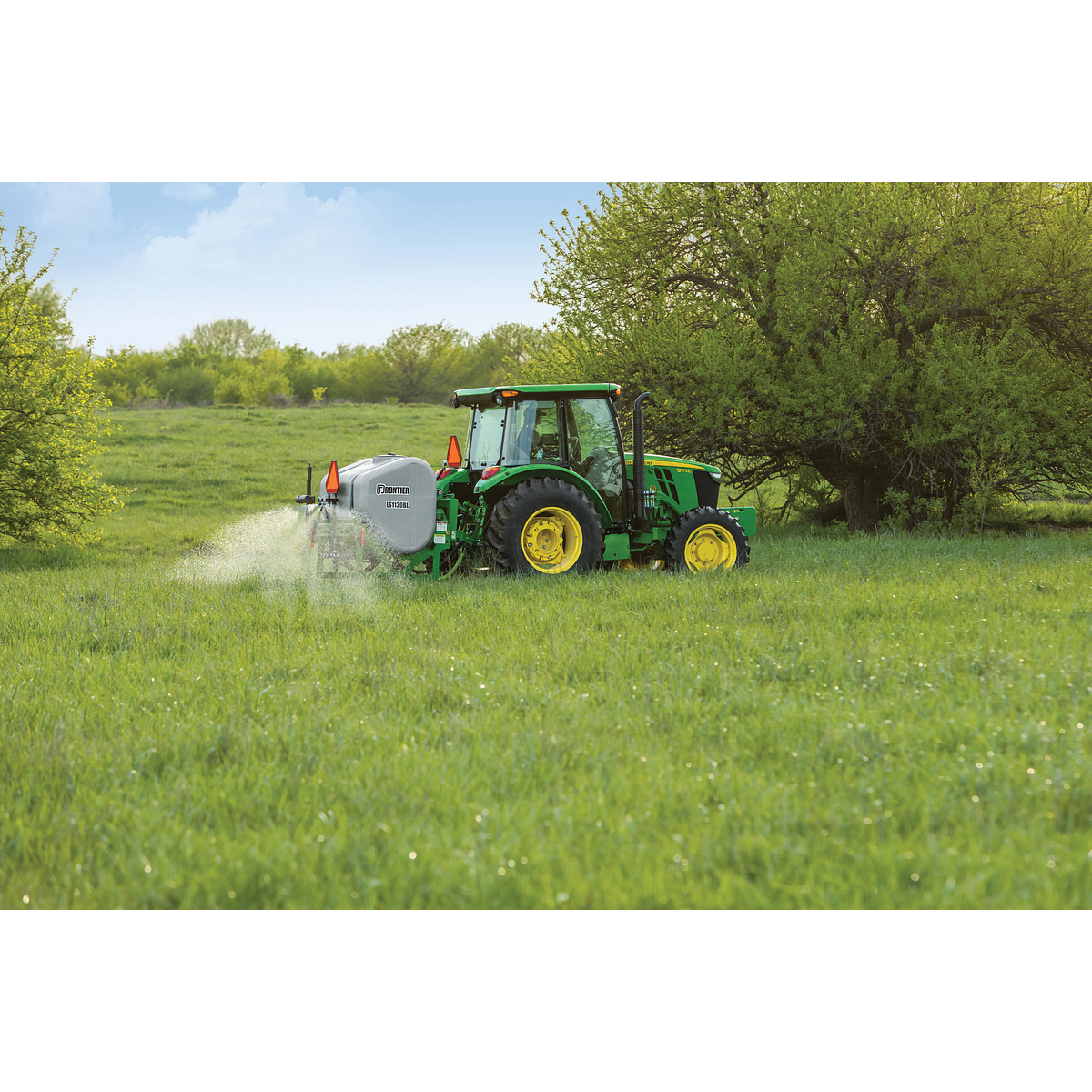

A tractor pulls a sprayer across a lush, grassy field, releasing a fine mist near a tree line on a sunny day.
No items found.
new
John Deere
LS1130BL
Compact Tractors Attachments

John Deere LS1130BL

Starting at

Key Features

  • Up to 30 ft. (9.14 m) working width
  • 2 Tank Options – 250- or 300-gal. (946.4- or 1135.6-L)
  • Fully-Integrated Parking Stand With Built-In Pallet Fork Pockets
  • Category 2 and 3 Quick Coupler Compatible
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Easy to Maneuver

The LS1130BL boomless model uses 2 nozzles located directly behind the tank that provide a 30-ft (9.1 m) maximum spray width. It’s perfect for working in areas with trees or other obstacles to work around.

Tractor with yellow wheels pulling a tank sprayer, parked in a grassy field with leafy trees in the background on a sunny day.
Easy loading and unloading

Tube frame design includes a parking stand with integrated pallet fork tine pockets for easy loading, unloading, and positioning for storage

John Deere tractor with a front loader lifting and loading a large sprayer tank labeled onto a flatbed truck outdoors under a partly cloudy sky.
Teardrop-shaped tank allows for quick clean-up

The shape of the tank allows the liquid inside the tank to completely drain out, making it faster to switch from one chemical to the next, or prepare for storage.

Field view of LS1130 Sprayer on 5075E Tractor spraying in grassy field
Question text goes here

Answer text goes here

Dimensions
Working Width

30 ft

Working Width

9.14 m

Transport Width

6.9 ft

Transport Width

2.1 m

Tank
Sprayer Tank Capacity

250 (Tank one); 300 (Tank two) gal.

Sprayer Tank Capacity

946 (Tank one); 1136 (Tank two) L

Weight
Dry Weight

635, 650 lb.

Dry Weight

288, 295 kg

Loaded with Options

2721 (Option one); 3154 (Option two) lb.

Loaded with Options

1234 (Option one); 1431 (Option two) kg

Tractor Compatibility
Horsepower Range

50 hp

Horsepower Range

37.3 kW

Hitch
Type

Category 2 and 3, 3-point hitch with quick-hitch

Speed
Application Speed

4-10 mph

Application Speed

6.4-16.1 km/h

Maximum Transport Speed

25 mph

Maximum Transport Speed

40 km/h

Frame
Structure

Tube frame

Pump
Hydraulic

FMC-75-HYD-204 (pump 75 / motor 204)

Flow Rate

Maximium with PTO pump: 79.5 L/min, 21 gpm; With hydraulic pump: 102.2 L/min, 27 gpm

Boom
Structure

Boom-less

Application
Section Valves

SV.1999A.1V.WP

Nozzle Tip

Hypro XT-Boom Xtender XT020

Nozzle Spacing

Off center: 50.8cm, 20 in.

Safety features
Transport Lights

Installed

Stand

Fully integrated with pallet fork insert

Additional Information
Date Collected

2017-09-11
