John Deere
LP2196
Compact Tractors Attachments

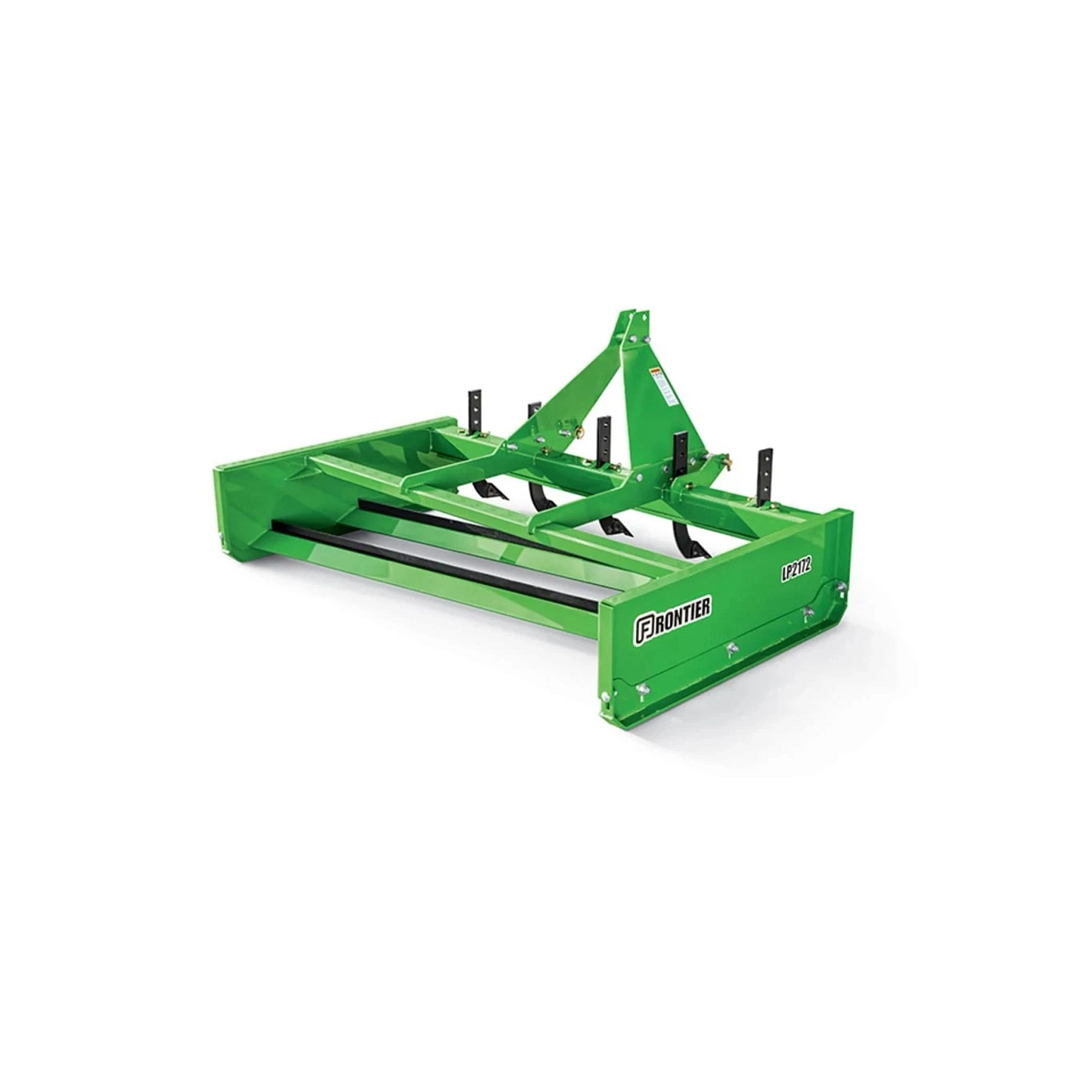

John Deere LP2196

Starting at

Scarifier Shanks in Base

The scarifier shanks can be easily adjusted for depth control, helping to rip up hard ground and aggressively grade.

Front right view of a LP2196 land plane resting on gravel with scarifier shanks on display
Cutting Edges

Frontier landplanes also offer reversible and replaceable cutting edges.

Top close-up of three green bars of a land plane's frame and black cutting edge
Adjustable Skid Shoes Extend Cutting Edge Life

Skid shoes increase the life of the cutting edges on the land planes while avoiding damage to the working surface. The skid shoes are adjustable up and down on each side plate to allow for the creation of a crown on a road for water runoff. By replacing the skid shoes when needed, it will extend the life of the land plane.

Gloved hand cranking open a bolt on the side of a green Frontier land plane with a wrench. The implement is sitting on grass.
Question text goes here

Answer text goes here

Dimensions
Working Width

96 in.

Working Width

243.8 cm

Overall Width

100 in.

Overall Width

254 cm

Overall Height

35 in.

Overall Height

88.9 cm

Overall Length

54 in.

Overall Length

137.2 cm

Height To Hitch Pins

16 in.

Height To Hitch Pins

40.6 cm

Weight
Operating

653 lb.

Operating

296.2 kg

Shipping

678 lb.

Shipping

307.5 kg

Tractor Compatibility
Required PTO Horsepower

40-90 hp

Required PTO Horsepower

29.8-67 kW

Construction
Side Panel Thickness

1/4 with Formed Edges

Adjustable Skid Shoe Thickness

0.38 in., 0.97 cm

Adjustable Blade Depth

0 to -2.5 via skid shoes

Duty

Standard Duty

Scarifier
Scarifiers Shank

Heat Treated; 4 Positions

Number Of Scarifiers

7

Depth Range

-2, 0, -2, -4

Hitch
3-Point Compatibility

Cat 1 and 2

iMatch™ Compatible (Cat. 1)

Yes

Hitch Type

Clevis with Pin

Hitch Category

Cat 1 & Cat 2

Cutting Edge
Reversible

Yes

Replaceable

Yes

Cutting Edge Material

High Carbon Heat Treated Blades

Cutting Edge Dimensions

3/8 X 6

Number Of Cutting Edges

2

Skid Shoes
Thickness

0.375 in.

Thickness

0.95 cm

Warranty
Time Period

1 year

Scarifier Shanks
Adjustable

4 Position

Heat Treated

Yes

Quantity

7

Scarifier Depth Range

2, 0, -2, -4 in.

Scarifier Depth Range

5.08, 0, -5.08, -10.16 cm
