John Deere
LP2054L
Compact Tractors Attachments

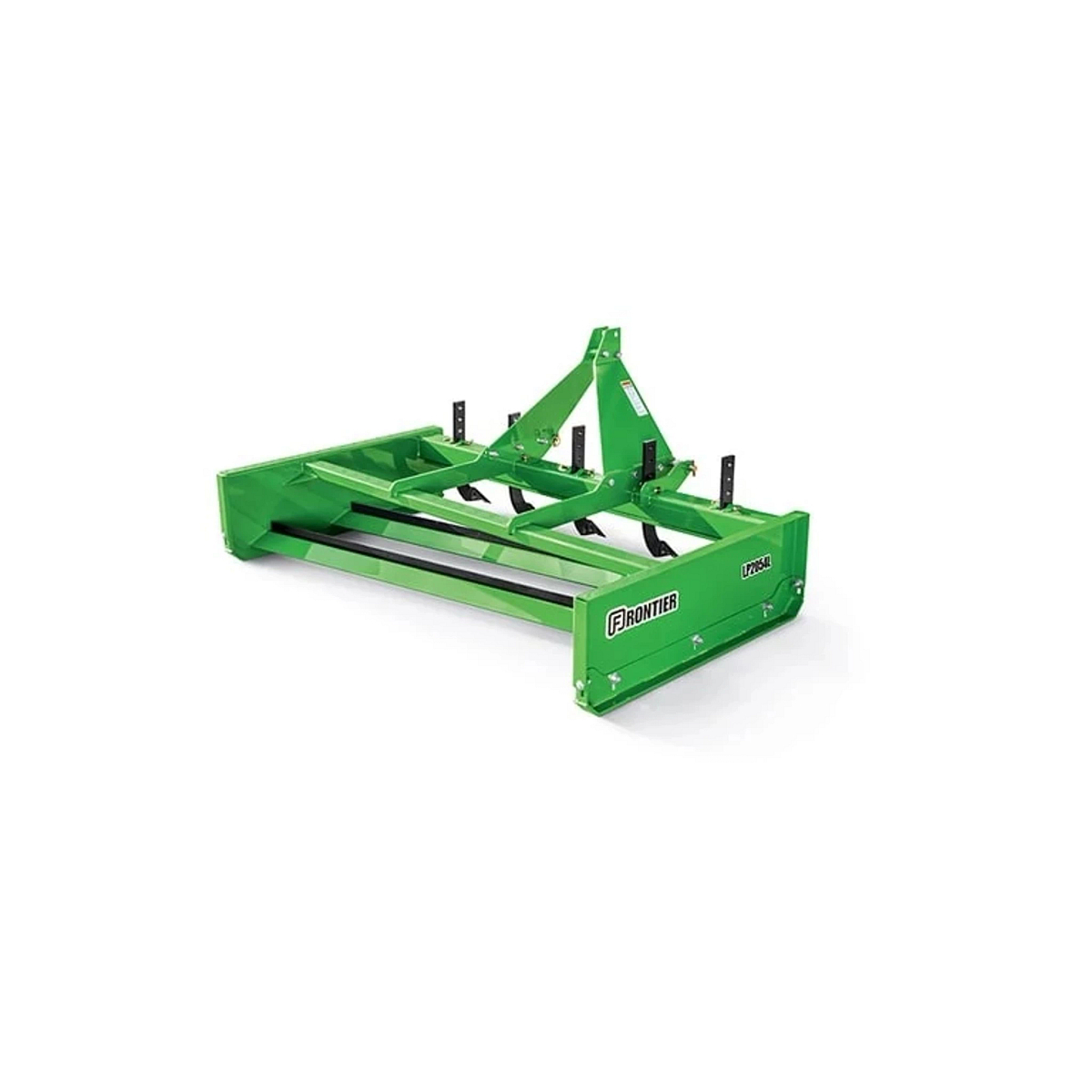

John Deere LP2054L

Starting at

Skid Shoes Adjust Up and Down

Skid shoes are adjustable up and down, extending the life of cutting edges and avoiding surface damage. They allow for creating a crown on roads to facilitate water runoff, with the ability to replace when worn out to prolong the land plane's lifespan.

Gloved hand cranking open a bolt on the side of a green Frontier land plane with a wrench. The implement is sitting on grass.
Reversible Double-Beveled Cutting Edges

Equipped with reversible, double-beveled cutting edges, the land plane offers enhanced grading performance and extends the wear life of the blades, giving users an effective tool for leveling and grading tasks.

Top close-up of three green bars of a land plane's frame and black cutting edge
Scarifier Shanks for Ripping Hard Ground

The adjustable scarifier shanks are perfect for ripping up hard ground or for aggressive grading. They are capable of depth control adjustments to suit various types of groundwork, ensuring optimal performance.

Front right view of a LP2196 land plane resting on gravel with scarifier shanks on display
Question text goes here

Answer text goes here

Dimensions
Working Width

54 in.

Working Width

137.2 cm

Overall Width

58 in.

Overall Width

147.3 cm

Overall Height

33 in.

Overall Height

83.8 cm

Overall Length

48 in.

Overall Length

121.9 cm

Height To Hitch Pins

14 in.

Height To Hitch Pins

35.6 cm

Weight
Operating

316 lb.

Operating

143.3 kg

Shipping

340 lb.

Shipping

154.2 kg

Tractor Compatibility
Required PTO Horsepower

18-30 hp

Required PTO Horsepower

13.4-22.4 kW

Construction
Side Panel Thickness

3/16 with Formed Edges

Adjustable Skid Shoe Thickness

0.25 in., 0.64 cm

Adjustable Blade Depth

0 to -2.5 via skid shoes

Duty

Light Duty

Scarifier
Scarifiers Shank

Heat Treated; 3 Positions

Number Of Scarifiers

4

Depth Range

0, -1.5, -3

Hitch
iMatch™ Compatible (Cat. 1)

Yes

Hitch Type

Clevis with Pin

Hitch Category

Cat 1 Limited

Cutting Edge
Reversible

Yes

Replaceable

Yes

Cutting Edge Material

High Carbon Heat Treated Blades

Cutting Edge Dimensions

3/8 X 6

Number Of Cutting Edges

2

Warranty
Time Period

1 year
