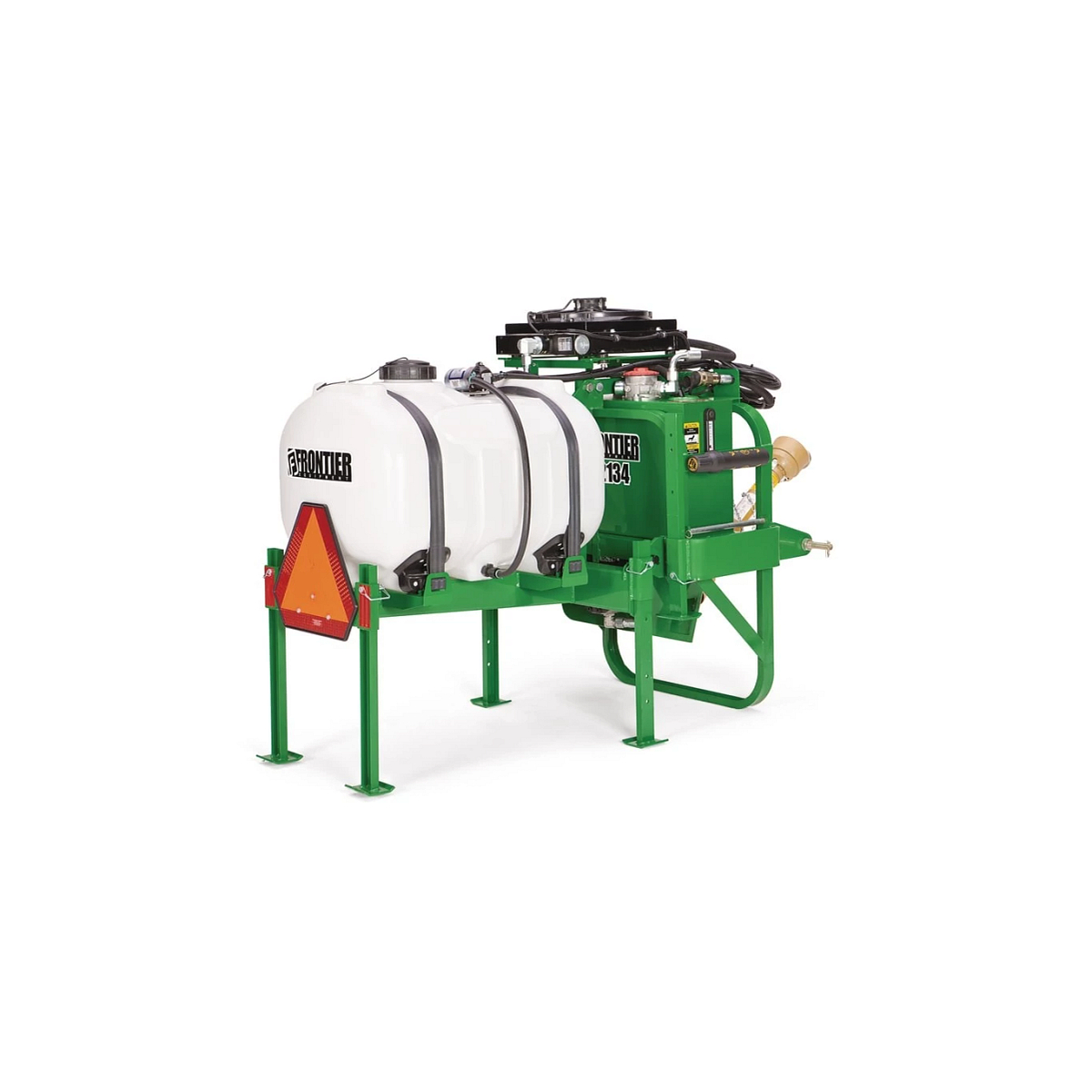

HP21 Hydraulic Power Pack studio shot
No items found.
new
John Deere
HP2134
Compact Tractors Attachments

John Deere HP2134

Starting at

Key Features

  • Thermal Switch Protects Hydraulic System
  • Rear Quick Connect Makes Hookup Convenient
  • Optional Oil Cooler Unit
  • Reliable Power Delivery
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Thermal switch protects hydraulic system

A thermal switch protects the hydraulic system when the hydraulic oil reaches 200 °F (93 °C).

Close-up of an HP20 power pack's thermal switch
Rear quick connect makes hookups convenient

Rear quick connect makes for fast and easy connections.

Front left studio shot of an HP2134 Hydraulic Power Pack
Optional oil cooler unit

The optional oil cooler unit regulates the temperature of the hydraulic fluid for warmer weather implements.

Studio view of the HP20 series hydraulic power pack's optional oil cooler unit
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
HP2134
Hydraulic Power Pack
Erskine
HP20
Landpride
HRS-23
ADD MODEL

Dimensions

Unit Width38 in.
Unit Width965 mm
Unit Width With Weights60 in.
Unit Width With Weights1524 mm
Unit Height52 in.
Unit Height1321 mm
Unit Length30 in.
Unit Length762 mm

Weight

Operating535 lb.159 kg
350 lb		191 kg
421 lb
Operating1177 kg159 kg
350 lb		191 kg
421 lb
Shipping535 lb.
Shipping1177 kg

Tractor Requirements

PTO Horsepower35–56 hp
PTO Horsepower26.1–41.8 kW
PTO RPM540 rpm
Loader (Current John Deere Series)400

Hitch

CategoryCategory 1 and 2
Quick Hitch, Category 2Yes

Hydraulics

Relief Valve Setting3000 psi207 bar
3,000 psi		138 bar
2,000 psi
Relief Valve Setting207 bar207 bar
3,000 psi		138 bar
2,000 psi
Oil CoolerStandardOptionalOptional
Flow At 3000 Psi (207 Bar)20 gpm
Flow At 3000 Psi (207 Bar)75.7 L/min
Oil Reservoir15 gal.94.64 L
25 gal.		132.49 L
35 gal.
Oil Reservoir56.8 L94.64 L
25 gal.		132.49 L
35 gal.
Hose Diameter0.75 in.19 mm
0.75 in.
Hose Diameter19 mm19 mm
0.75 in.
Tank-Mounted StrainerStandard
Tank-Mounted Return FilterStandard, with breatherStandard
Pump RPM1836 rpm

Miscellaneous

Parking StandsStandardStandardStandard
Counter Weight Support700, accepts John Deere weights: 42 lb (19.1 kg) and 70 lb (31.8 kg)

Shipping

ConfigurationOne unit

Setup Time

Labor Hours1.5–2

Warranty

Time Period (Machine)1 year
