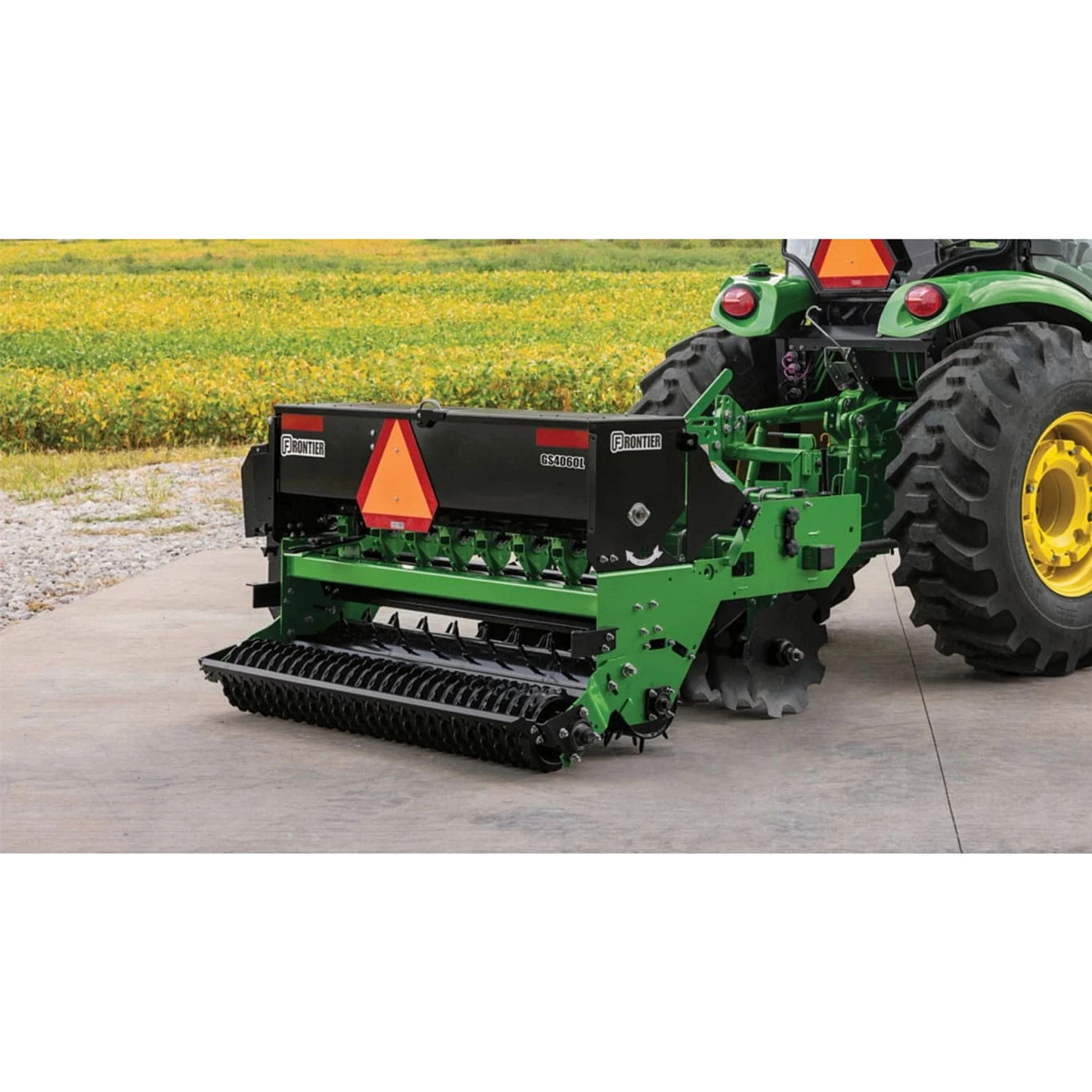

Standard equipment on the GS40L, the spiked drive roller will crush clods, push down seeds, and dimple soil to trap moisture.

The GS40L Series equips users with a choice between front notched disc blades for cutting seed openings or aggressive tillage, and front spiked rollers that form seed pockets and can uproot existing vegetation when angled sharply, making it adaptable across diverse field conditions.

To increase germination, the in-base rear nylon cultipacker levels and breaks up soil clods, pressing the seed into the soil for improved seed-to-soil contact, firms the seed bed, and creates furrows to trap and channel water.

Answer text goes here
Working Width | 60 in. |
Working Width | 152.4 cm |
Overall Width | 68.62 in. |
Overall Width | 154 cm |
Shipping Weight | 524 lb. |
Horsepower | 20-45 hp |
Front Roller Positions | Four positions |
Front Roller Positions - Angle | 0-21 degree (angle) |
Number Of Roller Pins (Front And Rear) | 174 |
Roller Diameter (Front And Rear) | 6.6 in. |
Roller Diameter (Front And Rear) | 16.8 cm |
Front Disc Angle | 0 / 5 / 10 / 15 degree (angle) |
Disc Type | Notched |
Number Of Discs | 8 |
Disc Diameter | 16 in. |
Disc Diameter | 40.6 cm |
Disc Spacing | 7.5 in. |
Disc Spacing | 19 cm |
Category | Limited Category 1, Category 1 |
iMatch™ Compatible | No |
Quick Hitch Compatible | Yes |
Time Period | 1 year |
