John Deere
DH5312
Compact Tractors Attachments

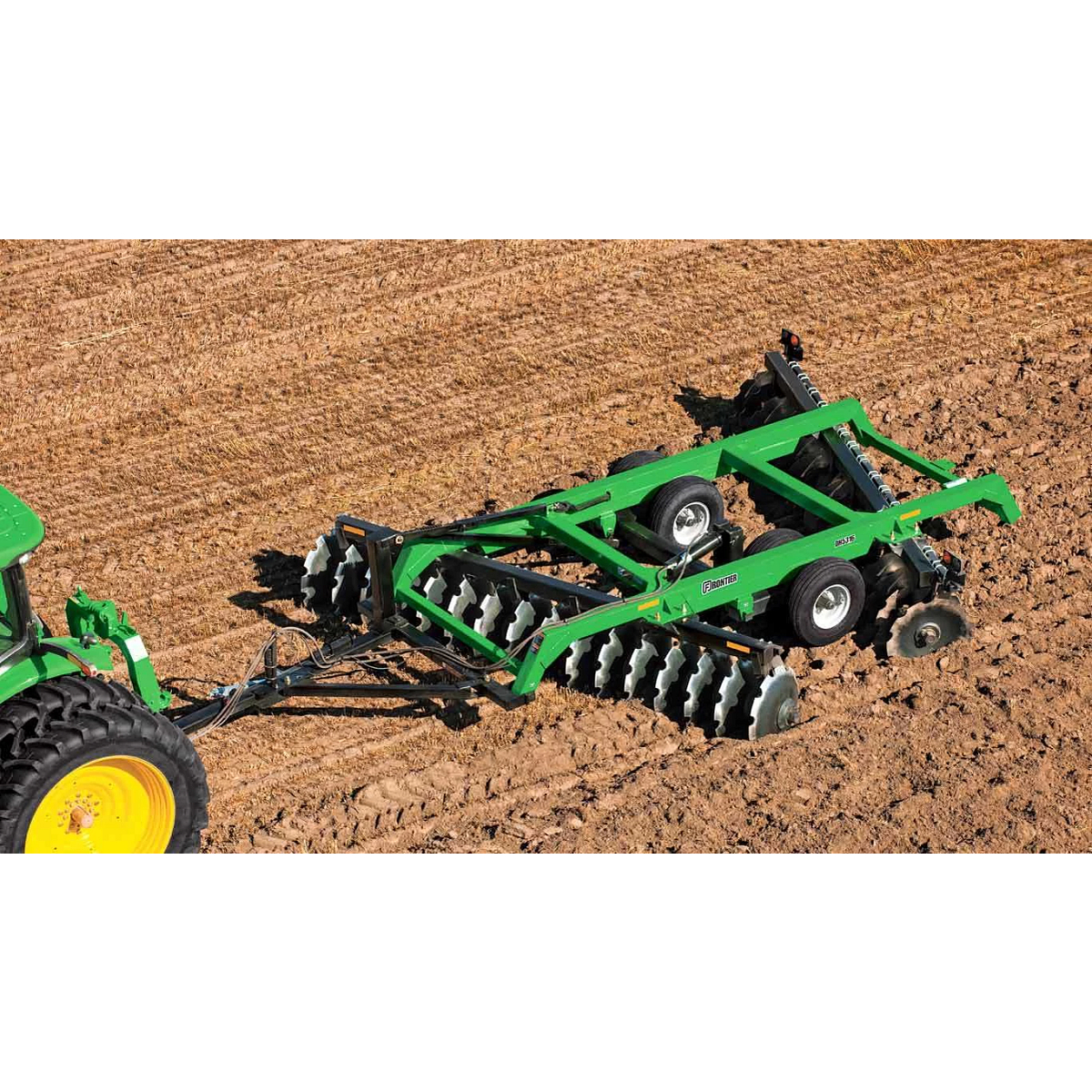

John Deere DH5312

Starting at

End Washers and Wrenches Keep Gang Shaft End Nut Tight

End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life. Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.

Close-up of an offset disk's end washer and nut, keeping gang tightened
Adjustable Disk Blade Scrapers Increase Productivity

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

Close up view of DH5110 Disk Harrow in field
Clevis Hitch Is Durable for Those Tough Working Conditions

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Clevis Hitch is Durable for Those Tough Working Conditions
Question text goes here

Answer text goes here

Transport
Transport - Width

13 ft

Transport - Width

4 m

Ground Clearance With Base Blades

9 in.

Ground Clearance With Base Blades

22.9 cm

Wheel Hub Bearings

Dual Tapered Roller Bearings

Working Adjustments
Approximate Working Width

12 ft

Approximate Working Width

3.7 m

Maximum Penetration

0.75 ft

Maximum Penetration

0.229 m

Dimensions
Weight Per Disk

397 lb.

Weight Per Disk

180.1 kg

Weight
Net

9140 lb.

Net

4145.8 kg

Weight Per Disk Blade

397 lb.

Weight Per Disk Blade

180.1 kg

Tractor Requirements
Recommended PTO HP Range

165-200 hp

Recommended PTO HP Range

123-149 kW

Recommended Drawbar HP Range

140-170 hp

Recommended Drawbar HP Range

104.4-126.8 kW

Frame
Type

Single offset rigid

Duty

Heavy

Tube Size

6x6x0.375 in., 15.2x15.2x0.95 cm

Main Frame Tube

6x6x0.375 in., 15.2x15.2x0.95 cm

Hitch
Front Hitch Type

Spade

Disks
Spacing

12 in.

Spacing

30.5 cm

Quantity

25

Notched (Front) Notched (Rear)

Standard

Blade Concavity

Standard: high; Optional: low

Available blade sizes
Blade Option One

28x0.375 in.

Blade Option One

711x9.5 mm

Blade Option Two

30x0.375 in.

Blade Option Two

762x9.5 mm

Blade Option Three

32x0.375 in.

Blade Option Three

813x9.5 mm

Disk Gangs
Front Angle

2 Positions degree (angle)

Rear Angle

2 Positions degree (angle)

Axle Size

2.5 in.

Axle Size

6.4 cm

Axle Material

Round heat treated alloy steel threaded on both ends

Bearing Type

Oil bath tapered roller

Bearing Wear Plates

Standard

Bearing Standards

Welded, Reinforced

Scrapers

Adjustable

Lighting and Safety
Markings

SMV

Safety Tow Chain

Yes

Lights

Yes

Tires
Type

Implement- Quantity of 4

Size

12.5L x 15 10 ply

Wheel Hub Type

8 Bolt

Setup Time
Labor Hours

2-3 for two people

Warranty
Time Period

1 year
