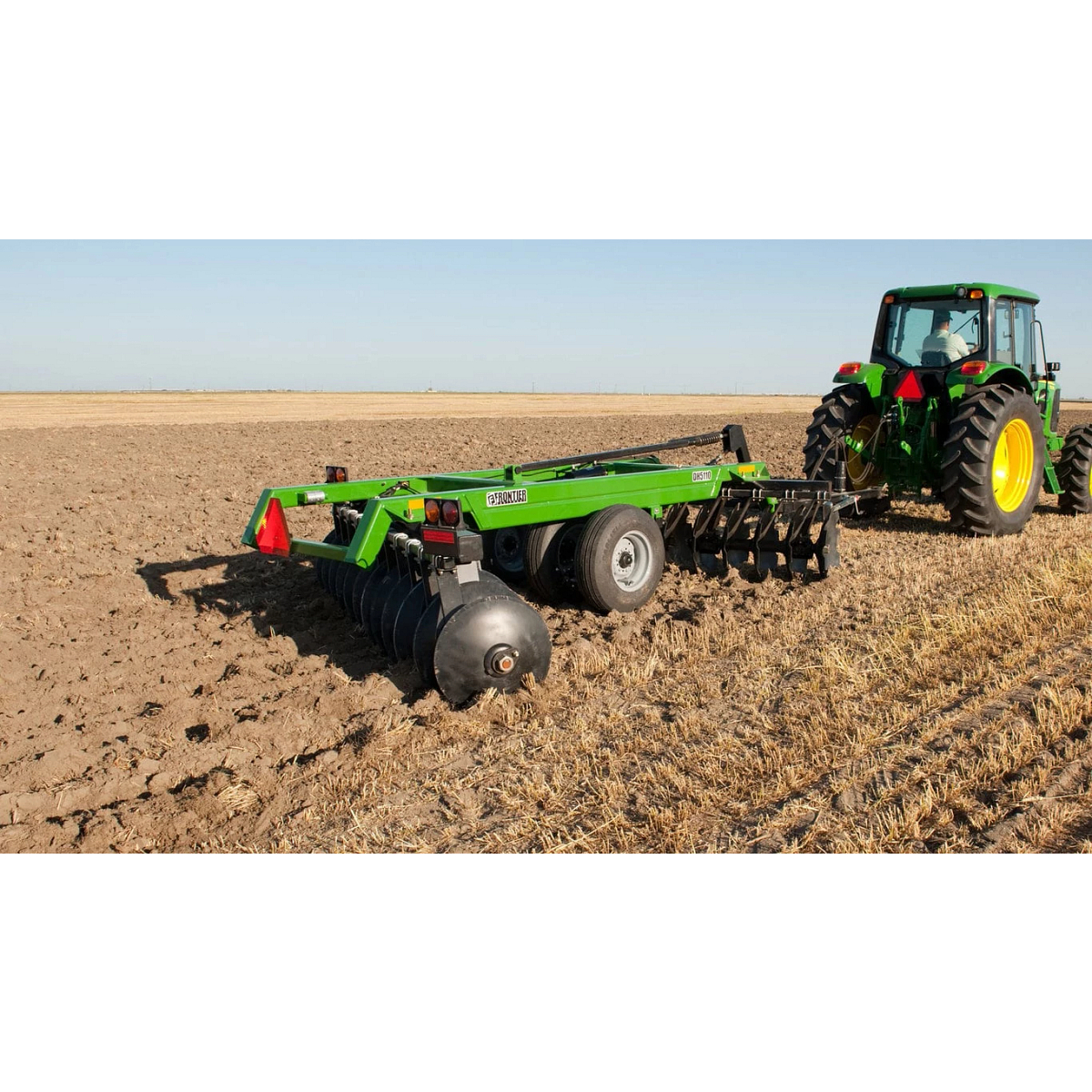

Disk blades are available in 26-in. or 28-in. (66-cm or 71-cm) diameters. Disk blades are available in smooth blades, notched blades, or a combination of front notched blades and rear smooth blades to meet a variety of needs.

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

Answer text goes here
Transport | ||
| Transport - Width | 12.5 ft | 4.4 m 14.33 ft, in. |
| Transport - Width | 3.8 m | 4.4 m 14.33 ft, in. |
| Ground Clearance With Base Blades | 8 in. | -- |
| Ground Clearance With Base Blades | 20.3 cm | -- |
| Wheel Hub Bearings | Dual tapered roller bearings | Greaseable Tapered Roller Bearings |
Working Adjustments | ||
| Approximate Working Width | 20.75 ft | 7.3 m 24 ft |
| Approximate Working Width | 6.3 m | 7.3 m 24 ft |
| Maximum Penetration | 0.75 ft | |
| Maximum Penetration | 0.229 m | |
Dimensions | ||
| Weight Per Disk | 300 lb. | 130.2 kg 287 lb |
| Weight Per Disk | 136 kg | 130.2 kg 287 lb |
Weight | ||
| Net | 14100 lb. | |
| Net | 6395 kg | |
| Weight Per Disk Blade | 300 lb. | 130.2 kg 287 lb |
| Weight Per Disk Blade | 136 kg | 130.2 kg 287 lb |
Tractor Requirements | ||
| Recommended PTO HP Range | 212-259 hp | |
| Recommended PTO HP Range | 158-193 kW | |
| Recommended Drawbar HP Range | 180-220 hp | 178.2-197.6 kW 239-265 hp |
| Recommended Drawbar HP Range | 134.2-164.1 kW | 178.2-197.6 kW 239-265 hp |
Frame | ||
| Type | Single Offset Folding | Offset |
| Duty | Medium | |
| Tube Size | 6x6x0.375 in., 15.2x15.2x0.95 cm | |
| Main Frame Tube | 6x6x0.375 in., 15.2x15.2x0.95 cm | |
Hitch | ||
| Front Hitch Type | Spade | |
Disks | ||
| Spacing | 10.5 in. | 27.9 cm 11 in. |
| Spacing | 26.7 cm | 27.9 cm 11 in. |
| Quantity | 49 | 54 |
| Notched (Front) Notched (Rear) | Standard | |
| Smooth (Front) Smooth (Rear) | Optional | |
| Notched (Front) Smooth (Rear) | Optional | |
| Blade Concavity | Standard: high, Optional: low | |
Available blade sizes | ||
| Blade Option One | 26x0.312 in. | 711.2x7.9 mm 28x0.312 in. |
| Blade Option One | 660x7.9 mm | 711.2x7.9 mm 28x0.312 in. |
| Blade Option Two | 28x0.312 in. | |
| Blade Option Two | 711x7.9 mm | |
Disk Gangs | ||
| Front Angle | 2 Positions degree (angle) | Up to 45 degrees hydraulic |
| Rear Angle | 2 Positions degree (angle) | |
| Axle Size | 1.625, 2.125 in. | 4.1 cm 1.625 in. |
| Axle Size | 4.1, 5.4 cm | 4.1 cm 1.625 in. |
| Axle Material | Round heat treated alloy steel threaded on both ends | Round Axle |
| Bearing Type | Oil Bath Tapered Roller | |
| Bearing Wear Plates | Standard | Standard |
| Bearing Standards | Welded, Reinforced | |
| Scrapers | Adjustable | Adjustable |
Lighting and Safety | ||
| Markings | SMV | SMV |
| Safety Tow Chain | Yes | |
| Lights | Yes | |
Tires | ||
| Type | Implement- Quantity of 4 | Offset |
| Size | 12.5L x 15 10 ply | |
| Wheel Hub Type | 8 Bolt | |
Setup Time | ||
| Labor Hours | 4-6 for two people | |
Warranty | ||
| Time Period | 1 year | |
